Aheaplus Industrial Pipe Clothes Rack with Top Shelf, 73-Inch Model Instruction Manual

1. Introduzione

This manual provides detailed instructions for the assembly, installation, and proper use of your Aheaplus Industrial Pipe Clothes Rack with Top Shelf. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

2. Informazioni sulla sicurezza

• Assicurarsi che tutti i componenti siano presenti e integri prima del montaggio. Non utilizzare se alcuni componenti risultano mancanti o rotti.
• This rack is designed for wall mounting. It must be securely installed into solid wall structures (concrete, tile, or wood studs) to support the stated weight capacity. Installation into drywall without proper anchoring into studs is not recommended and may lead to product failure and injury.
• Durante l'installazione utilizzare sempre gli strumenti e i dispositivi di sicurezza adeguati.
• Do not exceed the maximum weight capacity of 180 lbs (for the 73-inch model) to prevent collapse or damage.
• Tenere i bambini e gli animali domestici lontani dall'area di raccolta.

3. Contenuto della confezione

Verificare che tutti i componenti elencati di seguito siano inclusi nel pacchetto:

• Metal Pipe Sections (various lengths and connectors)
• MFC Wood Board Shelves (2 units)
• Asta di sospensione
• Wall Mounting Flanges
• Screws and Wall Anchors (for solid walls)
• Strumenti di montaggio (ad esempio, chiave a brugola, se necessario)
• Manuale di istruzioni

Image 1: Assembled Aheaplus Industrial Pipe Clothes Rack with Top Shelf, 73-inch model, displaying its full structure and storage capabilities.

4. Specifiche

5. Configurazione e installazione

Careful installation is crucial for the stability and safety of this wall-mounted rack. It is recommended to have at least two people for installation.

5.1 Strumenti necessari (non inclusi)

• Trapano
• Drill bits appropriate for wall anchors and screws
• Livello
• Nastro di misurazione
• Matita
• Stud Finder (if installing into wood studs)
• Cacciavite

5.2 Fasi di assemblaggio

1. Disimballare e identificare le parti: Lay out all components on a clean, flat surface. Refer to the parts list (Section 3) and the included diagram to identify each piece.
2. Assemble Pipe Sections: Connect the various metal pipe sections according to the provided diagram. Ensure all connections are hand-tightened initially. The design includes sturdy construction and industrial pipe aesthetics.


   Image 2: Detail showing the robust pipe connections and industrial design elements.

3. Fissare i ripiani: Secure the MFC wood board shelves to the assembled pipe frame using the designated screws. Ensure the shelves are oriented correctly.
4. Attach Hanging Rod: Integrate the hanging rod into the lower pipe structure. Ensure it is firmly in place.
5. Serraggio finale: Once all components are loosely assembled, go back and securely tighten all connections with the appropriate tools. Do not overtighten.

5.3 Montaggio a parete

1. Scegli la posizione: Select a suitable wall location, ensuring it is a solid wall (concrete, tile, or has wood studs) capable of supporting the rack's weight and contents.
2. Segnare i punti di foratura: Hold the assembled rack against the wall at the desired height. Use a level to ensure it is perfectly horizontal. Mark the drilling points for the wall mounting flanges with a pencil. It is crucial for the rack to be level for proper function and appearance.
3. Praticare i fori pilota: Drill pilot holes at the marked locations. The size of the drill bit should match the wall anchors provided.
4. Inserisci i tasselli a muro: Insert the wall anchors into the pilot holes. For wood studs, anchors may not be necessary, but ensure screws are long enough to penetrate deeply.
5. Secure Rack to Wall: Align the wall mounting flanges of the rack with the installed anchors/holes. Insert and tighten the screws to secure the rack firmly to the wall. Ensure all mounting points are tight and the rack is stable before proceeding.
6. Verifica stabilità: Gently pull on the installed rack to confirm it is securely fastened and does not wobble.

Image 3: Dimensional diagram of the 73-inch rack, indicating weight distribution and overall size.

6. Funzionamento e utilizzo

The Aheaplus Industrial Pipe Clothes Rack is designed for versatile storage in various settings.

6.1 Appendere i vestiti

• Use the lower pipe as a hanging rod for garments such as shirts, dresses, coats, and pants.
• Distribute weight evenly along the rod to maintain balance and prevent stress on the mounting points.

6.2 Shelf Storage

• The two top shelves provide space for folded clothing, accessories, bags, hats, or decorative items.
• Ensure heavier items are placed closer to the wall or distributed across the shelves to maintain stability.

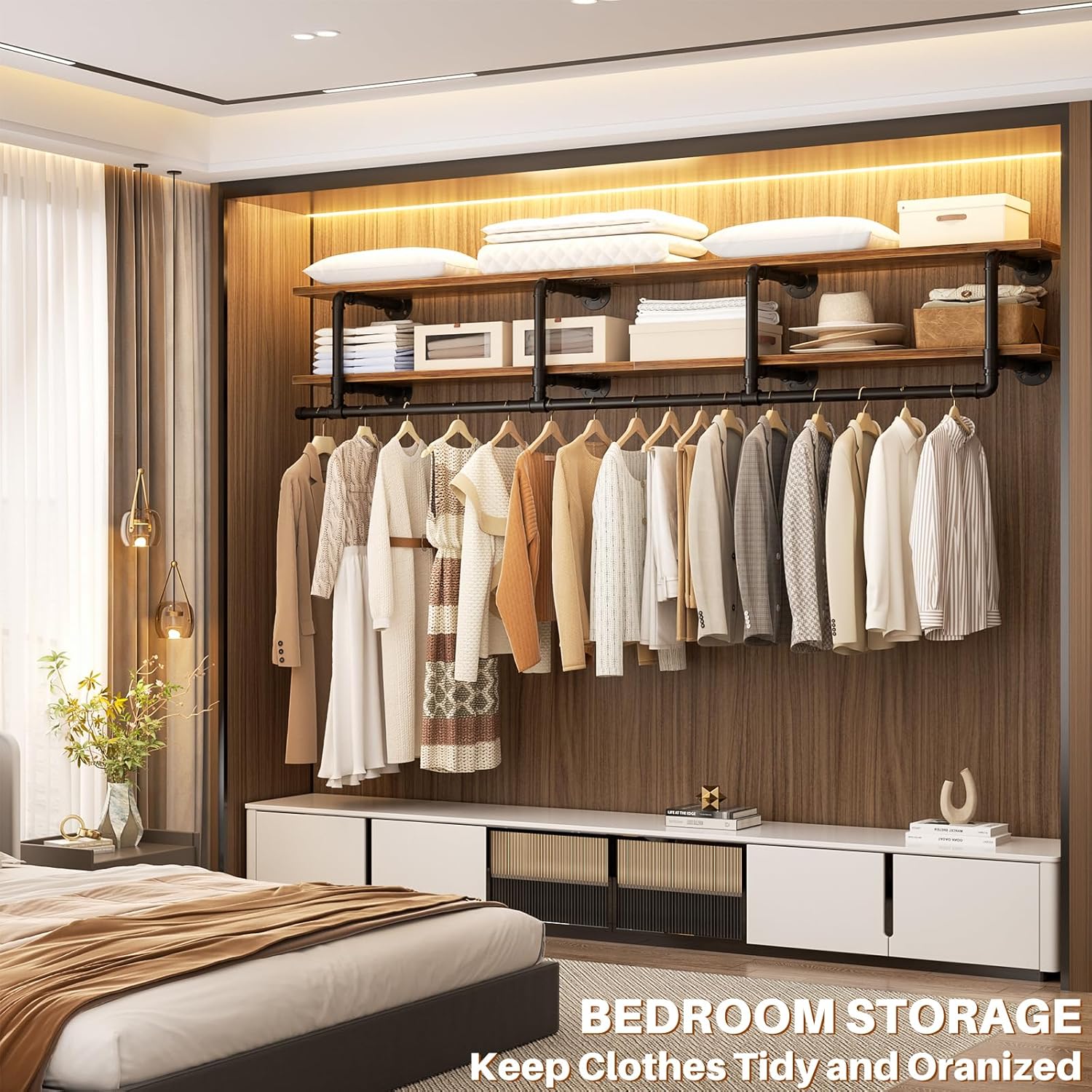

Immagine 4: Es.ample of the rack used in a bedroom for organized clothing and accessory storage.

Immagine 5: Es.ample of the rack used in a laundry room for storing towels and other items above washing machines.

7. Manutenzione

• Pulizia: Wipe down the metal pipes and wood shelves with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish. The MFC wood board is waterproof, allowing for easy cleaning.
• Ispezione: Controllare periodicamente tutte le viti e i collegamenti per assicurarsi che siano ben serrati. Serrare nuovamente se necessario.
• Distribuzione del peso: Always ensure weight is distributed evenly to prevent undue stress on any single point of the rack or its wall mounts.

8. Risoluzione Dei Problemi

9. Garanzia e supporto

Aheaplus is committed to providing quality products and customer satisfaction.

• Assistenza clienti: We offer lifetime customer support for this product. If you encounter any issues or have questions, please contact Aheaplus customer service.
• Informazioni sui contatti: Refer to the product packaging or the Aheaplus official websito per i dettagli di contatto più aggiornati del servizio clienti.
