Technical Precision Replacement Tilt/Trim Motor for Mercury Outboard 2009 150 HP 4-Stroke Verado (Model TZ-DYG5-E) - Instruction Manual

Introduzione

This instruction manual provides essential information for the proper installation, operation, and maintenance of your Technical Precision Replacement Tilt/Trim Motor, Model TZ-DYG5-E. This unit is designed as a replacement for the tilt/trim motor found in Mercury Outboard 2009 150 HP 4-Stroke Verado engines. Please read this manual thoroughly before installation and use to ensure safe and effective performance.

Informazioni sulla sicurezza

Avvertimento: Working with marine electrical systems and heavy machinery can be hazardous. Improper installation or maintenance can result in serious injury or damage to equipment. It is highly recommended that installation and any complex maintenance be performed by a qualified marine technician.

• Always disconnect the battery before performing any work on the outboard motor's electrical system.
• Ensure the outboard motor is securely supported before working on the tilt/trim unit.
• Indossare adeguati dispositivi di protezione individuale, tra cui occhiali e guanti di sicurezza.
• Tenere le mani e gli indumenti lontani dalle parti in movimento.
• Refer to your Mercury Outboard service manual for specific safety procedures related to your engine model.

Contenuto della confezione

Dopo aver aperto la confezione, verificare che tutti i componenti siano presenti e integri:

• 1 x Technical Precision Replacement Tilt/Trim Motor (Model TZ-DYG5-E)

Se qualche articolo risulta mancante o danneggiato, contattare immediatamente il fornitore.

Configurazione e installazione

This section outlines the general steps for replacing the tilt/trim motor. Specific procedures may vary based on your Mercury Outboard model. Consult your engine's service manual for detailed instructions.

1. Preparazione:
   • Ensure the boat is on a stable surface or trailer.
   • Tilt the outboard motor fully up and engage the tilt support lever to prevent accidental lowering.
   • Disconnect the boat's battery to prevent electrical shock or short circuits.
   • Gather necessary tools, which typically include wrenches, sockets, screwdrivers, and possibly a fluid drain pan.
2. Rimuovere il vecchio motore:
   • Locate the existing tilt/trim motor on your outboard.
   • Carefully disconnect the electrical wires from the old motor, noting their connections for reinstallation.
   • If applicable, drain the hydraulic fluid from the tilt/trim system into a suitable container.
   • Unbolt and remove the old tilt/trim motor from its mounting bracket.
3. Installare il nuovo motore:
   • Position the new Technical Precision replacement motor (Model TZ-DYG5-E) into the mounting bracket.
   • Secure the motor with the appropriate bolts, ensuring they are tightened to the manufacturer's specifications (refer to your Mercury Outboard service manual).
   • Reconnect the electrical wires to the new motor, matching the connections noted during removal. Ensure all connections are clean and secure.
   • If hydraulic fluid was drained, refill the system with the recommended marine hydraulic fluid to the proper level. Bleed the system according to your outboard's service manual to remove any air.
4. Controlli finali:
   • Double-check all electrical connections and mounting bolts for tightness.
   • Ensure no tools or debris are left in the work area.
   • Reconnect the boat's battery.

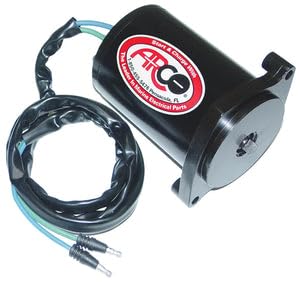

Figure 1: The Technical Precision replacement tilt/trim motor. This image shows the compact black motor unit with attached electrical wiring and connectors, ready for installation.

Istruzioni per l'uso

After successful installation, operate the tilt/trim motor as follows:

1. Test iniziale:
   • With the battery reconnected, carefully remove the tilt support lever.
   • Using the tilt/trim switch on your boat's control panel or throttle, slowly operate the motor to raise and lower the outboard.
   • Observe for smooth operation, proper range of motion, and any unusual noises.
   • Check for any hydraulic fluid leaks if the system was drained and refilled.
2. Funzionamento normale:
   • The tilt function is used to raise the outboard completely out of the water for trailering, beaching, or maintenance.
   • The trim function allows for fine adjustment of the outboard's angle while underway, optimizing boat performance, fuel efficiency, and ride comfort.

Manutenzione

The Technical Precision Replacement Tilt/Trim Motor is designed for durability. Regular maintenance of your overall outboard system will contribute to its longevity.

• Ispezione periodica: Regularly inspect the motor and its wiring for any signs of corrosion, wear, or damage.
• Collegamenti elettrici: Ensure all electrical connections remain clean, tight, and free of corrosion. Apply marine-grade dielectric grease to connections for added protection.
• Fluido idraulico: If your system requires it, periodically check the hydraulic fluid level and top up as necessary with the manufacturer-recommended fluid.
• Pulizia: Keep the exterior of the motor clean and free of salt residue or debris, especially after use in saltwater environments.

Risoluzione dei problemi

If you encounter issues with your tilt/trim motor, consider the following common troubleshooting steps:

If these steps do not resolve the issue, it is recommended to seek assistance from a qualified marine service technician.

Specifiche

• Modello: TZ-DYG5-E
• Marca: Precisione tecnica
• Compatibilità: Replacement for Mercury Outboard 2009 150 HP 4-Stroke Verado Tilt/Trim Motor
• Produttore: Precisione tecnica
• Tipo di parte: Marine Tilt/Trim Motor

Garanzia e supporto

For information regarding warranty coverage, terms, and conditions for your Technical Precision Replacement Tilt/Trim Motor, please refer to the documentation provided at the time of purchase or contact Technical Precision directly through their official channels. For technical support or further assistance, please reach out to the seller or manufacturer.

Produttore: Precisione tecnica

Contatto: Please refer to the contact information provided with your purchase or visit the Technical Precision brand store on Amazon: Negozio di precisione tecnica
