VASAGLE Custos Collection LBC402W01 Bookcase Instruction Manual

Informazioni importanti sulla sicurezza

• Leggere attentamente tutte le istruzioni prima del montaggio e dell'uso.
• Tenere tutte le piccole parti e i materiali di imballaggio fuori dalla portata dei bambini.
• Montare l'unità su una superficie morbida e pulita per evitare graffi.
• Assicurarsi che tutte le viti e gli elementi di fissaggio siano ben serrati prima dell'uso. Controllare periodicamente e serrare nuovamente se necessario.
• Do not overload shelves. Each shelf supports up to 10 kg (22 lbs).
• Always use the included anti-tip kit to secure the bookcase to a wall. This prevents accidental tipping and serious injury.
• Non salire o sostare sull'unità.
• Se qualche parte risulta mancante o danneggiata, non procedere con il montaggio. Contattare l'assistenza clienti per ricevere assistenza.

Elenco delle parti

Before starting assembly, verify that all components listed below are present. Refer to the packaging for numbered parts.

• A: Pannelli laterali (2)
• B: Pannello superiore (1)
• C: Pannello inferiore (1)
• D: Fixed Shelves (2)
• E: Ripiani regolabili (3)
• F: Back Panels (multiple)
• G: Porte (2)
• H: Door Hinges (4)
• I: Door Handles (2)
• J: Hardware Kit (screws, dowels, cam locks, shelf pins, anti-tip kit)

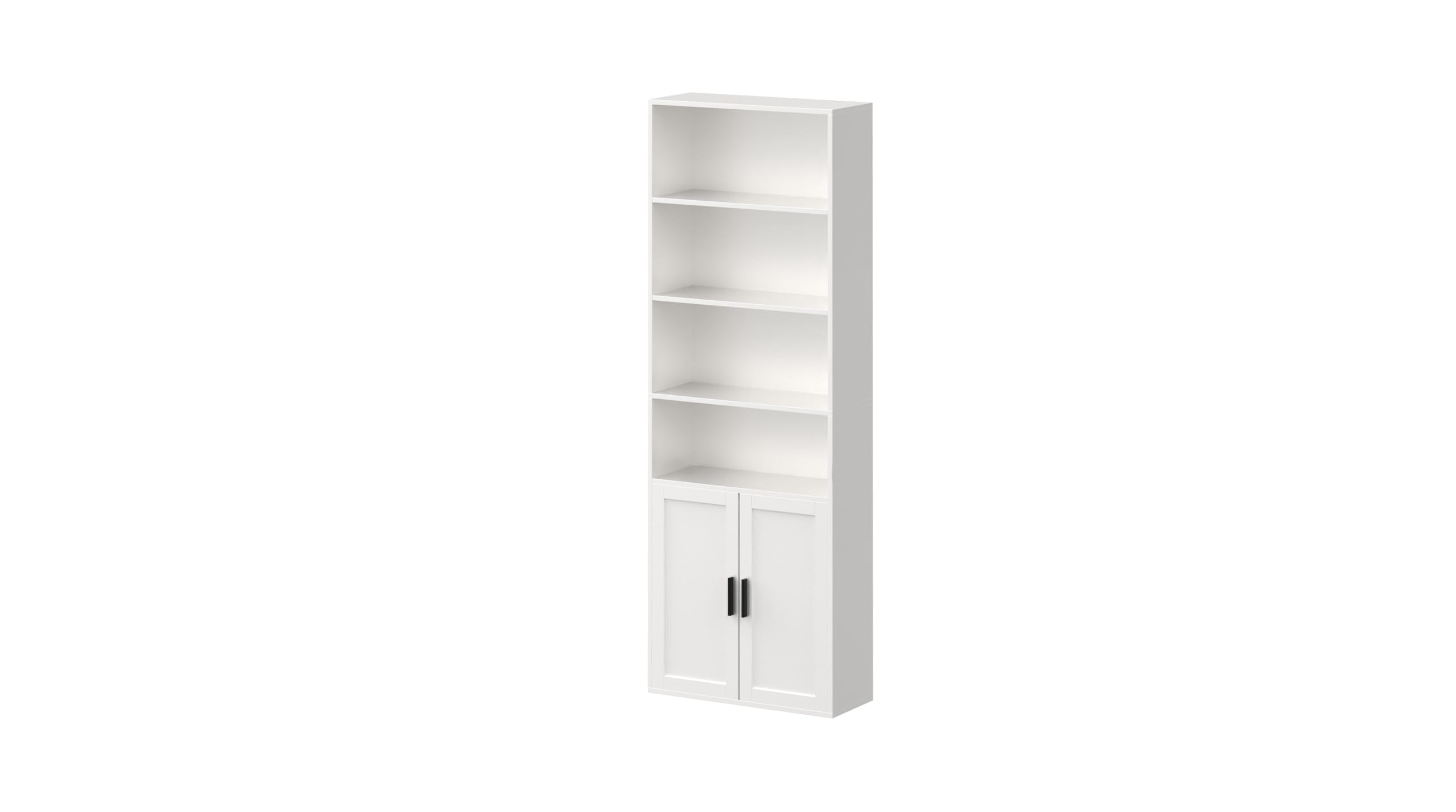

Immagine: Oltreview of the VASAGLE Custos Collection LBC402W01 Bookcase. This image shows the assembled bookcase with its six tiers, including open shelves and a closed cabinet section with doors.

Istruzioni di montaggio (installazione)

Seguire attentamente questi passaggi per un montaggio corretto. Si consiglia di essere in due per il montaggio.

1. Preparare l'area di lavoro: Clear a spacious area and lay down a blanket or cardboard to protect the furniture pieces and your floor.
2. Identificare le parti: Unpack all components and identify them using the provided parts list and labels.
3. Assemblare la base: Attach the bottom panel (C) to the side panels (A) using the designated screws and dowels from the hardware kit (J). Ensure cam locks are tightened securely.
4. Installare ripiani fissi: Insert the fixed shelves (D) into the pre-drilled holes on the side panels (A) and secure them with the appropriate fasteners.
5. Fissare i pannelli posteriori: Carefully align and attach the back panels (F) to the rear of the assembled frame using small nails or screws provided. Ensure the unit is square.
6. Installare il pannello superiore: Secure the top panel (B) to the side panels (A) using screws and cam locks.
7. Porte di collegamento: Mount the door hinges (H) to the doors (G) and then attach the doors to the designated section of the bookcase. Adjust hinges for proper alignment. Install door handles (I).
8. Inserire ripiani regolabili: Place the shelf pins into the desired holes for the adjustable shelves (E). Carefully place the adjustable shelves onto the pins.
9. Fissaggio con kit antiribaltamento: Attach the anti-tip kit (J) to the top rear of the bookcase and securely fasten it to a wall stud using appropriate wall anchors. This step is crucial for safety.
10. Controllo finale: Ensure all connections are tight and the bookcase is stable.

Istruzioni per l'uso

Regolazione degli scaffali

The VASAGLE Custos Collection LBC402W01 Bookcase features adjustable shelves (E) to accommodate items of various heights. The 1st, 4th, and 5th shelves (counting from the bottom) are adjustable up to 3cm up and down from their default positions.

1. Svuota lo scaffale che vuoi regolare.
2. Carefully lift the shelf off its support pins.
3. Rimuovere i perni del ripiano dai loro fori attuali.
4. Insert the shelf pins into the desired new set of holes. Ensure pins are inserted at the same height on both sides.
5. Riposizionare il ripiano sui perni, assicurandosi che sia livellato e sicuro.

Utilizzo delle porte

The lower section of the bookcase includes two doors for concealed storage. Gently open and close the doors using the handles. Avoid forcing the doors or hanging heavy items on them.

Manutenzione

• Pulizia: Pulire le superfici con un panno morbido, damp cloth. Avoid harsh chemicals or abrasive cleaners, as these can damage the finish. Dry immediately with a clean cloth.
• Spolverare: Spolverare regolarmente con un panno asciutto e morbido per evitare accumuli.
• Controllo hardware: Periodically check all screws, bolts, and fasteners to ensure they remain tight. Re-tighten as necessary to maintain stability.
• Evitare la luce solare diretta: L'esposizione prolungata alla luce solare diretta può causare sbiadimento o scolorimento.
• Evitare l'umidità: Protect the furniture from excessive moisture and humidity. Wipe up spills immediately.

Risoluzione dei problemi

Issue: Bookcase feels wobbly or unstable.

Soluzione: Ensure all screws and fasteners are fully tightened. Verify that the anti-tip kit is securely installed and anchored to a wall stud. Check if the bookcase is on a level surface; use furniture levelers if needed.

Issue: Doors do not align properly or rub against the frame.

Soluzione: Adjust the door hinges. Most hinges have screws that allow for vertical, horizontal, and depth adjustments. Refer to the hinge manufacturer's instructions or experiment with small adjustments until the doors align correctly.

Problema: parti mancanti o danneggiate durante il montaggio.

Soluzione: Do not proceed with assembly. Contact VASAGLE customer support immediately with your product model number and a description of the missing or damaged parts. Do not attempt to use substitute parts.

Specifiche

Garanzia e supporto

For warranty information, missing parts, or any other inquiries, please contact VASAGLE customer support. Keep your purchase receipt and model number (LBC402W01) handy for faster service.

Visita il sito ufficiale VASAGLE website or your retailer's customer service portal for contact details.
