Güde WM 562 TRI Field Mower Instruction Manual

Introduzione

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Güde WM 562 TRI Field Mower. Please read these instructions carefully before using the machine to ensure proper function and user safety. Keep this manual for future reference.

The Güde WM 562 TRI Field Mower is designed for mowing large areas, fields, and hard-to-reach garden sections. It features a powerful 4-stroke Power-Engine motor and a primer pump for easy starting, ensuring effective cutting even in dense growth.

Istruzioni di sicurezza

AVVERTENZA: leggere tutte le avvertenze e le istruzioni di sicurezza. La mancata osservanza delle avvertenze e delle istruzioni può causare scosse elettriche, incendi e/o lesioni gravi.

• Always wear appropriate personal protective equipment (PPE) including safety glasses, hearing protection, sturdy footwear, and long trousers.
• Assicurarsi che l'area di lavoro sia libera da astanti, in particolare bambini e animali domestici.
• Inspect the machine before each use for any damage or loose parts. Do not operate if damaged.
• Non utilizzare mai il tosaerba in condizioni di bagnato o su pendii eccessivamente ripidi.
• Turn off the engine and disconnect the spark plug before performing any maintenance, cleaning, or when clearing blockages.
• Effettuare il rifornimento in un'area ben ventilata, a motore spento e freddo. Evitare di versare il carburante.
• Keep hands and feet away from the cutting mechanism while the engine is running.
• Store the mower in a secure, dry place, out of reach of children.

For detailed safety information, refer to the complete safety section in the printed manual.

Installazione e assemblaggio

The Güde WM 562 TRI Field Mower requires some assembly before first use. Follow these steps carefully:

1. Disimballaggio: Carefully remove all components from the packaging. Check for any shipping damage and ensure all parts are present according to the packing list.
2. Assemblaggio manubrio: Attach the handlebar to the main unit using the provided bolts and knobs. Ensure it is securely fastened and adjusted to a comfortable operating height.
3. Attacco ruota: If not pre-assembled, attach the large rear wheels. These wheels are crucial for maneuverability.
4. Cutting Head Installation: Install the 4 mm double thread cutting head. Ensure the threads are correctly inserted and secured. Four spare threads are included.
5. Livelli dei fluidi:
   • Olio motore: Fill the engine with 0.5 liters of 15W40 engine oil. Do not overfill.
   • Carburante: Fill the fuel tank with unleaded gasoline (0.8 L capacity). Use a funnel to prevent spills.

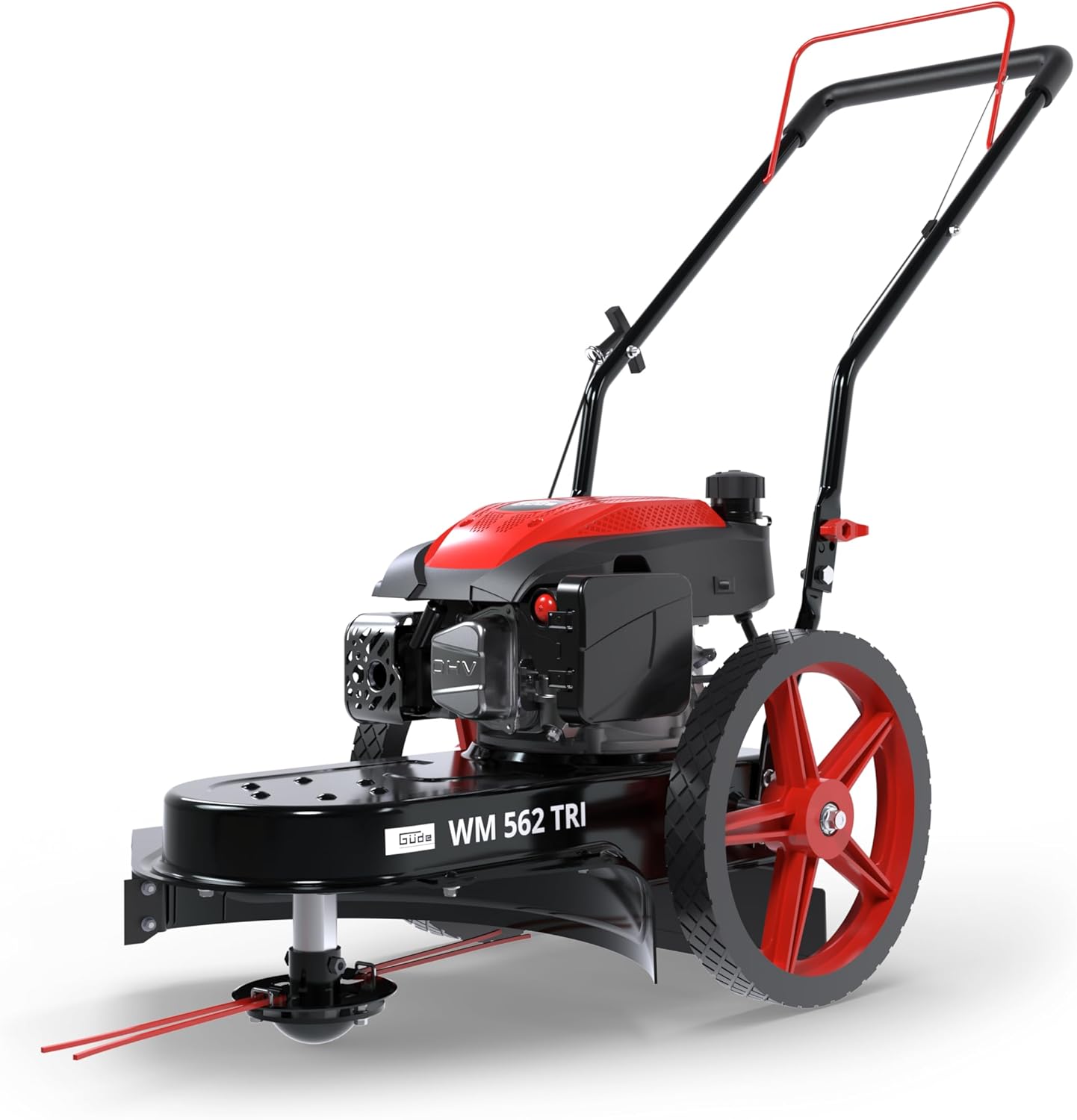

Immagine: Frontale view of the Güde WM 562 TRI Field Mower, showing the engine, cutting head, and large rear wheels. This image illustrates the overall assembled product.

Immagine: Lato view of the Güde WM 562 TRI Field Mower, highlighting the large rear wheels (360 mm) designed for easy maneuvering across uneven terrain.

Istruzioni per l'uso

Avviare il motore:

1. Assicurarsi che il serbatoio del carburante sia pieno e che il livello dell'olio sia corretto.
2. Press the primer pump several times until fuel is visible in the transparent line.
3. Set the choke lever to the "START" position (if applicable).
4. Tirare con decisione la maniglia dell'avviamento a strappo finché il motore non si avvia.
5. Once the engine is running, gradually move the choke lever to the "RUN" position.

Falciatura:

• Adjust the cutting height using the glide bolt mechanism (35-95 mm).
• Push the mower forward at a steady pace. The large rear wheels facilitate movement.
• For dense or tall grass, consider making two passes: one at a higher cutting height, then a second at the desired final height.
• The switchable 4 mm double thread head ensures precise cuts.
• The ball-shaped front gliders help the mower glide smoothly over the ground, protecting sensitive surfaces.

Image: The Güde WM 562 TRI Field Mower demonstrating its effectiveness by showing a clear path cut through tall, dense grass. This highlights its capability for large areas.

Arresto del motore:

• Rilasciare la leva di comando.
• Portare l'interruttore del motore in posizione "OFF".
• Lasciare raffreddare il motore prima di riporlo o di sottoporlo a manutenzione.

Manutenzione

Regular maintenance ensures the longevity and optimal performance of your Güde WM 562 TRI Field Mower.

• Pulizia: After each use, clean the cutting deck and exterior of the mower. Remove grass clippings and debris. Use a brush or cloth; avoid high-pressure washers directly on the engine.
• Controllo dell'olio motore: Check the engine oil level before each use. Top up with 15W40 oil if necessary. Change the oil after the first 5 operating hours, then every 25 operating hours or annually.
• Filtro dell'aria: Pulire regolarmente il filtro dell'aria, soprattutto in ambienti polverosi. Sostituirlo se danneggiato.
• Candela: Inspect the spark plug annually. Clean or replace if fouled or worn.
• Taglio dei fili: Replace worn or broken cutting threads promptly. The mower comes with 4 spare threads.
• Magazzinaggio: Per un rimessaggio prolungato, svuotare il serbatoio del carburante o utilizzare uno stabilizzatore per carburante. Pulire accuratamente il tosaerba e riporlo in un luogo asciutto e protetto.

Risoluzione dei problemi

If problems persist after attempting these solutions, please contact Güde customer service or a qualified service technician.

Specifiche tecniche

Garanzia e supporto

Güde GmbH & Co. KG provides a warranty for this product. Please refer to the warranty card included with your purchase for specific terms and conditions. For technical support, spare parts, or service inquiries, please contact Güde customer service.

Informazioni sui contatti: Refer to the official Güde websito o nella documentazione di acquisto per i dettagli di contatto più aggiornati.

Güde offers a service center with suitable spare parts for all products, including older devices. Qualified personnel are available by phone for assistance with your Güde device. An internal repair service is also available if professional intervention is required.
