1. Introduzione
This manual provides comprehensive instructions for the installation, operation, and maintenance of your GoodHome Bamia GHAGRO90 Black Glass & Stainless Steel Angled Cooker Hood. Designed for efficiency and ease of use, this cooker hood features an innovative motorised centre panel with motion sensor activation, touch controls, and smart technology for automatic adjustment when paired with a compatible GoodHome induction hob. Please read this manual thoroughly before installation and use to ensure safe and optimal performance of your appliance.
2. Informazioni sulla sicurezza
Per evitare lesioni personali o danni all'apparecchio, attenersi sempre alle seguenti precauzioni di sicurezza.
- Prima di qualsiasi installazione, manutenzione o pulizia, assicurarsi che l'alimentazione sia scollegata.
- L'installazione deve essere effettuata da un tecnico qualificato nel rispetto delle normative locali.
- Non utilizzare la cappa senza i filtri antigrasso correttamente installati.
- Pulire regolarmente i filtri antigrasso per mantenere prestazioni ottimali e prevenire rischi di incendio.
- Questo apparecchio è destinato esclusivamente all'uso domestico.
- Tenere i bambini e gli animali domestici lontani dall'apparecchio durante il funzionamento.
- Non flambare sotto la cappa aspirante.
3. Configurazione e installazione
The GoodHome Bamia GHAGRO90 cooker hood comes with all necessary fittings and fixings for installation. It can be configured for either ducted extraction to the outside or recirculation mode using an optional carbon filter (GoodHome Carbon Filter 50, sold separately).
3.1 Disimballaggio dell'Apparecchio
Carefully remove the cooker hood from its packaging. Inspect for any signs of damage during transit. Retain packaging materials for potential future transport or return.

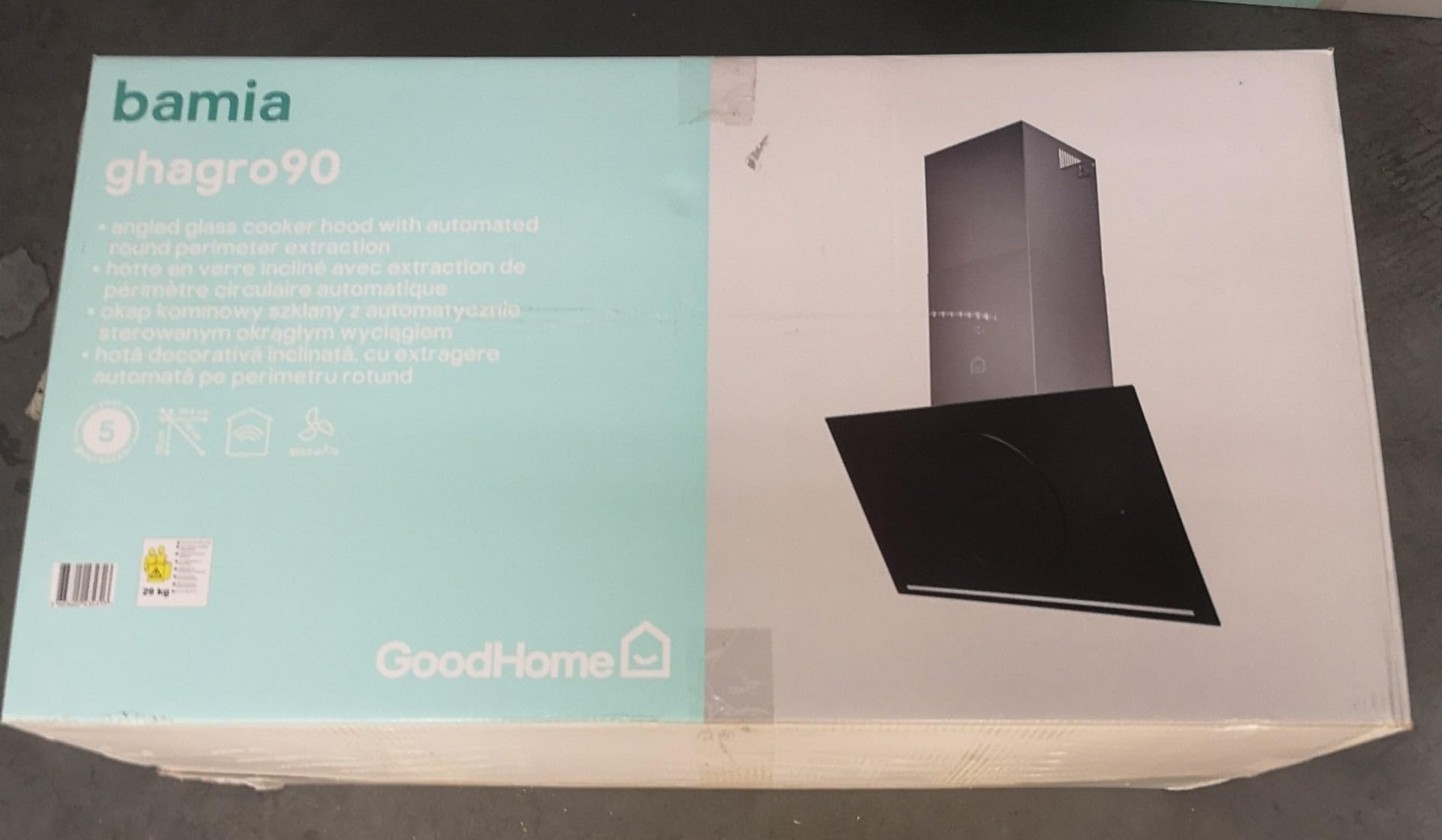

Figure 3.1: The GoodHome Bamia GHAGRO90 cooker hood as packaged in its retail box. The box displays the product name, model number, and key features in multiple languages, alongside an image of the hood.
3.2 Montaggio e collegamento
Refer to the detailed installation diagrams and instructions provided in the separate Manuale di istruzioni included in the box. Ensure adequate clearance above the hob as per safety standards. The hood requires a 240 Volts power supply.
Figure 3.2: An illustrative image of the GoodHome Bamia GHAGRO90 cooker hood, showcasing its sleek black glass and stainless steel design, likely in an installed kitchen environment. This view highlights the angled design and overall aesthetic.
3.3 Ducted vs. Recirculation Mode
- Modalità canalizzata: Air is extracted and vented directly outside through a ducting system. This requires an external vent.
- Modalità di ricircolo: Air is filtered through a carbon filter (to remove odours) and then recirculated back into the kitchen. This mode requires the installation of a GoodHome Carbon Filter 50.
4. Istruzioni per l'uso
The Bamia GHAGRO90 cooker hood offers intuitive touch controls and advanced features for efficient operation.
4.1 Pannello di controllo tattile
The control panel is integrated into the glass surface. Gently touch the icons to activate functions.
Figura 4.1: Un dettaglio view of the touch control interface on the GoodHome Bamia GHAGRO90 cooker hood. This image highlights the sleek, integrated buttons for various functions, including power levels and lighting controls.
4.2 Extraction Levels
The hood features 5 power levels plus a powerful turbo boost option for rapid extraction. Select the appropriate level based on cooking intensity.
4.3 Motion Sensor Activation
The innovative motorised centre panel can be activated by a motion sensor, allowing for hands-free operation and maintaining hygiene. The panel moves out to facilitate extraction when motion is detected.
4.4 Smart Control with GoodHome Induction Hobs
For automatic control, pair your cooker hood with a compatible GoodHome induction hob. The hob will intuitively control the cooker hood's extraction levels based on cooking activity, ensuring optimal air quality with minimal user intervention.
4.5 opzioni di illuminazione
The hood includes contemporary lighting options that can be set as warm or cool, with or without the ambient light enabled. Adjust lighting to suit your kitchen ambiance.
4.6 Funzione timer automatico
The automatic timer function allows the hood to continue removing residual smells from the kitchen for a set period after cooking has finished, ensuring a fresh environment.
5. Manutenzione
Regular maintenance ensures the longevity and efficient operation of your cooker hood.
5.1 Pulizia dell'esterno
Clean the black glass and stainless steel surfaces with a soft cloth and a mild, non-abrasive cleaning agent. Avoid harsh chemicals or abrasive materials that could scratch the finish.
5.2 Pulizia del filtro antigrasso
The metal grease filters should be cleaned regularly (e.g., monthly, depending on usage) to prevent grease build-up and maintain extraction efficiency. They can typically be washed by hand with hot soapy water or in a dishwasher.
5.3 Carbon Filter Replacement (Recirculation Mode Only)
If your hood is operating in recirculation mode, the carbon filter (GoodHome Carbon Filter 50) needs to be replaced periodically (typically every 3-6 months, depending on usage). Refer to the separate instruction manual for detailed replacement steps.
6. Risoluzione Dei Problemi
Prima di contattare l'assistenza clienti, fai riferimento ai seguenti problemi comuni e alle loro possibili soluzioni.
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Il cofano non si accende. | Nessuna alimentazione; interruttore automatico scattato. | Controllare il collegamento elettrico; ripristinare l'interruttore automatico. |
| Scarse prestazioni di estrazione. | Clogged grease filters; carbon filter saturated (recirculation); ducting obstruction. | Clean grease filters; replace carbon filter; check ducting for blockages. |
| Le luci non funzionano. | Faulty LED module; power issue. | Per la sostituzione dei LED, contattare personale di assistenza qualificato. |
| Il sensore di movimento non risponde. | Sensor obstruction; temporary malfunction. | Ensure sensor is clear; power cycle the unit. |
For more detailed troubleshooting or issues not listed, please consult the full instruction manual or contact GoodHome customer support.
7. Specifiche
Key technical specifications for the GoodHome Bamia GHAGRO90 Cooker Hood:
| Caratteristica | Dettaglio |
|---|---|
| Modello | Bamia GHAGRO90 |
| Produttore | Buona casa |
| Dimensioni del prodotto (A x L x P) | 113 x 38 x 30 cm (circa) |
| Peso dell'articolo | 29.5 kg |
| Materiale | Vetro, acciaio inossidabile |
| Colore | Nero |
| Livello di rumore | 64 dB |
| Numero di velocità | 5 + Turbo Boost |
| Voltage | 240 Volt |
| Classe di efficienza energetica | Ottimo |
| Consumo energetico annuale | 500 Watt |
| Airflow Displacement (Max) | 851 m³/h (from product description) |
| Caratteristiche speciali | Motion sensor, Touch control, Motorised panel, Smart control with GoodHome hobs, Dimmable lighting (warm/cool), Automatic timer. |
| Componenti inclusi | Instruction Manual, Fittings & fixings |
| Product Identifier (EAN/UPC) | 3663602434313 |
8. Garanzia e supporto
8.1 Informazioni sulla garanzia
GoodHome products are manufactured to high quality standards. For specific warranty terms and conditions applicable to your Bamia GHAGRO90 cooker hood, please refer to the warranty card included with your purchase or visit the official GoodHome websito. Conservare la prova d'acquisto per eventuali reclami in garanzia.
8.2 Assistenza clienti
Should you require assistance with installation, operation, maintenance, or troubleshooting beyond the scope of this manual, please contact GoodHome customer support. Contact details can typically be found on the GoodHome websito o nella documentazione allegata.
