Intelligent Electronic Scale User Manual

1. Introduzione

Thank you for choosing the WBGANG Intelligent Electronic Scale. This advanced 8-electrode body fat scale is designed to provide comprehensive body composition analysis beyond just weight. By utilizing modern technology and a dedicated smartphone application, you can gain a deeper understanding of your physical condition, track progress, and manage health goals effectively. This manual will guide you through the setup, operation, and maintenance of your new scale.

2. Informazioni sulla sicurezza

• Always use the scale on a hard, flat, and stable surface to ensure accurate measurements.
• Do not use the scale on wet or slippery floors to prevent accidents.
• Mantenere la bilancia asciutta. Evitare il contatto con acqua o altri liquidi.
• This scale is for household use only and is not intended for medical diagnosis or treatment. Consult a healthcare professional for medical advice.
• Individuals with pacemakers or other internal medical devices should not use this scale.
• Tenere la bilancia fuori dalla portata dei bambini.
• Non tentare di smontare o riparare la bilancia da soli. In caso di problemi, contattare l'assistenza clienti.
• The glass surface can be slippery when wet. Ensure your feet and the scale surface are dry before use.

3. Contenuto della confezione

Si prega di controllare il pacco per assicurarsi che siano presenti tutti gli articoli:

• 1 x 8 Electrode Body Fat Scale
• 1 x Manuale inglese

4. Prodotto finitoview

The WBGANG Intelligent Electronic Scale features a sleek design with a tempered glass platform, an LED display, and a retractable handle for advanced body composition analysis. The 8 electrodes (4 on the platform, 4 on the handle) enable segmented fine measurement.

Immagine: dall'alto verso il basso view of the scale with the handle folded, displaying the main weighing platform and central electrode.

Immagine: dall'alto verso il basso view of the scale with the handle extended, showing the additional electrodes for comprehensive body analysis.

Immagine: Angolata view of the scale with the handle folded, demonstrating its compact and portable form factor.

5. Impostazione

5.1 Installazione della batteria

1. Individuare il vano batterie nella parte inferiore della bilancia.
2. Aprire il coperchio del vano batterie.
3. Inserire 4 batterie AAA (non incluse), assicurandosi della corretta polarità (+/-).
4. Chiudere saldamente il coperchio del vano batterie.

5.2 Download dell'app e connessione Bluetooth

1. Download the accompanying smartphone application. Cercare the app name (usually mentioned in the packaging or a QR code) on your device's app store (e.g., Apple App Store or Google Play Store).
2. Assicurati che il Bluetooth sia abilitato sul tuo smartphone.
3. Open the downloaded app and follow the on-screen instructions to create a user profile.
4. Step onto the scale to activate it. The scale's display should light up.
5. The app should automatically detect and connect to the scale via Bluetooth. If not, manually search for the device within the app's settings.

6. Istruzioni per l'uso

6.1 Misurazione del peso di base

1. Posizionare la bilancia su una superficie dura e piana.
2. Gently step onto the scale with bare feet. Ensure your feet are positioned on the electrodes.
3. Stand still until your weight is displayed and stabilized on the LED screen.
4. If connected to the app, your weight data will automatically sync to your profile.

6.2 Segmented Body Composition Analysis (8-Electrode Measurement)

For a detailed body composition analysis, including body fat and muscle distribution across different body segments, use the retractable handle.

1. Extend the retractable handle from the scale.
2. Step onto the scale with bare feet, ensuring your feet are on the platform electrodes.
3. Hold the handle firmly with both hands, ensuring your palms are in full contact with the handle electrodes.
4. Stand still and maintain contact with both the platform and handle electrodes until the measurement is complete. The app will display a progress indicator.
5. Once complete, the app will show 25 body data points, including weight, body fat, bone mass, BMI, and segmented analysis for arms, torso, and legs.

Image: A user standing on the scale for a weight measurement, demonstrating proper foot placement on the electrodes.

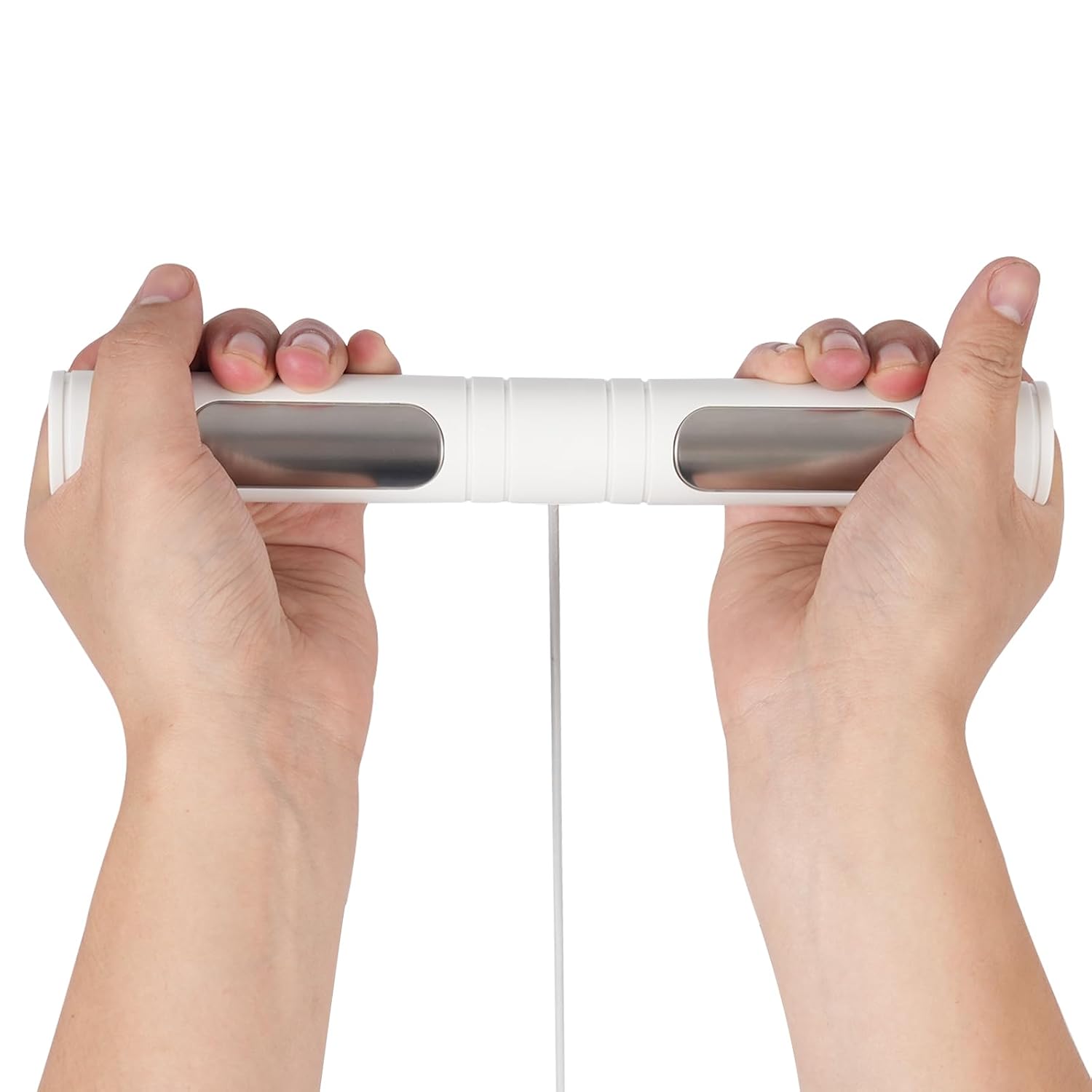

Image: Hands holding the retractable handle, illustrating the correct way to make contact with the handle electrodes for segmented analysis.

Image: The scale in use, with the companion app on a smartphone displaying detailed body composition data after a measurement.

6.3 Selezione delle unità

The scale supports weighing units in kilograms (kg), pounds (lb), and stones (st). You can typically change the unit setting within the smartphone application or via a button on the underside of the scale (if available).

6.4 Gestione multiutente

The app allows for the creation of up to 8 user profiles. Each user's data is stored separately, enabling personalized tracking for family members or individuals with different fitness goals. Ensure the correct user profile is selected in the app before taking a measurement.

7. Manutenzione

7.1 Pulizia

• Pulisci la superficie della bilancia con un panno morbido eamp stoffa.
• Non utilizzare detergenti abrasivi, prodotti chimici aggressivi e non immergere la bilancia in acqua.
• Assicurarsi che la bilancia sia completamente asciutta prima di riporla o di utilizzarla nuovamente.

7.2 Conservazione

• Conservare la bilancia in un luogo fresco e asciutto, lontano dalla luce solare diretta e da temperature estreme.
• Evitare di posizionare oggetti pesanti sulla bilancia quando non viene utilizzata.

7.3 Sostituzione della batteria

When the display shows "LO", it indicates low battery. Replace all 4 AAA batteries simultaneously with new ones to ensure optimal performance.

8. Risoluzione Dei Problemi

• "LO" displayed: Indica che la batteria è scarica. Sostituire le 4 batterie AAA.
• "ERR" displayed: Indicates overload. The maximum weight capacity has been exceeded. Step off the scale immediately.
• Letture imprecise: Ensure the scale is on a hard, flat surface. Avoid carpets or uneven floors. Ensure your feet are bare and dry, and positioned correctly on the electrodes.
• Nessuna visualizzazione: Controllare che le batterie siano inserite correttamente e non siano scariche.
• L'app non si connette tramite Bluetooth: Ensure Bluetooth is enabled on your phone. Restart the app and the scale. Try re-pairing the device within the app settings.
• Nessun dato sulla composizione corporea: Ensure you are standing barefoot on the scale and holding the handle with bare hands, making full contact with all 8 electrodes.

9. Specifiche

Image: Product dimensions for the WBGANG Intelligent Electronic Scale.

10. Garanzia e supporto

For warranty information and customer support, please refer to the documentation included with your purchase or visit the official WBGANG websito. Conservare la ricevuta d'acquisto come prova d'acquisto per eventuali reclami in garanzia.
