RAOO MIN F8000H Electric Treadmill User Manual

Introduzione

Thank you for choosing the RAOO MIN F8000H Electric Treadmill. This manual provides essential information for the safe and efficient operation, setup, maintenance, and troubleshooting of your new fitness equipment. Please read this manual thoroughly before initial use and retain it for future reference.

Importanti istruzioni di sicurezza

To reduce the risk of serious injury, read all important precautions and instructions in this manual before using the treadmill. RAOO MIN assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

• Posizionare sempre il tapis roulant su una superficie piana.
• Tenere i bambini e gli animali domestici lontani dal tapis roulant durante il funzionamento.
• Prima di avviare il tapis roulant, assicurarsi che la chiave di sicurezza sia correttamente inserita.
• Non utilizzare il tapis roulant se il cavo o la spina sono danneggiati o se non funziona correttamente.
• Durante l'uso, indossare calzature sportive adatte.
• Non superare il peso massimo dell'utente di 100 kg (220 libbre).

Cosa è incluso

Verificare che tutti i componenti siano presenti prima del montaggio:

• Telaio principale x 1
• Chiave esagonale x 1
• Telecomando x 1
• Viti x 2
• iPad holder x 1
• Olio di silicone x 1
• Manopola x 2

Image: All components included with the RAOO MIN F8000H Treadmill, including the main frame, remote control, safety key, iPad holder, silicone oil, and hexagonal wrench.

Installazione e assemblaggio

The RAOO MIN F8000H treadmill is designed for easy setup. Follow these steps to prepare your treadmill for use:

1. Disimballaggio: Rimuovere con attenzione tutti i componenti dalla confezione.
2. Posizionamento: Place the main frame on a flat, stable surface, ensuring adequate space around the unit for safe operation.
3. Handlebar Assembly (if applicable): If the handlebar is folded, raise it to the upright position until it locks securely.
4. iPad/Phone Holder Installation: Attach the iPad/phone holder to the designated slot on the console.
5. Collegamento elettrico: Collegare il cavo di alimentazione a una presa elettrica dotata di messa a terra.
6. Chiave di sicurezza: Attach the safety key to the console and clip the other end to your clothing before starting any exercise.

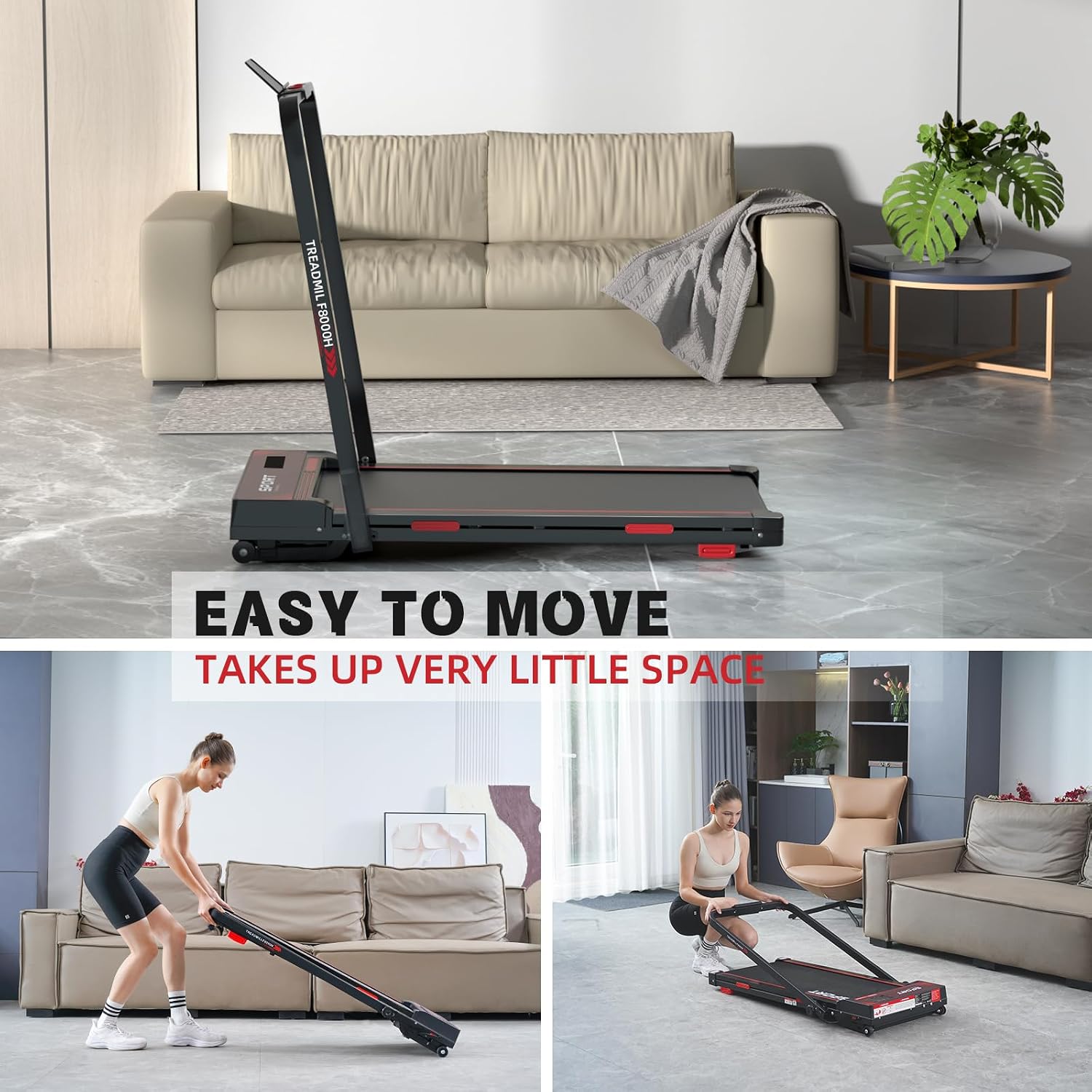

Image: The RAOO MIN F8000H Treadmill demonstrating its easy folding mechanism and portability, highlighting its space-saving design.

Istruzioni per l'uso

The RAOO MIN F8000H offers versatile workout options with its 2-in-1 design and intuitive controls.

2-in-1 Running Mode

• Modalità camminata (1-6 km/h): Ideal for light exercise or warm-ups. In this mode, the handlebar can be folded down for a more compact setup.
• Modalità di corsa (6-12 km/h): For more intense workouts, raise the handlebar to the upright position for stability.

Image: The RAOO MIN F8000H Treadmill showcasing its 2-in-1 functionality, with a user walking in the compact mode and another running with the handlebar raised.

Telecomando e display LED

Use the included remote control to adjust settings during your workout. The integrated LED display provides real-time feedback.

• Regolazione della velocità: Increase or decrease speed using the remote control. The speed range is 1-12 km/h.
• Regolazione dell'inclinazione: The treadmill features an automatic incline function, adjustable up to 10 degrees via the remote control. This simulates uphill walking or running, increasing intensità dell'allenamento.
• LED Display Metrics: The clear LED screen displays:
  • Tempo trascorso
  • Velocità attuale
  • Distanza ricoperta
  • Calorie bruciate
  • Current incline level

Image: The multifunctional LED display of the RAOO MIN F8000H Treadmill, showing various workout metrics such as time, speed, distance, calories, and incline.

Image: A user operating the RAOO MIN F8000H Treadmill with the remote control, demonstrating the automatic incline feature up to 10 degrees for enhanced calorie burning.

Manutenzione

Regular maintenance ensures the longevity and optimal performance of your RAOO MIN F8000H treadmill.

• Pulizia: Pulire il tapis roulant dopo ogni utilizzo con un pannoamp panno per rimuovere sudore e polvere. Non utilizzare detergenti abrasivi.
• Lubrificazione: Periodically lubricate the running belt with the provided silicone oil. Refer to the specific instructions in the full manual for frequency and application method.
• Tensione e allineamento della cinghia: Check the running belt tension and alignment regularly. Adjust as needed using the hexagonal wrench to ensure smooth operation and prevent wear.
• Magazzinaggio: When not in use, the treadmill can be easily folded and stored upright to save space.

Immagine: una sezione trasversale view of the RAOO MIN F8000H Treadmill's 5-layer running belt, illustrating its anti-slip, shock-absorbing, and supportive layers designed for durability and user comfort.

Risoluzione dei problemi

Se riscontri problemi con il tuo tapis roulant, fai riferimento ai seguenti problemi comuni e alle relative soluzioni:

For problems not listed here, or if solutions do not resolve the issue, please contact RAOO MIN customer support.

Specifiche

Image: The RAOO MIN F8000H Treadmill highlighting its powerful and silent 1.5 HP motor, capable of speeds from 1-12 km/h and supporting a load of up to 100 kg.

Image: The spacious running area of the RAOO MIN F8000H Treadmill, measuring 100cm in length and 40cm in width, providing a comfortable and secure walking experience.

Image: Features of the RAOO MIN F8000H Treadmill designed to protect knees and ankles, including 8 silicone shock absorbers, an anti-slip surface, and 5 layers of resistant belt material.

Garanzia e supporto

RAOO MIN provides professional technical support for this product. Several parts are covered by a one-year warranty. Please refer to the product instruction manual for detailed warranty information.

For any questions or assistance, please contact our customer service. We commit to responding within 24 hours with satisfactory solutions.

Informazioni di contatto (ad esempio, e-mail, numero di telefono, website) can typically be found on the product packaging or the official RAOO MIN websito.
