OMOTON Bluetooth Keyboard for Mac (Model: B0DX1VTYGQ)

Introduzione

Thank you for choosing the OMOTON Bluetooth Keyboard. This wireless keyboard is specifically designed for Mac OS devices, including Mac Pro, Mac Mini, iMac, iMac Pro, MacBook Pro, and MacBook Air. It offers multi-device connectivity, a built-in rechargeable battery, and an ergonomic design for comfortable typing. Please read this manual carefully to ensure proper use and optimal performance of your keyboard.

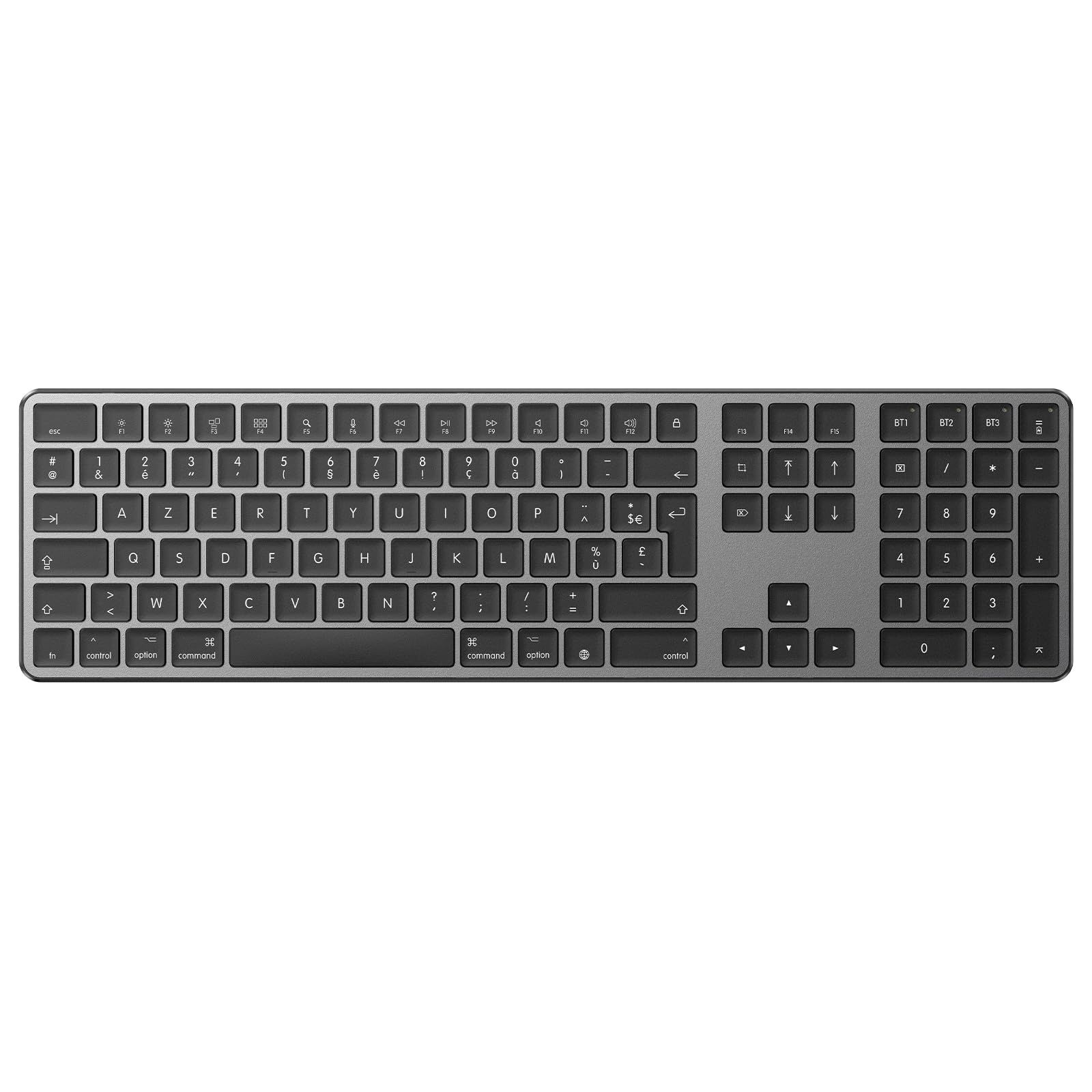

Image: OMOTON Bluetooth Keyboard, a full-size keyboard with a numeric keypad, designed for Mac devices.

Contenuto della confezione

Si prega di controllare il contenuto della confezione dopo averla disimballata:

• Tastiera Bluetooth OMOTON
• Cavo di ricarica USB
• Manuale dell'utente (questo documento)

Impostare

1. Accensione/Spegnimento

Locate the power switch on the keyboard. Slide the switch to the ON position to turn on the keyboard. Slide it to the SPENTO position to turn it off when not in use to conserve battery.

2. Ricarica della tastiera

The keyboard features a built-in rechargeable lithium battery. Use the included USB charging cable to charge the keyboard. Connect one end of the cable to the keyboard's Type-C charging port and the other end to a USB power source (e.g., computer USB port, USB wall adapter).

• Una ricarica completa richiede in genere 2-3 ore.
• La spia di carica indicherà lo stato di carica.

Image: The OMOTON keyboard connected via its Type-C charging port, illustrating the charging process and battery life.

3. Bluetooth Pairing (Multi-Device)

This keyboard supports connection to up to three Bluetooth devices. Follow these steps to pair your keyboard:

1. Assicurati che la tastiera sia accesa.
2. Sul tuo dispositivo Mac, vai a Impostazioni di sistema (O Preferenze di sistema) > Bluetooth and turn Bluetooth On.
3. To pair with the first device, premere a lungo IL Fn + BT1 keys for a few seconds until the BT1 indicator light starts blinking blue. This indicates the keyboard is in pairing mode.
4. On your Mac device, look for "OMOTON Keyboard" in the list of available Bluetooth devices and click to connect. The BT1 indicator will stop blinking once successfully paired.
5. To pair with a second device, repeat steps 3 and 4, but long press Fn + BT2.
6. To pair with a third device, repeat steps 3 and 4, but long press Fn + BT3.

Image: Visual guide showing the steps to connect the OMOTON keyboard via Bluetooth, including turning on the keyboard, activating Bluetooth on Mac, and selecting the keyboard for pairing.

Image: Diagram illustrating the OMOTON keyboard's ability to connect simultaneously to three different devices (laptop, desktop, tablet) via Bluetooth channels BT1, BT2, and BT3.

Operazione

1. Passaggio da un dispositivo all'altro

Once paired with multiple devices, you can easily switch between them by pressione breve IL Fn + BT1, Fn + BT2, O Fn + BT3 keys. The corresponding indicator light will illuminate to show which device is currently active.

2. Using Multimedia Shortcuts

The keyboard features 12 Mac OS multimedia shortcuts for enhanced productivity. These function keys (F1-F12) provide quick access to various system functions. To use them, simply press the desired function key.

• Domanda 1: Diminuire la luminosità
• Domanda 2: Aumentare la luminosità
• Domanda 3: Apri Mission Control
• Domanda 4: Apri Launchpad
• Domanda 5: Cerca
• Domanda 6: Dettatura vocale
• Domanda 7: Traccia precedente
• Domanda 8: Riproduci/Pausa
• Domanda 9: Traccia successiva
• Domanda 10: Muto
• Domanda 11: Diminuire il volume
• Domanda 12: Aumentare il volume

Immagine: dettagliata view of the OMOTON keyboard's multimedia function keys (F1-F12) and their corresponding Mac OS actions, such as brightness control, media playback, and volume adjustment.

3. Design ergonomico

The keyboard is designed with an ergonomic tilt angle and features non-slip rubber pads to reduce wrist fatigue during prolonged typing sessions. The scissor-switch keys provide a quiet, soft, and comfortable typing experience with pleasant tactile feedback.

Image: Illustration comparing the scissor-key mechanism of the OMOTON keyboard with general keys, highlighting the improved comfort and precision for typing.

Manutenzione

1. Pulizia

To clean your keyboard, first ensure it is powered off. Use a soft, lint-free cloth slightly dampened with water or a mild cleaning solution. Avoid using harsh chemicals, abrasives, or excessive moisture, as these can damage the keyboard.

2. Informazioni sulla batteria

The keyboard contains a non-removable rechargeable lithium battery. Do not attempt to replace the battery yourself. For optimal battery life, avoid fully discharging the keyboard frequently and store it in a cool, dry place when not in use for extended periods.

Risoluzione dei problemi

La tastiera non si connette tramite Bluetooth

• Controlla la potenza: Assicurarsi che la tastiera sia accesa e che la batteria sia sufficientemente carica.
• Riparazione: Delete the keyboard from your Mac's Bluetooth device list and attempt to re-pair it following the steps in the "Bluetooth Pairing" section.
• Bluetooth attivato: Verifica che il Bluetooth sia abilitato sul tuo dispositivo Mac.
• Distanza: Ensure the keyboard is within the effective range of your Mac (typically up to 10 meters or 33 feet).
• Interferenza: Allontanarsi da altri dispositivi wireless che potrebbero causare interferenze.

I tasti non rispondono

• Livello della batteria: Check if the keyboard battery is low and recharge it if necessary.
• Connessione: Ensure the Bluetooth connection is stable. Try switching to another paired device and back, or re-pairing.
• Ricomincia: Turn the keyboard off and then on again. Restart your Mac device.

Specifiche

Image: Technical drawing showing the dimensions of the OMOTON keyboard: 434.5mm (17.1in) length and 121mm (4.8in) width, with a thickness of 21.9mm (0.9in).

Garanzia e supporto

I prodotti OMOTON sono coperti da garanzia standard. Per informazioni dettagliate sulla garanzia, supporto tecnico o qualsiasi domanda riguardante il prodotto, consultare la scheda di garanzia inclusa nella confezione o visitare il sito ufficiale OMOTON. website. You may also contact OMOTON customer service directly through the retailer where you purchased the product.
