1. Introduzione
This manual provides essential information for the safe and efficient operation of your Generic 1.5-Amp Smart Battery Charger. This device is a microprocessor-controlled, fully automatic 4-stage battery charger designed for 6V and 12V lead-acid batteries, including AGM, GEL, VRLA, SLA, and WET types. It is ideal for charging and maintaining batteries in cars, motorcycles, ride-on toys, trucks, lawn mowers, boats, and marine vehicles.

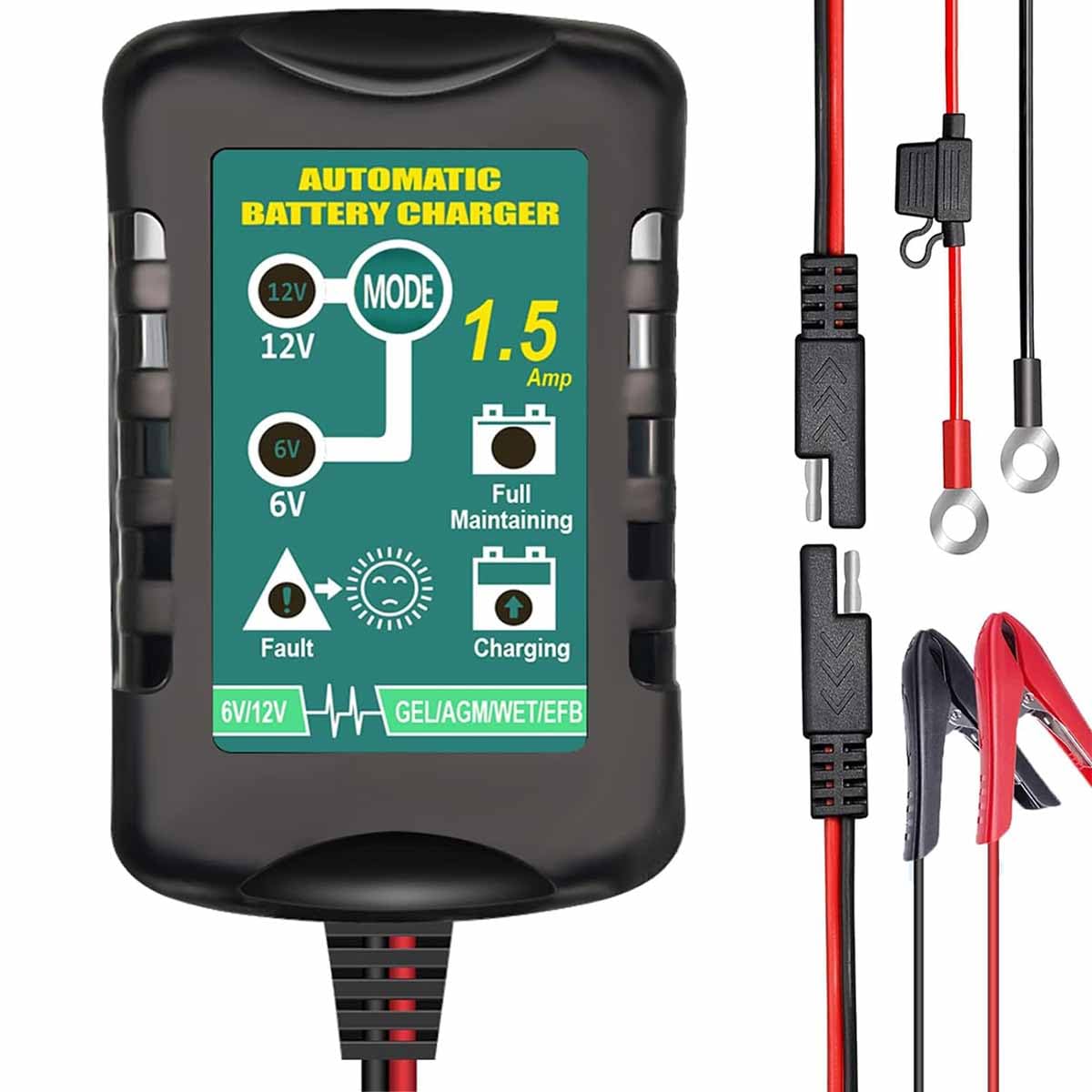

Image 1: The Generic 1.5-Amp Smart Battery Charger with its included clamp and ring connectors.
2. Caratteristiche del prodotto
- Charge and Maintain: Provides 1.5A charging for both 6V and 12V SLA / VRLA / GEL / AGM / WET Lead Acid batteries.
- Ampia compatibilità: Suitable for automotive, motorcycles, ATVs, RVs, watercraft, powersport vehicles, scooters, snowmobiles, campers, trolling motors, and boats.
- Funzionalità di sicurezza avanzate: Automatic protection against short circuit, over voltage, over current, over charge, overload, overheat, and reverse polarity.
- 4-Stage Fully-Automatic Charging: Features a comprehensive 4-step charging program: Initialization, Bulk Charge, Absorption Mode, and Float Mode. Automatically switches to float mode after full charge.
Image 2: Illustration of the wide range of applications for the battery charger, including cars, motorcycles, boats, and lawn mowers.
3. Contenuto della confezione
Aprendo la confezione dovreste trovare i seguenti elementi:
- Caricabatterie x1
- DC Output Cable with Clamp Connettori x1
- DC Output Cable with Ring Connectors x1
- Manuale utente x1 (questo documento)
4. Specifiche
| Caratteristica | Specificazione |
|---|---|
| Ingresso | 100-240VAC @ 50/60Hz 0.5rms |
| Uscita (6 V) | DC 6.9V @ 1.5Amp |
| Uscita (12 V) | DC 13.8V @ 1.5Amp |
| Vol. limitatotage | 7.2~7.3V (for 6V) or 14.5~14.7V (for 12V) |
| Float Current | 300mA ~ 400mA |
| Modalità di ricarica | Completamente automatico |
| Tipi di batteria adatti | 6V or 12V AGM, GEL, VRLA, SLA, WET |
| Carica della capacità della batteria | 6-12Ah |
| Maintaining Battery Capacity | 4-36Ah |
| Dimensioni del caricabatterie | 85mm x 53mm x 39mm (approximately 3.35in x 2.09in x 1.54in) |
| Approvazioni di sicurezza | EN60950-1, EN60335 |
| Conformità EMC | EN55022 |
| Certificazioni | CE, RoHS |
Image 3: Product dimensions: Charger is approximately 3.36 inches long, 2.1 inches wide, and 1.57 inches thick. Cables are 23.6 inches and 47.2 inches long.
5. Informazioni sulla sicurezza
AVVERTENZA IMPORTANTE:
- Before charging, ensure the correct battery voltage (6V or 12V) matches the device's selected voltage. Vol. erratotagLa selezione può danneggiare la batteria o il caricabatterie.
- Always connect the charger to the battery terminals correctly: positive (+) to positive (+), and negative (-) to negative (-). Reverse polarity will trigger a fault indicator.
- Non tentare di caricare batterie non ricaricabili.
- Assicurare una ventilazione adeguata durante la ricarica.
- Tenere il caricabatterie lontano da materiali infiammabili.
- Avoid short-circuiting the output cables.
- This charger is designed for lead-acid batteries only. Do not use with other battery types.
Image 4: The charger features multi-level safety protections including over current, over voltage, reversed polarity, short circuit, over temperature protection, and SAE quick disconnection.
6. Impostazione
- Collegare i cavi di uscita: Attach the desired DC output cable (clamp or ring connectors) to the charger's output port. Ensure a secure connection.
- Collegamento alla batteria: Collegare il rosso (+) clamp/terminale ad anello al terminale positivo (+) della batteria e al terminale nero (-) clamp/ring terminal to the negative (-) battery terminal. Ensure a firm connection.
- Collegare all'alimentazione: Plug the charger's AC power cord into a standard 100-240VAC wall outlet.
- Controllo iniziale: The charger will perform a self-check. If the 'Fault' LED lights up, check the polarity of your battery connections.
Image 5: The smart battery charger connected to a vehicle battery for automatic diagnosis, charging, and maintenance.
7. Istruzioni per l'uso
The charger operates in a fully automatic 4-stage processo di ricarica:
- Stage 1: Initialization
When powered on, the charger performs a self-check and detects if the battery is correctly connected. If the 'Fault' LED illuminates, there might be a polarity issue or a severely discharged battery. Verify connections. - Stage 2: Addebito in blocco
The charger delivers its highest rated current (1.5A) to the battery until it reaches approximately 80% capacity. During this stage, the '50%' LED will blink, and the '100%' LED will be off. - Stage 3: Assorbimento
Il volume di uscitatage is limited to 7.3V (for 6V batteries) or 14.5V (for 12V batteries) while the current gradually declines. This stage charges the battery to its full capacity without overheating. The '50%' LED will be on, and the '100%' LED will blink. - Stage 4: Galleggiante
Once the battery is fully charged, the charger switches to float mode. It maintains the battery through pulse charging, ensuring the battery remains at optimal charge without overcharging. Both the '50%' and '100%' LEDs will be on.
Indicatori LED
The charger features clear LED indicators to show the charging status:
- Luce 6V: On when charging a 6V battery.
- Luce 12V: On when charging a 12V battery.
- Spia di guasto: Flashing indicates a bad battery or incorrect connection.
- Battery Icon (below 50%): Lighting indicates charging below 50% capacity.
- Battery Icon (above 50%): Light on indicates charging above 50% capacity.
- Battery Icon (below 100%): Lighting indicates charging nearing 100% capacity.
- Battery Icon (100%): Light on indicates the battery is fully charged.
Image 6: Detailed explanation of the LED lights indicating different charging statuses and voltage selezione.
Image 7: The charger's display is easy to read, showing current status. It also features security against overcharging even in maintenance float mode.
Video dimostrativo del prodotto
Video 1: A demonstration of a 12V smart repair charger, showcasing its display, mode selection, and connection process. This video illustrates general operation principles applicable to this charger.
8. Manutenzione
- Pulizia: Disconnect the charger from power and the battery before cleaning. Use a dry, soft cloth to wipe the exterior. Do not use harsh chemicals or abrasives.
- Magazzinaggio: Conservare il caricabatterie in un luogo fresco e asciutto quando non lo si utilizza. Tenere i cavi ben avvolti per evitare danni.
- Ispezione dei cavi: Regularly inspect the power cord and output cables for any signs of damage, such as cuts or fraying. Do not use the charger if cables are damaged.
- Manutenzione della batteria: For optimal battery life, ensure battery terminals are clean and free of corrosion before connecting the charger.
9. Risoluzione Dei Problemi
- Il caricabatterie non si accende: Ensure the AC power cord is securely plugged into a live outlet. Check for power at the outlet.
- 'Fault' LED On/Flashing:
- Polarità errata: Disconnect the charger and re-connect the clamps/ring terminals to the correct battery terminals (red to positive, black to negative).
- Bad Battery: The battery may be severely discharged, sulfated, or damaged beyond repair. Consult a professional for battery testing.
- Volume erratotage: Assicurarsi che il caricabatterie sia impostato sul volume correttotage (6V or 12V) for your battery.
- Batteria non in carica: Verify all connections are secure. Ensure the battery type is compatible with the charger. Allow sufficient time for charging, especially for larger capacity batteries.
- Surriscaldamento: If the charger feels excessively hot, disconnect it immediately. Ensure it is in a well-ventilated area and not covered.
10. Garanzia e supporto
For warranty information or technical support, please refer to the contact details provided by your retailer or the manufacturer, Eztronics Corp. Keep your purchase receipt as proof of purchase for any warranty claims.
