Tecnolove CR16STWLUS 19QT Portable Car Refrigerator User Manual

Introduzione

Thank you for choosing the Tecnolove CR16STWLUS Portable Car Refrigerator. This manual provides essential information for the safe and efficient operation of your new appliance. Please read it thoroughly before use and retain it for future reference.

Prodotto finitoview

The Tecnolove CR16STWLUS is a versatile 19-quart (18-liter) portable refrigerator designed for various applications, including vehicles, camping, and home use. It features a powerful compressor for rapid cooling and freezing, a smart battery protection system, and a user-friendly digital display.

Image: The Tecnolove CR16STWLUS portable car refrigerator with its lid open, showing several beverage cans inside.

Contenuto della confezione

• Tecnolove CR16STWLUS Portable Car Refrigerator
• 12V/24V DC Power Cable (for car/truck use)
• 110V AC Power Adapter (for home use)
• Reinforced Carry Strap

Image: Diagram illustrating the estimated storage capacity of the 18L unit, showing approximately 22x 350ml cans or 10x 500ml plastic bottles.

Impostare

Initial Placement and Ventilation

Place the refrigerator in a stable, well-ventilated area. Ensure that the compressor vents are not obstructed to allow for proper heat dissipation and efficient operation. The slim design allows for placement in various locations, such as between car seats, on the console, or in the cargo area.

Image: The Tecnolove CR16STWLUS refrigerator positioned in a car's center console, demonstrating its space-saving design.

Collegamento di potenza

Connect the appropriate power cable based on your usage scenario:

• For Vehicle Use: Plug the 12V/24V DC power cable into the refrigerator's DC input port and then into your vehicle's cigarette lighter socket.
• Per uso domestico: Plug the 110V AC power adapter into the refrigerator's AC input port and then into a standard wall outlet.
• For Outdoor Use: The unit is compatible with solar panels and portable power supplies (sold separately) for extended outdoor operation.

Image: Illustration showing the three power supply methods: AC power cord for home, DC power cord for car, and solar panel/portable power supply for outdoor use.

Sistema di protezione della batteria

The refrigerator features a smart triple-level battery protection system (L/M/H) to prevent your car battery from draining. The system automatically detects voltage and shuts off the unit before your battery dies. To adjust the battery protection level:

1. Press the 'Settings' button three times to flash the current battery protection value (default is 'H' mode).
2. Press the '+' or '-' buttons to switch the battery protection value (L, M, H).

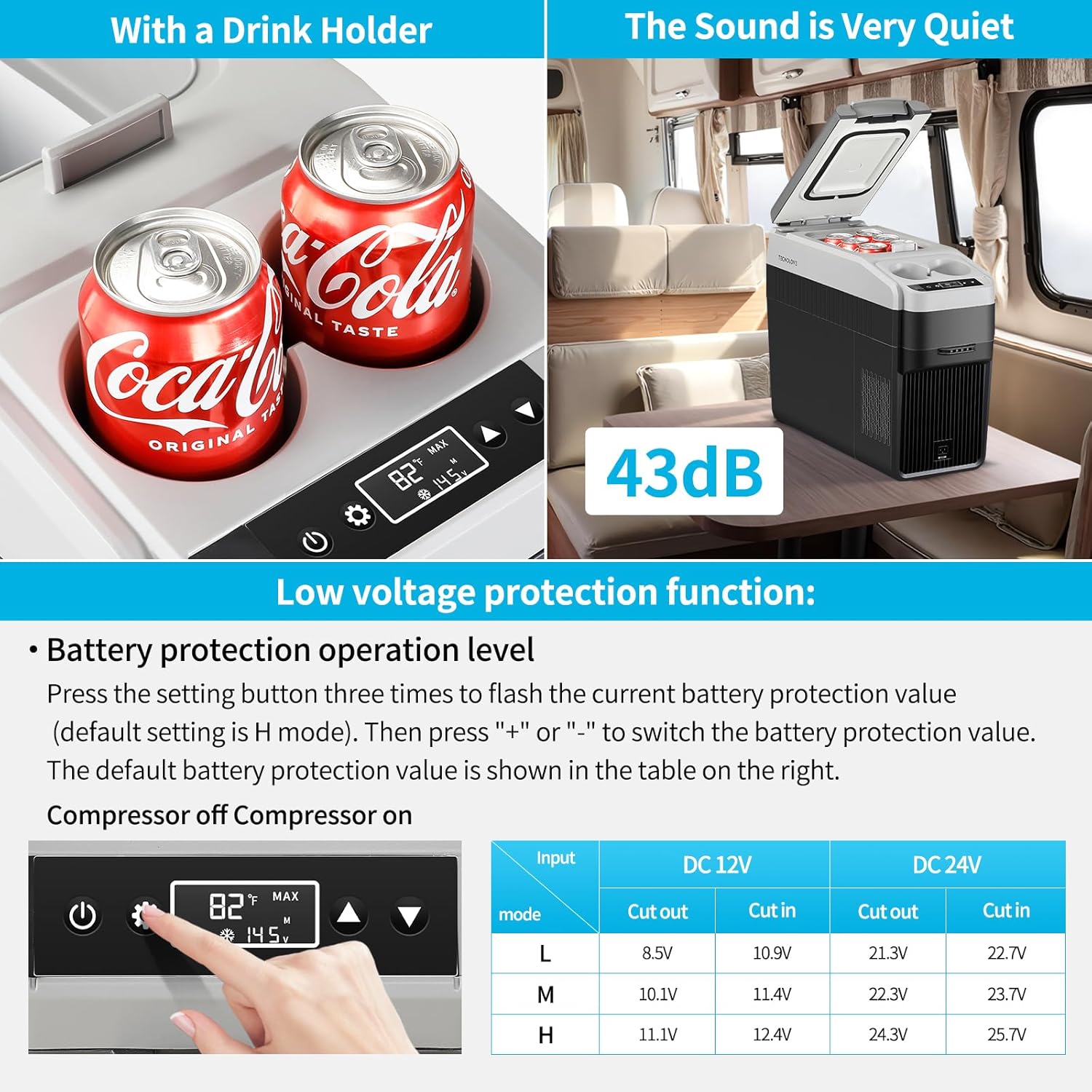

Image: Close-up of the control panel showing the power button, settings button, digital display, and temperature adjustment buttons, with an emphasis on the battery protection settings table.

Istruzioni per l'uso

Power On/Off and Temperature Setting

1. Press the 'On/Off' button to power on the refrigerator.
2. Use the '+' and '-' buttons to set your desired temperature between -4°F and 50°F (-20°C to 10°C). The LED digital display shows the current temperature.

Immagine: dettagliata view of the one-touch operation panel with labeled buttons for On/Off, Settings, Display, Temperature +, and Temperature -.

Cooling Modes (ECO & MAX)

Il frigorifero offre due modalità di raffreddamento:

• Modalità ECO (15 W): Provides ultra-quiet and energy-efficient operation for all-day use, ideal for parked cars or extended periods.
• Modalità MAX (35 W): Offers turbo cooling for rapid temperature reduction, suitable for hot environments or instant freezing needs.

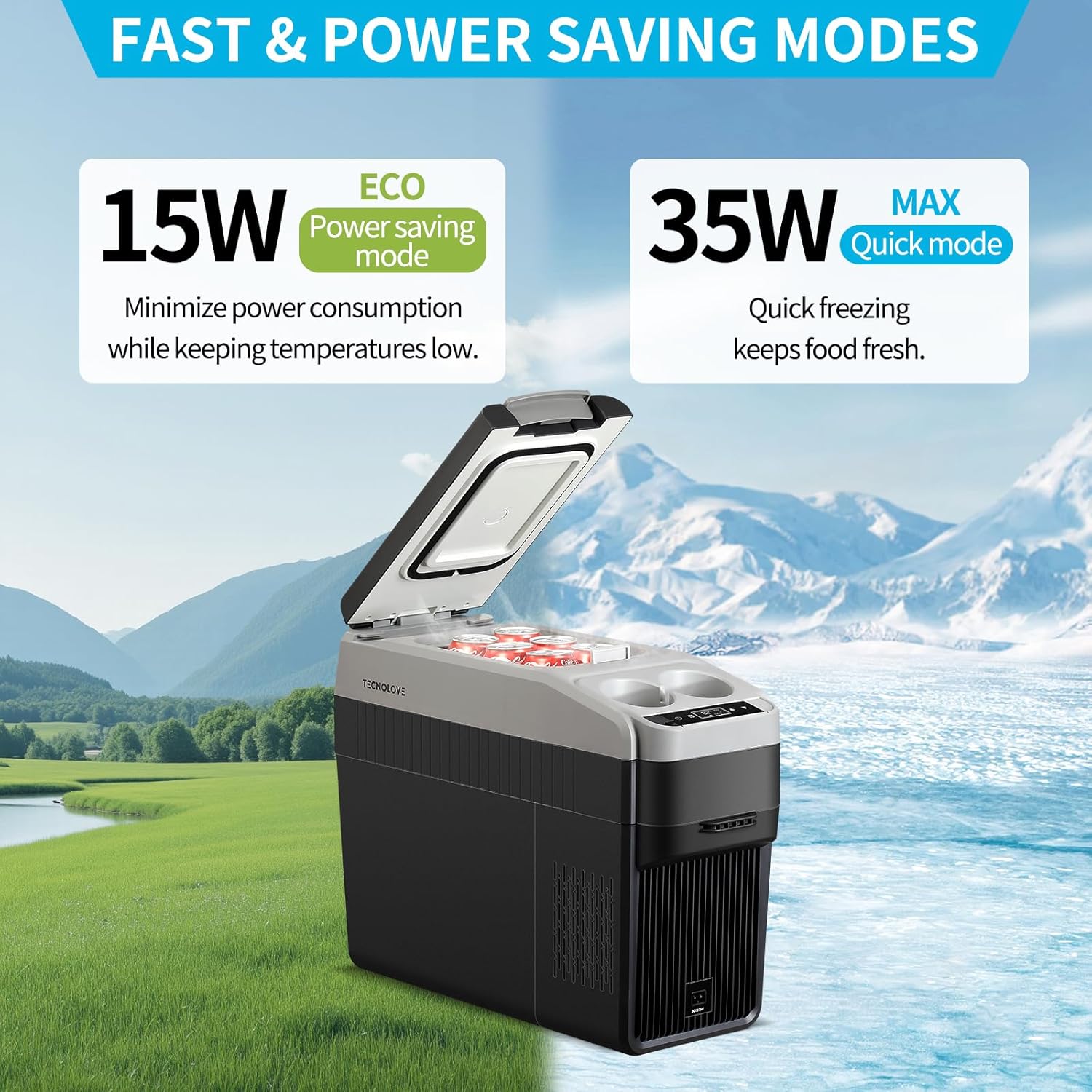

Image: Visual representation of the ECO (15W power saving) and MAX (35W quick mode) cooling options.

Rapid Cooling Performance

The powerful compressor allows the unit to reach 32°F (0°C) from 77°F (25°C) in approximately 15 minutes. Deep freeze capability down to -4°F is achieved in about 30 minutes.

Image: A chart illustrating the rapid cooling performance, showing temperature drops from 77°F to 32°F in 15 minutes and to -4°F in 30 minutes.

Interior Light and Drink Holder

The refrigerator includes a built-in interior LED light for visibility in low-light conditions. It also features integrated drink holders on the top panel for convenience.

Image: The interior of the refrigerator showing the LED light and the top panel with integrated drink holders.

Manutenzione

Pulizia

Pulire regolarmente l'interno e l'esterno del frigorifero con un detergenteamp panno e detergente delicato. Evitare detergenti abrasivi o solventi. Assicurarsi che l'unità sia scollegata prima della pulizia.

Sbrinamento

The Tecnolove CR16STWLUS features an automatic defrost system. If excessive ice buildup occurs, manually defrost by unplugging the unit and allowing the ice to melt naturally. Drain any water and dry thoroughly before restarting.

Ventilazione

Always ensure that the ventilation grilles on the sides of the unit are clear of obstructions to maintain optimal performance and prevent overheating.

Risoluzione dei problemi

If you encounter issues with your refrigerator, please refer to the following common troubleshooting steps:

• L'unità non si accende: Check all power connections. Ensure the power source (vehicle, home outlet, portable power) is active. Verify the battery protection level is not set too high for your current power source.
• Non raffredda efficacemente: Ensure the ventilation grilles are not blocked. Check that the desired temperature is set correctly. Verify the cooling mode (ECO vs. MAX) is appropriate for the ambient temperature.
• Rumore insolito: Minor operational noise from the compressor is normal. If the noise is excessive or unusual, ensure the unit is on a stable, flat surface and not vibrating against other objects.

For further assistance, please contact Tecnolove customer support via Amazon.

Specifiche

Garanzia e supporto

Tecnolove offers protection plans for your product. Please refer to the product listing for details on available 2-Year and 3-Year Protection Plans. For any questions or support regarding your car freezer, please contact Tecnolove via Amazon. We aim to respond within 24 hours.
