TUNAI S0B0 AQ-1500F Internal Aquarium Filter Instruction Manual

1. Introduzione

This manual provides detailed instructions for the installation, operation, and maintenance of your TUNAI S0B0 AQ-1500F Internal Aquarium Filter. This filter is designed to maintain a clean, healthy, and balanced aquatic environment for your fish and plants by providing efficient water circulation and filtration. Please read these instructions carefully before use to ensure optimal performance and longevity of the product.

Image 1: TUNAI S0B0 AQ-1500F Internal Aquarium Filter

2. Prodotto finitoview

2.1 Caratteristiche principali

• Filtrazione efficiente: Provides mechanical and biological filtration to remove debris and harmful substances.
• Portata regolabile: Allows customization of water flow to suit different aquarium needs.
• Funzionamento silenzioso: Engineered for minimal noise during use.
• Design compatto: Space-saving design suitable for various aquarium sizes.
• Versatilità: Adatto sia per acquari d'acqua dolce che salata.
• Powerful Water Circulation: Ensures strong and consistent water movement throughout the tank.
• Risparmio energetico: Operates efficiently with low power consumption.

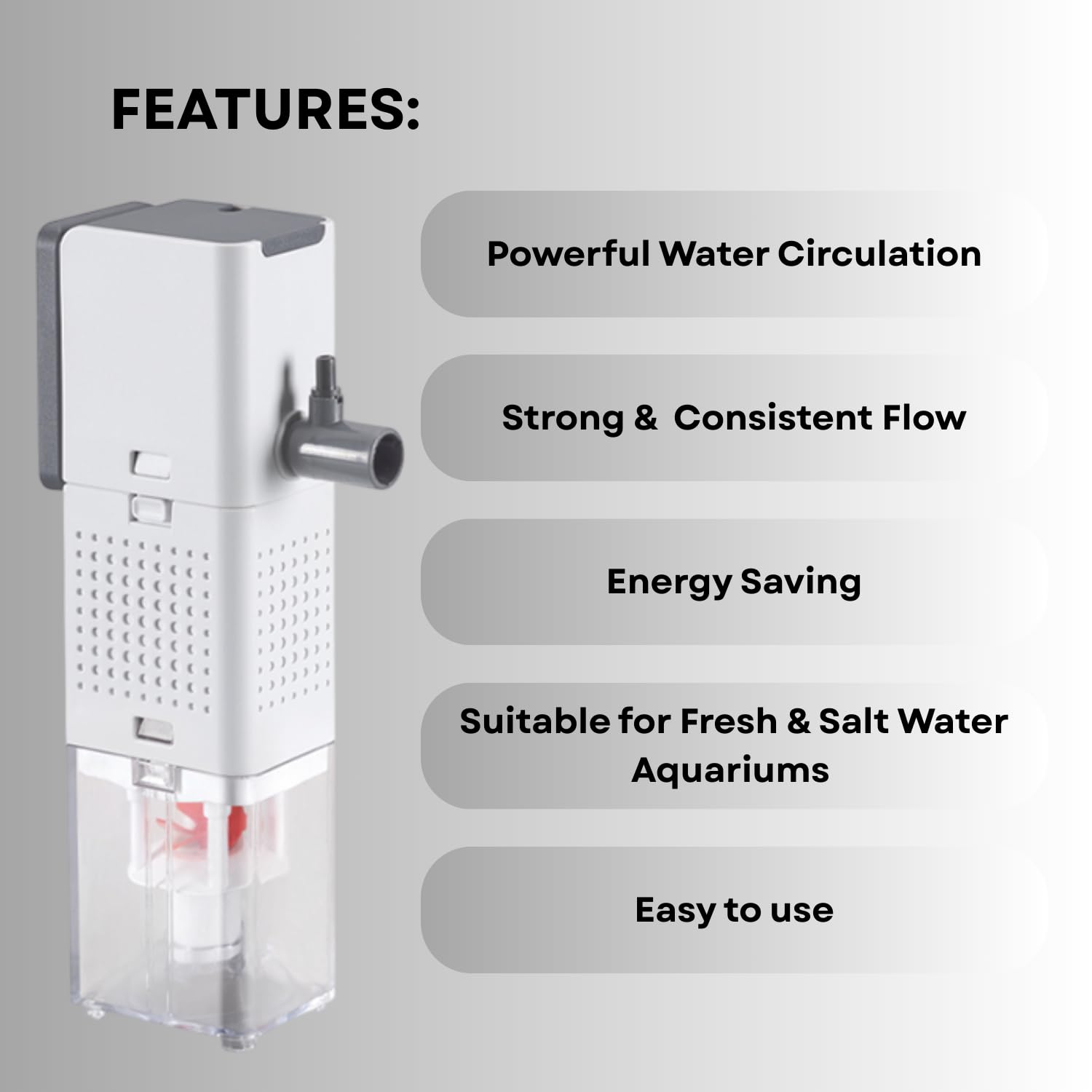

Image 2: Key Features of the S0B0 AQ-1500F Internal Filter

Image 3: Functional aspects of the S0B0 AQ-1500F Internal Filter including filtration, aeration, and water circulation

2.2 Componenti inclusi

Il pacchetto del prodotto include quanto segue:

• 1 x S0B0 AQ-1500F Aquarium Internal Filter Unit

3. Istruzioni per l'installazione

1. Disimballare: Carefully remove the filter from its packaging and inspect for any damage.
2. Assemblare (se necessario): Ensure all components are securely attached. The filter typically comes pre-assembled.
3. Posizionamento: Position the filter inside your aquarium, ensuring it is fully submerged in water. The filter can be attached to the aquarium wall using suction cups (if provided).
4. Livello dell'acqua: Verify that the water level in the aquarium is above the minimum water line indicated on the filter, or ensure the entire unit is submerged for proper operation.
5. Collegamento elettrico: Once the filter is correctly positioned and submerged, connect the power plug to a suitable electrical outlet.

Image 4: Proper placement of the S0B0 Internal Filter in an aquarium

4. Istruzioni per l'uso

1. Accensione: After setup, plug the filter into a power outlet. The filter will begin operating immediately.
2. Regola la portata: The AQ-1500F features an adjustable flow rate. Locate the flow adjustment mechanism (usually a slider or knob) on the filter unit. Rotate or slide it to increase or decrease the water flow according to your aquarium's requirements and the needs of your aquatic inhabitants.
3. Prestazioni del monitor: Observe the filter's operation to ensure proper water circulation and filtration. Check for any unusual noises or reduced flow.

5. Manutenzione

Regular maintenance is crucial for the optimal performance and longevity of your internal filter. Follow these steps for cleaning:

1. Scollegare l'alimentazione: Sempre disconnect the filter from the power source before performing any maintenance or cleaning.
2. Rimuovere dall'acquario: Rimuovere con cautela l'unità filtrante dall'acquario.
3. Smontare: Gently open the filter casing to access the sponge filter media and impeller.
4. Pulisci il materiale filtrante: Rinse the sponge filter media with old aquarium water (from a water change) to preserve beneficial bacteria. Avoid using tap water directly, as chlorine can kill these bacteria.
5. Girante pulita: Inspect and clean the impeller and its housing for any debris, algae, or blockages. A small brush can be used for this purpose.
6. Rimontare: Reassemble the filter components securely.
7. Reinstalla: Place the cleaned filter back into the aquarium and reconnect the power.

Raccomandazione: Regular cleaning of the sponge filter is recommended to prevent clogging and maintain optimal performance. The frequency depends on your aquarium's bioload, but typically every 2-4 weeks.

6. Risoluzione Dei Problemi

If you encounter issues with your S0B0 AQ-1500F filter, refer to the following common problems and solutions:

Image 5: Anti-suction design of the filter's fecal outlet

7. Specifiche

The technical specifications for the S0B0 AQ-1500F Internal Aquarium Filter are as follows:

• Modello: AQ-1500F
• Voltage: CA 110V-240V
• Frequenza: 50 Hz
• Energia: 25W
• Max Output (F.Max): 1500 litri/ora
• Dimensioni del prodotto (LxLxA): Dimensioni: 6 x 8 x 32.5 cm
• Peso dell'articolo: 600 grammi
• Componenti inclusi: 1 Aquarium Internal Filter

Image 6: S0B0 AQ-1500F Filter Specifications

Image 7: Dimensions and output of the S0B0 AQ-1500F Filter

7.1 Comparison with Other Models

The S0B0 internal filter series includes various models with different specifications:

Image 8: Detailed specifications for the S0B0 Submersible Internal Filter series

Image 9: Visual comparison of S0B0 Submersible Internal Filter models

Image 10: High-quality rotor and quiet operation feature

8. Garanzia e supporto

8.1 Informazioni sulla garanzia

Specific warranty details for the TUNAI S0B0 AQ-1500F Internal Aquarium Filter are not provided in this document. Please refer to your purchase receipt or contact the retailer for warranty terms and conditions.

8.2 Assistenza clienti

For any questions, concerns, or assistance regarding your S0B0 AQ-1500F Internal Aquarium Filter, please contact the TUNAI Store customer support team. They are available to assist you with product inquiries and troubleshooting.

Contact information can typically be found on your purchase documentation or the official TUNAI Store websito.
