YMZYEKB FX3U-14MT Programmable Logic Controller User Manual

1. Introduzione

This manual provides essential information for the safe and efficient operation, installation, and maintenance of the YMZYEKB FX3U-14MT Programmable Logic Controller (PLC). The FX3U-14MT is an industrial control board designed for various automation tasks, featuring digital inputs/outputs, analog inputs/outputs, and serial communication capabilities.

Si prega di leggere attentamente questo manuale prima di installare o utilizzare il dispositivo. Conservare il manuale per riferimento futuro.

2. Informazioni sulla sicurezza

Osservare le seguenti precauzioni di sicurezza per evitare lesioni personali e danni all'apparecchiatura:

• Sicurezza elettrica: Ensure power is disconnected before wiring or performing maintenance. Only qualified personnel should perform electrical connections.
• Messa a terra corretta: Always ensure the PLC and associated equipment are properly grounded to prevent electrical shock and ensure stable operation.
• Condizioni ambientali: Operate the PLC within specified environmental conditions (temperature, humidity, vibration) to prevent malfunction.
• Cablaggio corretto: Verify all wiring connections are correct and secure before applying power. Incorrect wiring can cause damage to the PLC or connected devices.
• Arresto di emergenza: Implement appropriate emergency stop mechanisms in your system design.

3. Prodotto finitoview

The YMZYEKB FX3U-14MT is a compact and powerful programmable logic controller. It integrates various functionalities essential for industrial automation.

Caratteristiche principali:

• I / O digitale: 14 Digital Inputs (DI) and 10 Digital Outputs (DO).
• I/O analogici: 6 Analog Inputs (AI) and 2 Analog Outputs (AO).
• Comunicazione: RS232 and RS485 serial communication ports for connectivity with other devices or HMI.
• Conteggio ad alta velocità: Supports high-speed pulse inputs for precise control.
• Uscita impulsiva: Capable of pulse outputs for stepper or servo motor control.

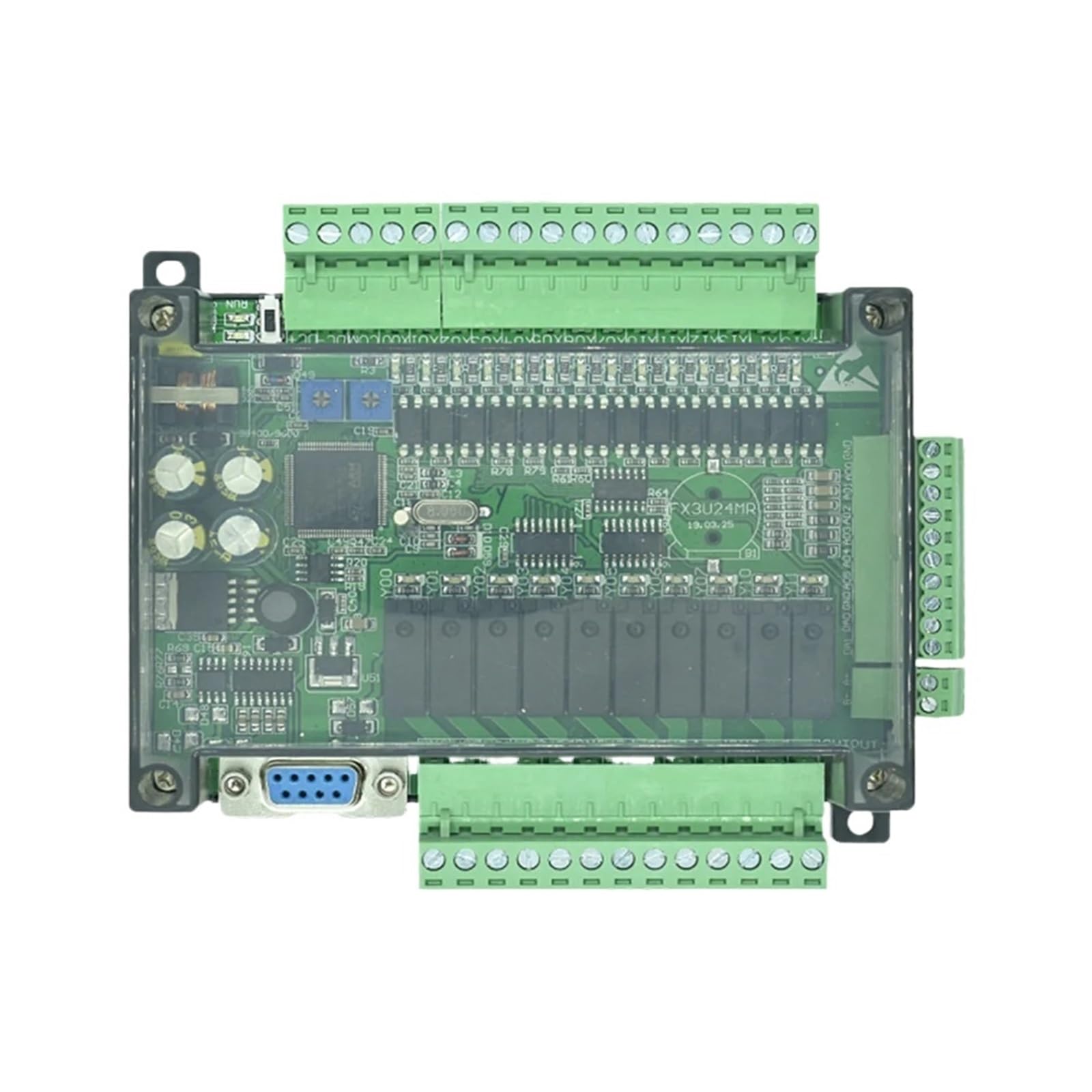

Figura 3.1: Dall'alto verso il basso view of the YMZYEKB FX3U-14MT Programmable Logic Controller, showing the main circuit board, green terminal blocks for inputs and outputs, and a transparent protective casing.

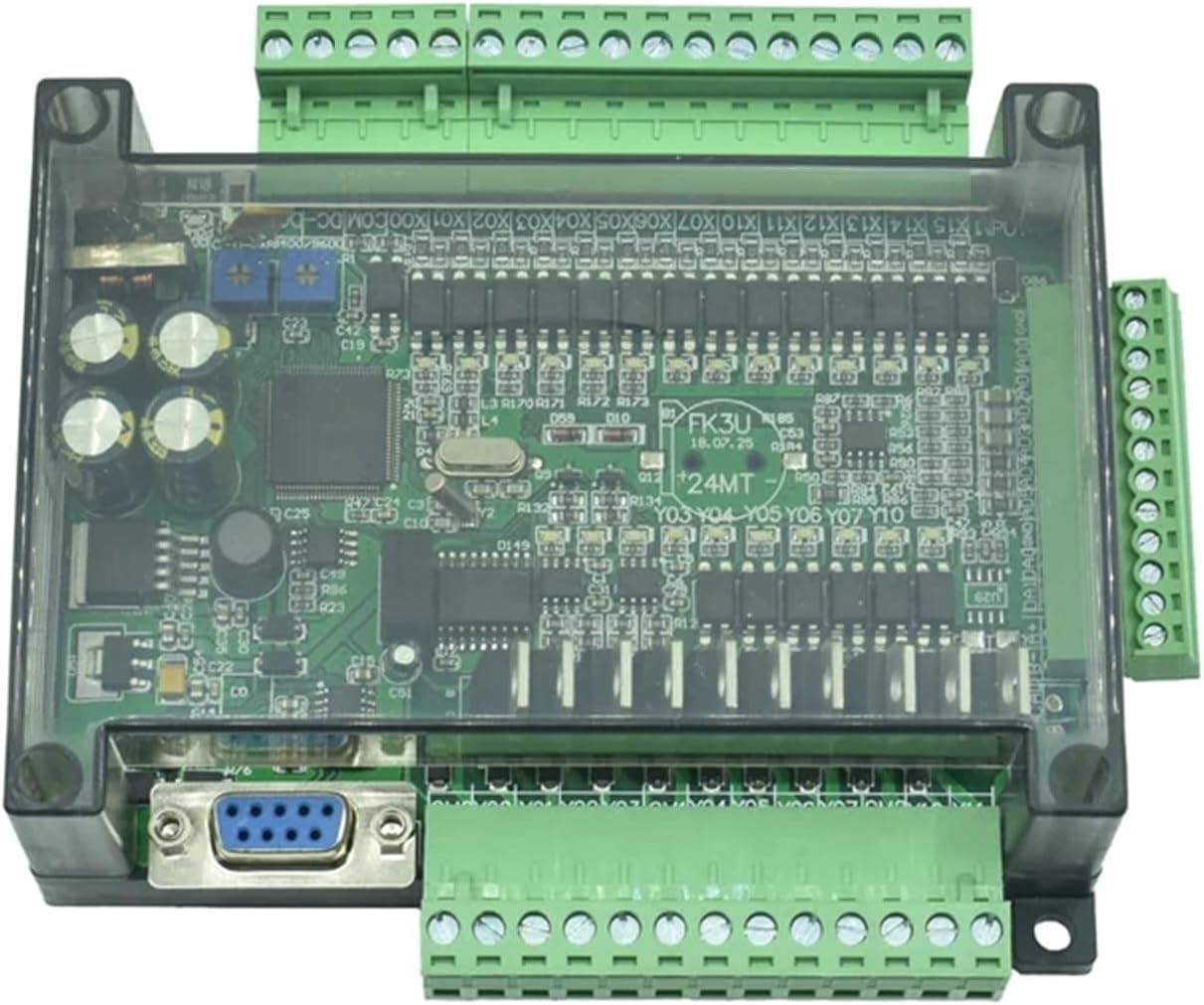

Figura 3.2: Angolato view of the YMZYEKB FX3U-14MT PLC, providing a clearer perspective of the various green terminal blocks for wiring connections and the RS232 port.

4. Specifiche

5. Configurazione e installazione

5.1 Montaggio

The FX3U-14MT PLC is designed for panel mounting. Secure the unit using appropriate screws through the mounting holes provided on the casing. Ensure adequate ventilation around the unit to prevent overheating.

5.2 Collegamento dell'alimentazione

Connect a stable DC power supply (typically 24V DC) to the designated power terminals. Observe correct polarity. Refer to the wiring diagram for specific terminal assignments.

5.3 Wiring Digital Inputs and Outputs

Connect your sensors, switches, and other input devices to the digital input terminals (DI). Connect actuators, relays, and other output devices to the digital output terminals (DO). Ensure all connections are firm and insulated.

5.4 Wiring Analog Inputs and Outputs

Connect analog sensors (e.g., temperature, pressure transducers) to the analog input terminals (AI). Connect analog actuators (e.g., variable frequency drives, proportional valves) to the analog output terminals (AO). Pay close attention to signal types (voltage/current) and ranges.

5.5 Communication Port Setup (RS232/RS485)

Use the RS232 port for direct connection to a programming device (PC) or HMI. The RS485 port allows for multi-drop communication with other devices in a network. Configure communication parameters (baud rate, data bits, stop bits, parity) in your programming software to match the connected devices.

6. Istruzioni per l'uso

6.1 Software di programmazione

The FX3U-14MT PLC is typically programmed using compatible PLC programming software, such as GX Works2 or GX Developer. Install the software on your PC and ensure the correct drivers are installed for the communication port.

6.2 Creazione di un programma

Develop your control logic using ladder diagram, instruction list, or other supported programming languages within the software. Define input/output assignments, timers, counters, and other control elements.

6.3 Downloading and Running the Program

1. Connect your PC to the PLC via the RS232 port.
2. In the programming software, establish communication with the PLC.
3. Download the compiled program to the PLC's memory.
4. Switch the PLC to RUN mode (either via software command or a physical switch if available).

6.4 Monitoring and Debugging

Use the monitoring features of the programming software to observe the status of inputs, outputs, internal relays, and data registers in real-time. This is crucial for debugging and verifying program execution.

7. Manutenzione

7.1 Pulizia

Periodically clean the exterior of the PLC with a soft, dry cloth. Avoid using solvents or abrasive cleaners. Ensure ventilation openings are free from dust and debris.

7.2 Environmental Checks

Regularly inspect the operating environment to ensure it remains within the specified temperature and humidity ranges. Excessive heat or moisture can shorten the lifespan of the device.

7.3 Verifica della connessione

Periodically check all wiring connections for tightness and signs of corrosion or damage. Loose connections can lead to intermittent operation or system failures.

8. Risoluzione Dei Problemi

8.1 Power Indicator Not On

• Controllare l'alimentazione: Verificare che l'alimentatore da 24 V CC sia collegato correttamente e fornisca la tensione specificatatage.
• Controllare il cablaggio: Ensure power supply wires are securely connected to the PLC terminals and polarity is correct.

8.2 Errore di comunicazione

• Connessione via cavo: Ensure the RS232 or RS485 cable is securely connected to both the PLC and the programming device.
• Parametri di comunicazione: Verify that the baud rate, data bits, stop bits, and parity settings in the software match those configured on the PLC.
• Installazione del driver: Confirm that the correct USB-to-serial converter drivers (if used) are installed on your PC.

8.3 Digital Input Not Responding

• Controllo del sensore: Test the input sensor or switch independently to ensure it is functioning correctly.
• Cablaggio: Check the wiring from the sensor to the PLC input terminal for breaks or loose connections.
• Program Logic: Verify that the PLC program logic is correctly reading and processing the input.

8.4 Digital Output Not Activating

• Controllo dell'attuatore: Test the output device (e.g., relay, solenoid) independently.
• Cablaggio: Check the wiring from the PLC output terminal to the actuator.
• Program Logic: Ensure the PLC program logic is correctly commanding the output to activate.
• Tipo di uscita: Confirm the output type (e.g., relay, transistor) is suitable for the connected load.

9. Garanzia e supporto

For warranty information, please refer to the terms and conditions provided by your seller or contact YMZYEKB directly. Technical support may be available through the point of purchase or the manufacturer's official channels.

When contacting support, please have your product model (FX3U-14MT) and purchase details readily available.
