GLOGLOW 30W Portable Solar Panel Charger User Manual

1. Prodotto finitoview

The GLOGLOW 30W Portable Solar Panel Charger is designed to provide a reliable power source using solar energy. It features high conversion efficiency, an IP65 water-resistant rating, and a compact, lightweight design, making it suitable for various outdoor and emergency charging needs. This manual provides essential information for the safe and efficient use of your solar panel charger.

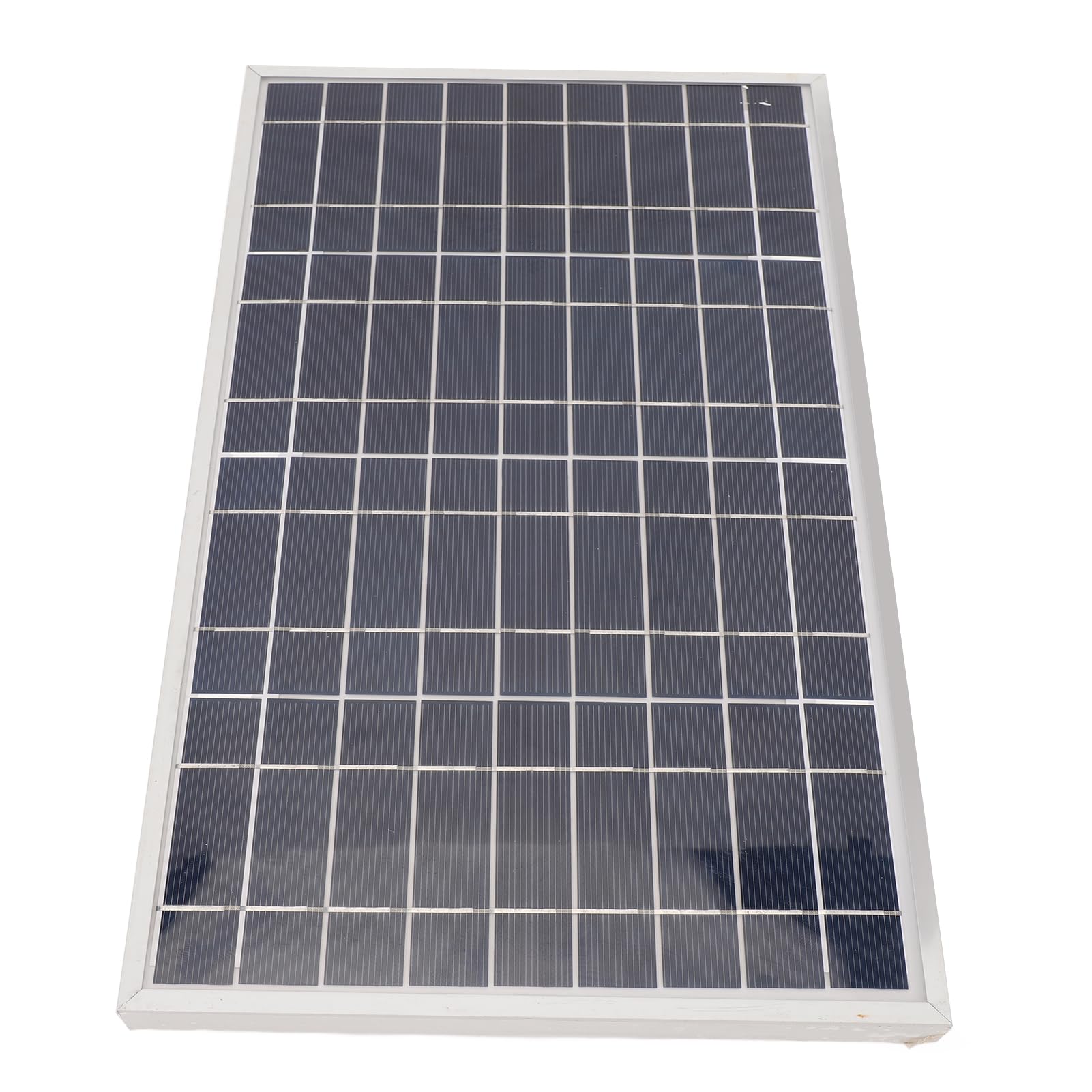

Image 1: The GLOGLOW 30W Portable Solar Panel Charger, showcasing il suo design compatto.

2. Istruzioni per l'installazione

Follow these steps to set up your GLOGLOW 30W Portable Solar Panel Charger:

1. Unpack the Solar Panel: Carefully remove the solar panel and its accessories from the packaging.
2. Identificare i componenti: Ensure you have the 30W solar panel and the included alligator clips.
3. Posizionare il pannello: Place the solar panel in a location where it can receive direct and unobstructed sunlight. For optimal performance, angle the panel towards the sun.
4. Connetti al dispositivo: Use the provided alligator clips to connect the solar panel to your compatible device or battery. Ensure correct polarity (red to positive, black to negative).
5. Inizia la ricarica: Once connected and exposed to outdoor sunlight, the solar panel will automatically begin charging.

Immagine 2: posteriore view of the solar panel showing the connection cables and alligator clips for easy setup.

3. Istruzioni per l'uso

The GLOGLOW 30W Portable Solar Panel Charger operates by converting sunlight into electrical energy. For best results:

• Esposizione alla luce solare: Ensure the solar panel is exposed to maximum direct sunlight throughout the charging period. Shadows, clouds, or obstructions will reduce charging efficiency.
• Regolazione dell'angolo: Periodically adjust the panel's angle to follow the sun's path for continuous optimal energy capture.
• Dispositivi compatibili: This solar panel is suitable for charging various 12V compatible devices and maintaining battery charge in applications such as cars, boats, RVs, trailers, and marine equipment. It is also ideal for outdoor activities like camping, travel, and emergency power needs.
• Funzionamento automatico: The panel begins generating power automatically when exposed to sufficient sunlight and connected to a load.

4. Manutenzione

Proper maintenance ensures the longevity and optimal performance of your solar panel charger:

• Pulizia: Pulire regolarmente la superficie del pannello solare con un panno morbido eamp cloth to remove dust, dirt, and debris. A clean surface ensures maximum sunlight absorption. Avoid abrasive cleaners or harsh chemicals.
• Ispezione: Periodically inspect the panel for any physical damage, such as cracks or scratches. Check the cables and connectors for wear or corrosion.
• Magazzinaggio: When not in use, store the solar panel in a cool, dry place away from direct sunlight and extreme temperatures. Ensure it is clean and dry before storage.
• Resistenza all'acqua: The panel has an IP65 water resistance rating, meaning it is protected against dust ingress and low-pressure water jets from any direction. While it can withstand rain, avoid submerging the panel in water.

5. Risoluzione Dei Problemi

If your solar panel charger is not performing as expected, consider the following:

• Nessuna potenza in uscita:
  • Controlla la luce solare: Ensure the panel is in direct, unobstructed sunlight. Overcast conditions or shadows will significantly reduce or stop power generation.
  • Verifica connessioni: Confirm that all cables are securely connected and that the alligator clips are properly attached to the battery terminals with correct polarity.
  • Clean Panel Surface: A dirty panel can block sunlight. Clean the surface as described in the Maintenance section.
• Bassa efficienza di carica:
  • Angolo del pannello: Adjust the panel's angle to be perpendicular to the sun's rays for maximum efficiency.
  • Partial Shading: Even partial shading on a small part of the panel can drastically reduce overall output. Ensure the entire panel is exposed to sunlight.
  • Fattori ambientali: Extreme temperatures (outside the operating range) or heavy cloud cover can affect performance.
• Componenti danneggiati: If the panel or cables appear physically damaged, discontinue use and contact customer support.

6. Specifiche

7. Garanzia e supporto

Specific warranty information for the GLOGLOW 30W Portable Solar Panel Charger is not provided in this manual. For details regarding warranty coverage, returns, or technical support, please refer to the retailer's policy where the product was purchased or visit the official GLOGLOW store.

Puoi trovare maggiori informazioni e opzioni di contatto visitando il GLOGLOW Store on Amazon.
