GLOGLOW SC220 C620L Industrial Sewing Machine Needle Plate Instruction Manual

Introduzione

This instruction manual provides essential information for the proper installation, operation, and maintenance of your GLOGLOW SC220 C620L Industrial Sewing Machine Needle Plate. This Q235 steel replacement part is designed for compatibility with Heureux sewing and quilting machines, specifically models SC220 and C620L. Please read this manual thoroughly before use to ensure optimal performance and longevity of the product.

Prodotto finitoview

The GLOGLOW SC220 C620L Needle Plate is a critical component for industrial and computerized sewing machines, facilitating precise fabric feeding and needle penetration. Constructed from durable Q235 steel, it offers resistance to wear and ensures consistent sewing quality.

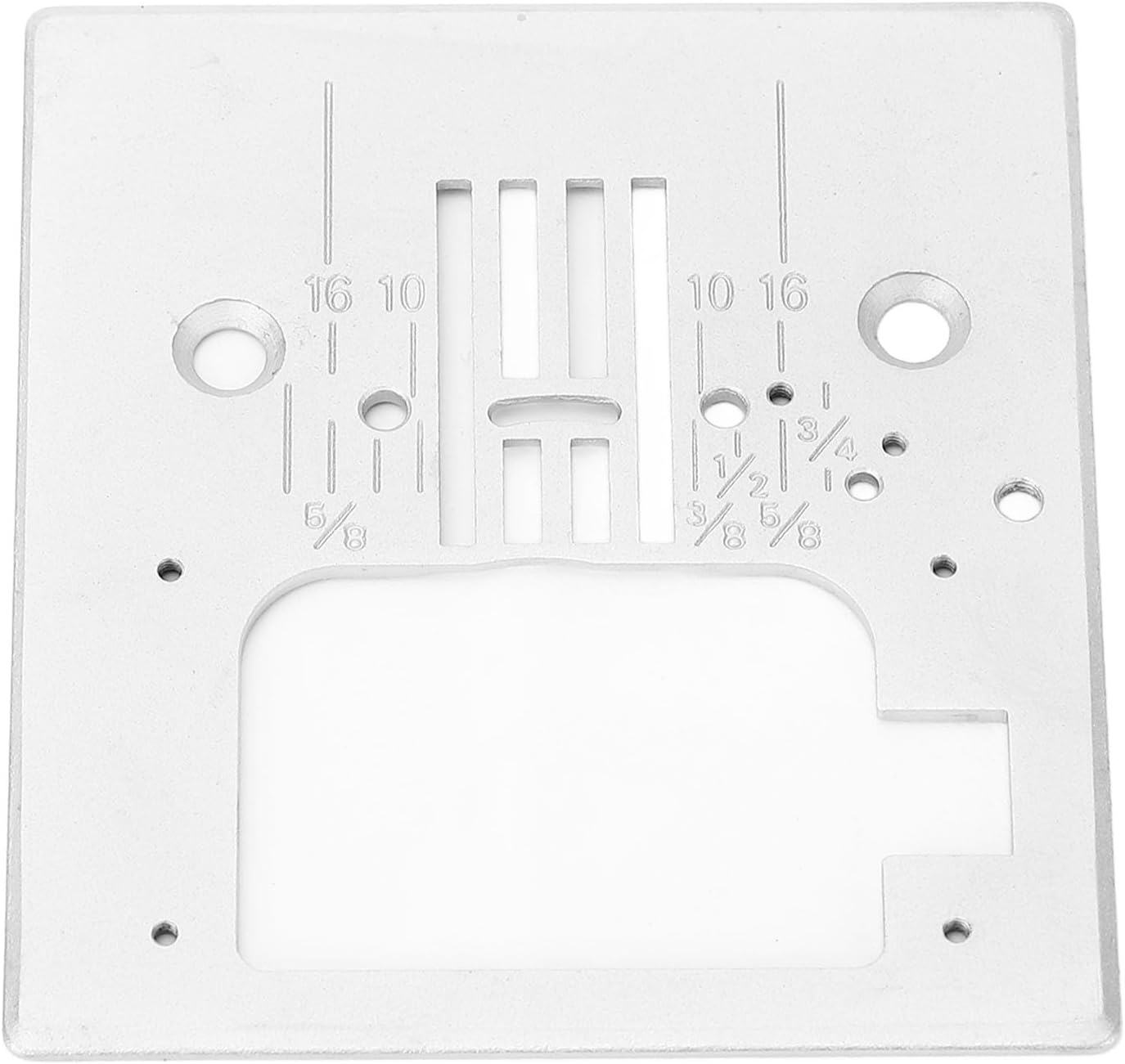

Immagine 1: In alto view of the needle plate, highlighting its design and measurement indicators for various stitch lengths and seam allowances.

Istruzioni per l'installazione

Proper installation of the needle plate is crucial for the correct functioning of your sewing machine. Always ensure the machine is powered off and unplugged before beginning any installation or maintenance.

1. Spegni: Disconnect the sewing machine from its power source to prevent accidental operation.
2. Access Needle Plate Area: Lift the presser foot and remove the existing needle plate. This usually involves unscrewing one or two small screws. Keep these screws safe.
3. Area pulita: Carefully clean any lint, dust, or debris from the bobbin case area and the feed dog mechanism.
4. Position New Needle Plate: Align the GLOGLOW replacement needle plate over the feed dogs, ensuring the screw holes match the machine's chassis.
5. Piastra di sicurezza: Reinsert and tighten the screws to firmly secure the new needle plate in place. Do not overtighten.
6. Test: Manually turn the handwheel to ensure the needle passes through the needle hole without obstruction and the feed dogs move freely.

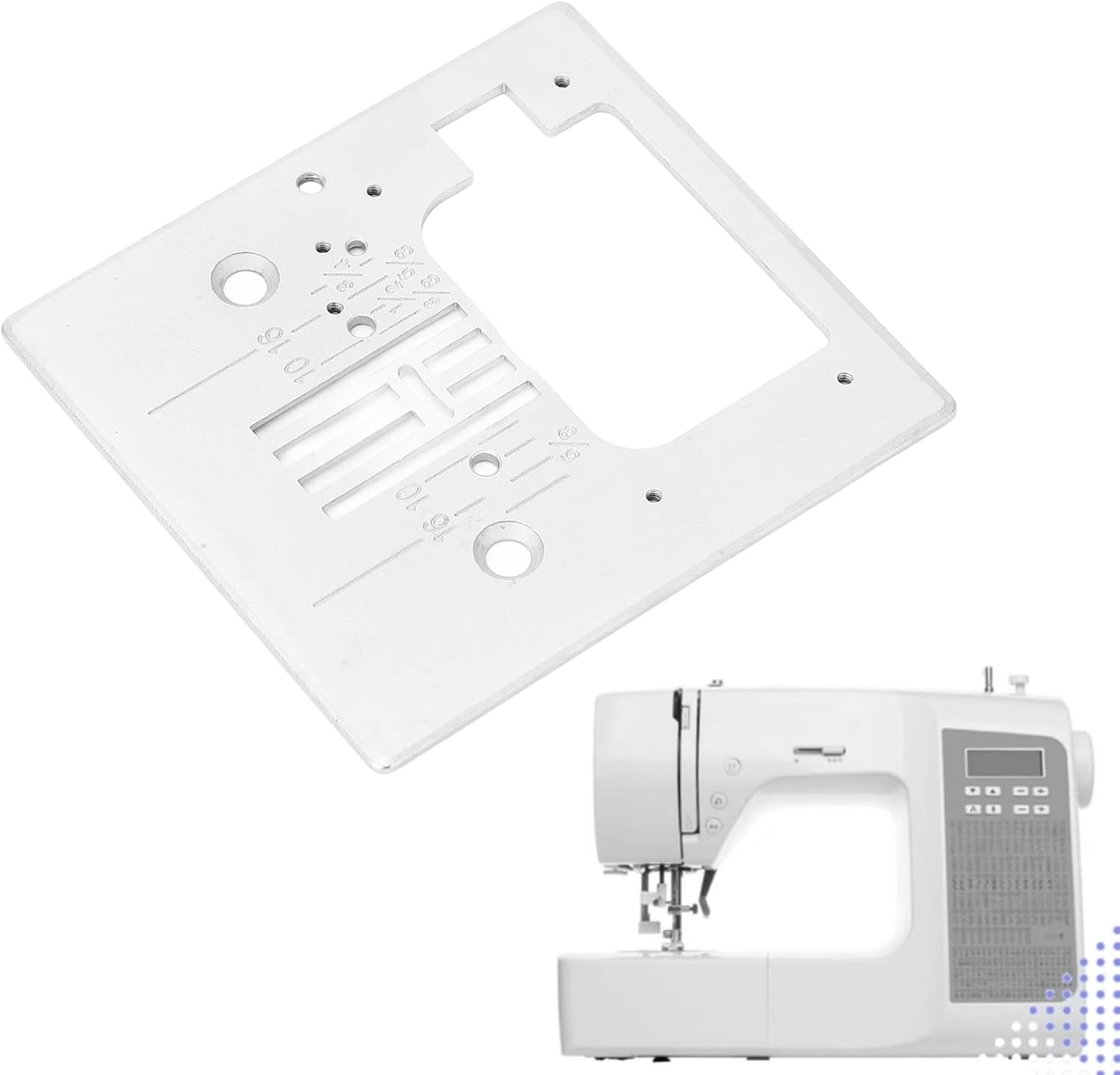

Image 2: The needle plate shown in context with a sewing machine, demonstrating where it is installed.

Linee guida per l'utilizzo

Once installed, the needle plate works in conjunction with the feed dogs to move fabric smoothly under the needle. Its precise design supports various sewing tasks, including:

• Standard Stitching: Provides a stable surface for general sewing.
• Ricamo: Aids in achieving high accuracy during intricate embroidery patterns.
• Lettere: Supports precise fabric control for detailed lettering.
• Quilting: Ensures consistent fabric feeding for quilting projects.

Always use the correct needle size and type for your fabric to prevent damage to the needle plate and ensure optimal stitch formation.

Cura e manutenzione

Regular maintenance will extend the life of your needle plate and ensure consistent sewing performance.

• Pulizia: Periodically remove the needle plate and use a small brush or vacuum cleaner to clear lint and dust from the feed dog area and the underside of the plate.
• Ispezione: Regularly inspect the needle plate for any signs of wear, burrs, or damage around the needle hole. A damaged needle hole can cause skipped stitches or needle breakage.
• Sostituzione: If the needle plate shows significant wear or damage, replace it promptly to maintain sewing quality and prevent further machine issues.

Risoluzione dei problemi

If you encounter issues related to the needle plate, consider the following:

• Rottura dell'ago: Ensure the needle plate is correctly installed and secured. Check for any burrs or damage around the needle hole that might be catching the needle. Verify you are using the correct needle type and size for your fabric.
• Punti saltati: This can be caused by a worn or damaged needle plate, incorrect needle installation, or issues with the bobbin area. Inspect the needle plate for wear.
• Fabric Not Feeding Smoothly: Clean the feed dog area thoroughly. Ensure the needle plate is flush with the machine bed and not obstructing the feed dogs' movement.

If problems persist after checking these points, consult your sewing machine's main instruction manual or contact a qualified technician.

Specifiche del prodotto

Garanzia e supporto

Specific warranty details for this product are not provided in the available information. For warranty inquiries or technical support, please refer to the original purchase documentation or contact GLOGLOW customer service directly.
