Technical Precision Replacement AC Compressor User Manual

Prodotto finitoview

This manual provides essential information for the installation, operation, and maintenance of the Technical Precision Replacement AC Compressor for Peterbilt 379 Year 2002 models. Please read this manual thoroughly before proceeding with any installation or service.

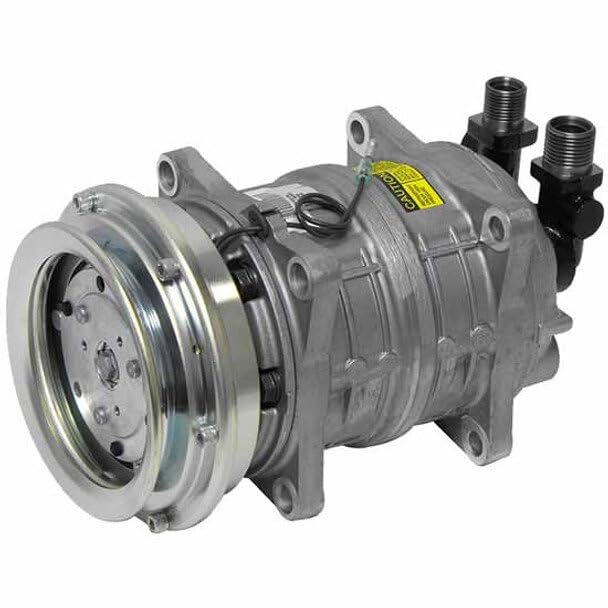

Figura 1: The Technical Precision Replacement AC Compressor. This image displays the main body of the compressor, which is metallic gray, with a silver-colored pulley assembly on one end and two black threaded fittings on the other. A yellow caution label is visible on the top surface of the compressor body.

Configurazione e installazione

Proper installation is crucial for the optimal performance and longevity of your new AC compressor. It is highly recommended that installation be performed by a certified automotive technician.

Passaggi di pre-installazione:

1. La sicurezza prima di tutto: Ensure the vehicle's engine is off and cool. Disconnect the battery's negative terminal.
2. Recupero del refrigerante: The existing AC system must be properly evacuated of all refrigerant by a certified professional using appropriate recovery equipment. Do not vent refrigerant into the atmosphere.
3. Lavaggio del sistema: Flush the entire AC system (condenser, evaporator, lines) to remove old oil, debris, and contaminants. This step is critical to prevent damage to the new compressor.
4. Ispezione dei componenti: Inspect other AC system components (condenser, evaporator, expansion valve/orifice tube, accumulator/receiver drier) for damage or wear. Replace as necessary. It is strongly recommended to replace the accumulator/receiver drier and expansion valve/orifice tube when replacing the compressor.
5. Lubrificazione: Add the correct type and amount of PAG oil (or specified oil) to the new compressor as per manufacturer specifications. Distribute some oil into the system components during reassembly.

Procedura di installazione:

1. Montaggio: Carefully mount the new compressor onto its bracket, ensuring all mounting bolts are securely fastened to the manufacturer's torque specifications.
2. Connessioni di linea: Connect the suction and discharge lines to the compressor, ensuring O-rings are new and properly lubricated. Tighten fittings to specifications.
3. Collegamenti elettrici: Connect the electrical clutch wire harness to the compressor. Ensure a secure connection.
4. Installazione della cintura: Install the serpentine belt and adjust tension according to vehicle specifications.
5. Vacuum and Recharge: Evacuate the system using a vacuum pump to remove air and moisture. Hold vacuum for at least 30 minutes to ensure no leaks. Recharge the system with the correct type and amount of refrigerant (R-134a for Peterbilt 379 Year 2002) using a professional AC charging station.

Istruzioni per l'uso

Once the AC compressor is installed and the system is properly charged, the AC system can be operated normally.

• Avvio iniziale: After installation and charging, start the vehicle engine and turn on the AC system to its lowest temperature and highest fan setting.
• Controllo del sistema: Listen for unusual noises from the compressor. Check the air temperature from the vents to ensure proper cooling.
• Innesto frizione: Observe the compressor clutch. It should engage and disengage smoothly as the AC system cycles.
• Letture della pressione: A technician can verify system pressures (high and low side) to ensure they are within the manufacturer's specifications.

Manutenzione

Regular maintenance helps extend the life of your AC compressor and ensures efficient cooling.

• Uso regolare: Operate the AC system for at least 10 minutes once a month, even in cold weather, to keep seals lubricated and prevent refrigerant leaks.
• Ispezione della cinghia: Periodically check the serpentine belt for cracks, fraying, or excessive wear. Replace if necessary.
• Pulizia del condensatore: Keep the condenser fins clean and free of debris (leaves, dirt, bugs) to ensure proper heat dissipation.
• Controllo del livello del refrigerante: If cooling performance decreases, have the refrigerant level checked by a professional. Low refrigerant can indicate a leak and can damage the compressor.
• Cabin Air Filter: Replace the cabin air filter regularly to maintain good airflow and prevent strain on the system.

Risoluzione dei problemi

This section outlines common issues and potential solutions. For complex problems, consult a qualified technician.

Specifiche

Garanzia e supporto

Specific warranty details for this product are not provided in the available information. Please refer to the original purchase documentation or contact Technical Precision directly for warranty information and technical support.
