QNK 7.5KW 10HP 220V VFD Converter Instruction Manual

1. Prodotto finitoview

The QNK 7.5KW 10HP 220V Variable Frequency Drive (VFD) is designed to convert single-phase or three-phase 220 VAC input into three-phase 220 VAC output, allowing for precise speed control of various AC motors. It features advanced control technologies and multiple protective functions for enhanced safety and durability.

Immagine: Frontale view of the QNK 7.5KW 10HP 220V VFD Converter, showing the control panel and warning labels. An accessory cable is also visible.

2. Informazioni sulla sicurezza

WARNING: Risk of electric shock. Ensure power is off before installation or maintenance. Wait 5 minutes for capacitor discharge after disconnecting power supply.

• Always wear appropriate Personal Protective Equipment (PPE) when handling electrical components.
• Garantire una messa a terra adeguata per evitare rischi elettrici.
• Do not connect the VFD's output terminals with capacitive loads.
• If a generator is used to power the VFD, ensure that the generator's output voltage level is within +/-15%.
• In caso di dubbi, consultare un elettricista qualificato per l'installazione.

3. Specifiche

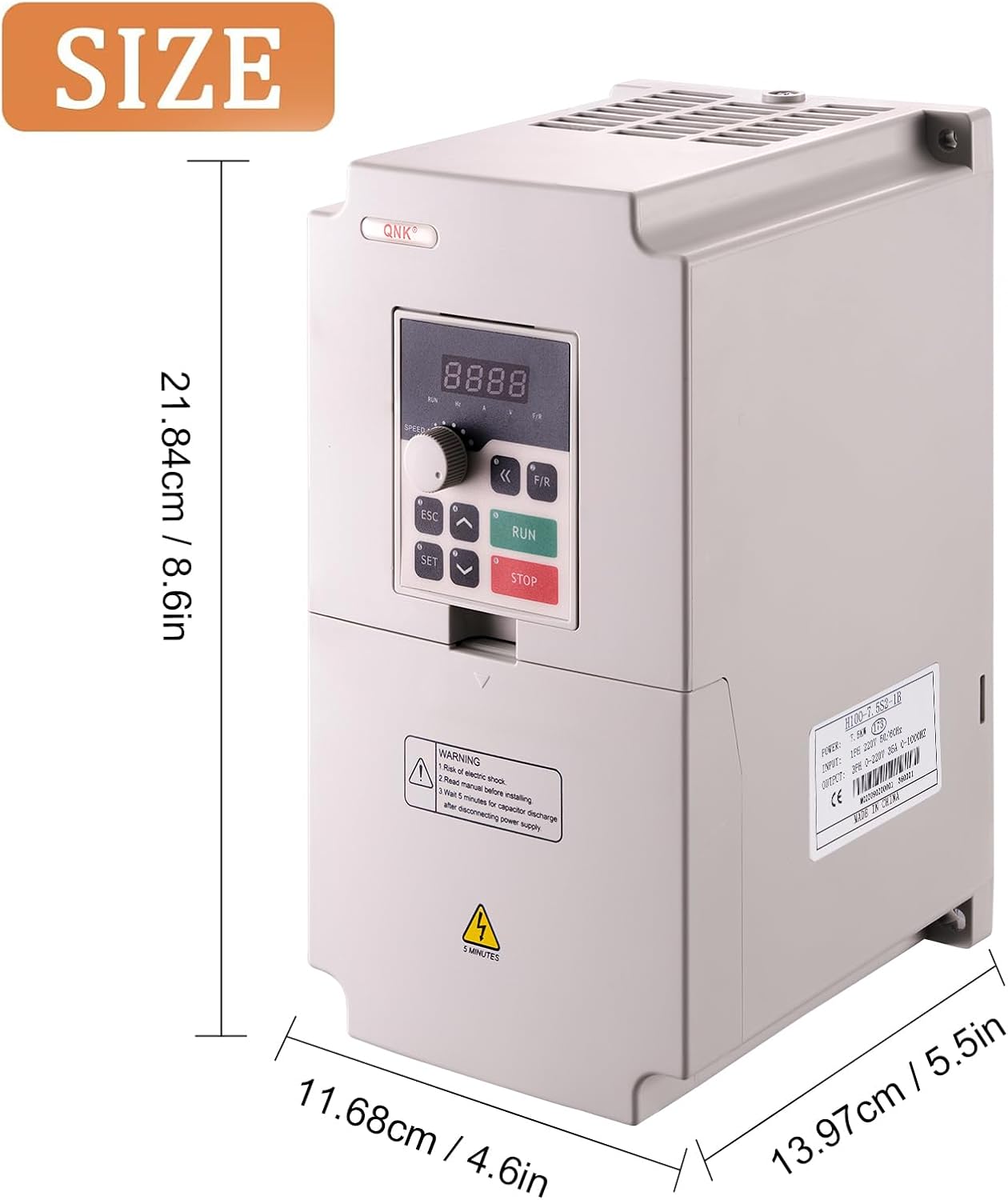

Image: Diagram showing the dimensions of the QNK VFD Converter, with measurements in centimeters and inches.

4. Configurazione e installazione

4.1. Wiring the VFD

Before beginning any wiring, ensure the power supply is completely disconnected. Wear appropriate personal protective gear (PPE).

1. Power Input Wiring: For a 220V single-phase power supply, connect the power wires to terminals L1 and L2 on the VFD. For three-phase input, connect to L1, L2, and L3.
2. Motor Output Wiring: Connect the three motor wires to terminals U, V, and W on the VFD.
3. Verifica connessioni: After wiring, double-check that all wires are securely fastened under the correct terminals.

4.2. Pannello di controllo finitoview

The VFD features a user-friendly control panel for operation and parameter adjustment. The panel can be separated for remote control.

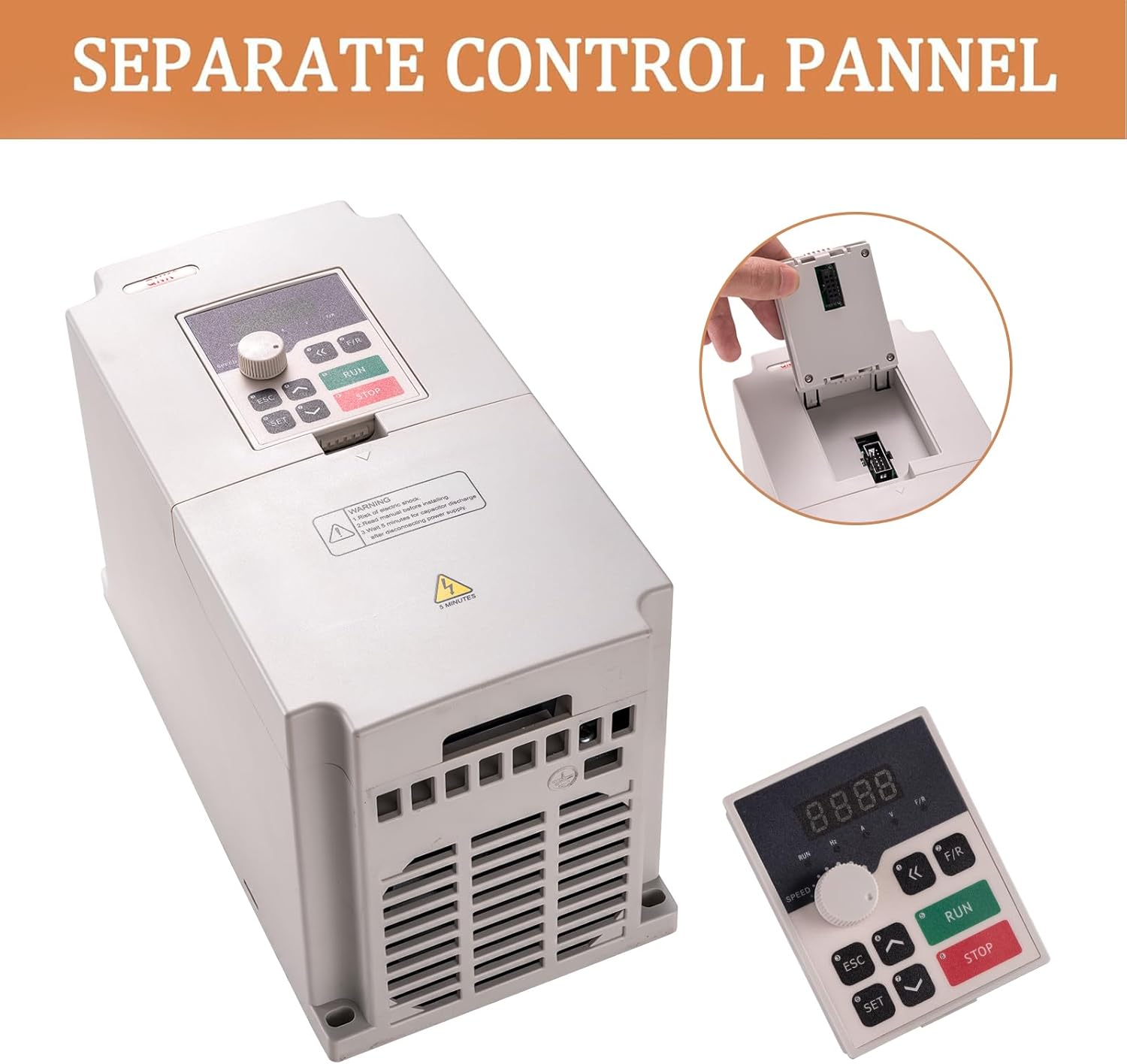

Image: The QNK VFD Converter with its detachable control panel shown separately, highlighting its modular design.

Image: Close-up of the QNK VFD control panel, illustrating the function of each button and the speed adjustment knob.

5. Istruzioni per l'uso

5.1. Initial Power-Up and Frequency Setting

1. After ensuring all wiring is correct and secure, power on the VFD.
2. Turn the speed knob clockwise fully. The panel should display 50 Hz.
3. Verify that the motor's rated frequency matches the inverter's rated frequency (e.g., both 50 Hz).
4. If your motor drives high-torque equipment, adjust the acceleration and deceleration times to a higher value (e.g., from 10 Hz to 15 Hz or 20 Hz). This is typically done through parameter settings (e.g., F014 for acceleration time, F015 for deceleration time).
5. Premere il pulsante RUN per avviare il motore.

5.2. Changing Motor Rotation Direction

If the motor is rotating in a reverse direction from desired, you can exchange the locations of any two wires (e.g., U and W) landing under the output terminals (U, V, and W) on the VFD. Ensure power is off before making any wiring changes.

Image: Detailed wiring diagram for the QNK VFD, showing connections for power input, motor output, and control signals. This diagram is crucial for correct installation and troubleshooting.

6. Manutenzione

• Pulizia regolare: Keep the VFD clean and free from dust and debris. The multi-grid design helps prevent dust and water mist from entering the circuit board section.
• Dissipazione del calore: Ensure adequate cooling space around the VFD for fast heat dissipation. The powerful cooling fan and independent air duct design contribute to efficient cooling.
• Verifiche della connessione: Periodically inspect all wiring connections to ensure they remain tight and secure. Loose connections can lead to malfunctions or damage.
• Condizioni ambientali: Operate the VFD within its specified environmental conditions (temperature, humidity) to prolong its lifespan.

Image: Illustration highlighting the powerful cooling fan and independent air duct design of the QNK VFD, crucial for maintaining optimal operating temperature.

7. Risoluzione Dei Problemi

If you encounter an error code or unexpected behavior, refer to the following common issues and solutions:

• Protezione da sovraccarico: The VFD features protection against overload. If an overload occurs, the unit may shut down. Check the motor load and ensure it is within the VFD's capacity. Consider using a higher power VFD for heavy equipment (e.g., a 7.5 Kw VFD for a 5.5 Kw motor).
• Sopra/sotto voltage: The VFD has protective functions for over voltage (DC voltage > 400V) or under voltage (DC voltage < 200V). Verify the input voltage is stable and within the specified range (+/- 15%).
• Short Circuit/Stall Protection: These functions prevent damage to the VFD and motor. If activated, check for short circuits in the wiring or mechanical issues causing the motor to stall.
• Protezione contro il surriscaldamento: Ensure proper ventilation and clear any obstructions around the VFD's cooling fan.
• Il motore non gira:
  1. Check all wiring connections for tightness and correctness.
  2. Verificare che l'alimentazione sia attiva.
  3. Ensure the motor's rated frequency matches the VFD's setting.
  4. If the motor is rotating in the wrong direction, exchange any two motor output wires (U, V, or W).
• Errori generali: If an error code appears and you are unsure how to resolve it, or for any other product-related questions, contact QNK Customer Service.

Image: Diagram illustrating the various protection features of the QNK VFD, including overload, overheat, over-voltage, basso volumetage, fuse, stall, and short circuit protection.

8. Garanzia e supporto

QNK is committed to providing high-quality products and customer satisfaction. For any issues or inquiries regarding your QNK VFD Converter, please contact our Customer Support Team. We aim to respond within 24 hours.

• Assistenza clienti: Refer to your purchase documentation or the QNK official websito per i contatti.
• Piani di protezione: Potrebbero essere disponibili piani di protezione aggiuntivi da acquistare per estendere la copertura oltre la garanzia standard.
