HICALL C100 PRO - P15 Mixing Console User Manual

1. Introduzione

The HICALL C100 PRO - P15 Mixing Console is an all-in-one audio solution designed for professional live streaming, recording, and content creation. This device integrates a high-sensitivity microphone, a multi-functional sound card, and advanced audio processing capabilities to deliver clear, high-quality sound. It features dual DSP cores for real-time noise cancellation, a variety of audio modes, sound effects, and voice filters to enhance audience engagement. With its long-lasting battery and broad compatibility, the C100 PRO - P15 offers a versatile and portable audio experience.

2. Contenuto della confezione

Si prega di verificare che tutti gli articoli elencati di seguito siano inclusi nel pacco. Se alcuni articoli risultano mancanti o danneggiati, contattare l'assistenza clienti.

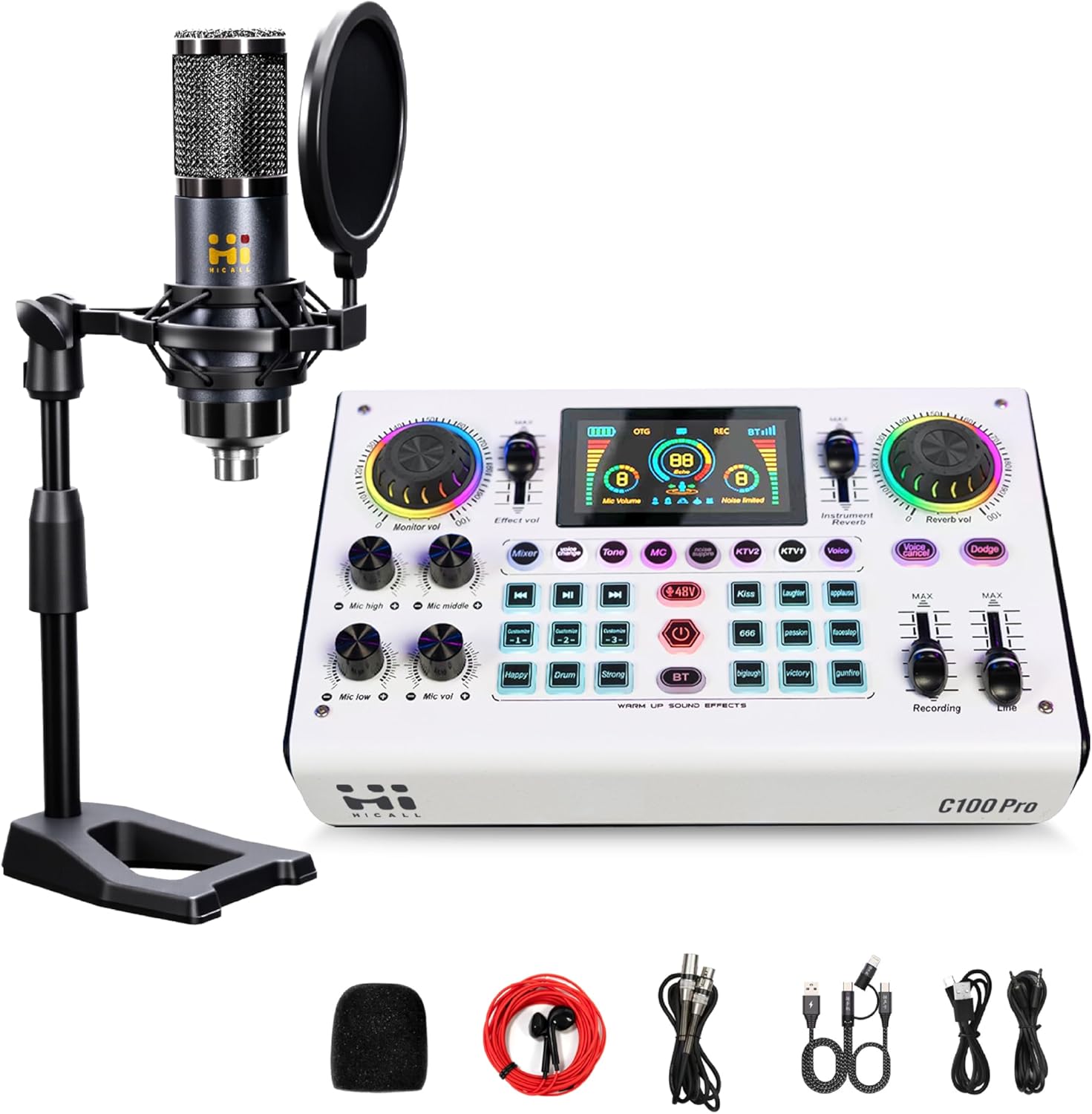

Image: The HICALL C100 PRO - P15 Mixing Console kit, including the sound card, condenser microphone, desktop stand, pop filter, foam microphone cover, and various connection cables.

• HICALL C100 PRO - P15 Mixing Console (Sound Card)
• Microfono a condensatore
• Supporto per microfono da tavolo
• Filtro pop
• Copertura in schiuma per microfono
• Cavo per microfono da XLR a 3.5 mm
• 3.5mm Audio Cables (x2)
• Cavo dati da USB-C a USB-A
• Cavo dati da USB-C a USB-C

3. Prodotto finitoview

The C100 PRO - P15 Mixing Console features an intuitive layout with various controls for audio input, output, effects, and monitoring. Key features include:

• Dual DSP Cores: For real-time noise cancellation and zero-latency audio processing.
• Molteplici modalità audio: 8 live modes (e.g., singing, chatting, EDM) to suit diverse content styles.
• Effetti sonori: 9 built-in sound effects and 3 customizable sound effects.
• Cambia Voce: 5 voice filters (male, female, baby, robot, monster) for interactive content.
• Batteria a lunga durata: 2900mAh battery providing over 12 hours of operation.
• Compatibilità universale: Works with phones, tablets, PCs, and major streaming platforms.

4. Configurazione e connessioni

Follow these steps to connect your HICALL C100 PRO - P15 Mixing Console to your devices.

Image: A detailed diagram illustrating the connection ports on the rear of the mixing console and examples of how to connect microphones, instruments, speakers, headphones, and mobile devices/PCs.

4.1 Identificazione della porta

• 2-/Earpieces/Speakers: 3.5mm output for headphones or external speakers.
• MICROFONO: 3.5mm input for condenser microphones.
• Strumento musicale: 6.35mm input for instruments.
• XLR-48V (Canon Interface): XLR input for 48V condenser microphones.
• Linea: 3.5mm input for external audio sources (e.g., background music from a phone).
• Live 1 / Live 2: 3.5mm outputs for connecting to mobile phones for live broadcasting.
• PC Live / OTG: USB-C port for connecting to a computer (PC/Mac) or mobile device (OTG) for live streaming and charging.
• Energia: USB-C port for power input and charging.

4.2 Fasi di connessione

1. Collegare il microfono:
       a. For the included condenser microphone, connect its 3.5mm cable to the Microfono porta.
       b. For 48V condenser microphones, use an XLR cable to connect to the XLR-48V port. Ensure 48V phantom power is enabled on the console if required.
2. Collegare cuffie/altoparlanti: Plug your headphones or speakers into the 2-/Earpieces/Speakers 3.5mm port for monitoring audio.
3. Connect to Live Device (Phone/Tablet): Use a 3.5mm audio cable to connect from the Vivere 1 or Vivere 2 port on the console to the audio input (headphone jack or adapter) of your mobile device.
4. Connect to Computer (PC/Mac): Use the USB-C to USB-A or USB-C to USB-C cable to connect the PC Live / OTG port on the console to your computer. The computer should recognize the console as an audio input/output device.
5. Connect External Audio Source (Optional): If you wish to play background music from another phone, connect it to the Linea ingresso tramite cavo audio da 3.5 mm.
6. Accensione: Connect the console to a power source using the Energia USB-C port and the provided cable. Press and hold the power button to turn on the device.

5. Istruzioni per l'uso

This section details the various functions and controls of the HICALL C100 PRO - P15 Mixing Console.

5.1 Smart Noise Reduction

The console features a one-click intelligent noise reduction function, powered by dual DSP cores, to effectively filter out environmental noise and improve audio clarity, especially in noisy environments.

Image: A visual representation of the noise reduction feature, showing a waveform with significant background noise before processing and a cleaner waveform after processing, with a button labeled 'noise suppre' highlighted on the console.

• To activate/deactivate noise reduction, locate the dedicated Soppressione del rumore button on the console and press it. The display will indicate its status.

5.2 Audio Modes and Voice Changer

Enhance your live broadcasts with various audio modes and fun voice filters.

Image: The HICALL C100 PRO - P15 Mixing Console displaying its 8 distinct live modes (e.g., KTV, Chat, Singing) and 9 live audio effects, along with 3 custom sound effect buttons.

• Live Modes: Select from 8 pre-set live modes (e.g., KTV, Chat, Singing, EDM) to optimize your audio for different content types. Press the corresponding mode button on the console.
• Cambia Voce: Transform your voice with 5 different filters.

Image: A close-up of the HICALL C100 PRO - P15 Mixing Console highlighting the 'Voice Change' button and illustrating the 5 available voice filters: Male, Female, Baby, Robot, and Monster, each activated by successive presses of the button.

• Premere il tasto Cambiamento di voce button repeatedly to cycle through Male, Female, Baby, Robot, and Monster voices.

5.3 Custom Soundpads and Audio Effects

Trigger various sound effects to add flair to your broadcasts.

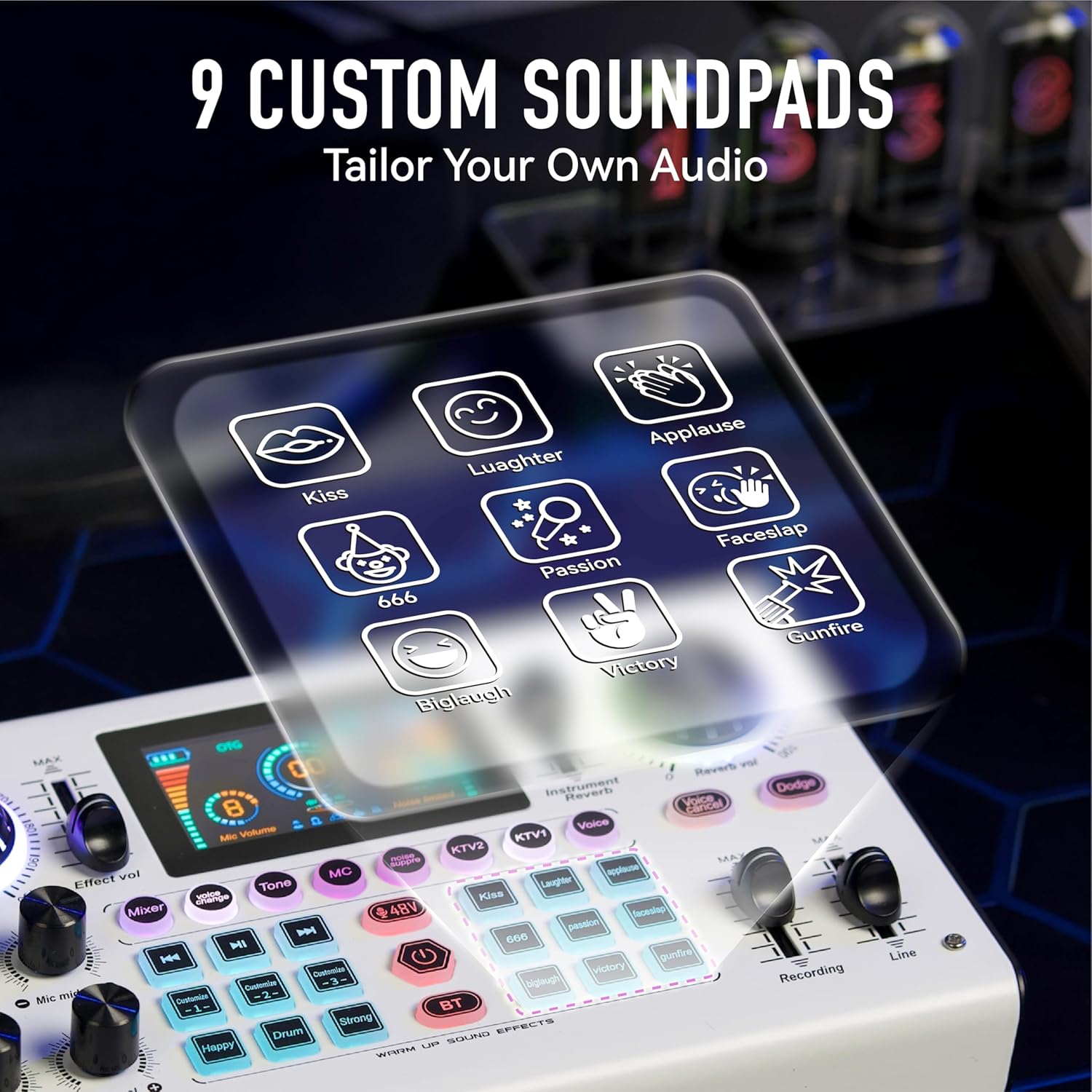

Image: The HICALL C100 PRO - P15 Mixing Console with an overlay showing 9 custom soundpad icons, including Kiss, Laughter, Applause, Faceslap, 666, Passion, Victory, Gunfire, and Big Laugh.

• The console features 9 pre-set sound effects (e.g., Kiss, Laughter, Applause, Gunfire). Press the corresponding button to play the effect.
• There are also 3 customizable sound effect buttons. Refer to the full manual for instructions on how to record and assign custom sounds.

5.4 Controlli generali

• Manopole del volume: Adjust microphone volume (Mic high, Mic middle, Mic low, Mic vol), monitor volume, effect volume, instrument volume, and reverb volume using the dedicated knobs.
• Fader: Control recording and line input levels with the faders.
• Bluetooth (BT): Activate Bluetooth to connect a mobile device wirelessly for background music.
• Alimentazione Phantom 48V: Enable or disable 48V phantom power for compatible microphones.

6. Cross-Platform Compatibility and Power

The HICALL C100 PRO - P15 is designed for extensive compatibility and prolonged use.

Image: The HICALL C100 PRO - P15 Mixing Console highlighting its 2900mAh battery capacity and illustrating its compatibility with phones (iOS/Android), PCs (MAC/Windows), laptops (MAC/Windows), and iPads, as well as major streaming platforms like Instagram, Facebook, Live.me, Amazon, TikTok, and YouTube.

• Batteria: Equipped with a 2900mAh battery, providing over 12 hours of continuous operation on a full charge.
• Ricarica: Charge the device via the USB-C Energia port using the provided cable and a standard USB power adapter (not included).
• Compatibilità: Seamlessly connects with iOS/Android phones, Windows/Mac PCs, laptops, and tablets. It supports major streaming platforms including TikTok, YouTube, Facebook, Instagram, and Live.me.

7. Specifiche

8. Risoluzione Dei Problemi

If you encounter issues with your HICALL C100 PRO - P15 Mixing Console, please refer to the following common solutions:

• Nessuna uscita audio:
      a. Check all cable connections to ensure they are secure.
      b. Verify that the volume knobs for microphone, monitor, and main output are turned up.
      c. Ensure the console is powered on and has sufficient battery charge.
      d. If connected to a computer, check your computer's sound settings to ensure the console is selected as the input/output device.
• Scarsa qualità audio/rumore:
      a. Activate the Soppressione del rumore caratteristica.
      b. Ensure microphone gain (Mic high, Mic middle, Mic low) is not set too high, which can cause distortion.
      c. Check for loose cable connections or interference from other electronic devices.
• Microfono non funzionante:
      a. Ensure the microphone is correctly plugged into the appropriate port (3.5mm MIC or XLR-48V).
      b. If using an XLR condenser microphone, ensure 48V phantom power is enabled on the console.
• Dispositivo non riconosciuto dal computer:
      a. Try a different USB-C cable or USB port on your computer.
      b. Restart both the console and your computer.

9. Manutenzione

To ensure the longevity and optimal performance of your HICALL C100 PRO - P15 Mixing Console, follow these maintenance guidelines:

• Pulizia: Use a soft, dry cloth to wipe the surface of the console. Avoid using liquid cleaners or abrasive materials.
• Magazzinaggio: Conservare il dispositivo in un luogo fresco e asciutto, lontano dalla luce solare diretta e da temperature estreme.
• Gestione: Handle the console with care to prevent drops or impacts that could damage internal components.
• Cura della batteria: Per una durata ottimale della batteria, evitare di scaricarla completamente frequentemente. Caricare il dispositivo regolarmente, anche se non lo si utilizza per periodi prolungati.

10. Garanzia e supporto

For warranty information, please refer to the terms and conditions provided at the time of purchase or contact your retailer. Optional protection plans may be available for extended coverage.

If you require further assistance or have questions not covered in this manual, please contact HICALL customer support through the retailer's platform or the official HICALL websito (se disponibile).
