Manuale d'uso della cyclette magnetica CHAOKE 520A

1. Introduzione

Thank you for choosing the CHAOKE 520A Magnetic Exercise Bike. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new fitness equipment. Please read this manual thoroughly before use and retain it for future reference.

Image 1.1: The CHAOKE 520A Magnetic Exercise Bike in use, demonstrating its smart features and home integration.

2. Informazioni sulla sicurezza

Prima di iniziare qualsiasi programma di allenamento, consulta il tuo medico. Un allenamento improprio o eccessivo può causare lesioni. Segui sempre queste linee guida di sicurezza:

• Assicurarsi che tutti i componenti siano correttamente assemblati e serrati prima di ogni utilizzo.
• Place the exercise bike on a flat, stable surface. Use a mat to protect your floor.
• Tenere i bambini e gli animali domestici lontani dall'apparecchiatura durante il funzionamento.
• Indossare abbigliamento sportivo e calzature adeguate. Evitare indumenti larghi che potrebbero impigliarsi nelle parti in movimento.
• The maximum user weight for this bike is 150 kg (330 lbs). Do not exceed this limit.
• Interrompere immediatamente l'esercizio se ci si sente deboli, storditi o si avverte dolore.
• Regularly inspect the bike for wear and tear, especially moving parts and connections.

3. Contenuto della confezione

Carefully unpack all components and verify that you have received all items listed below. If any parts are missing or damaged, contact customer service.

• Telaio principale (pre-assemblato)
• Montaggio del manubrio
• Reggisella e sella
• Stabilizzatori anteriori e posteriori
• Pedali (sinistro e destro)
• Monitor LCD
• Kit hardware (bulloni, rondelle, dadi)
• Strumenti di assemblaggio
• Manuale d'uso

4. Installazione e assemblaggio

The CHAOKE 520A Exercise Bike is designed for easy assembly, with approximately 80% of the unit pre-installed. Assembly typically takes about 25 minutes. Follow these steps:

1. Fissare gli stabilizzatori: Fissare gli stabilizzatori anteriori e posteriori al telaio principale utilizzando i bulloni e le rondelle forniti.
2. Installa i pedali: Identify the left (L) and right (R) pedals. The left pedal screws counter-clockwise, and the right pedal screws clockwise. Ensure they are tightened securely.
3. Sede del monte: Insert the seat post into the main frame and attach the seat. Adjust to your preferred height and position.
4. Installare il manubrio: Attach the handlebar assembly to the main frame. Connect any necessary sensor cables for the monitor.
5. Collegare il monitor LCD: Secure the LCD monitor to the handlebar post. Connect the sensor cables from the main frame and any pulse sensors.

For a visual guide, scan the QR code in the printed user manual or visit the product page for an installation video.

Image 4.1: Visual representation of the bike's components and the ease of assembly.

5. Regolazioni

Proper adjustment of the seat and handlebars is crucial for comfort and effective exercise. The CHAOKE 520A is designed to accommodate users between 140 cm and 185 cm in height.

5.1 Regolazione del sedile

• Altezza: The seat can be adjusted to 7 different height levels. Loosen the adjustment knob on the seat post, raise or lower the seat to the desired height, and then tighten the knob securely.
• Avanti indietro: The seat can also be moved horizontally. Loosen the knob beneath the seat, slide the seat forward or backward, and then tighten the knob.

5.2 Regolazione del manubrio

• The handlebars can be adjusted to 5 different height levels. Loosen the adjustment knob on the handlebar post, adjust to your preferred height, and then tighten the knob firmly.

Image 5.1: Demonstrating the adjustable seat and handlebars for a comfortable fit for multiple users.

6. Funzionamento

Familiarize yourself with the bike's functions to maximize your workout experience.

6.1 Magnetic Resistance System

The CHAOKE 520A features a silent magnetic resistance system with a belt drive, offering a smooth and quiet ride (below 10dB). The resistance can be adjusted from 0% to 100% to suit various training intensities.

• Aumenta la resistenza: Ruotare la manopola della resistenza in senso orario.
• Diminuire la resistenza: Ruotare la manopola della resistenza in senso antiorario.
• Arresto di emergenza: Premere con decisione la manopola della resistenza per attivare il freno di emergenza e arrestare immediatamente il volano.

Image 6.1: The resistance knob and its range of adjustment for different workout intensities.

6.2 monitor LCD

The integrated LCD monitor displays key workout data to help you track your progress:

• Tempo: Durata del tuo allenamento.
• Velocità: Velocità attuale del ciclismo.
• Distanza: Distanza totale percorsa durante la sessione.
• Calorie: Calorie bruciate stimate.
• ODO (contachilometri): Distanza totale accumulata.

Image 6.2: The LCD monitor providing real-time workout data.

6.3 Connettività dell'app

Enhance your training by connecting your smartphone or tablet to the bike via Bluetooth. The CHAOKE 520A is compatible with fitness applications like Fitshow, allowing you to access virtual routes, track detailed statistics, and engage in interactive workouts.

• Scarica l'app: Cercare "Fitshow" or other compatible apps on your device's app store (Google Play or App Store).
• Abilita Bluetooth: Attiva il Bluetooth sul tuo smartphone o tablet.
• Collegare: Open the app and follow the on-screen instructions to pair with your CHAOKE 520A bike.
• Posiziona dispositivo: Use the integrated tablet/phone holder on the handlebars to secure your device during your workout.

Image 6.3: The smart indoor bike experience with app connectivity.

7. Manutenzione

Una manutenzione regolare garantisce la longevità e le prestazioni ottimali della tua cyclette.

• Pulizia: Pulisci la bici con la pubblicitàamp Dopo ogni utilizzo, pulire con un panno per rimuovere sudore e polvere. Evitare detergenti abrasivi.
• Ispezione: Controllare periodicamente il serraggio di tutti i bulloni, dadi e parti mobili. Serrare eventuali elementi di fissaggio allentati.
• Lubrificazione: The magnetic resistance system is generally maintenance-free. Do not apply lubricants to the magnetic flywheel or belt.
• Magazzinaggio: Conservare la bicicletta in un luogo asciutto e fresco, al riparo dalla luce solare diretta e da temperature estreme. Le ruote di trasporto integrate consentono un facile spostamento.

Image 7.1: The integrated transport wheels for easy movement and storage.

8. Risoluzione Dei Problemi

In caso di problemi, fare riferimento ai seguenti problemi comuni e alle relative soluzioni:

• Bike is unstable: Ensure the bike is on a flat surface. Adjust the leveling feet on the stabilizers if necessary.
• Rumore insolito durante il funzionamento: Check all bolts and connections for tightness. Ensure no foreign objects are near the flywheel or belt. If noise persists, contact customer support.
• Il monitor LCD non visualizza: Check battery installation and ensure all cables are securely connected to the monitor and main frame.
• Resistenza non variabile: Verify the resistance knob is functioning correctly. Ensure the magnetic system is free from obstructions.
• L'app non si connette tramite Bluetooth: Ensure Bluetooth is enabled on your device and the app has necessary permissions. Try restarting both your device and the bike (if applicable).

9. Specifiche

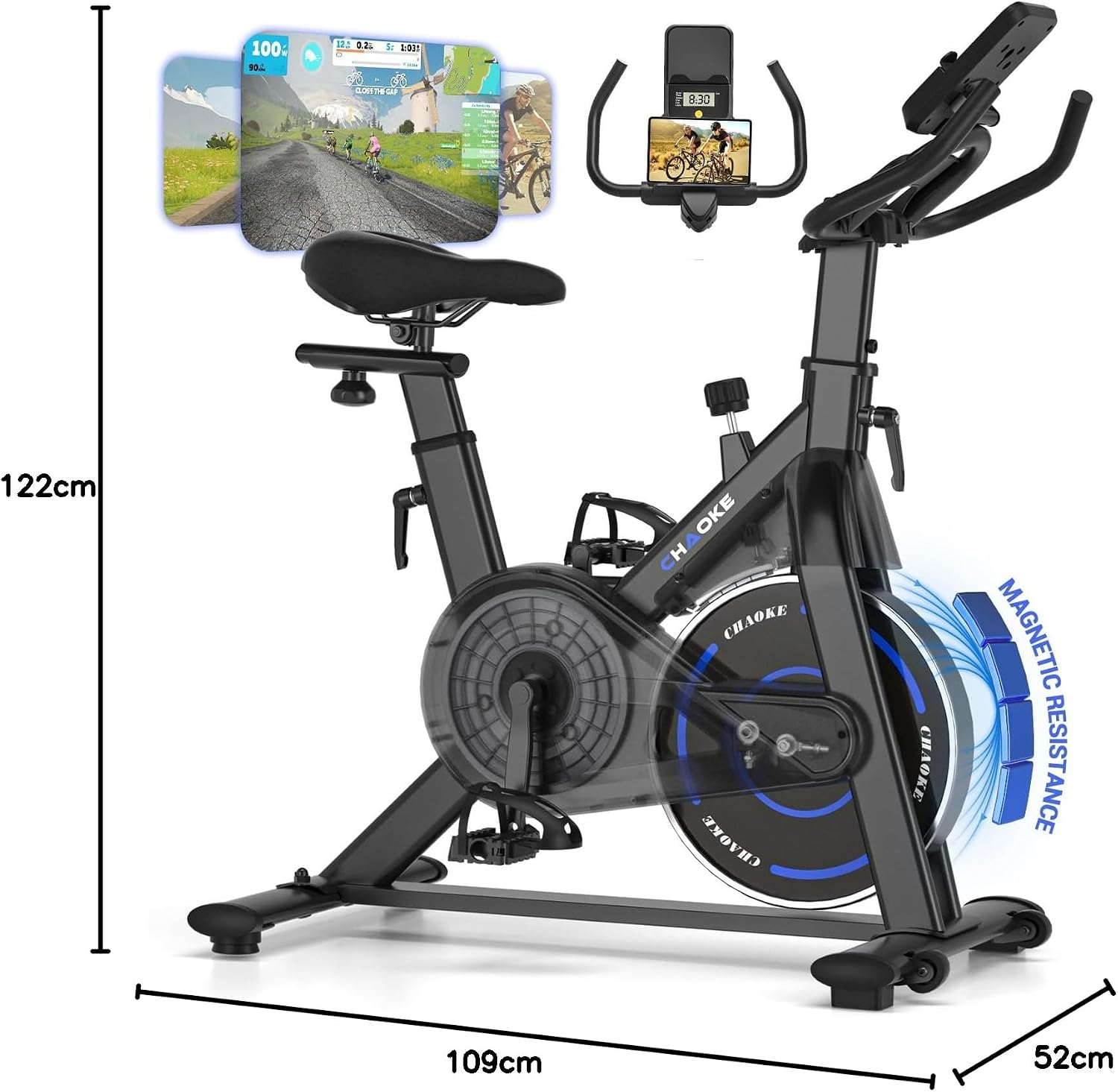

Image 9.1: Key dimensions of the CHAOKE 520A Exercise Bike.

10. Garanzia e supporto

CHAOKE offers a 5-year warranty for this exercise bike. We are committed to providing high-quality products and excellent customer service.

If you have any questions, concerns, or require assistance with your CHAOKE 520A Exercise Bike, please do not hesitate to contact our professional customer service team. Refer to your purchase documentation for specific contact details.
