Generic 6V Resistance Tension Motor for NordicTrack Ellipticals (Model 193223)

1. Prodotto finitoview

This manual provides essential information for the installation, operation, and maintenance of your new 6V Resistance Tension Motor. This motor is designed as a replacement part for various elliptical and bike models, primarily compatible with NordicTrack, ProForm, FreeMotion, Epic, HealthRider, and Gold's Gym equipment. It is crucial to verify compatibility with your specific model before installation.

Immagine 1.1: The 6V Resistance Tension Motor, shown with an example elliptical machine in the background, illustrating its application. This motor is a replacement component for fitness equipment.

2. Compatibilità

This resistance tension motor is specifically designed for various elliptical and bike models. It is not a universal part. Please ensure your exact model number is listed below or cross-reference with the original part numbers.

Sostituisce i numeri di parte: 193223, 175656, 182556, 182851.

Compatible with NordicTrack Models (Partial List):

• 130 - 831.305100, 831.305101, 831.305102
• 14.0 - NTEVEL198130, NTEVEL198131, NTEVEL198132
• 9600 Basic CEENL42545
• A.C.T. - 831.238780, 831.238960, 831.240321, NTEL710140, NTEL713120, NTEL714140, NTEL714141, NTEL716150, NTEL713123
• A.C.T. COMMERCIAL - NTEVEL150160, NTEVEL150161, NTEVEL15518-CH0, NTEVEL155180, NTEL710141, NTEVEL130160, NTEL716152, NTEL718170, NTEL718171
• A.C.T. Elite - 239000, 239001, 239002, 831.239001, 831.239002, 831.239003
• A.C.T. Plus - NTEL199110, NTEL716120, NTEL716122
• A.C.T. Pro - NTEL012990, NTEL716123, NTEL912110, NTEL912111
• Audio Rider U300 - 831.216620, 831.216622
• AudioStrider 990 Pro NTEL994130
• C 5.5 - NTEVEL698160, NTEVEL698180
• C 7.5 - NTEL079151, NTEL079152, NTEL079153, NTEVEL89816-CH0, NTEVEL898160, NTEVEL898161, NTEL079150
• C 9.5 - NTEL098150, NTEL098151, NTEVEL148160
• C 9.5 SERIES - NTEL097170, NTEL097171
• C2200 - NTL11922
• CANADAEL E 7.7 - 23887C0, 23887C1
• CANADAEL NORDICTRK A.C.T. - 24032C0
• CANADAEL NORDICTRK E 7.5 I - 24030C0, 24030C1
• CANADAEL NORDICTRK E 9.5 I - 24035C0, 24035C1
• COMMERCIAL 12.9 - NTEL712150, NTEL712170, NTEL712180, NTEVEL150170
• COMMERCIAL 14.0 - NTEVEL198133
• COMMERCIAL 14.9 - NTEL714180, NTEL715150, NTEL715170, NTEL715180
• Other compatible models include: 831219110, NTC05940, NTC05941, PFEX17932, 831216520, 831283240, 831283120, 831283241, PFEX17930, DRE13041, WLEL20130, 831239351, 831298961, 831239350, 831297630, 831239353, 831237450, 831239352, 831212570, 831216411, 831219526, 831237451, 831286221, 831219527, 831219522, 831219524, 831219523, IMEL21941, 831219529, IMEL21940, 831218320, 831286451, 831215212, PFEX17910, 831219415, 831215211, PFEL13031, 831215210, 831286450, 831219412, 831219413, WLEX19840, HREX04210, 831219421, 831218332.

3. Cosa c'è nella scatola

Il tuo pacco dovrebbe contenere i seguenti articoli:

• 1x Elliptical Resistance Motor

Immagine 3.1: The Elliptical Resistance Motor as it appears out of the box, showing its main body, wiring, and connector.

4. Istruzioni per l'installazione

The installation process for the resistance tension motor is designed to be straightforward. However, it requires careful attention to detail and basic mechanical aptitude.

1. Preparazione: Before beginning, ensure your elliptical or bike is unplugged from the power source. Gather necessary tools, typically a Phillips head screwdriver.
2. Accedi al motore: Locate and remove the protective casing of your fitness machine to access the area where the original tension motor is installed. Observe how the old motor is connected and positioned.
3. Rimuovere il vecchio motore: Carefully disconnect any wiring from the old motor. Loosen the screws securing the old motor in place and remove it.
4. Installare il nuovo motore: Position the new resistance tension motor in the same location as the old one. Secure it with the screws.
5. Collegare il cablaggio: Connect the wiring to the new motor. Ensure the cam is rotated to the matching position for seamless integration with the existing system. No complex debugging should be required.
6. Rimontare: Sostituire la protezione casing e fissarlo.
7. Test: Plug in your machine and test the resistance adjustment to ensure the new motor functions correctly.

Immagine 4.1: Visual guide for installation, showing the comparison between an old and new motor, and the process of connecting the wiring.

Immagine 4.2: Dettagliato views of the motor's potentiometer (B5K), wiring connections, and the red connector, which are critical for correct installation.

5. Funzionamento

Once installed, the 6V Resistance Tension Motor functions as the core component for adjusting the resistance level on your elliptical or bike. Its purpose is to provide the necessary tension to make your workouts effective and challenging.

• Controllo della resistenza: The motor receives signals from your machine's console to adjust the magnetic or mechanical resistance system.
• Smooth Adjustment: It is designed to provide smooth and consistent changes in resistance as you modify settings on your fitness equipment.
• Potenza 6V: The motor operates on a 6-volt power supply, ensuring compatibility with specified fitness equipment models.

Immagine 5.1: Un lato profile of the resistance tension motor, highlighting its compact design and connection points.

6. Manutenzione

The resistance tension motor is a sealed unit and generally requires minimal maintenance. However, proper care of your fitness equipment can prolong the life of all its components, including this motor.

• Mantenere pulito: Regularly clean the exterior of your fitness machine to prevent dust and debris from accumulating near internal components.
• Ispezionare il cablaggio: Periodically inspect the wiring connected to the motor for any signs of wear, fraying, or loose connections.
• Evitare il sovraccarico: Operate your fitness equipment within its recommended weight and usage limits to prevent undue stress on the resistance system.
• Ispezione professionale: If you notice any unusual noises or inconsistent resistance, consider having your machine inspected by a qualified technician.

7. Risoluzione Dei Problemi

If you experience issues with your resistance tension motor, consider the following troubleshooting steps:

8. Specifiche

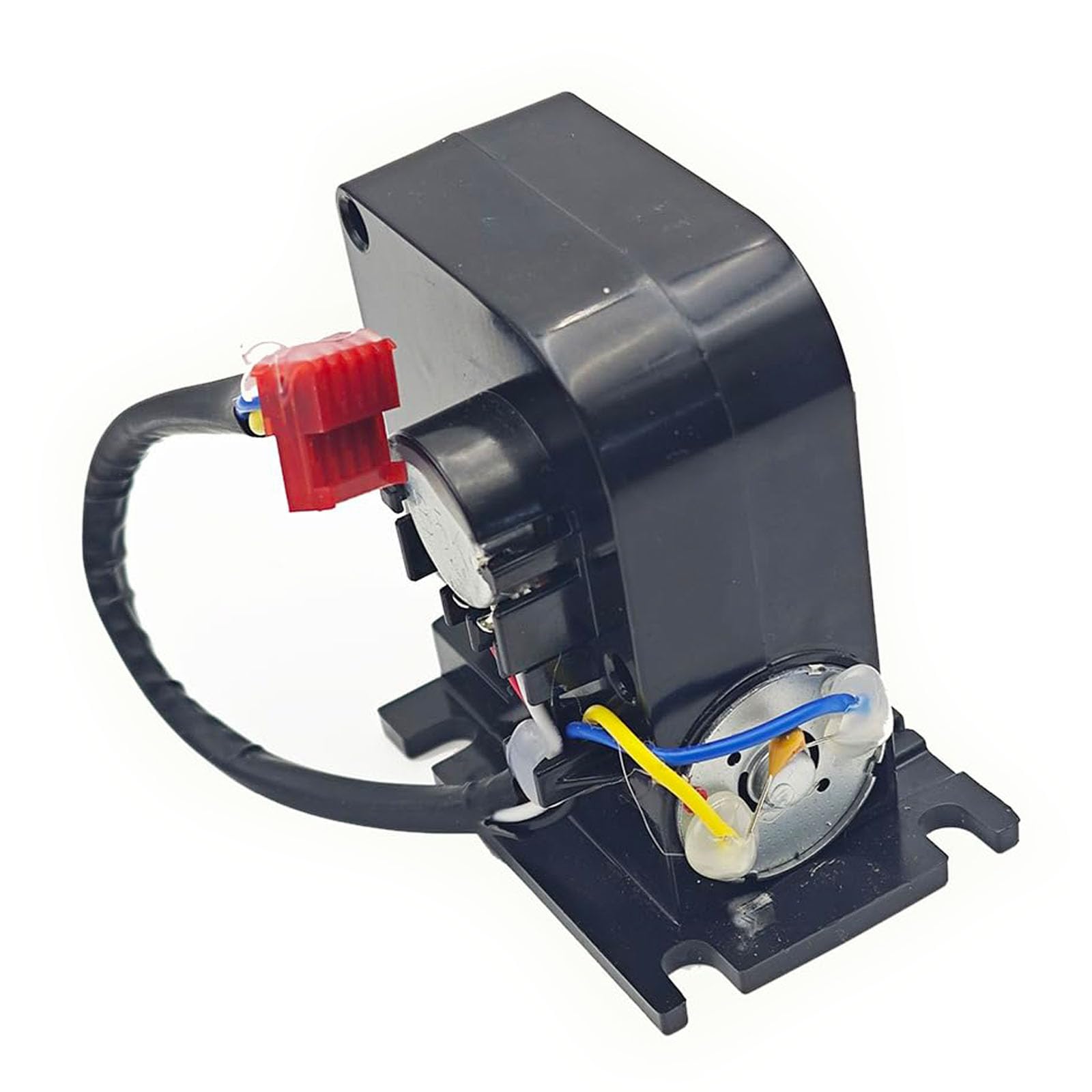

Immagine 8.1: Il primario view of the 6V Resistance Tension Motor, showcasing il suo design complessivo e i suoi componenti.

9. Garanzia e supporto

For any questions regarding the product, installation, or performance, please contact the seller directly. The manufacturer is committed to providing attentive service and aims to respond to inquiries within 24 hours.

While specific warranty details are not provided in this manual, please refer to your purchase documentation or contact the seller for information on warranty coverage and return policies.
