Generic Hermetic Compressor Analyzer ZX9UEI087 User Manual

1. Introduzione

This manual provides detailed instructions for the safe and effective operation, setup, maintenance, and troubleshooting of the Generic Hermetic Compressor Analyzer, Model ZX9UEI087. This instrument is designed for testing hermetic compressors, offering capabilities for continuity and ground fault detection, locked rotor freeing, and electrical measurements.

2. Informazioni sulla sicurezza

AVVERTIMENTO: Always read and understand all safety instructions before operating this device. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Ensure the analyzer is connected to a properly grounded electrical outlet.
• Non utilizzare il dispositivo in condizioni di umidità o con le mani bagnate.
• Verificare il volume correttotage setting (120V or 240V AC) before connecting to a power source. Incorrect voltage can damage the unit and connected equipment.
• Always disconnect power to the compressor before making or breaking connections.
• Quando si lavora con impianti elettrici, indossare adeguati dispositivi di protezione individuale (DPI), tra cui occhiali di sicurezza e guanti isolanti.
• Do not attempt to service the analyzer yourself. Refer all servicing to qualified personnel.

3. Prodotto finitoview e Caratteristiche

The Generic Hermetic Compressor Analyzer is a versatile tool designed for diagnosing and maintaining hermetic compressors. Its key features include:

• Doppio volumetage Operazione: Compatible with both 120V and 240V AC power supplies.
• Continuity and Ground Fault Indication: Utilizes LED lights to clearly indicate continuity and ground faults in motor windings.
• Locked Rotor Freeing: Capable of freeing locked rotors by reversing motor action.
• Measurement Breakout Jacks: Provides convenient jacks for measuring voltage and resistance with external meters.
• Capacitor Testing: Features 3 ranges for testing AC starting capacitors up to 88301 MFD at 250V.

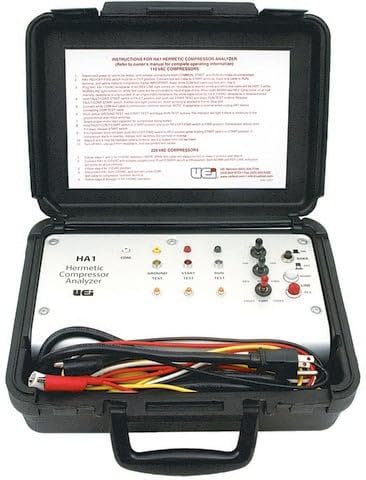

Figura 1: Davanti view of the Generic Hermetic Compressor Analyzer. This image displays the device's control panel, input/output terminals, and LED indicators for various diagnostic functions.

4. Impostazione

1. Disimballaggio: Carefully remove the Hermetic Compressor Analyzer from its packaging. Verify all components, including the Adapter Cord ACF1, are present and undamaged.
2. Collegamento elettrico:
   • Identificare il volumetage selector switch (if present) and ensure it is set to the correct voltage (120V or 240V AC) matching your power supply.
   • Connect the provided Adapter Cord ACF1 to the analyzer's power input.
   • Plug the Adapter Cord ACF1 into a grounded electrical outlet.
3. Ispezione iniziale: Before connecting to a compressor, perform a visual inspection of the analyzer and its cables for any signs of damage.

5. Istruzioni per l'uso

5.1. Continuity and Ground Fault Testing

1. Ensure the compressor is disconnected from all power sources.
2. Connect the analyzer's test leads to the compressor motor windings as per the diagram (refer to product-specific diagrams if available).
3. Power on the analyzer.
4. Osservare gli indicatori LED:
   • A lit "Continuity" LED indicates a complete circuit in the winding.
   • A lit "Ground Fault" LED indicates a short circuit between the winding and the compressor casing.
5. Interpret the results to diagnose winding integrity.

5.2. Freeing Locked Rotors

1. Ensure the compressor is safely isolated and secured.
2. Connect the analyzer to the compressor terminals according to the manufacturer's instructions for reversing motor action.
3. Activate the "Locked Rotor Freeing" function on the analyzer. This typically involves a momentary application of reversed current.
4. Monitor the compressor for signs of the rotor freeing. Repeat if necessary, following safety guidelines and allowing for cool-down periods.

5.3. Volumetage e misurazione della resistenza

1. Connect an external multimeter or voltmeter to the breakout jacks on the analyzer.
2. Selezionare la funzione di misurazione appropriata (voltage or resistance) on your external meter.
3. Connect the analyzer's test leads to the circuit or component you wish to measure.
4. Read the values displayed on your external meter.

5.4. AC Starting Capacitor Testing

1. Ensure the capacitor is fully discharged before handling.
2. Connect the capacitor to the designated capacitor test terminals on the analyzer.
3. Select the appropriate test range (e.g., for capacitors up to 88301 MFD at 250V).
4. Initiate the test and observe the analyzer's display or indicators for the capacitor's condition.

6. Manutenzione

• Pulizia: Disconnect the analyzer from power before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use abrasive cleaners or solvents.
• Magazzinaggio: Store the analyzer in a cool, dry place, away from direct sunlight and extreme temperatures. Keep it in its original packaging or a protective case when not in use.
• Ispezione dei cavi: Regularly inspect all cables and connectors for wear, cuts, or damage. Replace damaged components immediately.
• Calibrazione: For optimal accuracy, periodic calibration by a qualified service center is recommended. Refer to the manufacturer for calibration schedules.

7. Risoluzione Dei Problemi

Se le procedure di risoluzione dei problemi non risolvono il problema, contattare l'assistenza clienti per ulteriore assistenza.

8. Specifiche

9. Garanzia e supporto

For warranty information, technical support, or service inquiries regarding your Generic Hermetic Compressor Analyzer, Model ZX9UEI087, please contact the manufacturer, 212 Main, or your authorized dealer. Please have your model number (ZX9UEI087) and ASIN (B0F8PK14BY) available when contacting support.

Le informazioni di contatto si trovano solitamente sulla confezione del prodotto o sul sito ufficiale del produttore. websito.
