GODIYMODULES 3S 12V 18650 10A Li-ion Battery Protection Board (BMS) User Manual

1. Introduzione

Thank you for choosing the GODIYMODULES 3S 12V 18650 10A Li-ion Battery Protection Board (BMS). This module is designed to provide essential protection for 3-series (3S) 18650 lithium-ion battery packs, ensuring their safety and extending their lifespan. It safeguards against common issues such as overcharge, over-discharge, over-current, and short circuits. Please read this manual carefully before installation and use to ensure proper operation and safety.

2. Prodotto finitoview

The 3S 12V 10A BMS is a compact and efficient battery management system suitable for various applications using 3.7V lithium cells, resulting in a nominal 10.8V, 11.1V, or 12.6V battery pack. Its primary function is to monitor the voltage of each cell and the overall current flow, disconnecting the load or charger when unsafe conditions are detected. This ensures the longevity and safe operation of your battery pack.

Caratteristiche principali:

• Protezione da sovraccarico: Prevents individual cells from being charged beyond their safe voltage limit (4.25-4.35V±0.05V).
• Protezione da scarica eccessiva: Prevents individual cells from being discharged below their safe voltage limit (2.3-3.0V±0.05V).
• Protezione da sovracorrente: Limits the discharge current to prevent damage to the battery and the BMS (Maximum discharge current: 10A, Transient current: 9A-10A).
• Protezione da cortocircuito: Scollega automaticamente la batteria in caso di cortocircuito.
• Design compatto: Small form factor (approx. 50x16x1mm) for easy integration into battery packs.

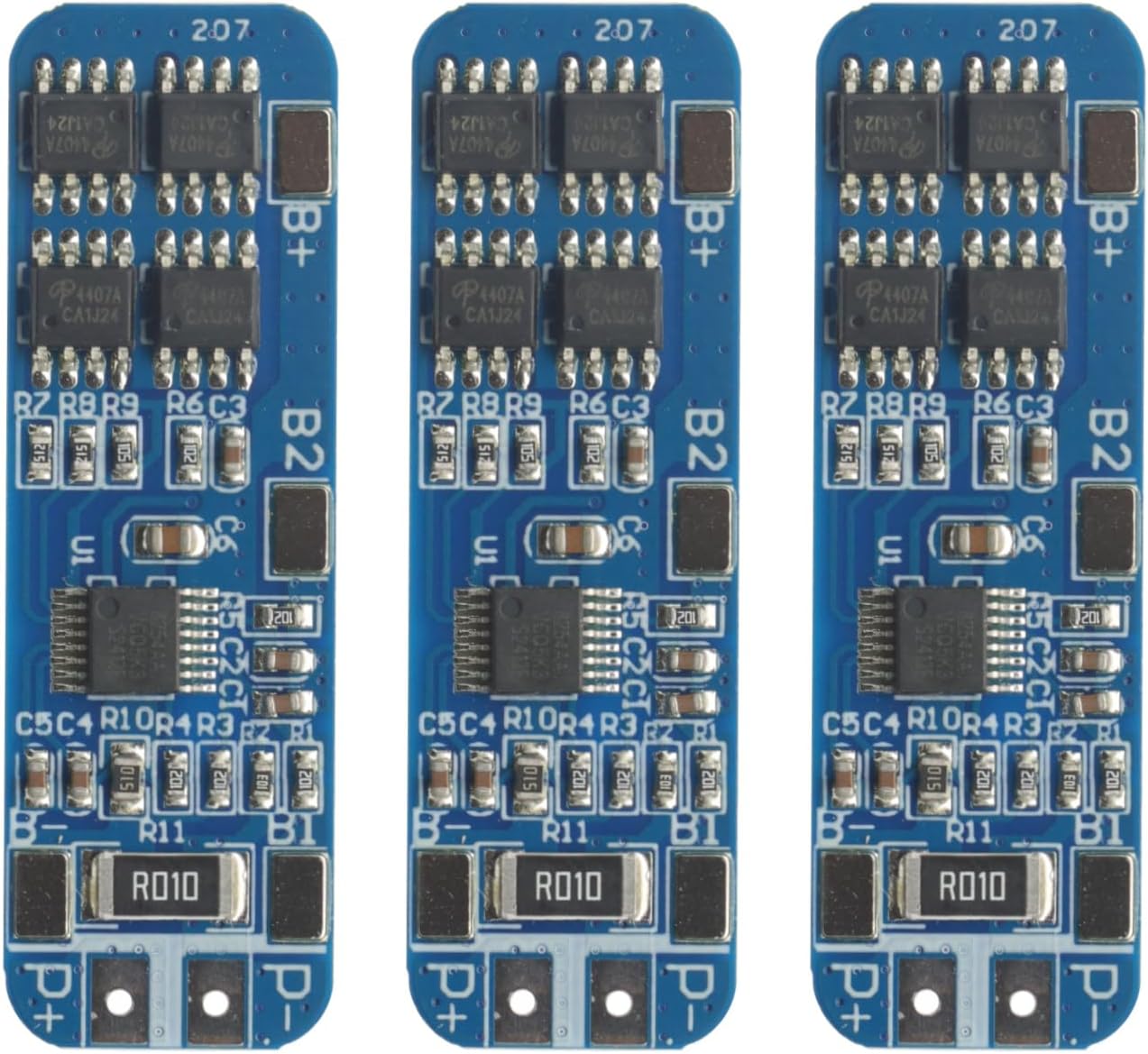

Figura 1: in alto view of the 3S 12V 10A BMS module, showing components and connection points.

Figura 2: In basso view of the 3S 12V 10A BMS module, showing solder pads and markings.

3. Specifiche

4. Istruzioni di sicurezza

• Always handle lithium-ion batteries with care.
• Ensure correct polarity when connecting batteries to the BMS. Incorrect wiring can cause damage to the BMS, batteries, or lead to fire.
• Do not exceed the specified maximum discharge current (10A).
• Use appropriate charging equipment designed for lithium-ion batteries.
• Avoid short-circuiting the battery pack or the BMS output.
• Keep the BMS module away from moisture, extreme temperatures, and static electricity.
• If you are unsure about any wiring steps, consult a qualified professional.
• This BMS is designed for 3-series (3S) battery packs only. Do not use with other configurations.

5. Configurazione e cablaggio

Proper wiring is critical for the safe and effective operation of the BMS. Refer to the wiring diagram below and follow the steps carefully.

Figure 3: Wiring diagram for connecting three 18650 cells to the 3S 12V 10A BMS module.

Fasi di cablaggio:

1. Collegare B- (negativo della batteria): Connect the negative terminal of the first battery cell (Cell 1) to the B- pad on the BMS. This is the main negative terminal for the entire battery pack.
2. Connect B1 (Cell 1 Positive / Cell 2 Negative): Connect the positive terminal of Cell 1 to the negative terminal of the second battery cell (Cell 2). Then, connect this junction point to the B1 pad on the BMS.
3. Connect B2 (Cell 2 Positive / Cell 3 Negative): Connect the positive terminal of Cell 2 to the negative terminal of the third battery cell (Cell 3). Then, connect this junction point to the B2 pad on the BMS.
4. Collegare B+ (positivo della batteria): Connect the positive terminal of the third battery cell (Cell 3) to the B+ pad on the BMS. This is the main positive terminal for the entire battery pack.
5. Connect P- (Output/Charge Negative): This pad is the negative terminal for both charging and discharging. Connect your load's negative terminal or charger's negative terminal here.
6. Connect P+ (Output/Charge Positive): This pad is the positive terminal for both charging and discharging. Connect your load's positive terminal or charger's positive terminal here. Note that P+ is typically connected directly to B+ on the BMS board itself, as shown in the diagram.

Importante: Always connect the balance wires (B-, B1, B2, B+) to the BMS Prima connecting the main charge/discharge wires (P-, P+). Ensure all connections are secure and properly insulated to prevent short circuits.

6. Funzionamento

Once correctly wired, the BMS operates automatically to protect your battery pack. It continuously monitors cell voltages and current flow.

• Ricarica: When charging, the BMS will prevent any individual cell from exceeding its overcharge detection voltage. If a cell reaches this limit, the BMS will stop the charging process for the entire pack.
• Scaricamento: During discharge, the BMS will prevent any individual cell from dropping below its over-discharge detection voltage. If a cell reaches this limit, the BMS will cut off the discharge to protect the battery. It will also cut off discharge if the total current exceeds the maximum discharge current or if a short circuit is detected.
• Recupero: After a protection event (e.g., over-discharge), the BMS typically recovers automatically once the condition is resolved (e.g., by applying a charge to an over-discharged pack). For over-current or short-circuit protection, removing the fault condition usually allows for automatic recovery.

7. Manutenzione

The 3S 12V 10A BMS module requires minimal maintenance. However, following these guidelines can help ensure its long-term reliability:

• Ispezione regolare: Periodically inspect all wiring connections for looseness or corrosion.
• Pulizia: Mantenere il modulo pulito e privo di polvere e detriti. Utilizzare un panno morbido e asciutto per la pulizia.
• Condizioni ambientali: Ensure the module operates within its specified temperature range and avoid exposure to excessive humidity.
• Stato della batteria: Monitor the overall health of your battery cells. A BMS cannot compensate for severely damaged or unbalanced cells.

8. Risoluzione Dei Problemi

If you encounter issues with your BMS, consider the following troubleshooting steps:

• Nessuna uscita Voltage (P+ / P-):
  • Check all wiring connections for correctness and secure contact.
  • Verificare che il pacco batteria voltage is within the operational range (above over-discharge voltagE).
  • Ensure no short circuit is present on the output terminals.
  • If the pack was over-discharged, try connecting a charger to reactivate the BMS.
• Batteria non in carica:
  • Confirm the charger is functioning correctly and is suitable for 3S Li-ion batteries.
  • Controllare se il volume di una singola cellatage has reached the overcharge protection threshold.
  • Inspect charger connections to P+ and P-.
• BMS Cuts Off Prematurely (e.g., at 12.8V):
  • Ciò può verificarsi se il caricabatterie voltage is too low or if the cells are not perfectly balanced. Ensure your charger provides a voltage higher than the desired full charge voltage (e.g., 13.5V for a 12.6V pack).
  • Singola cella voltages might be reaching their overcharge limit before the total pack voltage reaches 12.6V. Consider balancing your cells before connecting to the BMS, or use a charger with a lower current to allow for better balancing by the BMS (if it has passive balancing, which this basic model might not).
• Surriscaldamento:
  • Reduce the load current if the BMS is consistently running hot.
  • Assicurare un'adeguata ventilazione attorno al modulo.

If problems persist, re-verify all wiring against the diagram and consult the manufacturer's support.

9. Garanzia e supporto

This GODIYMODULES 3S 12V 10A BMS module comes with a Garanzia del produttore di 2 anni dalla data di acquisto. Questa garanzia copre difetti di materiali e lavorazione in condizioni di normale utilizzo.

La garanzia non copre i danni causati da:

• Installazione o cablaggio non corretti.
• Uso improprio, abuso o negligenza.
• Modifiche o riparazioni non autorizzate.
• Operating outside the specified environmental conditions.
• Overloading beyond the maximum current ratings.

For warranty claims or technical support, please contact GODIYMODULES customer service through the platform where the product was purchased, providing your order details and a description of the issue.
