LIGIANT R9 4-Seater Kids Electric Golf Cart Instruction Manual

1. Informazioni importanti sulla sicurezza

Read all instructions before operating the LIGIANT R9 electric golf cart. Failure to follow these instructions may result in serious injury.

• È richiesta la supervisione di un adulto: This product is intended for children aged 3-8 years. Always ensure direct adult supervision during operation.
• Capacità di peso: The maximum total weight capacity is 264 lbs (120 kg). Do not exceed this limit.
• Cinture di sicurezza: All four seats are equipped with seat belts. Ensure all occupants are properly secured before driving.
• Terreno: Operate on flat, dry surfaces. Avoid steep inclines, rough terrain, or public roads.
• Poggiapiedi: The two rear seats feature footrests for comfort and safety. Ensure children's feet are on the footrests during operation.
• Telecomando: Parents can use the remote control for added safety, especially for younger drivers. The remote includes an emergency brake function.
• Anti-Roll Wheels: The vehicle is equipped with 2 rear anti-roll wheels for enhanced stability.
• Equipaggiamento protettivo: Always wear appropriate safety gear, such as helmets, when operating the vehicle.

Please play with your parents.

2. Prodotto finitoview

The LIGIANT R9 is a 4-seater electric golf cart designed for children aged 3-8. It features a realistic golf cart appearance with a detachable awning, 4-wheel drive, and multimedia entertainment options.

Image: The LIGIANT R9 4-Seater Kids Electric Golf Cart, showcasing its overall design and dimensions. It is suitable for ages 3-8 and can carry up to 4 children with a maximum weight of 264 lbs.

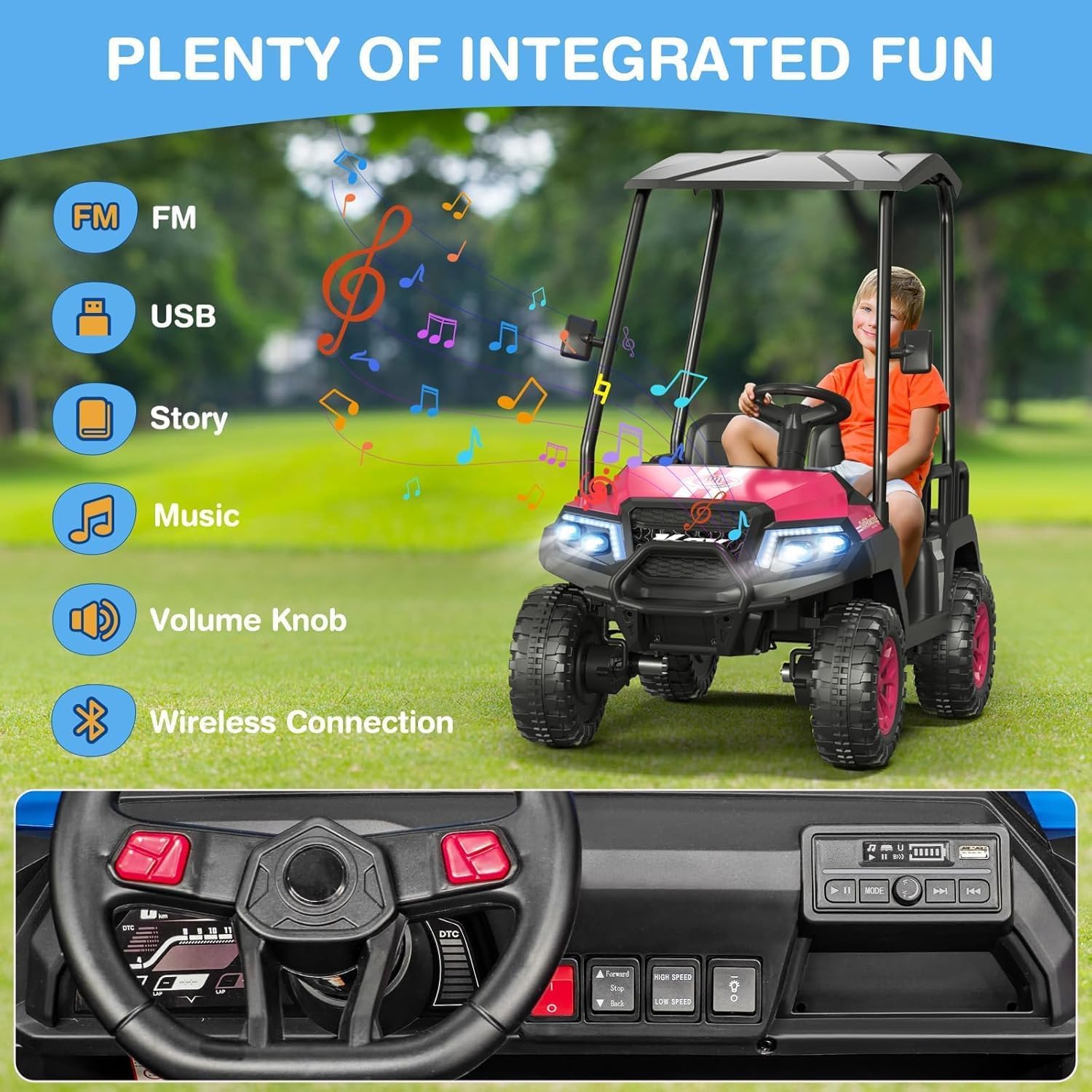

Image: A child driving the LIGIANT R9, highlighting the integrated multimedia features such as FM radio, USB input, story mode, music, volume control, and wireless Bluetooth connection.

3. Contenuto della confezione

Verificare che tutti i componenti siano presenti nella confezione:

• LIGIANT R9 4-Seater Golf Cart
• Detachable Roof
• Telecomando
• Manuale di installazione
• Charging Cable (not explicitly listed but implied for electric vehicle)

4. Istruzioni di montaggio

Assembly of the LIGIANT R9 is required. Please refer to the dedicated Manuale di installazione included in your package for detailed, step-by-step instructions. Ensure all parts are securely fastened before first use.

5. Operating Your LIGIANT R9

5.1 Accensione/Spegnimento

Locate the power button on the dashboard. Press to turn the vehicle on or off.

5.2 Driving Modes (Manual vs. Remote)

• Controllo manuale: Children can operate the vehicle using the foot pedal and steering wheel.
• Telecomando: Parents can override manual control using the included remote. This allows for guiding younger children or intervening for safety. The remote features an emergency brake ('P' button) and speed selection ('S' button).

Image: A hand holding the remote control for the LIGIANT R9, demonstrating its use for balancing safety and fun with emergency brake and variable speed options.

5.3 impostazioni di velocità

The LIGIANT R9 offers two speed options, ranging from 1.86 to 4.35 mph (3 to 7 km/h). Select the appropriate speed based on the child's age, skill level, and operating environment.

5.4 Funzionalità multimediali

Enhance the driving experience with built-in multimedia features:

• Riproduzione audio: Enjoy music, stories, and radio.
• Connettività: Connettiti tramite Bluetooth o USB.
• Controllo del volume: Adjust audio levels using the volume knob.
• Visualizzazione della batteria: A screen displays the current battery level.

6. Ricarica e cura della batteria

The LIGIANT R9 is powered by a 24V 7AH battery. Proper charging and battery care are essential for longevity and performance.

• Carica iniziale: Fully charge the battery before first use, typically 8-12 hours. Do not overcharge.
• Ricarica regolare: Ricaricare la batteria dopo ogni utilizzo.
• Magazzinaggio: If storing the vehicle for an extended period, charge the battery every 30 days to maintain its health.
• Caricabatterie: Utilizzare solo il caricabatterie fornito con il prodotto.

7. Manutenzione

Regular maintenance helps ensure the safe and optimal operation of your LIGIANT R9.

• Pulizia: Pulisci il veicolo con un pannoamp panno. Evitare l'uso di prodotti chimici aggressivi o detergenti abrasivi. Non spruzzare acqua direttamente sui componenti elettrici.
• Ispezioni: Periodically check all screws, nuts, and bolts to ensure they are tight. Inspect wheels and tires for wear.
• Componenti elettrici: Keep all electrical components dry. If the vehicle gets wet, allow it to dry completely before use.
• Tetto staccabile: The roof provides UV protection and is waterproof. Ensure it is securely attached when in use.

Image: The LIGIANT R9 with its detachable roof, illustrating its waterproof and UV protection features for outdoor use.

8. Risoluzione Dei Problemi

If you encounter issues with your LIGIANT R9, refer to the following common troubleshooting steps:

9. Specifiche del prodotto

10. Video ufficiali dei prodotti

Watch these official videos for additional information and demonstrations of the LIGIANT R9.

11. Assistenza clienti

For any questions, concerns, or technical assistance regarding your LIGIANT R9, please refer to the contact information provided in your product packaging or visit the official LIGIANT websito per le risorse di supporto.
