Introduzione
This manual provides essential instructions for the proper use and maintenance of your Dhyala KJ01 Replacement Filter. This 3-in-1 H13 Grade True HEPA Filter is designed to effectively capture dust, pollen, lint, pet dander, and smoke, ensuring cleaner indoor air quality.
Image: The Dhyala KJ01 Replacement Filter, showcasing its design and filtration layers.
Caratteristiche del prodotto
The Dhyala KJ01 Replacement Filter incorporates a multi-stage sistema di filtraggio per migliorare la qualità dell'aria:
- Pre filtro: Captures larger particles such as dust, lint, and pet fur, extending the life of subsequent filters.
- Filtro HEPA vero H13: Traps 99.97% of airborne particles as small as 0.3 microns, including pollen, dust mites, and pet dander.
- Filtro a carbone attivo: Absorbs unwanted odors from pets, cooking, smoke, and volatile organic compounds (VOCs).
Video: Un oltreview of the KJ01 Replacement Filter, demonstrating its pre-filter, H13 True HEPA, and activated carbon layers.
Image: A visual comparison highlighting the specialized honeycomb activated carbon filter designed for effective pet odor elimination.
Image: The Dhyala KJ01 Air Purifier and its filter shown in a home environment with pets, illustrating its effectiveness against pet dander.
Specifiche
| Numero modello articolo | Numero di parte: KJ01 |
| Peso dell'articolo | 1.3 libbre (0.59 chilogrammi) |
| Dimensioni del prodotto | 13 x 3 x 13 pollici |
| Grado di filtro | H13 Vero HEPA |
Image: The Dhyala KJ01 Air Purifier shown with the replacement filter, illustrating the filter's dimensions of 13 inches by 13 inches by 3 inches.
Installazione e preparazione
Before installing the new filter, ensure your Dhyala KJ01 Air Purifier is turned off and unplugged from the power outlet. This prevents accidental operation and ensures safety during the replacement process.
- Disimballare il nuovo filtro: Carefully remove the new Dhyala KJ01 Replacement Filter from its plastic packaging. Ensure all plastic wrapping is removed before installation.
- Identificare l'orientamento del filtro: Note the direction of the filter. The side with the handle should face outwards when installed.
Installazione del filtro
Follow these steps to replace the filter in your Dhyala KJ01 Air Purifier:
- Remove the Filter Cover: Gently remove the filter cover from your air purifier.
- Rimuovere il vecchio filtro: Carefully pull out the used filter from the unit. Dispose of the old filter responsibly.
- Inserisci il nuovo filtro: Align the new filter with the corresponding filter groove on the upper part of the purifier. Ensure the side with the handle is facing outwards.
- Sostituire la copertura: After installing the filter, securely place the filter cover back onto the air purifier.

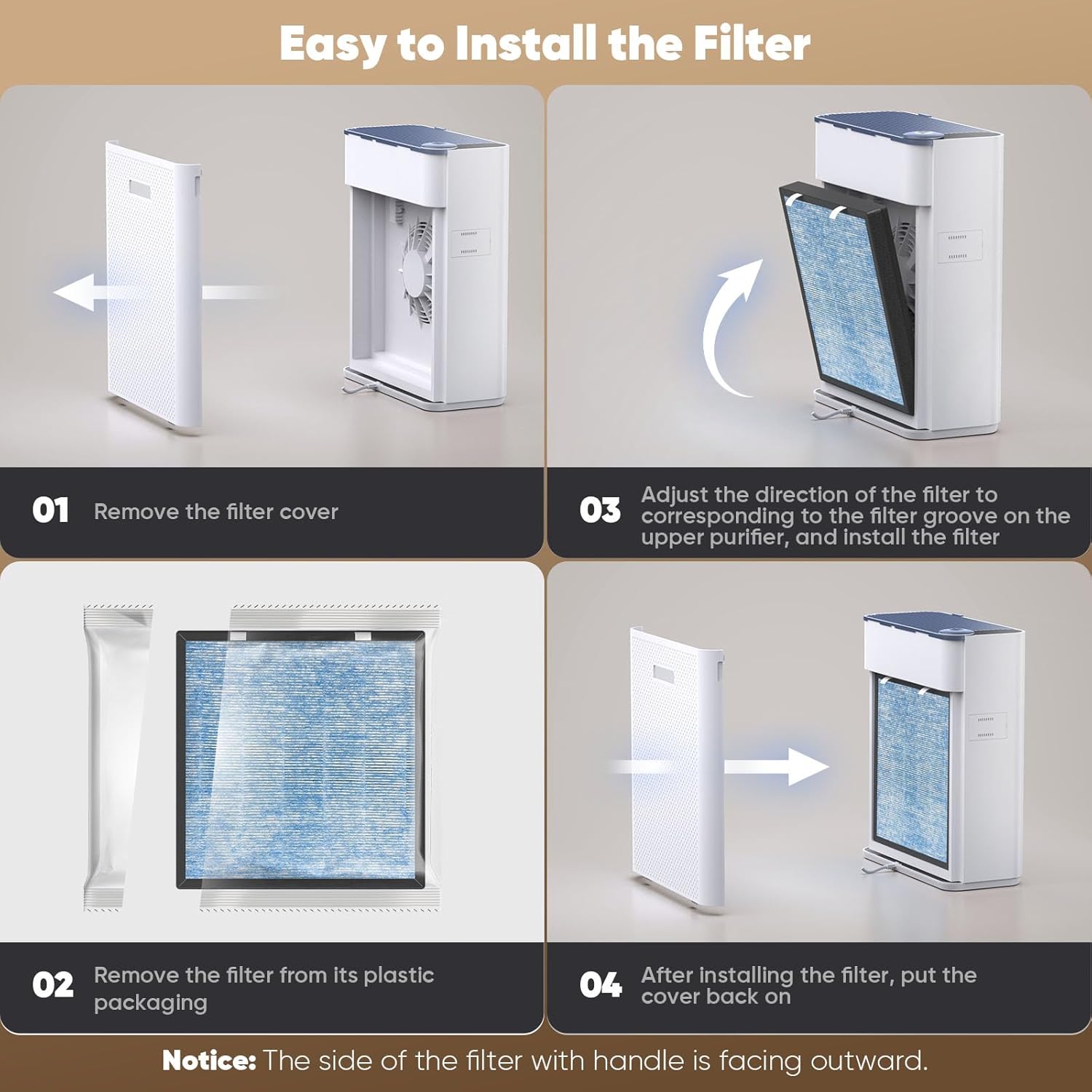

Image: A visual guide detailing the four steps for replacing the air purifier filter, from removing the cover to reattaching it.
Video: Instructions on how to properly close the filter cover after replacing the filter in an air purifier, ensuring a secure fit.
Operating Your Air Purifier After Filter Replacement
Once the new filter is installed and the cover is securely closed, plug in your Dhyala KJ01 Air Purifier and turn it on. The unit will resume normal operation, providing clean air.
Ripristina filtro
After replacing the filter, the filter reset indicator light on your air purifier may be on. To reset it:
- Press and hold the filter reset button (or indicated button) for approximately 3 seconds until the indicator light turns off.
- Refer to your air purifier's main instruction manual for specific button locations if needed.
Image: A diagram illustrating the process of filter replacement and how to reset the filter indicator light on the air purifier.
Manutenzione e durata del filtro
To maintain optimal purification efficiency, it is recommended to replace the Dhyala KJ01 filter every 4 to 6 months. This timeframe may vary depending on local air quality conditions and the frequency of air purifier usage.
Regular replacement ensures that the H13 True HEPA and activated carbon layers continue to effectively capture pollutants and odors.
Image: A family with their dog in a living room, featuring the Dhyala air purifier and filter, emphasizing the 4-6 month replacement recommendation for better air quality.
Risoluzione dei problemi
Se il purificatore d'aria non funziona correttamente dopo la sostituzione del filtro, tenere presente quanto segue:
- Filter Not Seated Properly: Ensure the filter is fully inserted and aligned within its compartment, and the cover is securely closed.
- Filter Plastic Removed: Confirm that all plastic packaging has been removed from the new filter.
- Collegamento elettrico: Verify that the air purifier is properly plugged into a working power outlet.
- Ripristino filtro: Perform the filter reset procedure as described in the "Operating" section.
For further assistance, please refer to the original air purifier manual or contact customer support.
Garanzia e supporto
Dhyala provides dedicated support for its products. For any questions regarding installation, product inquiries, or warranty information, please contact us via Amazon messages.
Using genuine Dhyala KJ01 replacement filters ensures optimal performance and protects your air purifier unit from potential damage, maintaining your warranty.
