Lazellz Refrigerator Section Evaporator Fan Instruction Manual

1. Prodotto finitoview

This document provides general information and guidance for the Lazellz Refrigerator Section Evaporator Fan. This component is designed to circulate cool air within the refrigerator compartment of compatible GE appliances.

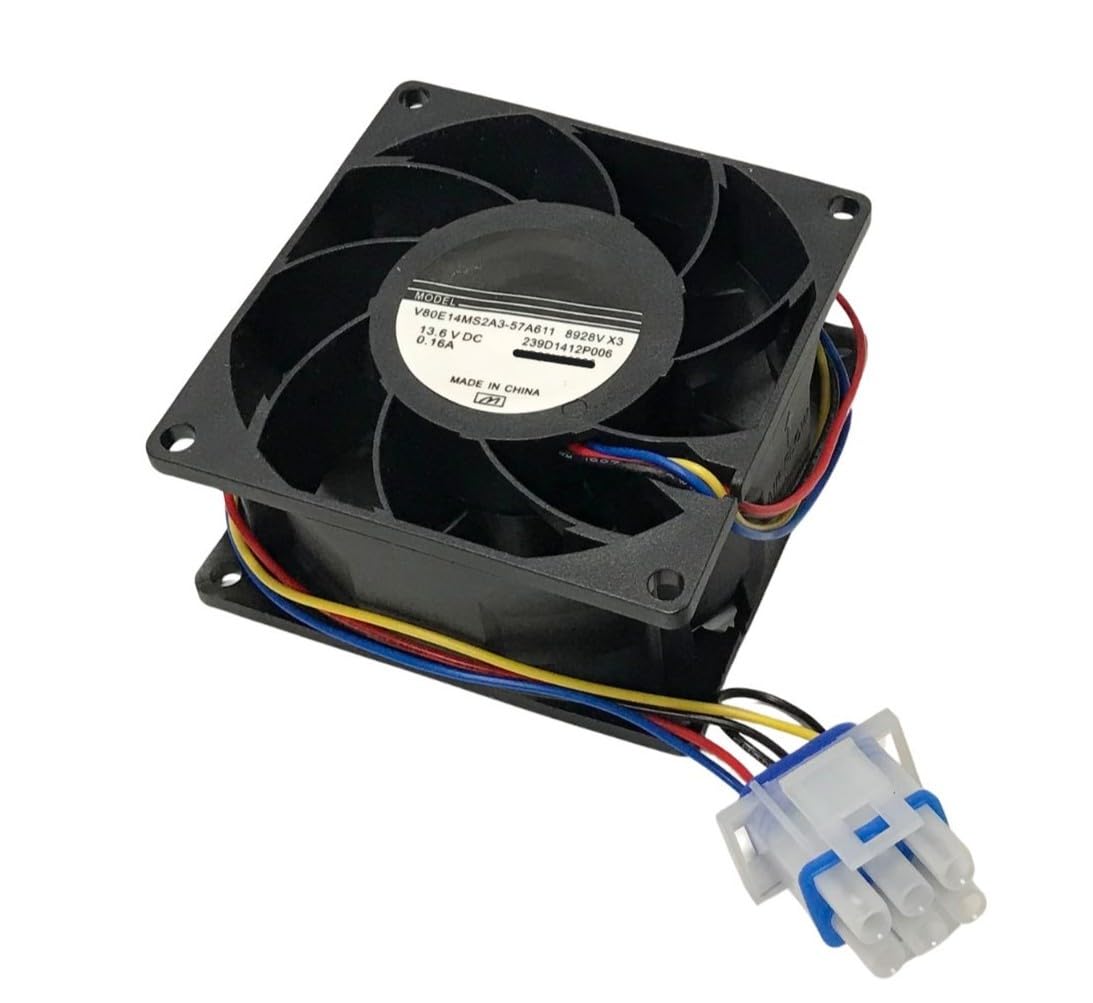

Immagine 1.1: Lazellz Refrigerator Section Evaporator Fan. This image displays the fan assembly, which is responsible for moving cool air within the refrigerator compartment.

2. Compatibilità

The Lazellz Refrigerator Section Evaporator Fan is compatible with the following GE refrigerator model numbers:

• PYE22PSHHSS
• PYE22PSHISS
• PYE22PSHJSS
• PYE22PSKBSS

Please verify your appliance's model number before attempting installation or replacement to ensure proper fit and function.

3. Funzione

The Fresh Food Evaporator Fan is a critical component located in the refrigerator section, typically near the evaporator coils. Its primary function is to circulate cool air throughout the fresh food compartment, ensuring consistent temperatures and efficient cooling performance. Without proper fan operation, cold air may not distribute evenly, leading to warmer spots and potential food spoilage.

4. Installazione

Important Note: Installation instructions are NOT included with this part. Professional installation by a qualified technician is highly recommended.

Replacing an evaporator fan typically involves:

1. La sicurezza prima di tutto: Always disconnect power to the refrigerator before beginning any repair work.
2. Accessing the Fan: This usually requires removing internal panels within the refrigerator compartment, often located at the back or top of the fresh food section.
3. Scollegamento del cablaggio: Carefully disconnect the electrical connectors from the old fan.
4. Removing Old Fan: Unmount the old fan assembly.
5. Installing New Fan: Mount the new Lazellz evaporator fan in the same position and reconnect the wiring securely.
6. Rimontaggio: Replace all panels and ensure they are properly secured.
7. Prova: Restore power and verify the fan operates correctly and air circulates.

Refer to your specific GE refrigerator model's service manual or consult a professional for detailed, model-specific installation procedures.

5. Setup (Post-Installation)

After successful installation of the evaporator fan, no specific setup is typically required for the fan itself. The refrigerator's control system will manage its operation. However, it is good practice to:

• Ensure the refrigerator door seals properly.
• Allow the refrigerator to run for several hours to reach its set temperature before loading it with food.
• Monitor the internal temperature to confirm proper cooling.

6. Principi operativi

The evaporator fan operates automatically, controlled by the refrigerator's thermostat and defrost cycle. It will turn on to circulate cold air from the evaporator coils into the fresh food compartment and may turn off during defrost cycles or when the set temperature is reached. Normal operation may include periods of the fan running continuously or cycling on and off.

7. Manutenzione

The Lazellz Refrigerator Section Evaporator Fan is designed for durability and generally requires minimal maintenance. However, to ensure optimal performance and longevity of your refrigerator:

• Mantenere libere le prese d'aria: Ensure that air vents inside the refrigerator compartment are not blocked by food items, allowing for proper air circulation.
• Pulizia regolare: Periodically clean the interior of your refrigerator to prevent debris from accumulating near the fan area.
• Ascolta i rumori insoliti: If you hear unusual grinding, squealing, or excessive noise from the fan area, it may indicate a problem requiring inspection.

8. Risoluzione dei problemi comuni

If you experience issues after replacing the evaporator fan, consider the following:

For complex issues or if you are unsure about a repair, it is always best to contact a qualified appliance repair technician.

9. Specifiche

10. Garanzia e supporto

Garanzia: The warranty information for this product is typically covered under the seller's return policy. Please refer to the "See Return Policy" statement provided at the point of purchase for details regarding returns, exchanges, or warranty claims.

Assistenza clienti: If you have questions regarding compatibility or require assistance, please contact the seller directly. If your model number is not listed in the compatibility section, reaching out to the seller is recommended for verification.
