ESKUTE F200 Folding Electric Bicycle User Manual

1. Introduzione

This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your ESKUTE F200 Folding Electric Bicycle. Please read this manual thoroughly before your first ride to ensure proper usage and to maximize the lifespan of your e-bike. Keep this manual for future reference.

2. Informazioni sulla sicurezza

Your safety is paramount. Always adhere to local traffic laws and regulations when operating the electric bicycle. Failure to follow safety guidelines can result in serious injury or damage to the product.

• Indossa un elmetto: Always wear an approved bicycle helmet that fits correctly.
• Controllo pre-viaggio: Before each ride, inspect the brakes, tires, battery level, and ensure all quick releases and fasteners are secure.
• Condizioni stradali: Be aware of road conditions, traffic, and pedestrians. Avoid riding in adverse weather conditions such as heavy rain or snow.
• Limite di peso: Non superare il carico massimo consigliato di 120 kg.
• Età consigliata: This e-bike is designed for adults.
• Visibilità: Use the integrated lights and reflectors, especially when riding at night or in low-light conditions. Consider wearing reflective clothing.

3. Contenuto della confezione

Dopo aver disimballato il prodotto, verificare che tutti i seguenti articoli siano inclusi nella confezione:

• 1 x ESKUTE F200 Electric Bicycle
• 1 x 36V 280.8 Wh Lithium-ion Battery (integrated)
• Caricabatteria 1 x
• 1 x Kit di utensili di montaggio
• 1 x Scheda di garanzia

4. Installazione e assemblaggio

The ESKUTE F200 electric bicycle arrives 90% pre-assembled. Follow these simple steps to complete the assembly:

Image: The ESKUTE F200 electric bicycle comes 90% pre-assembled. The image illustrates the three main steps for final assembly: opening the handlebar, installing the saddle, and mounting the pedals. Below the bike, the included saddle, pedals, charger, and assembly tools are shown.

1. Open the Handlebar: Aprire l'attacco manubrio e fissarlo in posizione verticale utilizzando la chiusura a sgancio rapidoamp. Ensure it is firmly locked.
2. Installare la sella: Insert the seatpost with the saddle into the frame's seat tube. Adjust the height to your comfort and secure it with the quick-release lever.
3. Montare i pedali: Identify the left (L) and right (R) pedals. Screw them into the corresponding crank arms. The left pedal tightens counter-clockwise, and the right pedal tightens clockwise. Use the provided tools to tighten them securely.

5. Istruzioni per l'uso

5.1 Accensione e spegnimento

Per accendere la e-bike, tenere premuto il pulsante di accensione sul display LCD. Per spegnerla, tenere premuto lo stesso pulsante finché il display non si spegne.

5.2 Motor and Assistance Levels

The ESKUTE F200 features a 250W brushless motor providing stable and continuous power. It offers 3 levels of pedal assistance (PAS).

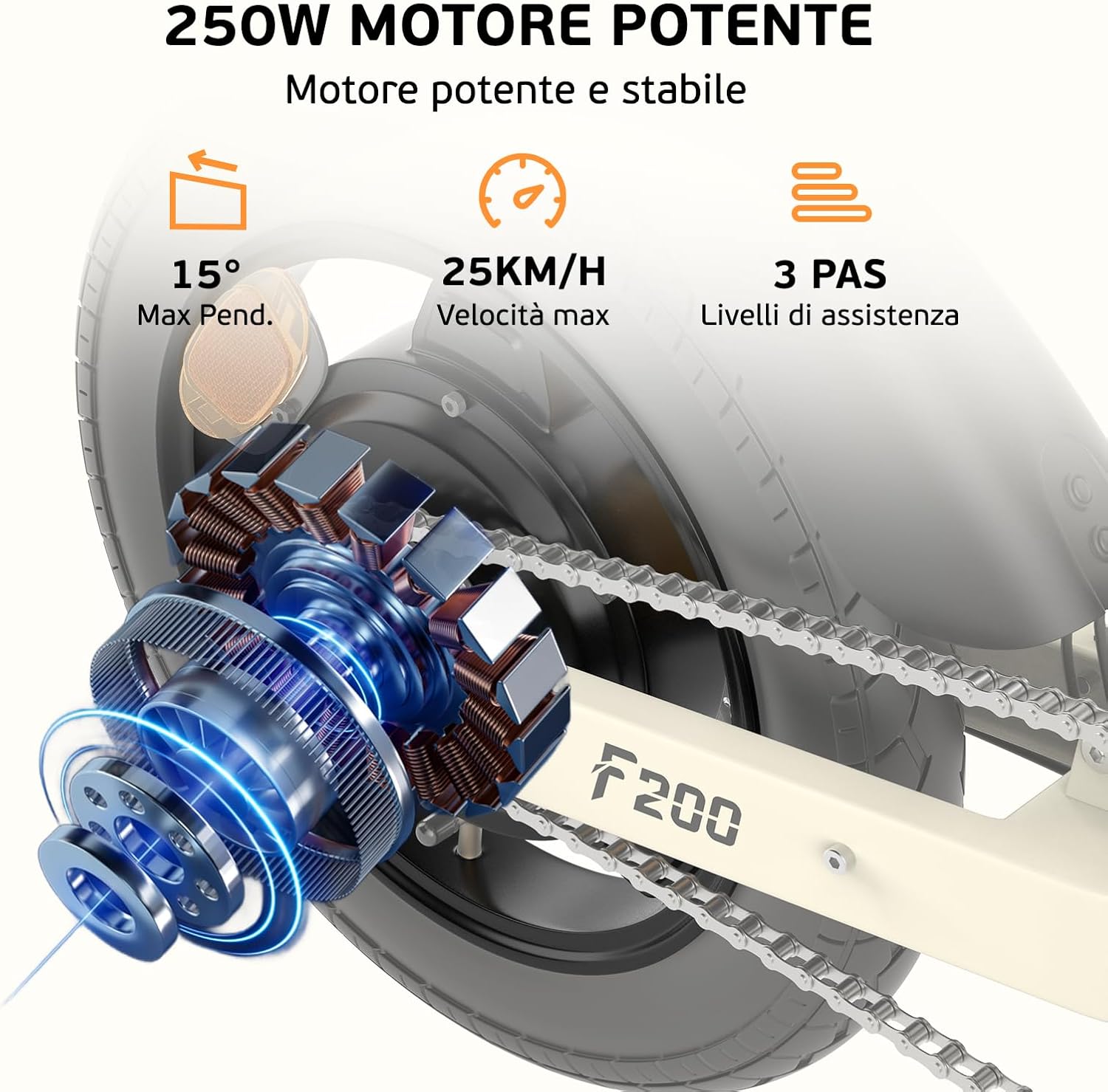

Image: Illustration of the 250W motor, highlighting its capability to handle inclines up to 15 degrees, a maximum speed of 25 km/h, and three levels of pedal assistance.

Use the '+' and '-' buttons on the control panel to switch between assistance levels. Level 1 provides the least assistance, while Level 3 provides the most. The motor assists up to a maximum speed of 25 km/h.

5.3 Batteria e ricarica

The e-bike is equipped with an integrated 36V 7.8Ah (280.8Wh) lithium-ion battery, offering a range of 30-50 km depending on terrain and riding mode.

Image: Diagram illustrating the integrated 280.8Wh lithium-ion battery, emphasizing its 36V 7.8Ah capacity, BMS protection circuit, and a maximum range of 30-50 km.

To charge the battery, connect the charger to the charging port on the bike and then to a power outlet. The LED indicator on the charger will show the charging status. Ensure the battery is fully charged before your first ride and after each use for optimal performance.

5.4 Display e controlli

The clear LED display shows essential information such as speed, battery level, and assistance mode. The handlebar features non-slip grips, intuitive buttons, and an integrated phone holder with charging capability.

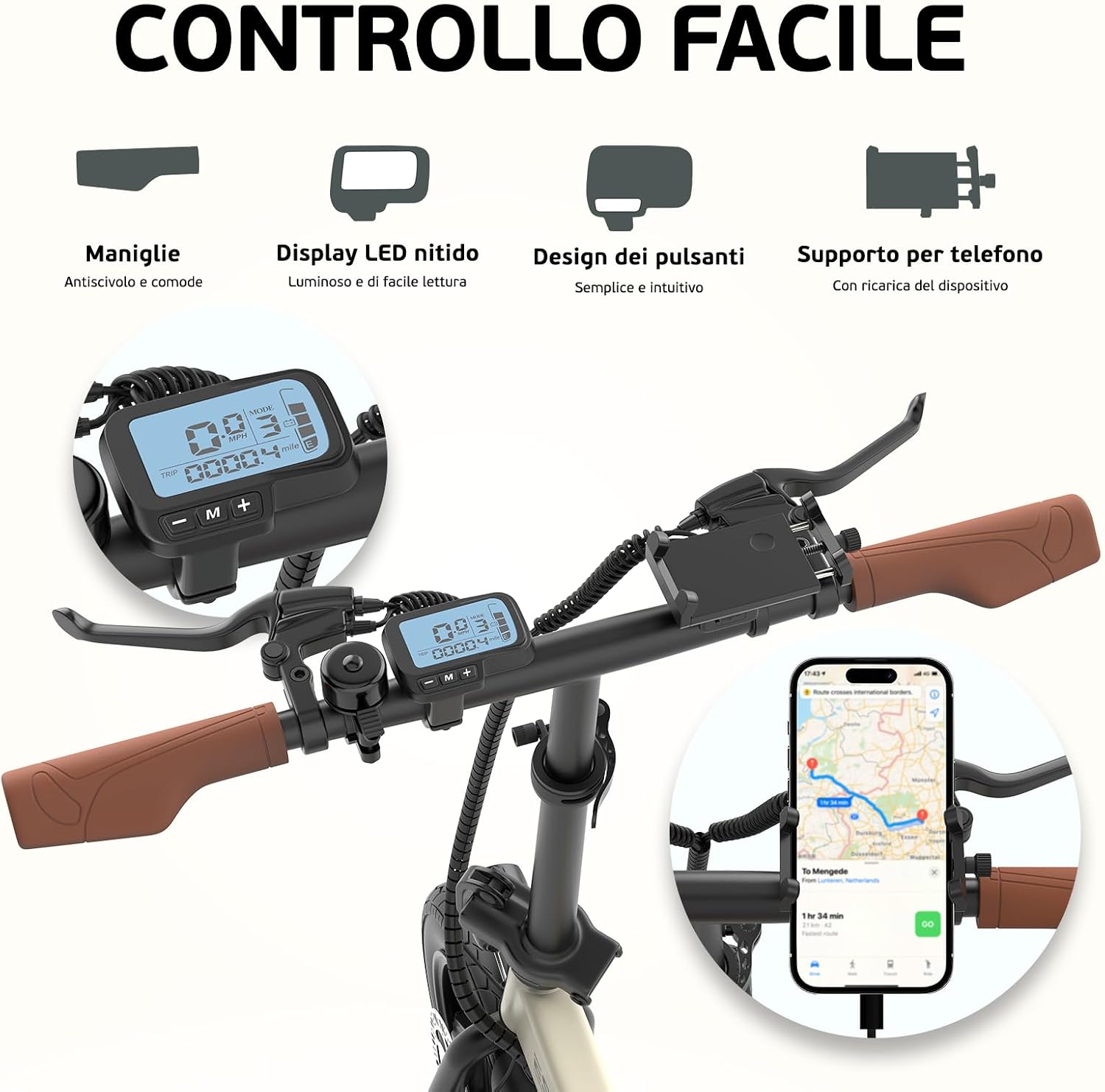

Immagine: Oltreview of the handlebar controls, including the clear LED display for speed and battery, ergonomic non-slip grips, simple control buttons, and an integrated phone holder with charging capability.

5.5 Meccanismo di piegatura

The ESKUTE F200 is designed for easy folding, making it convenient for transport and storage.

Image: Step-by-step guide on how to fold the ESKUTE F200 electric bicycle. Step 1 shows opening the seatpost clamp, Step 2 shows opening the frame latch and folding the bike in half, and Step 3 shows the fully folded bike.

1. Fase 1: Apri il reggisella clamp and lower the seat tube completely.
2. Fase 2: Locate the frame latch on the main frame. Open the latch and fold the bicycle in half.
3. Fase 3: Assicurarsi che tutti i meccanismi di piegatura siano saldamente agganciati per evitare aperture accidentali.

Immagine: dettagliata view of the easy-to-use folding clasp, quick-release mechanisms, and adjustable seatpost and handlebar components, designed for secure folding and adaptability to various rider heights.

6. Manutenzione

Regular maintenance ensures the longevity and safe operation of your ESKUTE F200 e-bike.

• Pneumatici: Check tire pressure regularly. The 14x2.125 inch durable tires are suitable for various terrains including wet roads, country paths, city streets, and park trails.

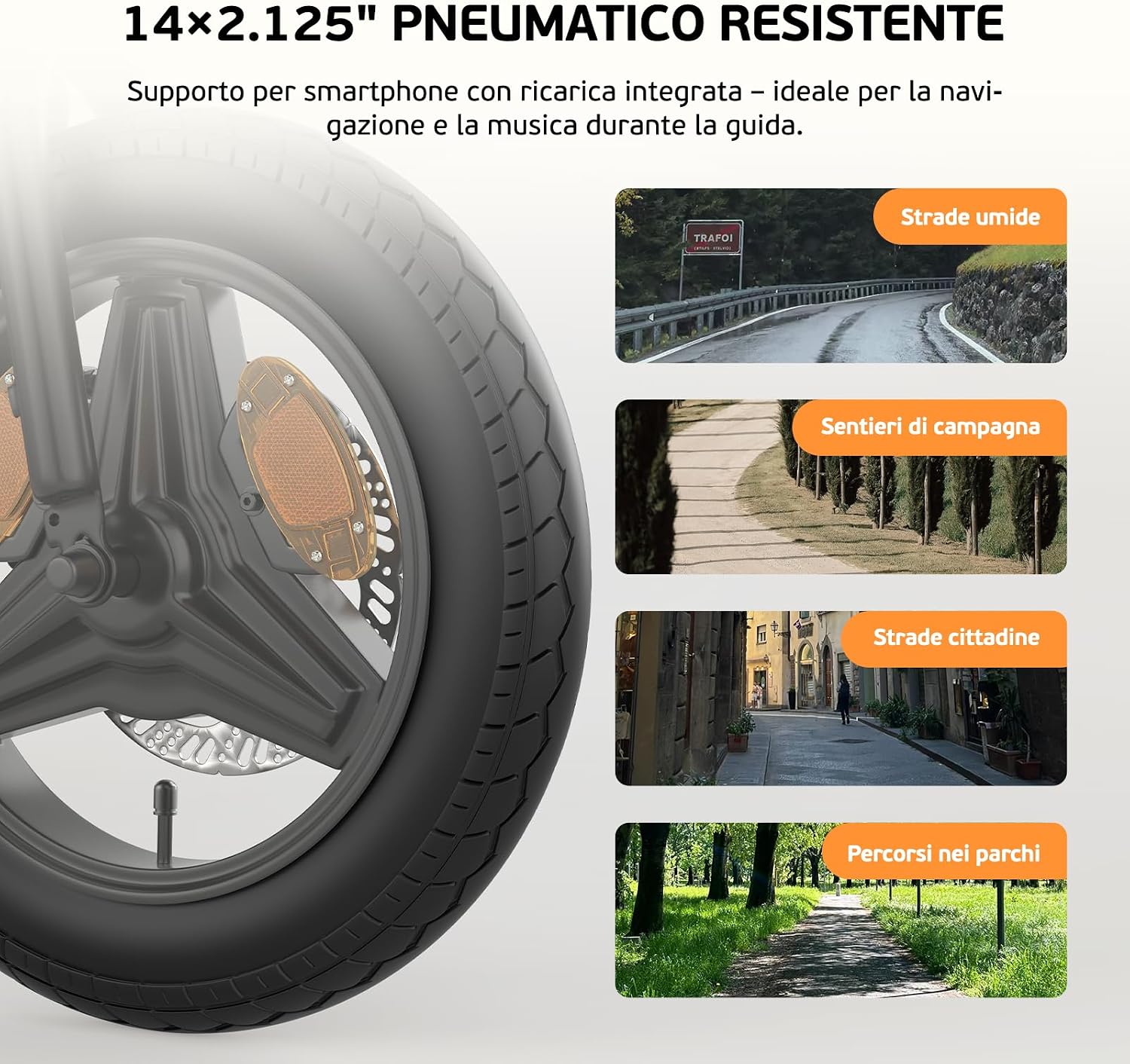

Image: Close-up of the 14x2.125 inch durable tire, demonstrating its robust design and suitability for diverse riding environments such as wet roads, country paths, city streets, and park trails.

• Freni: Regularly inspect the front and rear 160mm dual disc brakes for wear and proper function. Adjust or replace brake pads as needed.

Immagine: Primo piano view of the dual 160mm disc brakes, highlighting their stopping power for precise control and enhanced safety in all weather conditions.
• Catena: Mantenere la catena pulita e lubrificata per garantire un funzionamento regolare e prevenire la ruggine.
• Cura della batteria: Store the battery in a cool, dry place. Avoid fully discharging the battery and charge it regularly, even if not in use, to maintain its health.
• Pulizia generale: Pulisci la bici con un damp panno. Evitare di utilizzare getti d'acqua ad alta pressione direttamente sui componenti elettrici.

7. Risoluzione Dei Problemi

If you encounter issues with your ESKUTE F200, refer to the following common troubleshooting tips:

• Nessun potere: Ensure the battery is fully charged and properly seated. Check all cable connections.
• Il motore non assiste: Verify that the pedal assistance level is not set to zero. Check if the brake levers are fully released, as some systems cut motor power when brakes are applied.
• Freni che stridono/inefficaci: Inspect brake pads for wear. Clean disc rotors if contaminated. If issues persist, professional adjustment may be required.
• Rumori insoliti: Check for loose components, rubbing parts (e.g., fenders, chain), or foreign objects.

For persistent issues not covered here, please contact ESKUTE customer service.

8. Specifiche

Detailed technical specifications for the ESKUTE F200 Folding Electric Bicycle:

Image: Detailed specifications diagram of the ESKUTE F200, labeling components such as the adjustable saddle, rear reflector, fenders, folding pedals, disc brakes, 14-inch tires, front light, bell, LCD display, and phone holder.

Image: Dimensional reference for the ESKUTE F200 electric bicycle. It displays the bike's weight (21 kg), recommended height range (150-185 cm), and maximum load (120 kg), along with detailed measurements for both its unfolded and folded states.

9. Garanzia e supporto

ESKUTE provides a reliable warranty and customer support for your product.

• Garanzia: The ESKUTE F200 electric bicycle comes with a one-year product warranty. Please refer to the included warranty card for detailed terms and conditions.
• Assistenza clienti: Our customer service team is available 24/7 to assist you with any questions or concerns regarding your ESKUTE product. For support, please refer to the contact information provided on your warranty card or the official ESKUTE websito.
