Manuale utente del triciclo elettrico ANCHEER

1. Introduzione

Thank you for choosing the ANCHEER Electric Tricycle. This manual provides essential information for the safe assembly, operation, and maintenance of your new tricycle. Please read it thoroughly before your first ride and keep it for future reference.

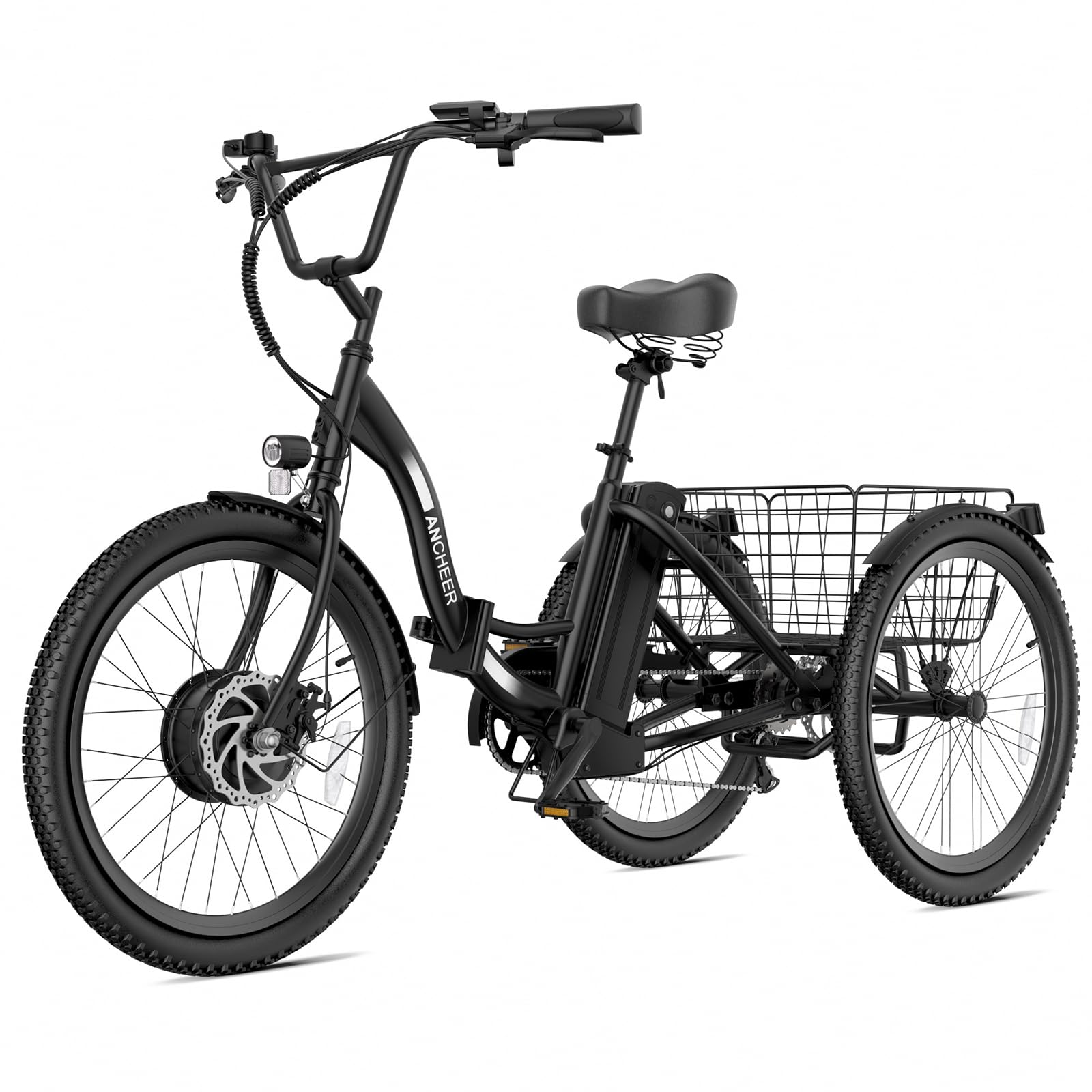

Image 1: The ANCHEER Electric Tricycle, a 24-inch folding three-wheel electric bike with a rear basket, shown in black.

2. Linee guida di sicurezza

• Quando si va in bicicletta, indossare sempre il casco e l'attrezzatura di sicurezza adeguata.
• Informatevi sulle leggi e i regolamenti locali in materia di circolazione stradale.
• Prima di ogni utilizzo, effettuare un controllo di sicurezza, inclusi freni, pneumatici e batteria.
• Non guidare sotto l'effetto di alcol o droghe.
• Ensure the tire pressure reaches 40 psi before riding.
• The tricycle supports up to 265 lbs (seat) and 220 lbs (rear basket). Do not exceed these limits.
• Utilize the two parking brakes to ensure a reliable hold when parked on uneven ground or inclines.

3. Prodotto finitoview

The ANCHEER Electric Tricycle is designed for adults, featuring a 350W brushless motor (peak 600W) and a 48V 499Wh removable battery. It offers versatile riding modes and enhanced safety features for commuting and recreational rides.

Componenti chiave:

• Frame (Aluminum)
• Ruota anteriore motorizzata
• Ruote posteriori
• Parafanghi posteriori
• Telaio Cestino Posteriore
• Parafango anteriore
• Caricabatterie
• Campana
• Sella
• Pedali
• Display LCD digitale
• Freni a disco meccanici anteriori e posteriori
• Sistema di cambio a 7 marce
• Headlight, Taillights, and Reflectors

Immagine 2: Dettagliata view of the tricycle's control panel, braking system, gear mechanism, and seat design.

4. Installazione e assemblaggio

The ANCHEER Electric Tricycle is 80% pre-assembled. Please follow these steps for final assembly:

Guida video all'assemblaggio:

Assemblaggio passo dopo passo:

1. Installare lo stelo: Insert the handlebar stem into the front fork tube and tighten the bolt securely.
2. Connect the Rear Axle to the Frame: Remove the protective rod from the rear axle connection points. Align the rear axle with the frame and insert the bolts. Tighten the four screws securely using a wrench and hex key.
3. Install the Rear Tires: Remove the protective tape from the rear axle. Slide the rear tires onto the axle, ensuring proper alignment. Secure them by tightening the nuts.
4. Installazione del freno posteriore: Clamp the rear brake caliper onto the brake disc. Align the screws and twist them by hand, then lock them securely with a tool. Connect the brake cable.
5. Front Fender and Front Light Installation: Remove the protective rod from the front fork. Attach the front fender to the front fork using the provided screws and tools. Install the front light onto the fender.
6. Installazione della ruota anteriore: Carefully place the front wheel into the front fork, ensuring the brake disc aligns with the caliper. Secure the wheel by tightening the nuts on both sides of the axle.
7. Motor Cable Installation: Connect the motor cable, ensuring the connectors are fully engaged and secured. Use a cable tie to manage the cable neatly.
8. Connect the Light Cable: Connect the front light cable to the main wiring harness, ensuring a secure connection.
9. Installazione della catena: Carefully route the chain around the front chainring and the rear cassette. Ensure it is properly seated on all gears.
10. Derailleur Installation: Press the shift button to adjust the transmission to "7". Lift up the transmission on the rear axle and connect the transmission hook.
11. Installazione del parafango posteriore: Attach the rear fender to the frame. Adjust the fender to maintain a certain gap with the rear wheel for optimal clearance. Insert two screws in the middle and one screw at each end to secure it.
12. Installazione del cestello: Assemble the rear basket by connecting its sides. Secure the basket to the rear rack using the provided bolts and tools.
13. Installazione del cuscino: Install the seat cushion onto the seat post and adjust its height and angle for comfort.
14. Installazione del pedale: Identify the "R" (Right) and "L" (Left) pedals. Twist the "R" pedal clockwise into the right crank arm and the "L" pedal counter-clockwise into the left crank arm. Tighten them securely with a tool.
15. Install the Bell: Attach the bell to the handlebar in a comfortable and accessible position.

5. Istruzioni per l'uso

5.1 Riattivazione della batteria

To activate the battery, insert the key into the battery lock and turn it to the 'ON' position. Press the power button on the battery to wake it up. The battery level indicator will light up.

5.2 Funzionamento del display LCD

The LCD display provides essential riding information and control over the tricycle's electric functions.

• Accensione/spegnimento: Press the power button on the display to turn the tricycle on or off.
• Regola il livello di assistenza: Use the "+" and "-" buttons to cycle through the 5 pedal assist levels (L1-L5). Level 0 is manual pedaling.
• Controllo fari: Long press the "+" button to turn the headlight on or off.
• Walk Push Mode: Long press the "-" button to activate walk push mode, which moves the tricycle slowly forward (1.9 MPH) for easy maneuvering.

Image 3: The digital LCD display showing various riding data and control buttons.

5.3 Riding Modes and Functions

• Sistema di cambio a 7 velocità: Utilize the 7-speed gear system to adjust pedaling resistance for different terrains, from climbing hills to cruising on flat roads.
• Assistenza alla pedalata (PAS): Provides electric assistance while pedaling, with 5 levels of support.
• Modalità completamente elettrica: Engage the throttle for full electric power without pedaling.
• Controllo della velocità di crociera: Activates when riding above 6 MPH by pressing the "-" button.
• Funzione di potenziamento: Engages at 1.9 MPH with a long press of the "-" button for easy starts.

5.4 One-Step Parking

To prevent the tricycle from sliding accidentally, engage the one-step parking feature. This ensures the tricycle remains stationary when parked.

5.5 Inflate the Tire

Before riding, ensure the tire pressure reaches 40 psi for optimal performance and safety. Use a bicycle pump with a pressure gauge.

6. Manutenzione

6.1 Cura della batteria

• The 48V 499Wh battery is removable for convenient charging.
• Charge the battery fully before your first ride. Charging typically takes 4-5 hours.
• Conservare la batteria in un luogo fresco e asciutto quando non viene utilizzata.
• Evitare di scaricare completamente la batteria per prolungarne la durata.

Image 4: The removable 48V 499Wh lithium battery, highlighting its features and specifications.

6.2 Manutenzione generale

• Freni: Regularly check the front and rear mechanical disc brakes for wear and proper function. Adjust as needed to ensure efficient braking.
• Pneumatici: Inspect tires for wear, punctures, and proper inflation (40 psi).
• Catena: Mantenere la catena pulita e lubrificata per un funzionamento regolare e per prevenire la ruggine.
• Elementi di fissaggio: Periodically check all bolts and nuts for tightness, especially after the first few rides.
• Pulizia: Pulisci il triciclo con l'annuncioamp panno. Evitare di utilizzare getti d'acqua ad alta pressione direttamente sui componenti elettrici.

7. Risoluzione Dei Problemi

If you encounter issues with your ANCHEER Electric Tricycle, refer to the following common troubleshooting tips:

• Tricycle not powering on: Ensure the battery is fully charged, properly installed, and activated (wake-up procedure). Check all cable connections.
• Il motore non funziona: Verify the pedal assist level on the LCD display is set above 0. Check motor cable connections.
• I freni sembrano deboli: Inspect brake pads for wear and replace if necessary. Adjust brake cable tension. Ensure brake calipers are properly aligned with the discs.
• Rumori insoliti: Check for loose components, especially around the wheels, chain, and motor. Lubricate the chain if it's squeaking.
• Codici di errore: The digital LCD display can show error codes to facilitate troubleshooting. Refer to the display for specific codes and consult the manufacturer's support if needed.

8. Specifiche

9. Garanzia e supporto

ANCHEER provides a 1-year warranty on the motor, battery, and key components of your electric tricycle. Additionally, lifetime technical support is available from ANCHEER. For assistance, please contact ANCHEER customer service.
