HOTEEL 10x12 Hardtop Gazebo Instruction Manual

1. Introduzione

This manual provides detailed instructions for the assembly, operation, and maintenance of your HOTEEL 10x12 Hardtop Gazebo. Designed for outdoor use, this gazebo features a galvanized steel double roof for superior airflow and UV protection, a sturdy aluminum frame for stability, and flame-retardant curtains with netting for comfort and safety. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Figure 1: HOTEEL 10x12 Hardtop Gazebo, fully assembled.

2. Informazioni sulla sicurezza

Dare sempre priorità alla sicurezza durante il montaggio e l'uso. Il mancato rispetto di queste istruzioni può causare lesioni o danni al prodotto.

• Always secure the gazebo to a stable foundation using the provided anchor bases and ground stakes, especially in windy conditions.
• Keep open flames, such as candles or heaters, at least 3 feet away from the flame-retardant curtains to prevent fire hazards.
• Ensure all fasteners are tightened securely before use and periodically check for loosening.
• Do not hang heavy objects from the frame or roof that exceed the gazebo's structural capacity.
• In case of heavy snowfall, promptly remove accumulated snow from the roof to prevent structural damage.

3. Contenuto della confezione

Before beginning assembly, carefully unpack all components and verify that all parts are present and undamaged. Refer to the detailed parts list provided in your physical instruction manual to ensure completeness. The package typically includes:

• Aluminum Frame Components (posts, beams, braces)
• Pannelli per tetto doppio in acciaio zincato
• Flame-Retardant Curtains (160g/m² polyester CPAI-84)
• Netting (35g/m²)
• Hardware Kit (screws, bolts, anchor bases, ground stakes)
• Manuale di installazione

For a visual guide to unpacking and identifying parts, please refer to the unboxing video below:

4. Istruzioni di montaggio

Assembly typically requires 2-4 people and takes approximately 2-4 hours. Follow the steps below and consult the provided videos and images for visual guidance.

4.1. Assemblaggio del telaio

Begin by assembling the main aluminum frame. Connect the posts and beams, ensuring all triangular braces are securely attached for enhanced stability. The frame is designed with 4 anchor bases for ground stakes.

Figure 2: Detail of the sturdy aluminum frame, triangular braces, and anchoring plate.

4.2. Installazione del pannello del tetto

Install the galvanized steel double roof panels. These panels are designed for durability, corrosion resistance, and excellent UV protection, while the double-layer structure promotes airflow.

Figure 3: Galvanized steel double roof construction details.

For detailed roof assembly steps, please watch the video below:

4.3. Curtains and Netting Attachment

Attach the flame-retardant curtains and netting using the double-track system. This system allows for separate and convenient adjustment of both the netting and the privacy curtains.

Figure 4: Mesh design, hanging hooks, and double-track system.

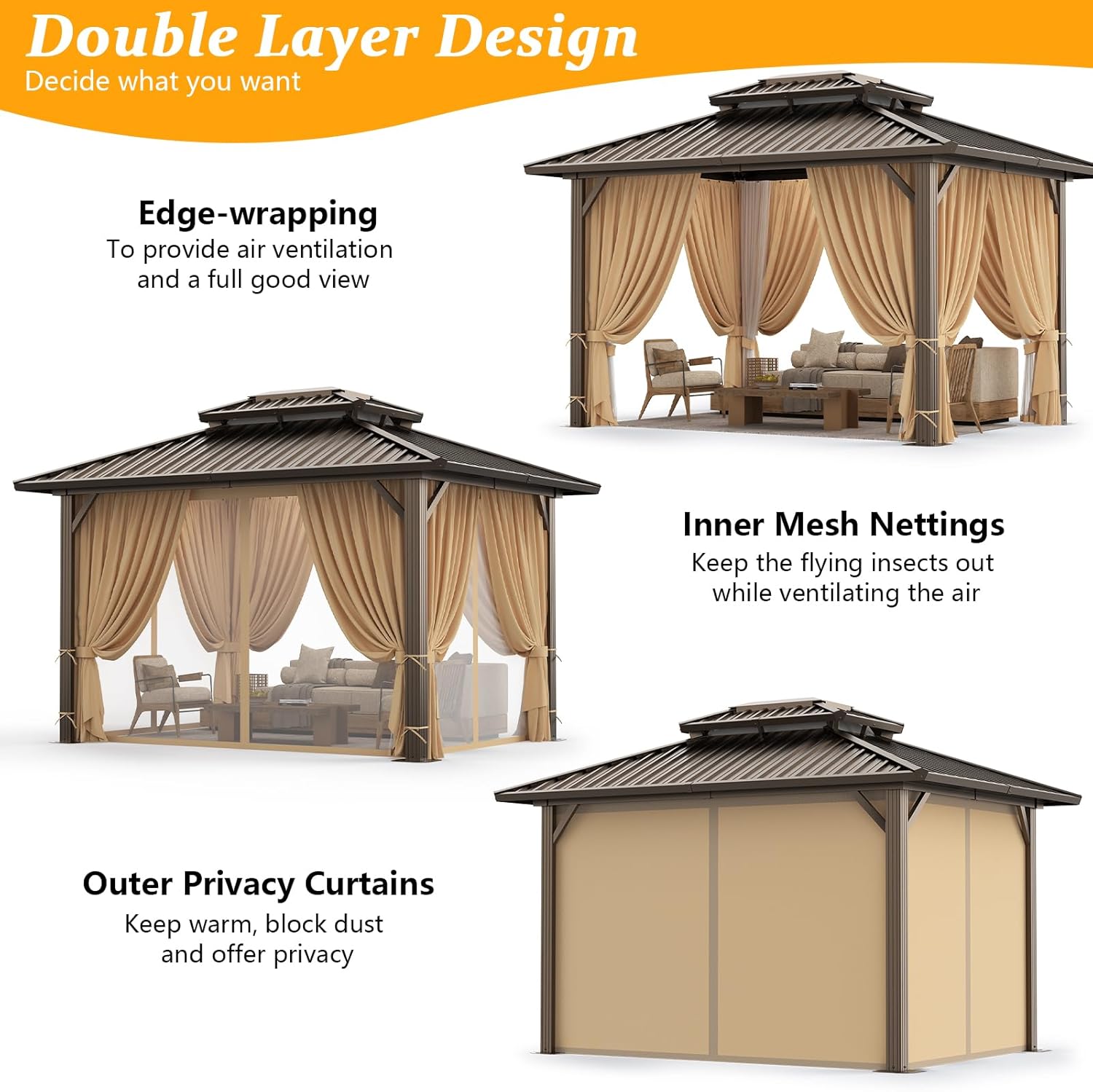

Figure 5: Double layer design with inner mesh nettings and outer privacy curtains.

For a complete installation guide, including frame, roof, and curtain setup, please refer to the main installation video:

5. Istruzioni per l'uso

Your HOTEEL Hardtop Gazebo is designed for versatile use in various outdoor settings. Its spacious 120 square feet area comfortably accommodates 8-12 people.

• Tende e reti: Utilize the double-track system to easily open or close the inner mesh netting to keep insects out while maintaining ventilation, or deploy the outer privacy curtains for warmth, dust protection, and privacy.
• Ventilazione: The galvanized steel double roof design ensures constant airflow, keeping the interior fresh and comfortable.
• Ganci per appendere: The integrated hanging hooks can be used for lights, fans, or potted plants to customize your outdoor space.

Figure 6: The gazebo is suitable for various outdoor environments.

6. Manutenzione

Proper maintenance will extend the lifespan and appearance of your gazebo.

• Pulizia: Clean the aluminum frame and steel roof panels with a mild soap and water solution. Rinse thoroughly and dry. The curtains and netting can be spot cleaned or gently hand washed as needed.
• Controlli dei dispositivi di fissaggio: Periodically inspect all screws and bolts to ensure they remain tight. Re-tighten as necessary to maintain structural integrity.
• Assistenza stagionale: In areas with heavy snowfall, it is crucial to remove snow from the roof promptly to prevent excessive weight and potential damage. In extremely windy conditions, ensure the gazebo is securely anchored and consider retracting curtains and netting.

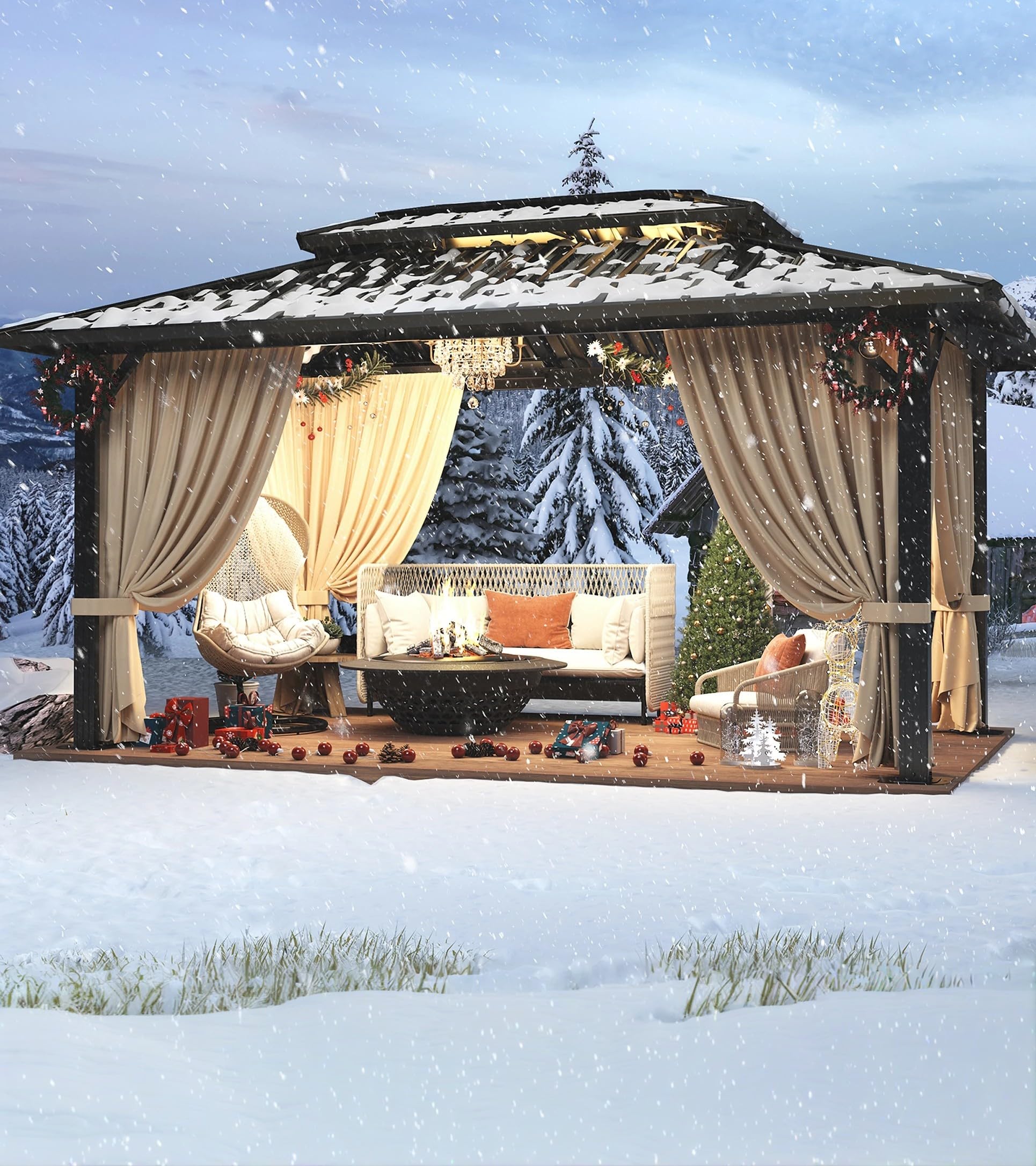

Figure 7: Gazebo performance in sunny and snowy conditions, with a reminder for snow removal.

7. Risoluzione Dei Problemi

If you encounter any issues with your HOTEEL Hardtop Gazebo, please refer to the following general advice:

• Problemi di stabilità: Ensure all anchor bases are properly secured to the ground. Check that all frame connections are tight.
• Perdita d'acqua: Verify that all roof panels are correctly installed and sealed. Inspect for any gaps or loose screws.
• Curtain/Netting Malfunction: Check the double-track system for obstructions or damage. Ensure zippers are functioning smoothly.

For further assistance, please contact our 24/7 Online Customer Services.

8. Specifiche

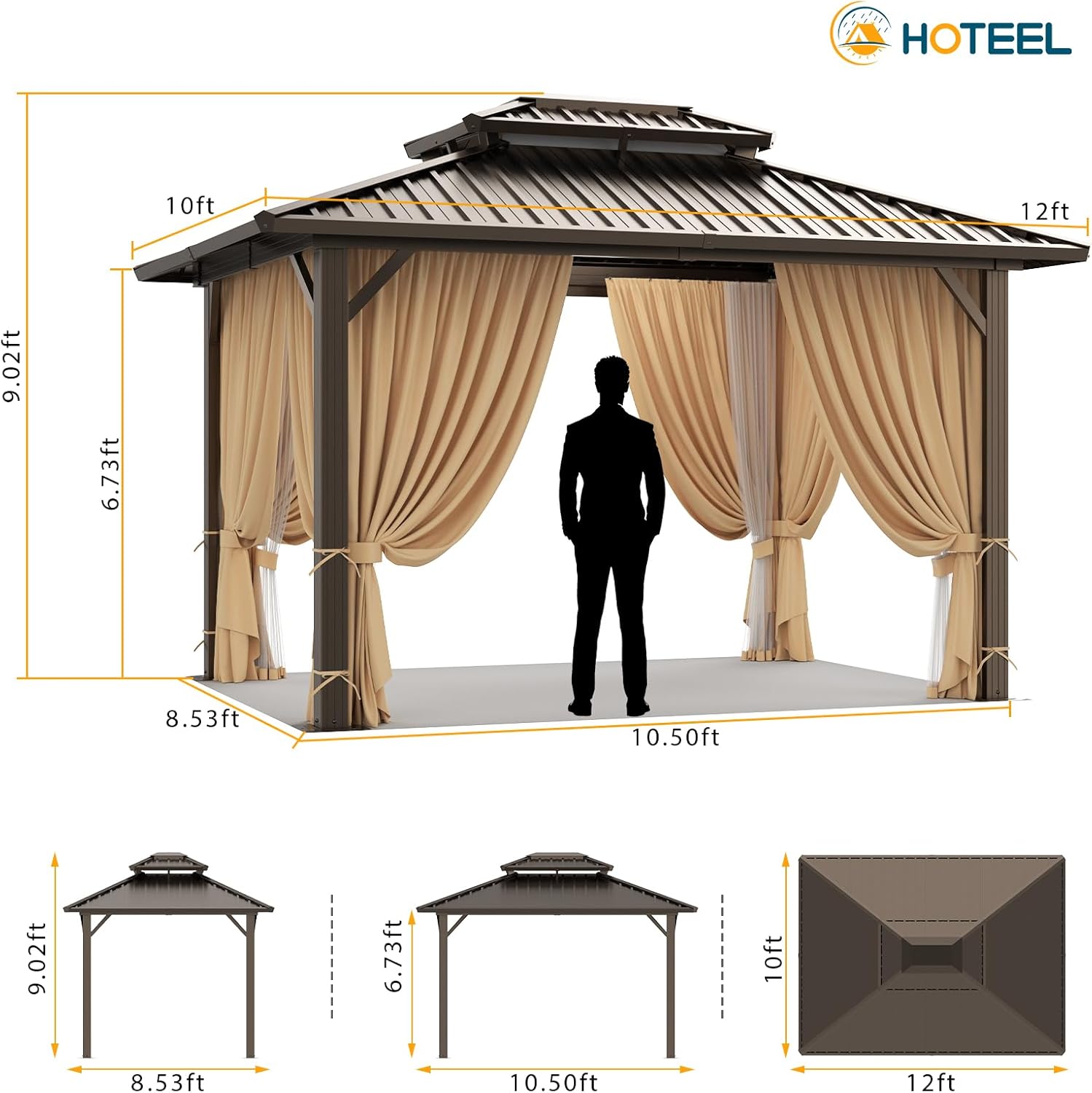

Figura 8: Dimensioni del gazebo.

9. Garanzia e supporto

Your HOTEEL 10x12 Hardtop Gazebo is backed by comprehensive 5-year Coverage Services, ensuring peace of mind. Our dedicated 24/7 Online Customer Services team is available to provide expert support and quick solutions for any inquiries or issues you may have.

For any questions or assistance, please do not hesitate to contact us.
