1. Prodotto finitoview

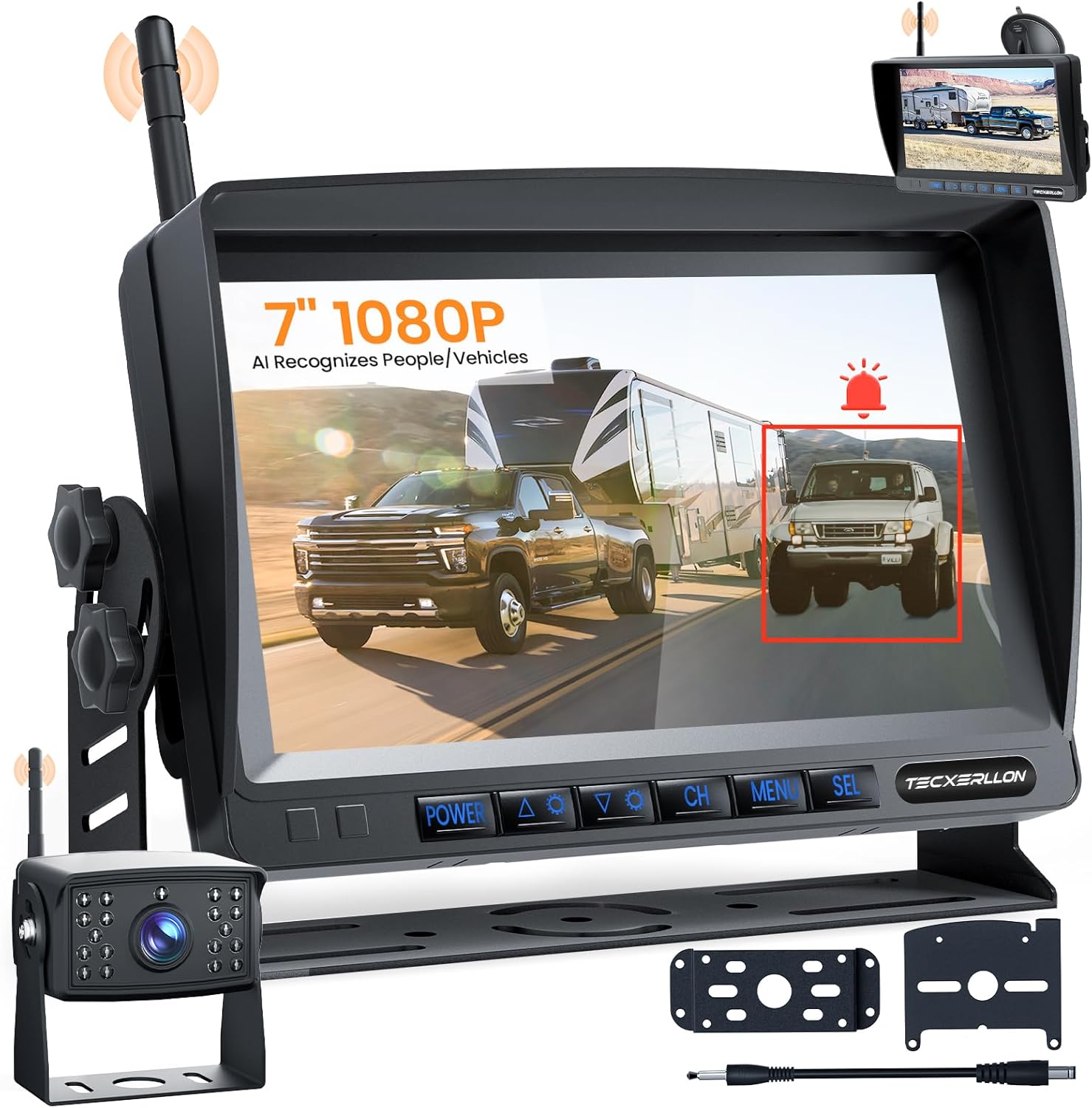

The TECXERLLON Wireless RV Backup Camera System provides enhanced safety and convenience for various vehicles, including RVs, trucks, trailers, and campers. This system features a 1080P 7-inch monitor, AI detection capabilities, robust wireless signal transmission, night vision, and DVR recording.
Caratteristiche principali:
- Effortless Plug & Play Setup: Designed for quick installation without specialized tools.
- AI-Powered Safety: Real-time detection of pedestrians, vehicles, and obstacles with instant alerts.
- Rock-Solid Wireless Signal: 2.4GHz transmission for clear video up to 320 feet, ensuring no interference or frame loss.
- Expandable 4-Camera System: Supports up to four cameras for comprehensive coverage on the 1080P HD monitor.
- DVR Recording & Durability: Built-in DVR for continuous recording (SD card sold separately) and IP69K waterproof camera with night vision.
2. Guida all'installazione
2.1 Contenuto della confezione
Verifica che tutti gli articoli siano presenti nel tuo pacco:
- 7-inch Monitor (x1)
- Telecamera di retromarcia (x1)
- Sun Shade & U-Bracket (x1)
- RV Fittings (x1 set)
- Antenna (x1)
- Suction Holder (x1)
- 3m Cable (x1)
- Adaptor Splitter (x1)
- Installation Kit (x1)
- Manuale utente (x1)
- Viti (x18)
- U-Bracket Sticker (x1)
2.2 Opzioni di installazione
The system supports multiple installation methods to suit various vehicle types. The camera can be installed using Furrion adapters (not included) or a general wired connection.
2.3 General Installation Steps (Wired)
- Montare la fotocamera: Choose a suitable location at the rear of your vehicle (RV, trailer, truck) that provides a clear view. Secure the camera using the provided screws and mounting bracket. Ensure the antenna is attached and positioned for optimal signal.
- Cablare la telecamera: Connect the camera's power cable to your vehicle's power source. For continuous monitoring, connect to a constant 12V power source (e.g., running lights). For reverse-only activation, connect to the reversing lights. Ensure proper grounding.
- Montare il monitor: Attach the 7-inch monitor to your dashboard or windshield using the suction holder or U-bracket. Position it for optimal viewsenza ostacolare la guida view.
- Alimentare il monitor: Connect the monitor to your vehicle's 12V power outlet (cigarette lighter socket) using the provided car charger.
- Associazione (automatica): The camera and monitor are typically pre-paired. Once both are powered on, the monitor should automatically display the camera feed. If not, refer to the "Troubleshooting" section for manual pairing instructions.
3. Istruzioni per l'uso
3.1 Funzioni di monitoraggio
The monitor features several buttons for control:
- ENERGIA: Accende/spegne il monitor.
- CH (Canale): Passa da una telecamera all'altra (se sono installate più telecamere).
- MENU: Accede al menu delle impostazioni del monitor.
- SEL (Seleziona): Conferma le selezioni all'interno del menu.
- Frecce su/giù: Naviga tra le opzioni del menu o modifica le impostazioni.
3.2 Rilevamento e avvisi AI
The system incorporates advanced AI to identify pedestrians, vehicles, and other obstacles in real-time. When an object is detected, an audible and/or visual alert will be triggered on the monitor, enhancing safety during reversing or maneuvering.
3.3 Registrazione DVR
The monitor has a built-in DVR function that supports loop recording. An SD card (not included) is required to utilize this feature. Insert a compatible SD card into the designated slot on the monitor to begin recording. The system will automatically overwrite the oldest files quando la carta è piena.

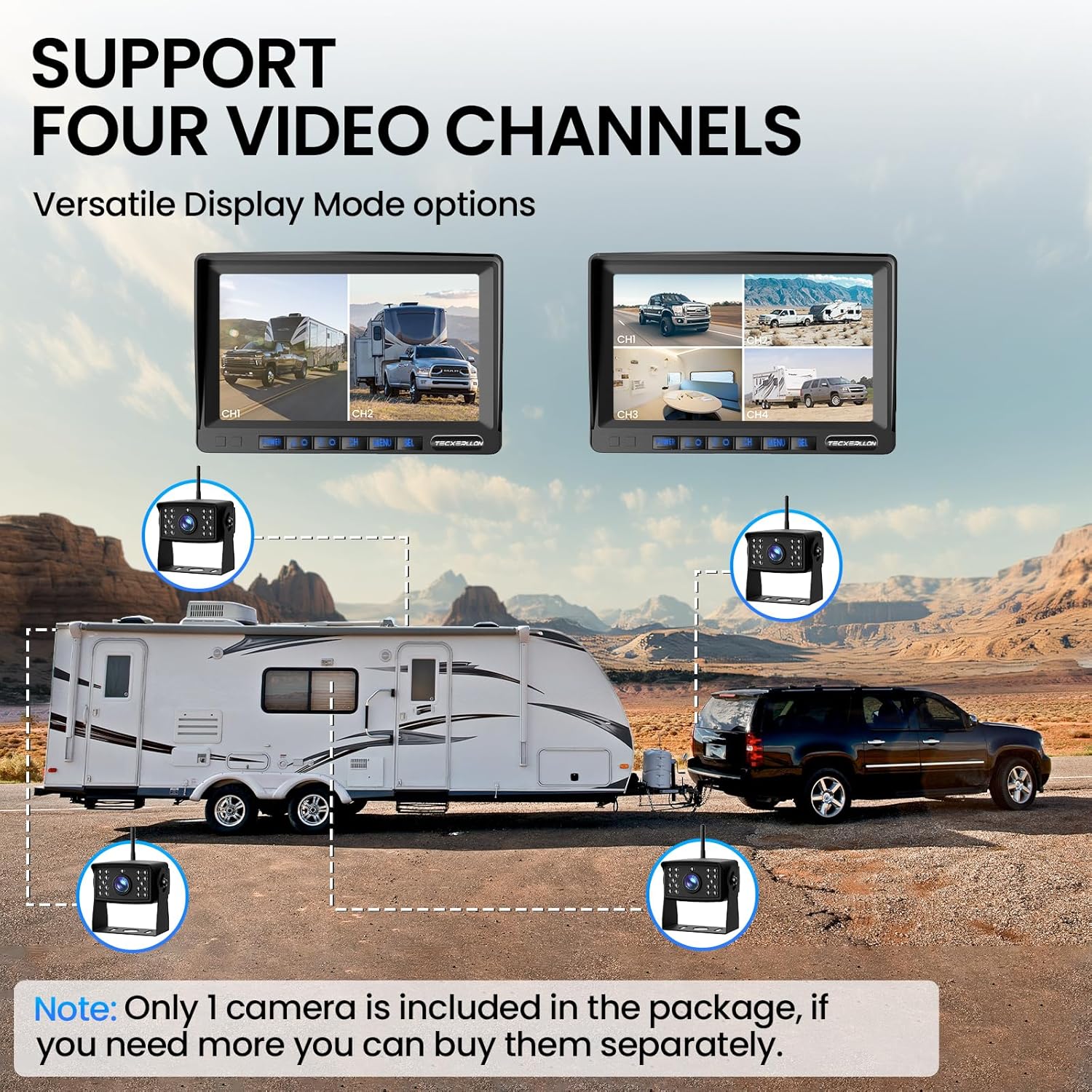

3.4 Multi-Camera Display
The system supports up to four cameras (additional cameras sold separately). You can view feeds from multiple cameras simultaneously in various display modes, including single screen, split screen, triple screen, or quad screen, by pressing the "CH" button.
3.5 Visione notturna
The camera is equipped with 18 IR lights and a wide-angle lens, providing clear and detailed imaging even in low-light conditions or complete darkness. The IP69K waterproof rating ensures reliable performance in various weather conditions.
4. Manutenzione
- Pulizia: Pulire regolarmente l'obiettivo della fotocamera e lo schermo del monitor con un panno morbido eamp panno. Evitare detergenti abrasivi che potrebbero graffiare le superfici.
- Connessioni: Controllare periodicamente tutti i collegamenti dei cavi per assicurarsi che siano saldi e privi di corrosione.
- Protezione dalle intemperie: While the camera is IP69K waterproof, ensure proper installation to prevent water ingress into wiring connections.
- Antenna: Ensure the camera and monitor antennas are securely attached and unobstructed for optimal signal strength.
5. Risoluzione Dei Problemi
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Nessuna immagine sul monitor |
|
|
| L'immagine è sfocata o distorta |
|
|
| Il rilevamento dell'IA non funziona |
|
|
| Il DVR non registra |
|
|
6. Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Modello | B0FGJC4DKC |
| Monitorare le dimensioni dello schermo | 7 pollici |
| Risoluzione video | Risoluzione 1080P |
| Trasmissione senza fili | 2.4GHz, up to 320 feet |
| Classificazione impermeabile della fotocamera | Grado di protezione IP69K |
| Visione notturna | 18 luci IR |
| Rilevazione AI | Pedestrian, Vehicle, Obstacle detection with alerts |
| Registrazione DVR | Loop recording (SD card not included) |
| Espandibilità | Supporta fino a 4 telecamere |
| Voltage | 12 Volt |
| Dimensioni del prodotto | 8.2 x 2.4 x 5.3 pollici |
| Peso dell'articolo | 3.5 libbre |
7. Garanzia e supporto
For warranty information and technical support, please refer to the official TECXERLLON website or contact their customer service directly. Details are typically provided on the product packaging or through the seller's information page.
Puoi visitare il TECXERLLON Store on Amazon per ulteriori informazioni sul prodotto e risorse di supporto.
