1. Introduzione
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Treeligo 12V RV Air Conditioner, Model EAC002.64.12-5. Please read these instructions thoroughly before installation and use to ensure proper function and longevity of the unit.
2. Informazioni sulla sicurezza
- Scollegare sempre l'alimentazione prima di eseguire qualsiasi operazione di installazione, manutenzione o risoluzione dei problemi.
- Garantire un'adeguata messa a terra per evitare scosse elettriche.
- Installation should be performed by qualified personnel to avoid damage or injury.
- Non ostruire le prese d'aria o le uscite.
- Tenere i materiali infiammabili lontani dall'unità.
- Verify that the vehicle's electrical system can support the unit's power requirements.
- This unit is designed for 12V DC operation. Do not connect to other voltage fonti.
3. Prodotto finitoview

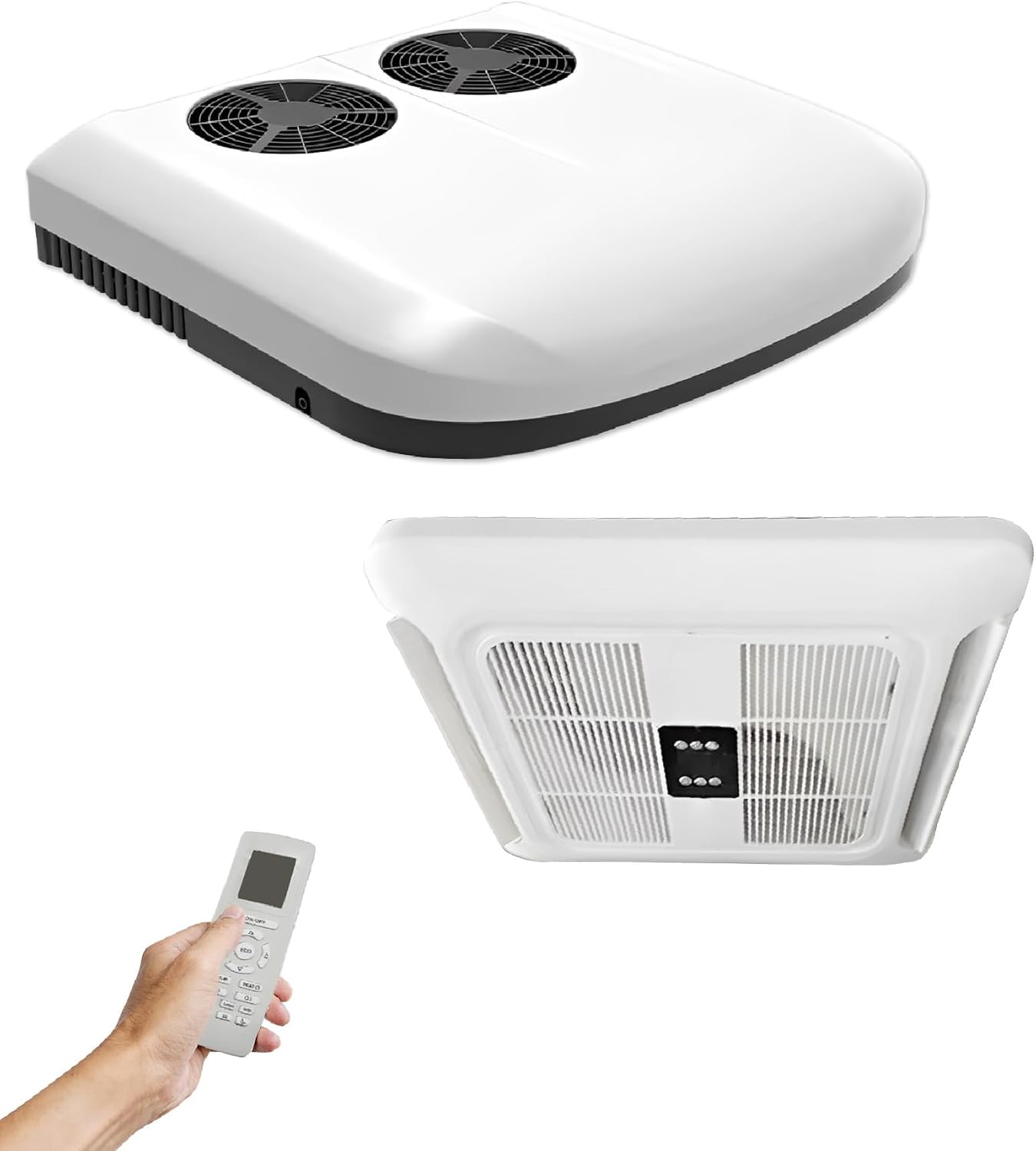

The Treeligo 12V RV Air Conditioner is designed to provide efficient cooling for recreational vehicles, trucks, and other mobile applications. It features advanced technology for reliable performance and user comfort.
Caratteristiche principali:
- Efficient Cooling Capability: Delivers 13000 BTU cooling capacity with 350 CFM airflow for rapid temperature reduction.
- Tecnologia Inverter: Automatically adjusts compressor power, reducing energy consumption by up to 30%.
- Fuel-Efficient & Low-Noise: Operates quietly at approximately 40 dB with a brushless motor, extending lifespan and reducing fuel consumption.
- Vol. Intelligentetage Protezione: Features over-discharge, over-voltage, and over-current protection to safeguard your battery and system.
- Costruzione durevole: Built with ABS housing for excellent deformation and corrosion resistance.
- Molteplici modalità operative: Includes Air Supply, Sleep, Energy Saving, and Powerful modes.
Componenti:
4. Configurazione e installazione
Proper installation is crucial for the performance and safety of your RV air conditioner. Refer to the included installation instructions and diagrams for detailed steps. The unit is compatible with a standard 14.17" x 14.17" roof cut-out.
Prima dell'installazione:
- Verify roof integrity and sufficient structural support for the unit's weight.
- Ensure adequate clearance around the installation area.
- Confirm the vehicle's 12V DC power supply can handle the unit's wattage(750W).
- Raccogliere tutti gli strumenti e le attrezzature di sicurezza necessari.
Fasi di installazione (guida generale):
- Prepare the Roof Opening: If not already present, create a 14.17" x 14.17" square opening in the RV roof. Ensure the area is clean and free of debris.
- Apply Sealing: Apply the provided skylight waterproof sponge strip or a suitable sealant around the roof opening to ensure a watertight seal.
- Mount the Rooftop Unit: Carefully lift the exterior unit onto the roof, aligning it with the prepared opening.
- Install Ceiling Assembly: From inside the RV, attach the interior ceiling assembly to the rooftop unit using the provided mounting bracket and screws. Ensure a secure and tight fit.
- Collegamento elettrico: Connect the 12V DC power supply wires to the unit's terminals, observing correct polarity. Ensure all connections are secure and insulated.
- Controlli finali: Verify all connections are tight, the unit is securely mounted, and there are no leaks. Test the unit's operation.
5. Istruzioni per l'uso
Your Treeligo RV Air Conditioner can be controlled via the integrated LCD display on the interior unit or the provided remote control.
Pannello di controllo e telecomando:
- The LCD display shows current settings such as temperature, mode, and fan speed.
- Use the remote control to power on/off, select operating modes, adjust temperature, and change fan speed. Point the remote directly at the interior unit for optimal response.
Modalità operative:
- Modalità di alimentazione dell'aria: Circulates air without cooling, functioning as a fan.
- Modalità risparmio: Operates at a reduced fan speed and adjusts temperature gradually for quiet, comfortable overnight use.
- Modalità risparmio energetico: Optimizes cooling performance to minimize power consumption, ideal for extended use on battery power.
- Modalità potente: Provides maximum cooling capacity for rapid temperature reduction in hot conditions.
6. Manutenzione
Una manutenzione regolare garantisce prestazioni ottimali e prolunga la durata del tuo condizionatore.
Programma di manutenzione:
- Mensilmente (o secondo necessità): Clean the air filters located in the interior unit. Remove filters, wash with mild soap and water, rinse thoroughly, and allow to dry completely before reinstallation.
- Stagionalmente: Inspect the exterior unit for debris, leaves, or dirt accumulation. Gently clean the condenser coils with a soft brush or vacuum. Ensure drainage holes are clear.
- Annualmente: Check all electrical connections for tightness and signs of corrosion. Inspect the roof seal around the unit for cracks or deterioration and re-seal if necessary.
Always disconnect power to the unit before performing any cleaning or maintenance.
7. Risoluzione Dei Problemi
Se riscontri problemi con il tuo condizionatore d'aria, fai riferimento ai seguenti problemi comuni e alle relative soluzioni:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| L'unità non si accende | No power, blown fuse, loose wiring, low battery voltage. | Check power supply, fuses, and wiring connections. Ensure battery voltage is sufficient (Intelligent Voltage Protection may prevent operation if too low). |
| Raffreddamento insufficiente | Dirty air filters, blocked condenser coils, low refrigerant, incorrect mode selection, large space. | Clean air filters and condenser coils. Ensure unit is in a cooling mode (e.g., Powerful). Verify unit capacity matches RV size. If refrigerant is suspected, contact a qualified technician. |
| Rumore eccessivo | Componenti allentati, ventola ostruita, unità non in piano. | Check for loose screws or debris in the fan. Ensure the RV is parked on a level surface. |
| Perdita d'acqua | Blocked drain hose, improper installation seal. | Clear any obstructions from the drain hose. Inspect and re-seal the roof mounting area if necessary. |
Se i problemi persistono dopo aver provato queste soluzioni, contattare l'assistenza clienti.
8. Specifiche
Detailed technical specifications for the Treeligo 12V RV Air Conditioner, Model EAC002.64.12-5:
| Caratteristica | Specificazione |
|---|---|
| Marca | Treeligo |
| Numero di modello | EAC002.64.12-5 |
| Potenza di raffreddamento | 13000 unità termiche britanniche (BTU) |
| Capacità di flusso d'aria | 350 Cubic Feet per Minute (CFM) |
| Voltage | 12 Volt (CC) |
| Cosatage | 750 watt |
| Livello di rumore | 40 decibel |
| Dimensioni del prodotto (esterne) | 28"P x 36"L x 15"A (circa) |
| Tipo di installazione | Rooftop, Packaged |
| Compatible Cut-Out Size | 14.17" x 14.17" |
| Caratteristica speciale | Raffreddamento rapido |
| Refrigerante | R134a/R410a-420g (as per image) |
| Frozen Oil | POE68 (as per image) |
9. Garanzia e supporto
Treeligo products are manufactured to high-quality standards and are backed by a manufacturer's warranty. Specific warranty terms and duration may vary. Please refer to the warranty card included with your product or contact Treeligo customer support for detailed information.
Assistenza clienti:
For technical assistance, warranty claims, or any questions regarding your Treeligo 12V RV Air Conditioner, please contact Treeligo customer service through their official channels or the retailer where the product was purchased.
