1. Introduzione
This manual provides essential information for the safe and efficient use of your Bosch SMS2HVI02E Series 2 freestanding dishwasher. Please read these instructions carefully before installation and operation, and retain them for future reference. This appliance is designed to simplify your daily dishwashing tasks with advanced cleaning and drying technologies.
Image: The Bosch SMS2HVI02E dishwasher, a freestanding unit with a stainless steel finish, integrated into a modern kitchen environment.
2. Configurazione e installazione
2.1 Disimballaggio e posizionamento
Carefully unpack the dishwasher and remove all packaging materials. Ensure the appliance is placed on a stable, level surface. As a freestanding model, it can be positioned independently in your kitchen.
2.2 Dimensioni
The Bosch SMS2HVI02E has standard dimensions for easy integration into most kitchen layouts.
- Larghezza: 60 centimetri
- Profondità: 60 centimetri
- Altezza: 84.5 centimetri

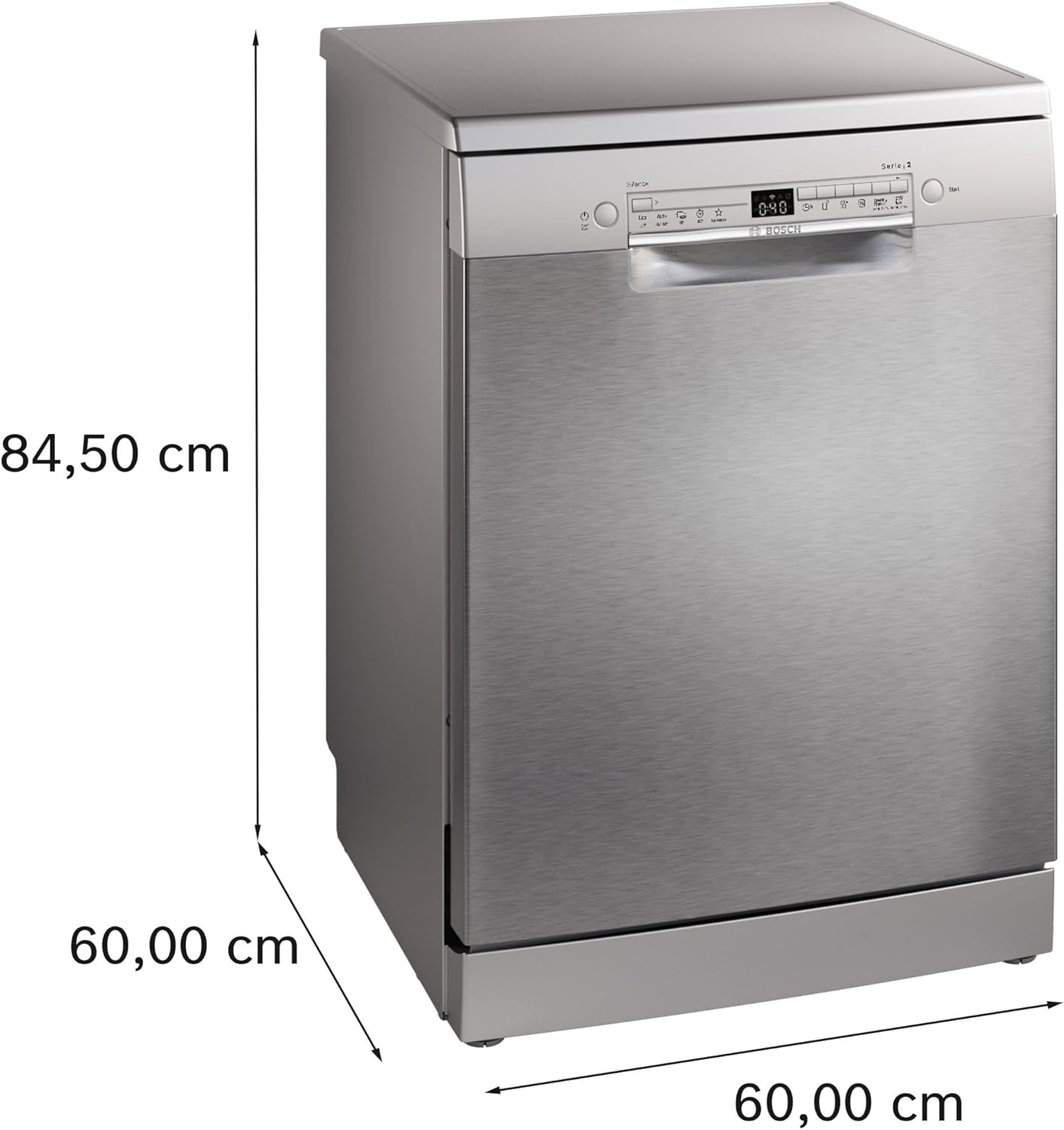

Image: A visual representation of the dishwasher with its key dimensions: 84.50 cm height, 60.00 cm depth, and 60.00 cm width.
2.3 Collegamenti idrici ed elettrici
Connect the dishwasher to a suitable water supply and drainage system. The appliance comes with an electrical cord for power connection. Ensure all connections are secure and comply with local regulations. The water inlet hose length is 165 cm.
Image: The back of the dishwasher, illustrating the water inlet and outlet hoses, and the power cord connection point.
2.4 Aqua Stop Feature
The Bosch SMS2HVI02E is equipped with an Aqua Stop system, providing protection against water leaks. This safety feature helps prevent water damage by automatically shutting off the water supply in case of a leak.
Image: A technical illustration of the Aqua Stop mechanism, designed to prevent water leaks from the dishwasher.
3. Istruzioni per l'uso
3.1 Pannello di controllo Sopraview
The dishwasher features an electronic control panel with an LCD display for easy program selection and monitoring.

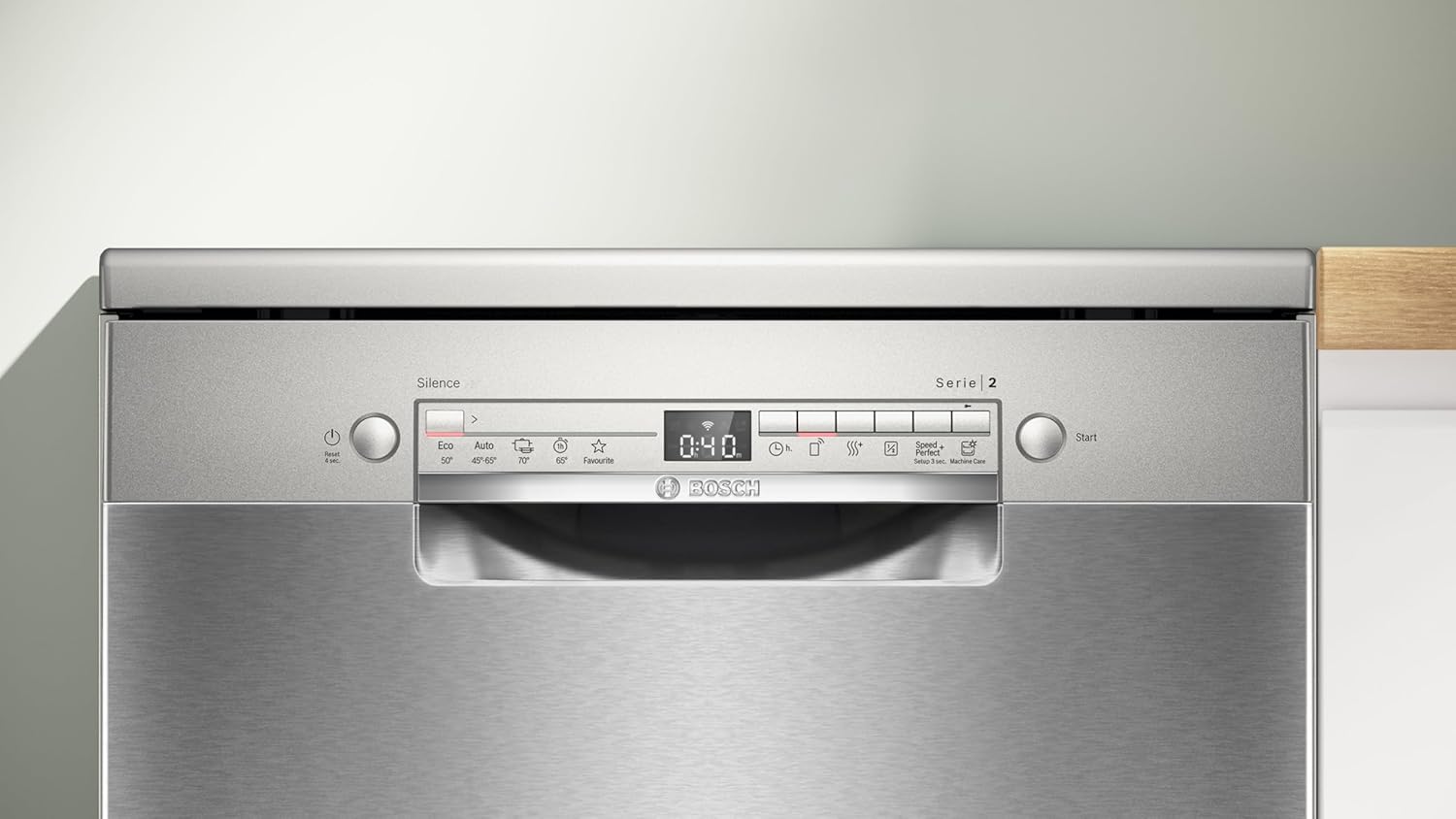

Image: The control panel of the Bosch SMS2HVI02E dishwasher, showing program selection buttons, a digital timer display, and the start button.
3.2 Caricamento della lavastoviglie
The dishwasher has a capacity of 14 place settings. It features flexible and adjustable baskets to accommodate various types and sizes of dishes, ensuring optimal cleaning results.

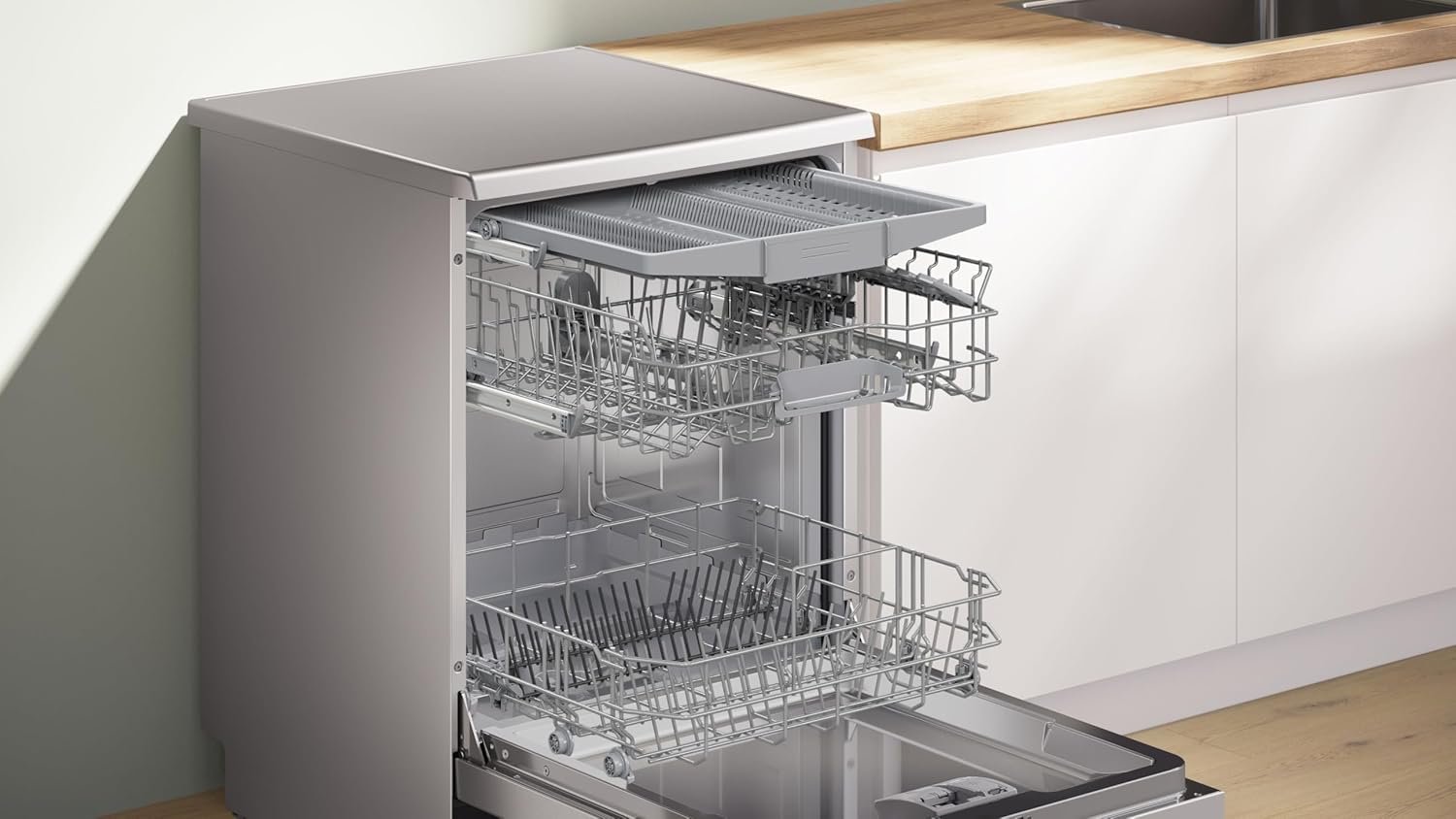

Image: The interior of the dishwasher with the door open, revealing the upper and lower racks designed for dish placement.
Cestino Superiore
The upper basket is ideal for glasses, cups, and smaller plates. Its adjustable height allows for flexibility when loading taller items in the lower basket.
Image: A close-up of the upper basket, loaded with various glassware and small dishes, demonstrating its capacity and design.
Cestino inferiore
The lower basket is suitable for larger items such as dinner plates, serving dishes, and pots. Foldable tines provide additional space for bulky cookware.
Image: A close-up of the lower basket, showing dinner plates and a pot, illustrating the flexible loading options.
Cassetto delle posate
A dedicated cutlery drawer is provided to ensure thorough cleaning and optimal organization of your utensils.
Image: The top cutlery drawer, neatly arranged with forks, knives, spoons, and small serving utensils.
3.3 Aggiunta del detersivo
Open the detergent dispenser and add the appropriate amount of dishwasher detergent. Close the dispenser securely before starting a wash cycle.
Image: A close-up of the detergent dispenser compartment, showing a dishwasher tablet and liquid rinse aid in their respective sections.
3.4 Selezione del programma
The dishwasher offers 6 specific programs to suit various washing needs. Common cycle options include:
- Auto: Regola automaticamente l'intensità della pulizia in base al livello di sporco.
- Intensivo: Per pentole e padelle molto sporche.
- Economico: Un programma a risparmio energetico per stoviglie normalmente sporche.
- Opzione mezzo carico: Use this option when washing a smaller quantity of dishes to save water and energy.
3.5 Home Connect Feature
This appliance is equipped with Home Connect, allowing for remote control and monitoring via a smartphone application. This feature provides convenience and access to additional functionalities.
4. Manutenzione
4.1 Pulizia della lavastoviglie
Regular cleaning of the dishwasher interior, filters, and spray arms is recommended to maintain optimal performance. Refer to the detailed cleaning instructions in the full product manual for specific guidance.
4.2 Disponibilità dei pezzi di ricambio
Spare parts for the Bosch SMS2HVI02E dishwasher are available for up to 15 years, ensuring long-term usability and repairability of your appliance.
5. Risoluzione Dei Problemi
If you encounter any issues with your dishwasher, please consult the troubleshooting section of the comprehensive manual. Common issues often have simple solutions.
- Senza energia: Check the power cord connection and circuit breaker.
- L'acqua non scarica: Inspect the drain hose for kinks or blockages, and clean the filter.
- Piatti non puliti: Ensure proper loading, correct detergent dosage, and clear spray arms.
5.1 Home Connect for Diagnostics
The Home Connect feature can assist with remote diagnostics and provide guidance for resolving issues. You can contact Bosch customer service directly through the app if further assistance is needed.
Image: A smartphone displaying the Home Connect application interface, offering options for troubleshooting and contacting customer support.
6. Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Marca | Bosch |
| Nome del modello | SMS2HVI02E |
| Tipo di installazione | Libera installazione |
| Dimensioni (P x L x A) | 60P x 60l x 84,5H cm |
| Capacità | 14 Coperti |
| Colore | Brushed Stainless Steel (Anti-fingerprint) |
| Tipo di controllo | Elettronico |
| Livello di rumore | 46 decibel |
| Voltage | 240 Volt |
| Opzioni ciclo | Auto, Intensive, Economic |
| Display | LCD |
| Peso | 50.1 chilogrammi |
| Lunghezza del tubo flessibile | 165 centimetri |
| Materiale interno | Plastica |
| Componenti inclusi | Cavo di alimentazione |
| Paese di origine | Polonia |

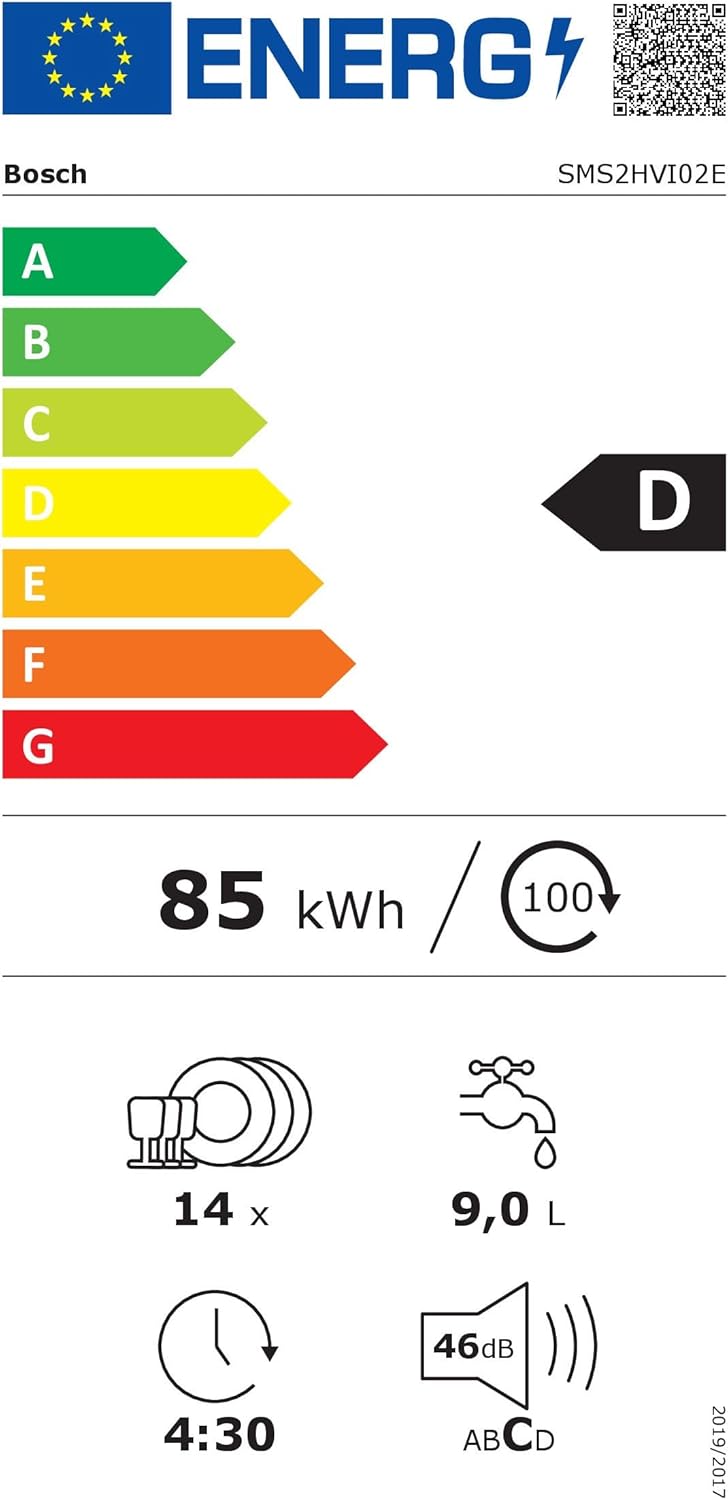

6.1 Etichetta energetica
The energy label provides information on the energy efficiency and performance characteristics of the dishwasher.
7. Garanzia e supporto
7.1 Garanzia del produttore
The Bosch SMS2HVI02E dishwasher comes with a Garanzia del produttore di 2 anniSi prega di conservare la prova d'acquisto per eventuali reclami in garanzia.
7.2 Assistenza clienti
For technical assistance, service requests, or questions regarding your appliance, please contact Bosch customer service. You can also utilize the Home Connect application for direct support and diagnostics.
Visita il sito ufficiale Bosch websito per informazioni di contatto e ulteriori risorse: www.bosch-home.com
