AFMAT Electric Pencil Sharpener PSD4 Instruction Manual

1. Introduzione

Thank you for choosing the AFMAT Electric Pencil Sharpener PSD4. This heavy-duty, cordless, and rechargeable sharpener is designed for efficient and precise sharpening of various pencil types and sizes. Please read this manual carefully before use to ensure proper operation and maintenance.

2. Caratteristiche del prodotto

• Design a 6 fori: Accommodates pencils from 6mm to 11mm in diameter, including round, triangular, and hexagonal shapes.
• Lama elicoidale per impieghi gravosi: Industrial-grade blade engineered for over 10,000 sharpening cycles, suitable for frequent use.
• Fast Sharpening & Auto-Stop: Sharpens new pencils in under 4 seconds and used pencils in 2 seconds. Automatically stops when the pencil reaches a fine point, preventing over-sharpening and lead breakage.
• Senza fili e ricaricabile: Features a built-in 2500 mAh battery, providing 600-700 sharpenings on a full charge (approx. 2.5 hours charging time).

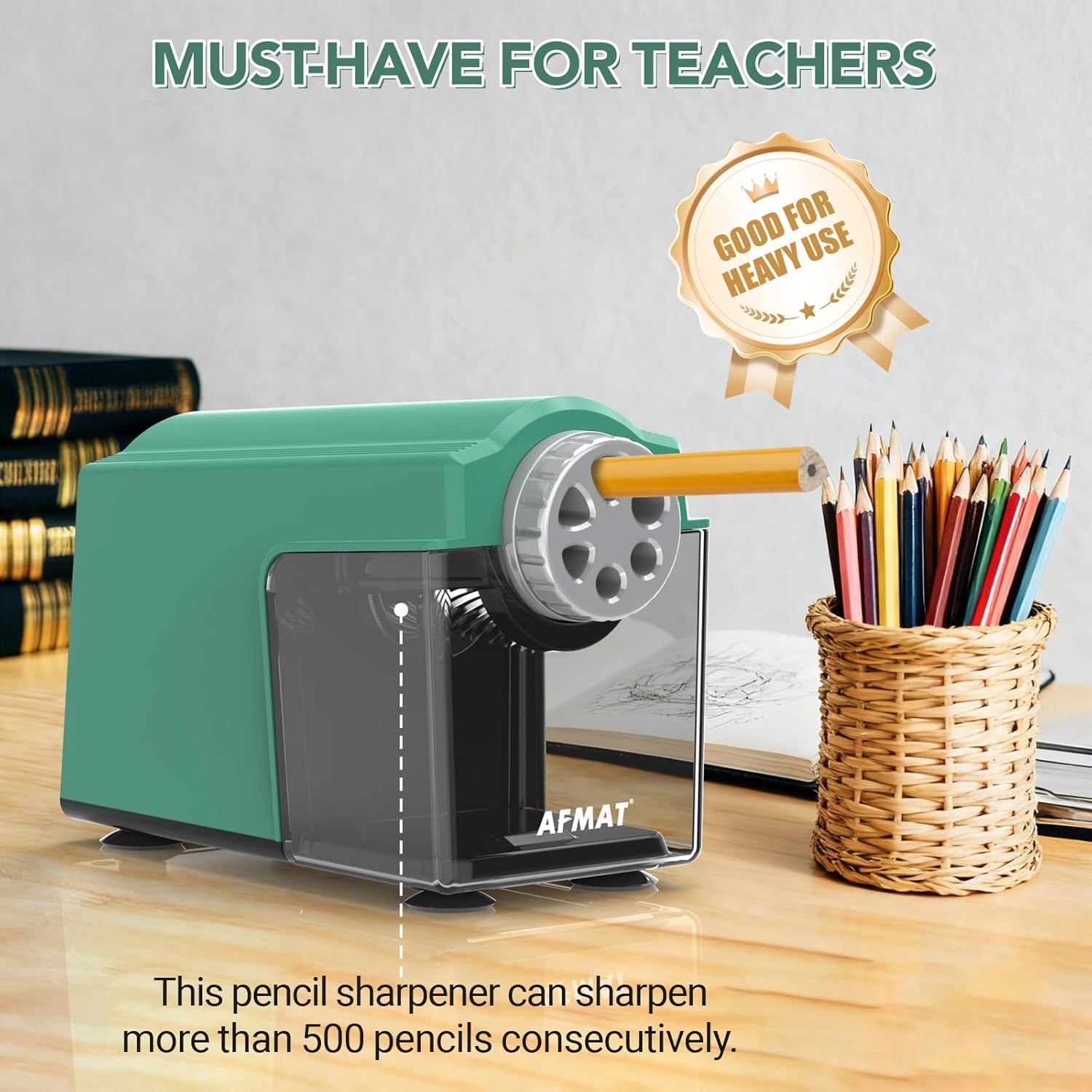

• Large Capacity Shavings Bin: Transparent, drawer-type bin holds a significant amount of shavings, reducing the frequency of emptying.
• Design stabile: Equipped with 4 strong suction cups on the base to keep the sharpener securely in place during use.

3. Impostazione

Carica iniziale

Before first use, fully charge the pencil sharpener. Connect the provided USB-C cable to the charging port on the sharpener and to a 5V/2A USB adapter (not included). The charging indicator will show a blinking blue light during charging and a solid blue light when fully charged. A full charge takes approximately 2.5 hours.

Nota: Do not use fast-charge devices with this sharpener.

4. Istruzioni per l'uso

1. Select Hole Size: Rotate the dial on the front of the sharpener to select the appropriate hole size for your pencil (6mm to 11mm).
2. Inserisci matita: Hold the pencil firmly and insert it parallel to the top of the sharpener.
3. Applicare pressione: Gently apply pressure to the pencil. The sharpener will start automatically.
4. Auto Stop: Continue applying pressure until the sharpener stops. This indicates the pencil is sharpened to a fine point. If you do not apply enough pressure, the sharpener may stop prematurely.
5. Rimuovi matita: Withdraw the sharpened pencil.

5. Manutenzione

Svuotamento del contenitore dei trucioli

The transparent shavings bin allows you to monitor the fill level. To empty:

1. Gently pull out the drawer-type shavings bin from the front of the sharpener.
2. Discard the pencil shavings.
3. Ensure the bin is properly reinstalled and closed tightly. The sharpener will not operate if the bin is not correctly secured due to a safety sensor.

6. Risoluzione Dei Problemi

Problemi comuni e soluzioni

• Pencil Jamming:
  1. Insert a sharp lead pencil and apply stress several times to push out the jammed lead.
  2. If the above step is not effective, carefully remove the shaving case. Cover your hands with gloves and turn the sharpening blade until you can see the sharpening center. Pick out any broken lead pieces.
• Problema di ricarica:

  Ensure you are using a 5V/2A adapter for charging. Avoid using fast-charge devices, as they may not be compatible or could damage the sharpener.

• Sharpener Not Operating:

  Check that the shavings bin is securely closed. A safety sensor prevents operation if the bin is not properly installed.

7. Specifiche

8. Garanzia e supporto

For further assistance or if you encounter any issues not covered in this manual, please contact our customer support team:

• E-mail: support@afmat.com
• WhatsApp: 1 (323) 961-7865
