YHNNH Refrigerator Control Circuit Board PCB Instruction Manual

1. Introduzione

This manual provides essential information for the YHNNH Refrigerator Control Circuit Board PCB, designed as a replacement part compatible with specific LG refrigerator models. This PCB (Printed Circuit Board) serves as the 'brain' of your refrigerator, managing critical functions such as temperature regulation, compressor operation, and defrost cycles. Proper installation and understanding of its features are crucial for optimal appliance performance.

Figure 1: YHNNH Refrigerator Control Circuit Board PCB (Overall View)

2. Caratteristiche del prodotto

• Controllo preciso della temperatura: Features advanced fuzzy control algorithms for accurate temperature regulation, achieving precision within ±0.1°C. Real-time calibration minimizes temperature fluctuations, ensuring optimal food preservation.
• Funzionamento a basso rumore: Incorporates variable frequency drive technology to maintain operating noise levels below 35 decibels. Vibration suppression algorithms further reduce mechanical noise, contributing to quieter operation, especially during nighttime hours.
• Durata di servizio estesa: Intelligent delayed start functionality prevents frequent compressor cycling, thereby extending the lifespan of the compressor. Integrated overload protection mechanisms reduce the risk of overheating and ensure safe operation.
• Fast Cooling Capability: The high-frequency start mode enables rapid cooling, quickly reaching desired temperature settings and enhancing the appliance's quick-freezing capabilities.

3. Compatibilità

This Refrigerator Control Circuit Board PCB is compatible with LG refrigerator models that utilize the following part numbers:

• EBR80085803
• EBR800858
• EAX662466

Always verify the part number on your existing control board to ensure proper compatibility before installation.

4. Informazioni sulla sicurezza

AVVERTIMENTO: Electrical shock hazard. Disconnect power before servicing. Only qualified technicians should attempt installation or repair of this component. Failure to follow these instructions could result in death, electrical shock, fire, or property damage.

• Prima di iniziare qualsiasi lavoro, scollegare sempre il frigorifero dall'alimentazione principale.
• Indossare dispositivi di protezione individuale adeguati, compresi guanti isolanti.
• Handle the circuit board by its edges to avoid damaging components or introducing static electricity.
• Prima di ripristinare l'alimentazione, assicurarsi che tutti i collegamenti siano saldi e orientati correttamente.

5. Configurazione e installazione

Replacing a refrigerator control board requires technical knowledge and should ideally be performed by a certified appliance technician. The following steps are a general guide and may vary depending on your specific refrigerator model.

1. Scollegare l'alimentazione: Scollegare il frigorifero dalla presa a muro o spegnere l'interruttore automatico che fornisce alimentazione all'elettrodomestico.
2. Accedi al Pannello di Controllo: Locate the control board compartment, typically found at the back of the refrigerator or behind the front grille. You may need to remove screws or panels to gain access.
3. Collegamenti ai documenti: Before disconnecting any wires, take clear photos or make a diagram of all wire connections to the existing board. This will be crucial for correct reassembly.
4. Scollegare i fili: Carefully disconnect all wire harnesses and connectors from the old control board. Note that some connectors may have locking tabs that need to be pressed or lifted.
5. Rimuovere la vecchia scheda: Svitare o sganciare la vecchia scheda di controllo dalle staffe di montaggio.
6. Installa la nuova scheda: Position the new YHNNH control board in the same location and secure it with the original screws or clips.
7. Ricollegare i fili: Utilizzando le foto o lo schema, ricollega con attenzione tutti i cablaggi e i connettori alla nuova scheda. Assicurati che ogni collegamento sia saldo e correttamente inserito.
8. Rimontare: Riposizionare eventuali pannelli o coperture rimossi per accedere alla scheda.
9. Ripristina alimentazione: Ricollegare il frigorifero alla presa a muro o accendere l'interruttore automatico.
10. Operazione di prova: Monitor the refrigerator's operation to ensure it is functioning correctly, including temperature regulation and compressor cycles.

Figure 2: Control Board with various connectors

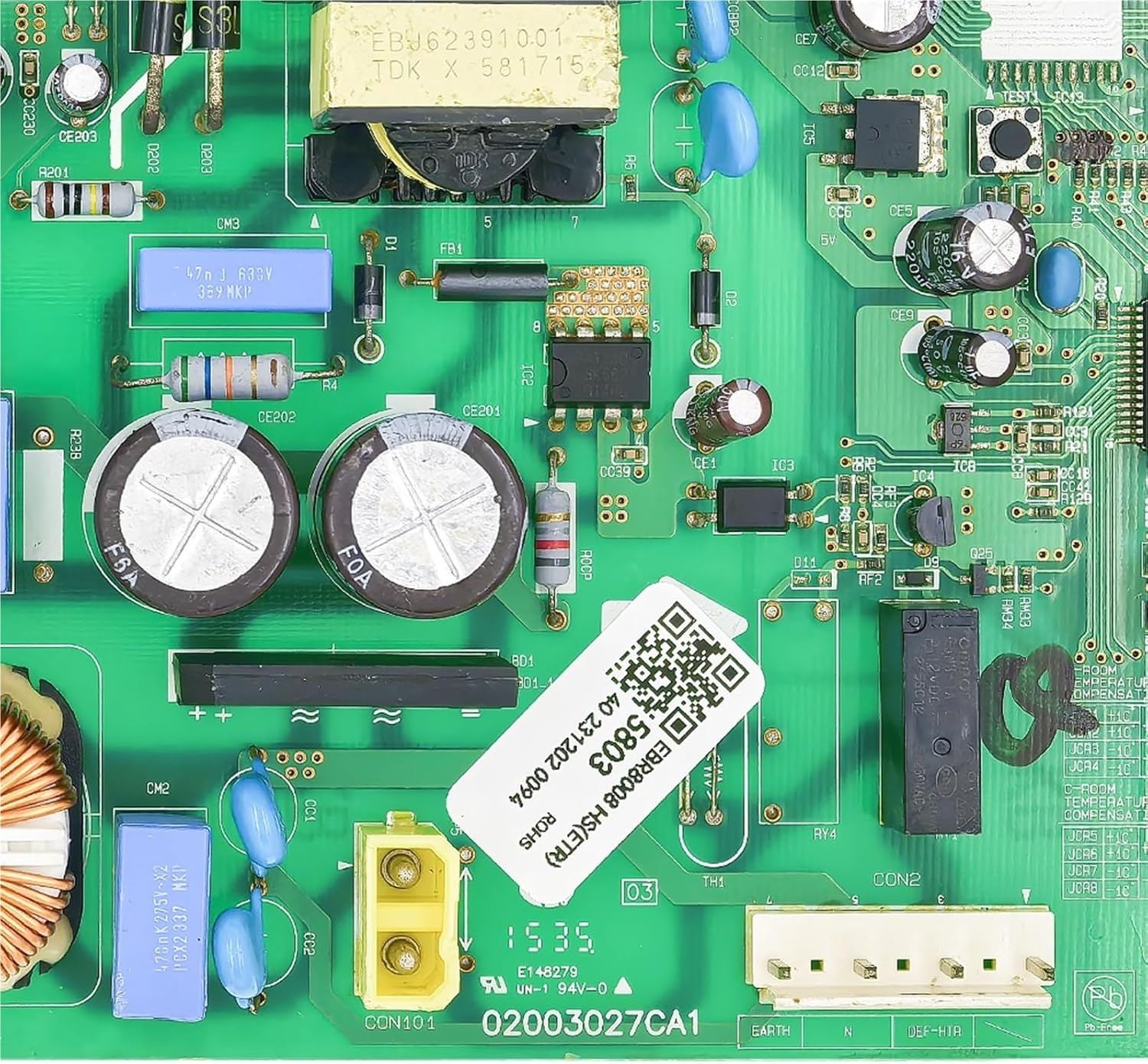

Figure 3: Detail of the control board, showing component layout

6. Istruzioni per l'uso

Once correctly installed, the YHNNH Refrigerator Control Circuit Board PCB operates automatically as part of your refrigerator's internal system. It continuously monitors temperature sensors, manages the compressor's run cycles, controls defrost operations, and regulates other essential functions to maintain the desired internal temperature and preserve food freshness. No direct user interaction with the control board itself is required after installation.

7. Manutenzione

The control board itself requires no routine maintenance. To ensure its longevity and proper function, consider the following general guidelines for your refrigerator:

• Ensure the refrigerator's ventilation areas are clear and unobstructed to prevent overheating of internal components.
• Keep the refrigerator's interior and exterior clean to prevent dust and debris buildup.
• Avoid exposing the refrigerator to extreme humidity or temperature fluctuations.
• If the refrigerator is to be moved or stored, ensure it is unplugged and handled carefully to prevent physical damage to internal components.

8. Risoluzione Dei Problemi

If your refrigerator exhibits issues after replacing the control board, consider the following general troubleshooting steps. Always ensure power is disconnected before inspecting internal components.

• Nessuna alimentazione/Frigorifero non si avvia: Double-check all wire connections to the control board. Ensure the refrigerator is properly plugged in and the circuit breaker is on.
• Temperatura errata: Verify that the refrigerator's temperature settings are correct. If temperatures are still off, ensure temperature sensors are properly connected and not damaged.
• Compressore non in funzione: Check for any error codes displayed on the refrigerator's panel (if applicable). Ensure all compressor-related connections on the PCB are secure.
• Frequent Cycling: If the compressor cycles on and off too frequently, it could indicate a sensor issue or a problem with the board's logic. Re-verify connections.
• Rumori insoliti: While the board itself is quiet, if new noises occur, it might indicate an issue with a component it controls (e.g., fan, compressor).

Se i problemi persistono dopo aver controllato questi punti, si consiglia di consultare un tecnico professionista specializzato nella riparazione di elettrodomestici.

9. Specifiche

10. Garanzia e supporto

For information regarding product warranty, returns, or technical support, please refer to the seller or manufacturer's official channels. Keep your purchase receipt or order details handy when contacting support.
