1. Importanti istruzioni di sicurezza
Please read all instructions carefully before using the AMZCHEF Espresso Machine. Retain this manual for future reference. Incorrect operation may result in injury or damage to the appliance.
- Garantire l'alimentazione voltage corrisponde all'etichetta di classificazione sull'apparecchio.
- Non immergere l'apparecchio, il cavo di alimentazione o la spina in acqua o altri liquidi.
- Scollegare la macchina dalla presa di corrente quando non è in uso e prima di pulirla. Lasciarla raffreddare prima di maneggiare i componenti.
- Keep hands and utensils away from the grinding mechanism during operation.
- Prestare attenzione quando si utilizza la lancia vapore, poiché il vapore caldo può causare ustioni.
- Questo apparecchio è destinato esclusivamente all'uso domestico.
2. Prodotto finitoview
The AMZCHEF Espresso Machine with Grinder (Model CE-CM5560-SV) is an integrated coffee system designed for home use. It features a 20-bar pump, a built-in conical burr grinder with 20 settings, a milk frother, and a touch screen interface for precise control over brewing parameters.
Componenti:
- Tramoggia dei fagioli: Per chicchi di caffè interi.
- Manopola di regolazione della macinatura: To select one of 20 grind settings.
- Serbatoio dell'acqua: Rimovibile, con capacità di 1.8 litri.
- Schermo touch: For controlling brewing parameters, temperature, and settings.
- Portafiltro: Contiene il caffè macinato per la preparazione.
- Lancia vapore: Per montare il latte.
- vassoio antigoccia: Raccoglie il liquido in eccesso.

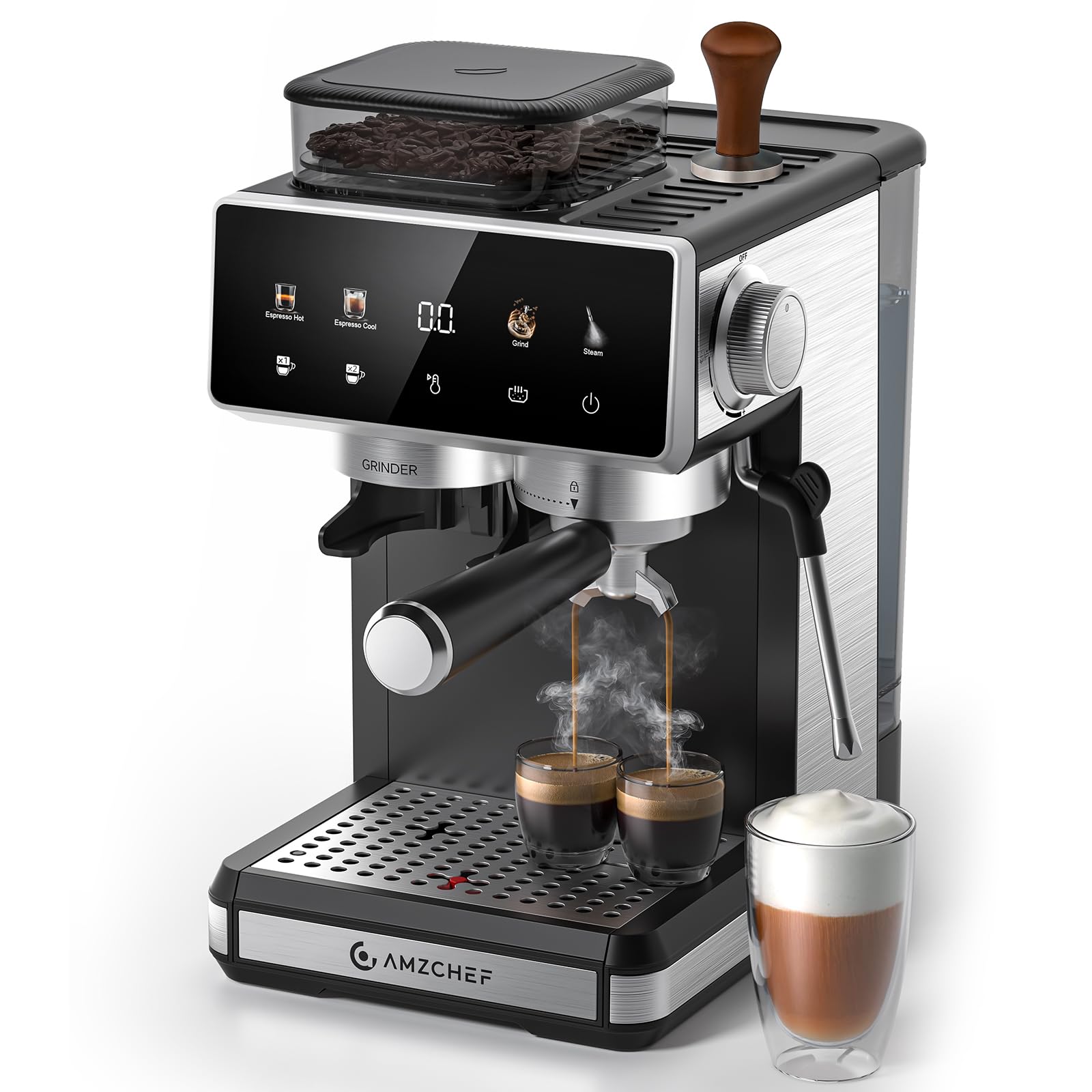

Figura 1: Fronte view of the AMZCHEF Espresso Machine with Grinder, showing the touch screen, portafilter, and steam wand.
3. Impostazione
3.1 Disimballaggio e posizionamento
- Rimuovere con cautela tutti i materiali di imballaggio dalla macchina.
- Place the espresso machine on a stable, level, and heat-resistant surface, away from water sources and direct sunlight.
- Ensure adequate clearance around the machine for ventilation and access to the water tank and bean hopper.
3.2 Primo utilizzo e preparazione
- Fill the 1.8-liter water tank with fresh, cold water. Ensure the tank is properly seated.
- Collegare la macchina a una presa elettrica con messa a terra.
- The machine will power on and may initiate a self-test. Follow any on-screen prompts.
- Before brewing coffee, run a cycle without coffee to prime the system. Place a cup under the portafilter and activate a brewing cycle. This flushes out any manufacturing residue.
- Repeat the priming process for the steam wand by activating it until steam is consistently released.
3.3 Grinder Adjustment
The integrated conical burr grinder offers 20 precise grind settings. Adjust the grind size according to your coffee beans and desired extraction. Finer grinds are typically used for espresso, while coarser grinds are suitable for cold brew.
- To adjust, turn the grinder adjustment dial located on the bean hopper.
- It is recommended to adjust the grind setting only when the grinder is running or completely empty to prevent damage.
4. Istruzioni per l'uso
4.1 Preparazione dell'espresso
- Riempire il contenitore dei chicchi di caffè con chicchi di caffè freschi e interi.
- Select your desired grind setting using the dial.
- Place the portafilter under the grinder outlet. Use the touch screen to select the desired dose (single or double shot) and grind time. The anti-static technology helps prevent coffee dust from sticking.
- Tamp distribuire uniformemente il caffè macinato nel portafiltro.
- Fissare saldamente il portafiltro alla testa di infusione.
- On the touch screen, select your preferred brewing option (hot or cold brew), temperature level (3 options), and pre-infusion time (8 levels).
- Press the brew button to start extraction. The 20-bar pump and PID temperature control ensure stable extraction.
- Una volta completata la preparazione, rimuovere il portafiltro e gettare via i fondi di caffè.
4.2 Schiumare il latte
- Fill a stainless steel frothing pitcher with cold milk (dairy or non-dairy).
- Posizionare la lancia vapore nel latte, appena sotto la superficie.
- Activate the steam function via the touch screen.
- Move the pitcher up and down to create a delicate, creamy milk foam.
- Once desired texture is achieved, turn off the steam function.
- Pulire immediatamente la lancia vapore con un pannoamp panno per evitare che i residui di latte si asciughino.
5. Manutenzione
Regular cleaning and maintenance ensure optimal performance and longevity of your AMZCHEF Espresso Machine.
5.1 Pulizia giornaliera
- Portafiltro: After each use, remove the portafilter, discard coffee grounds, and rinse thoroughly with warm water.
- vassoio antigoccia: Empty and clean the drip tray daily. It is not dishwasher safe.
- Lancia vapore: Immediately after frothing milk, wipe the steam wand with a clean, damp panno. Emettere una piccola quantità di vapore per eliminare eventuali residui di latte all'interno.
- Testa di fermentazione: Usa l'annuncioamp cloth to wipe the brew head area.
5.2 Serbatoio dell'acqua
Rinse the water tank regularly with fresh water. Do not use abrasive cleaners. For best results, use filtered water to minimize mineral buildup.
5.3 Decalcificazione
Over time, mineral deposits (limescale) can build up inside the machine, affecting performance. The frequency of descaling depends on water hardness and usage. Refer to the on-screen prompts or a descaling indicator if available. Use a suitable descaling solution designed for espresso machines and follow the product's instructions carefully.
5.4 Pulizia del macinino
Periodically clean the grinder to remove old coffee grounds and oils. Refer to the machine's specific instructions for removing and cleaning the burrs. The anti-static technology helps keep the grinder cleaner during operation.
6. Risoluzione Dei Problemi
Questa sezione affronta i problemi più comuni che potresti riscontrare con la tua macchina per l'espresso.
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Nessuna erogazione di caffè o flusso lento | Grind too fine, coffee tamped too hard, brew head clogged, water tank empty. | Adjust grind coarser, tamp lighter, clean brew head, refill water tank. |
| Coffee is watery or extracts too fast | Grind too coarse, not enough coffee, coffee tamped è troppo leggero. | Adjust grind finer, increase coffee dose, tamp più solido. |
| Nessun vapore dalla lancia | Lancia vapore intasata, macchina non riscaldata alla temperatura del vapore. | Clean steam wand, allow machine to fully heat up for steam function. |
| Grinder is stiff or not grinding | Beans jammed, grinder needs cleaning, adjustment attempted while full. | Clear bean hopper, clean grinder burrs, adjust grind only when grinder is running or empty. |
| Portafilter feels wobbly | Normal for some models, or not fully engaged. | Ensure portafilter is twisted firmly into the brew head. If the filter basket is loose, ensure it is properly seated within the portafilter. |
7. Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Marca | AMZCHEF |
| Numero di modello | CE-CM5560-SV |
| Capacità | 1.8 litri (serbatoio dell'acqua) |
| Colore | Nero |
| Dimensioni del prodotto (P x L x A) | 21 cm x 29 cm x 36 cm |
| Caratteristiche speciali | Milk Frother, Built-in Coffee Grinder, Removable Tank |
| Tipo di caffettiera | Macchina per caffè espresso |
| Materiale | Acciaio inossidabile |
| Energia | 1350 L |
| Voltage | 220 Volt |
| Coffee Type Used | Ground Coffee (and Whole Beans for Grinder) |
| Modalità di funzionamento | Semiautomatico |
| Lavabile in lavastoviglie | NO |
| Codice GTIN | 850079022263 |
8. Garanzia e supporto
Specific warranty terms and conditions for the AMZCHEF Espresso Machine Model CE-CM5560-SV are typically provided with the product packaging or available on the manufacturer's official website. Please refer to these resources for detailed information regarding your warranty coverage and how to obtain support.
For technical assistance, spare parts, or warranty claims, please contact AMZCHEF customer service through their official channels. Keep your proof of purchase for any warranty-related inquiries.
