EZVIZ CB8 Lite 4G & Wi-Fi Outdoor Security Camera User Manual

1. Introduzione

This manual provides essential instructions for the installation, operation, and maintenance of your EZVIZ CB8 Lite 4G & Wi-Fi Outdoor Security Camera. Please read this manual thoroughly before using the product to ensure correct usage and optimal performance. Keep this manual for future reference.

The EZVIZ CB8 Lite is a versatile outdoor security camera offering dual 4G LTE and Wi-Fi 6 connectivity, powered by a built-in battery and a 5W solar panel for continuous operation. It features 2K+ resolution, 360-degree pan-tilt functionality, AI-powered person and vehicle detection, color night vision, and two-way audio communication.

2. Prodotto finitoview

The EZVIZ CB8 Lite camera is designed for comprehensive outdoor surveillance. Its key features include:

• Doppia connettività: Supports both 4G LTE and Wi-Fi 6 for reliable network connection. Automatically switches to 4G if Wi-Fi is unstable.
• Energia sostenibile: Equipped with a 5200 mAh rechargeable battery and a 5W solar panel for continuous, eco-friendly power.
• 2K+ Resolution: Fornisce video foo chiari e dettagliatitage at 4-megapixel resolution.
• Copertura a 360 gradi: Pan and tilt functionality provides a wide field of view, eliminating blind spots. Supports up to 12 preset monitoring points.
• Rilevamento basato sull'intelligenza artificiale: Intelligent detection of persons and vehicles reduces false alarms and enables automatic tracking.
• Visione notturna a colori: Integrated spotlights enable full-color video recording even in low-light conditions, with a night vision range of up to 15 meters.
• Audio bidirezionale: Consente la comunicazione in tempo reale con i visitatori o la dissuasione degli intrusi.
• Deterrenza attiva: Features a sound alarm and flashing lights to warn off potential intruders.
• AOV 2.0 Continuous Recording: Captures continuous footage and generates time-lapse videos, ensuring no critical moments are missed.
• Design resistente alle intemperie: IP65-rated for outdoor use, resistant to various weather conditions (operating temperature range: -20°C to 50°C).
• Archiviazione flessibile: Supports local storage via microSD card (up to 512GB, not included) and cloud storage via EZVIZ CloudPlay (subscription required for some features).
• Integrazione della casa intelligente: Compatibile con Amazon Alexa e Google Assistant.

Immagine: Oltreview of the EZVIZ CB8 Lite camera system with solar panel, highlighting key features.

3. Contenuto della confezione

Verifica che tutti gli articoli siano presenti nel tuo pacco:

• EZVIZ CB8 Lite 4G Camera
• Pannello solare da 5 W
• Modello di trapano
• Staffa di montaggio regolabile
• Kit viti (x2)
• Cavo di alimentazione
• Regulatory Documentation (x3)
• Guida rapida (x2)

Image: The EZVIZ CB8 Lite camera and solar panel.

4. Impostazione

4.1 Carica iniziale

Before installation, fully charge the camera's internal battery using the provided power cable. This ensures sufficient power for initial setup and operation.

4.2 Installazione della scheda SIM e della scheda MicroSD

1. Locate the SIM card slot and microSD card slot on the camera.
2. Insert a Nano SIM card (for 4G connectivity) and a microSD card (up to 512GB for local storage) into their respective slots. Ensure they are inserted correctly until they click into place.

4.3 Installazione dell'app e creazione dell'account

1. Scarica l'app EZVIZ dall'App Store (iOS) o dal Google Play Store (Android).
2. Open the app and create an EZVIZ account if you don't already have one.
3. Follow the in-app instructions to add your CB8 Lite camera by scanning the QR code on the device or its packaging.

4.4 Montaggio della telecamera e del pannello solare

Choose a location with good 4G signal strength and consistent sunlight exposure for the solar panel. The camera is IP65 weatherproof, suitable for outdoor environments.

1. Use the drill template to mark the screw positions on your desired mounting surface.
2. Praticare i fori e, se necessario, inserire i tasselli.
3. Attach the adjustable mounting bracket to the surface using the provided screws.
4. Fissare la telecamera alla staffa di montaggio.
5. Mount the solar panel in a location that receives at least two hours of direct sunlight daily.
6. Collegare il cavo del pannello solare alla porta di ricarica della fotocamera.

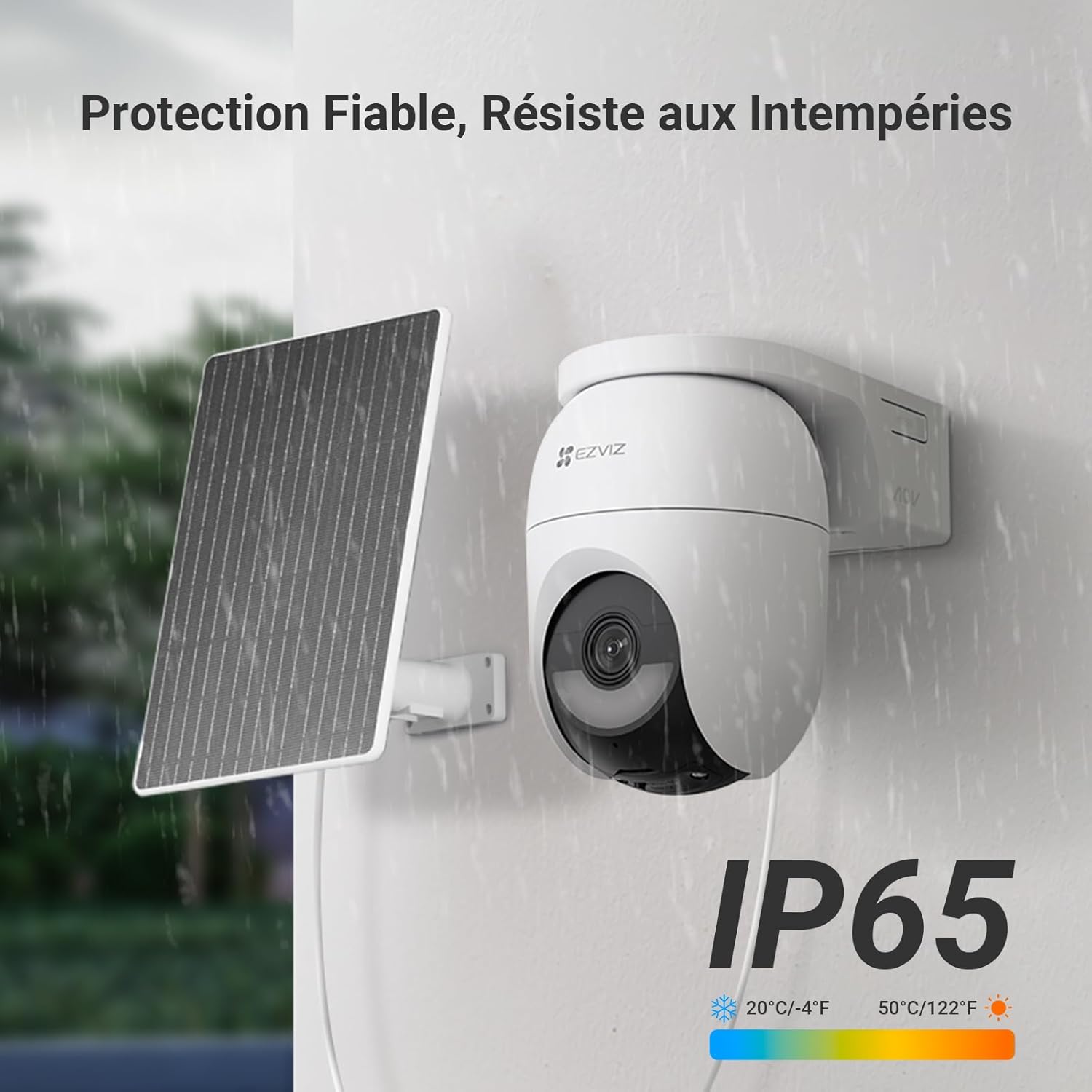

Image: The EZVIZ CB8 Lite camera and solar panel installed outdoors, demonstrating weatherproof design.

5. Funzionamento

5.1 Dual Network Connectivity

The camera automatically prioritizes Wi-Fi 6 connection. If Wi-Fi becomes unavailable or unstable, it will seamlessly switch to 4G LTE to maintain continuous surveillance. Ensure your Nano SIM card has an active data plan.

Image: The camera illustrating its dual 4G and Wi-Fi connectivity.

5.2 Vivere View e riproduzione

Accedi ai flussi video in diretta e ai video registratitage through the EZVIZ app. Use the app to pan and tilt the camera for a 360-degree view of your surroundings. The AOV 2.0 feature provides continuous recording and time-lapse summaries.

Image: The camera's 360-degree view capability with multiple preset points.

5.3 Rilevamento AI e tracciamento automatico

The camera's AI algorithms differentiate between persons and vehicles, sending precise alerts to your smartphone. When a person is detected, the camera can automatically track their movement within its field of view.

Image: Smartphone screen showing an alert for AI-detected person and vehicle.

5.4 Two-Way Audio and Active Deterrence

Use the two-way audio feature in the EZVIZ app to speak with individuals near the camera. In case of suspicious activity, activate the sound alarm and flashing spotlights to deter intruders.

Image: A person interacting with a delivery driver via the camera's two-way audio feature.

Image: The camera activating its flash and sound alarm to deter an intruder.

5.5 Modalità di visione notturna

The camera offers both standard infrared night vision and full-color night vision, enhanced by its built-in spotlights. You can configure the night vision mode through the EZVIZ app.

Image: The camera providing 2K+ resolution and color night vision capabilities.

6. Manutenzione

6.1 Cleaning the Camera and Solar Panel

Pulire regolarmente l'obiettivo della fotocamera e la superficie del pannello solare con un panno morbido eamp cloth to ensure clear image quality and efficient solar charging. Avoid using abrasive cleaners or solvents.

6.2 Aggiornamenti firmware

Keep your camera's firmware updated to benefit from the latest features and security enhancements. Check for updates via the EZVIZ app and follow the instructions for installation.

6.3 Gestione della batteria

The solar panel is designed to keep the battery charged. If the camera is installed in an area with limited sunlight, monitor the battery level via the app and recharge manually if necessary using the power cable.

7. Risoluzione Dei Problemi

• La fotocamera non si connette alla rete:
  Ensure the camera is within range of your Wi-Fi router or that the 4G SIM card has an active data plan and good signal. Restart the camera and your router. Verify network settings in the EZVIZ app.
• Scarsa qualità video:
  Check your internet connection speed. Clean the camera lens. Ensure there are no obstructions blocking the view.
• La batteria non si carica:
  Ensure the solar panel is clean and receiving direct sunlight for at least two hours daily. Check the connection between the solar panel and the camera.
• Falsi allarmi:
  Adjust the detection sensitivity and detection zones in the EZVIZ app. Ensure AI detection for persons/vehicles is enabled.
• Problemi audio bidirezionali:
  Check the microphone and speaker settings in the EZVIZ app. Ensure your smartphone's volume is up.

8. Specifiche

9. Garanzia e supporto

For warranty information, please refer to the documentation included in your product package or visit the official EZVIZ website. For technical support, frequently asked questions, and additional resources, please visit the EZVIZ support page or contact customer service directly.

Supporto online: www.ezviz.com

Contatto: Refer to your regional EZVIZ support contact information.
