InnovaGoods Static Pedal Exerciser for Arms and Legs

Prodotto finitoview

The InnovaGoods Static Pedal Exerciser is designed for comfortable and effective exercise of both arms and legs from the convenience of your home. This compact and portable device is ideal for maintaining physical fitness, especially for seniors or individuals with reduced mobility. It features adjustable resistance and a digital LCD counter to track your progress.

Figura 1: Davanti view of the InnovaGoods Static Pedal Exerciser, showing the pedals, main unit, and LCD display.

Caratteristiche principali:

• Design ergonomico: Allows comfortable exercise while seated, suitable for use on a sofa or at a desk.
• Tappetino antiscivolo: Includes a mat for enhanced stability during use, preventing the exerciser from sliding.
• Resistenza regolabile: A knob allows you to increase or decrease pedaling resistance to suit your fitness level.
• Digital LCD Counter: Integrated electronic counter displays rotations, time, distance, and calories burned.
• Compatto e portatile: Lightweight and easy to transport and store.

Istruzioni di installazione

The InnovaGoods Static Pedal Exerciser requires minimal assembly. Please follow these steps:

1. Disimballare i componenti: Carefully remove all parts from the packaging. Ensure you have the main unit, pedals, and the anti-slip mat.
2. Fissare i pedali: Identify the left (L) and right (R) pedals. Screw each pedal into its corresponding crank arm on the main unit. Ensure they are securely tightened.
   Note: The left pedal usually tightens counter-clockwise, and the right pedal clockwise.
3. Insert Battery (LCD Counter): The LCD counter requires 1 x AAA battery (not included). Open the battery compartment on the back of the display unit and insert the battery, observing polarity.
4. Position Anti-slip Mat: Place the anti-slip mat on a flat, stable surface where you intend to use the exerciser.
5. Place Exerciser: Position the pedal exerciser on top of the anti-slip mat.

Figura 2: The compact design allows for easy transport and placement on the anti-slip mat.

Istruzioni per l'uso

The InnovaGoods Static Pedal Exerciser can be used for both leg and arm exercises. Follow these guidelines for optimal use:

1. Leg Exercise:

1. Posizionamento: Sit comfortably on a chair or sofa. Place the exerciser on the anti-slip mat in front of you, ensuring your knees are at approximately a 90-degree angle when your feet are on the pedals.
2. Piedi Sicuri: Place your feet into the pedal straps and adjust them for a snug fit.
3. Regola la resistenza: Turn the resistance knob (located on the front of the unit) clockwise to increase resistance or counter-clockwise to decrease it. Start with a low resistance and gradually increase as you feel comfortable.
4. Begin Pedaling: Start pedaling slowly and smoothly. Maintain a consistent rhythm.

Figura 3: User performing leg exercises with the pedal exerciser placed on the floor.

2. Arm Exercise:

1. Posizionamento: Place the exerciser on a stable table or desk at a comfortable height.
2. Mani sicure: Place your hands into the pedal straps, gripping the pedals firmly.
3. Regola la resistenza: As with leg exercise, adjust the resistance knob to your desired level.
4. Begin Pedaling: Rotate the pedals with your hands in a smooth, controlled motion.

Figura 4: User performing arm exercises with the pedal exerciser placed on a table.

3. Using the LCD Digital Counter:

The integrated LCD display tracks your workout data:

• SCANSIONE: Esegue automaticamente un ciclo attraverso tutte le funzioni.
• TEMPO: Visualizza la durata della sessione di allenamento corrente.
• CONTARE: Shows the total number of rotations during the current session.
• DISTANZA: Estimates the distance covered based on rotations.
• CALORIE: Stima le calorie bruciate durante la sessione.

Press the red button below the display to cycle through the different modes or to reset the values. The display can show two parameters simultaneously for easy monitoring.

Figura 5: Avvicinamento view of the LCD display showing various metrics and the red control button.

Manutenzione

To ensure the longevity and optimal performance of your InnovaGoods Static Pedal Exerciser, follow these simple maintenance steps:

• Pulizia: Pulire l'unità con un panno morbido, damp Dopo ogni utilizzo, pulire con un panno per rimuovere polvere e sudore. Non utilizzare detergenti abrasivi o solventi.
• Magazzinaggio: Conservare l'attrezzo in un luogo fresco e asciutto, lontano dalla luce solare diretta e da temperature estreme. Le sue dimensioni compatte lo rendono facile da riporre.
• Sostituzione della batteria: Replace the AAA battery in the LCD counter when the display becomes dim or stops functioning.
• Ispezione: Periodically check all screws and connections to ensure they are tight. If any parts appear worn or damaged, discontinue use and contact customer support.

Risoluzione dei problemi

If you encounter any issues with your InnovaGoods Static Pedal Exerciser, please refer to the following common problems and solutions:

Specifiche del prodotto

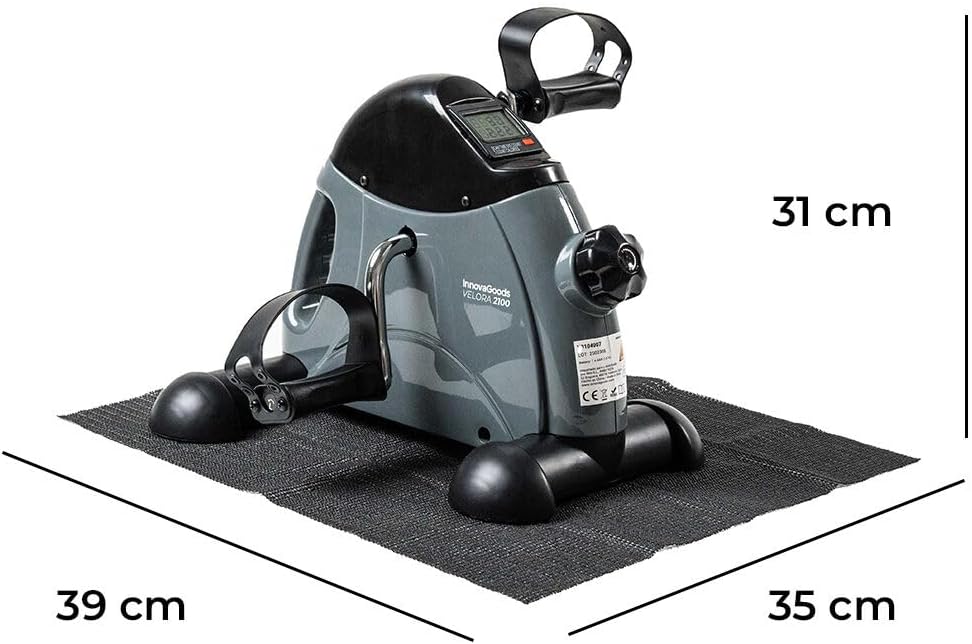

Figura 6: Dimensions of the InnovaGoods Static Pedal Exerciser.

Garanzia e supporto

This product comes with a standard manufacturer's warranty. For specific details regarding warranty coverage, duration, and terms, please refer to the documentation included with your purchase or contact the retailer.

For technical support, spare parts, or any questions not covered in this manual, please contact InnovaGoods customer service. Contact information can typically be found on the product packaging or on the official InnovaGoods websito.

Risorse online: Potresti anche trovare ulteriore supporto e FAQ su InnovaGoods Brand Store on Amazon.
