Bobve Farmhouse Queen Murphy Bed MH1032 Instruction Manual

1. Informazioni importanti sulla sicurezza

Please read and understand all safety instructions before assembly and use of the Bobve Farmhouse Queen Murphy Bed. Failure to follow these instructions may result in injury or product damage.

• Always use caution when lifting and lowering the bed.
• Do not exceed the maximum weight recommendation of 800 pounds (including mattress).
• Prestare attenzione agli spigoli vivi durante il montaggio e l'uso.
• Follow the assembly instructions carefully to ensure stability and prevent collapse.
• Ensure the bed frame is weighted at least 66 pounds when in use to prevent it from rebounding upwards unexpectedly.
• This product is designed for adult use.

2. Prodotto finitoview

The Bobve Farmhouse Queen Murphy Bed is a space-saving furniture solution designed for multi-purpose rooms such as guest rooms, home offices, or apartments. It features a wall-mounted design with a hydraulic rod system for smooth operation and a comfortable sleeping experience.

Caratteristiche principali:

• Design salvaspazio: Folds vertically against the wall to maximize floor space.
• Hydraulic Rod System: Ensures smooth and controlled lifting and lowering of the bed.
• Testiera imbottita: Features silky fine velvet fabric for comfort.
• Solid Wood Bed Board Support: Enhances bearing capacity and durability.
• Flexible Slats: Designed to contour to the body for improved comfort.
• Montaggio a parete: Secures to wall studs for stability.

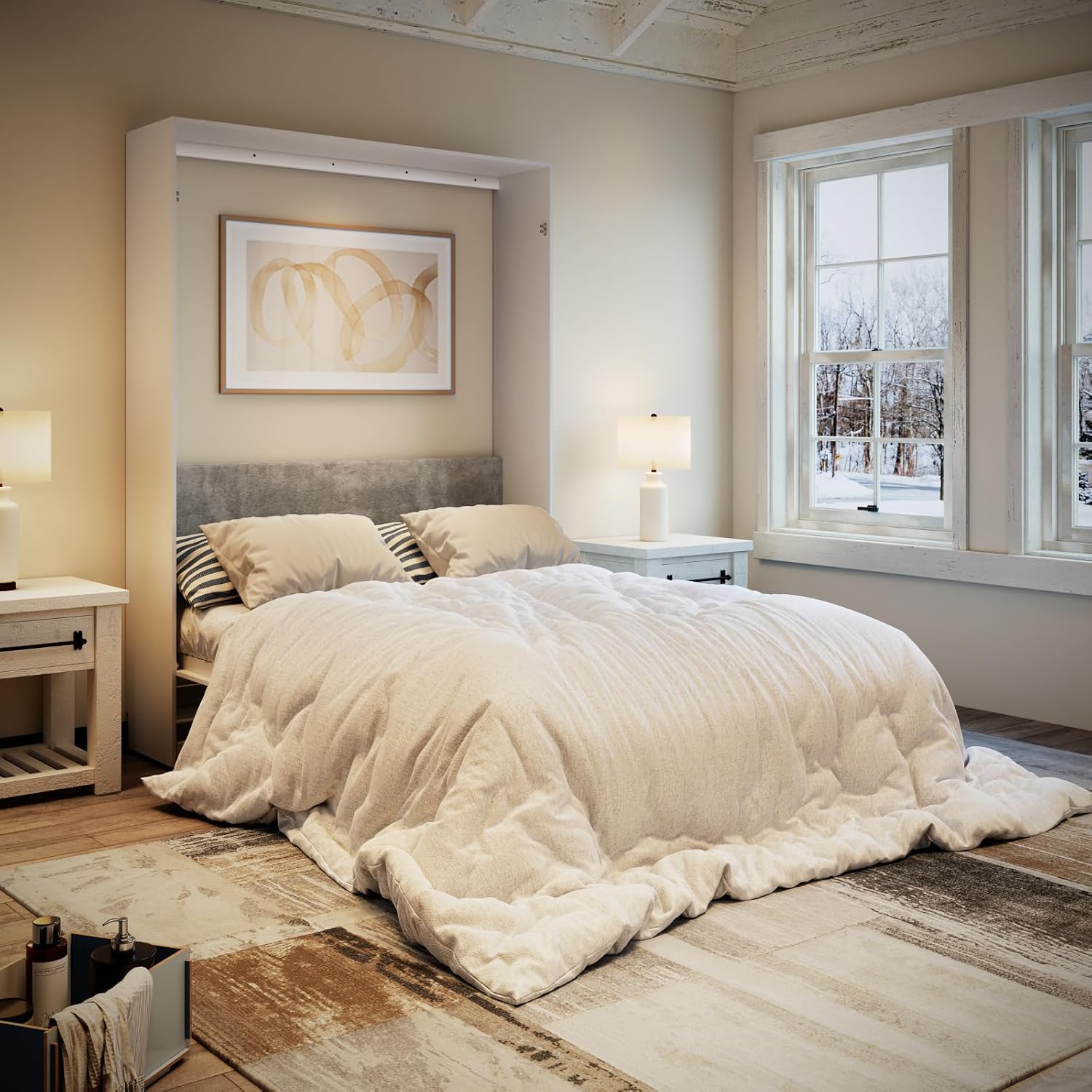

Image 2.1: The Bobve Farmhouse Queen Murphy Bed in its deployed position within a room setting.

3. Elenco dei componenti

Before beginning assembly, please ensure all components listed below are present and undamaged. If any parts are missing or damaged, contact customer support.

• Main Bed Frame Assembly
• Hydraulic Rods (pre-installed or separate)
• Wood Slats for Mattress Support
• Testiera imbottita
• Wall Mounting Hardware (screws, anchors for wooden walls)
• Assembly Tools (basic wrenches, Allen keys)
• Manuale di istruzioni (questo documento)
• Fixed Straps for Mattress Stability
• Stowable Bed Legs

Immagine 3.1: anteriore view of the bed frame components, including the upholstered headboard and wooden slats.

4. Installazione e assemblaggio

Assembly of the Bobve Farmhouse Queen Murphy Bed requires careful attention to detail. It is strongly recommended that due o più persone coordinate the assembly process.

4.1 Lista di controllo pre-assemblaggio:

• Verify all components are present using the Components List (Section 3).
• Assicuratevi di avere spazio sufficiente per il montaggio.
• Identify the location for installation. The bed must be mounted to wooden wall studs. The included wall mounting accessories are specifically for wooden walls.
• Gather any additional tools that may be required (e.g., stud finder, drill, level, measuring tape).

4.2 Fasi di assemblaggio:

1. Disimballare i componenti: Estrarre con cautela tutti i componenti dall'imballaggio e disporli su una superficie pulita e morbida per evitare graffi.
2. Montare il telaio principale: Follow the detailed diagrams in the included printed installation manual to assemble the main bed frame structure. Pay close attention to the orientation of each piece.
3. Installare le aste idrauliche: Attach the hydraulic tension rods as instructed. These rods are crucial for the smooth operation of the bed.
4. Attach Headboard and Slats: Secure the upholstered headboard and install the wooden slats onto the bed frame. Ensure slats are evenly spaced and firmly attached.
5. Montaggio a parete:
   • Locate wooden wall studs using a stud finder. Mark their positions accurately.
   • Position the assembled Murphy bed frame against the wall at the desired location.
   • Using the provided wall mounting hardware, securely fasten the bed frame to the wooden wall studs. Ensure all connections are tight and stable to prevent tipping.
6. Attach Stowable Legs: Install the stowable bed legs according to the instructions.
7. Controlli finali: Double-check all screws and connections to ensure they are tight and secure. Test the folding mechanism carefully before placing a mattress.

Image 4.1: Dimensional diagram of the Murphy bed, illustrating its compact folded form and extended sleeping position.

Image 4.2: Detailed features including hydraulic rods, mattress thickness recommendation, stowable legs, and wall mounting screws.

5. Istruzioni per l'uso

The Bobve Murphy Bed is designed for easy conversion between its folded and deployed states.

5.1 Deploying the Bed:

1. Area libera: Ensure the area in front of the Murphy bed is clear of obstructions before lowering.
2. Sblocca (se applicabile): If your model includes a locking mechanism, disengage it.
3. Gently Lower: Grasp the bed frame handles (if present) or the front panel and gently pull the bed downwards. The hydraulic rods will assist in a controlled descent.
4. Estendi le gambe: Once the bed is partially lowered, extend the stowable legs to support the bed frame. Ensure they are fully locked into position.
5. Full Deployment: Continue to lower the bed until it is fully horizontal and supported by its legs.
6. Weight Requirement: For safe use, ensure a mattress is placed on the bed frame. The bed frame requires at least 66 pounds of weight to remain stable in the deployed position.

Image 5.1: The Murphy bed in its fully deployed state with a mattress.

5.2 Folding the Bed:

1. Rimuovere la biancheria da letto: Remove all bedding, pillows, and mattress if they interfere with the folding mechanism. Ensure the mattress is secured with the fixed straps if designed to remain on the bed during folding.
2. Ritrarre le gambe: Retract the stowable legs and secure them in their folded position.
3. Lift Gently: Grasp the bed frame handles or the front edge of the bed and gently lift upwards. The hydraulic rods will assist in lifting the bed smoothly.
4. Sicuro: Continue lifting until the bed is fully vertical and flush against the wall. Engage any locking mechanisms if available.

Image 5.2: The Murphy bed being folded into its upright, space-saving position.

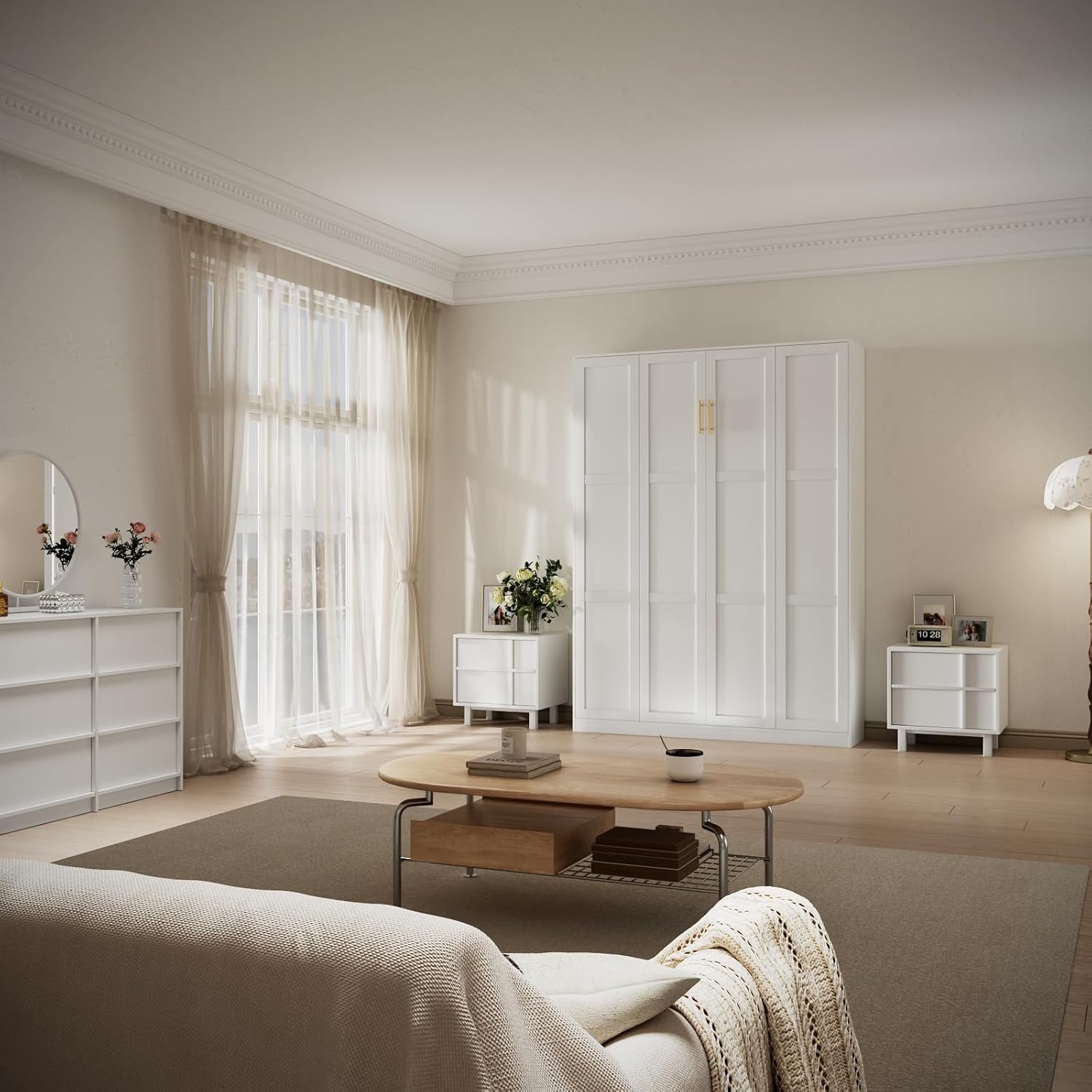

Image 5.3: The Murphy bed fully folded, presenting a clean cabinet-like appearance.

6. Manutenzione

Regular maintenance will help prolong the life and functionality of your Bobve Murphy Bed.

• Pulizia: Wipe the exterior surfaces with a dry cloth. For the upholstered headboard, use a soft, dry brush or a vacuum cleaner with an upholstery attachment to remove dust. Avoid harsh chemicals or abrasive cleaners.
• Controllo hardware: Periodically check all screws, bolts, and wall mounting hardware to ensure they remain tight. Retighten if necessary.
• Aste idrauliche: Inspect the hydraulic rods for any signs of wear or damage. If the bed becomes difficult to lift or lower smoothly, contact customer support. Do not attempt to repair hydraulic rods yourself.
• Doghe: Ensure all wooden slats are intact and properly seated in their holders. Replace any broken slats promptly.

7. Risoluzione Dei Problemi

If you encounter issues with your Bobve Murphy Bed, refer to the following common problems and solutions.

If the problem persists after attempting these solutions, please contact Bobve customer support for further assistance.

8. Specifiche

9. Garanzia e supporto

The Bobve Farmhouse Queen Murphy Bed comes with a Garanzia limitata. For specific details regarding warranty coverage, terms, and conditions, please refer to the warranty documentation included with your purchase or contact Bobve customer support.

For technical assistance, missing parts, or warranty claims, please contact Bobve customer support through the retailer where the product was purchased or visit the official Bobve websito per le informazioni di contatto.
