1. Introduzione
This manual provides essential information for the safe and effective installation, operation, and maintenance of the Walfront NLQ1H-63/4P Dual Power Automatic Transfer Switch (ATS). Please read this manual thoroughly before attempting to install or operate the device. Keep this manual for future reference.
The Walfront NLQ1H-63/4P ATS is designed to automatically switch between two power sources, ensuring a continuous and uninterrupted power supply for critical loads. It features both automatic and manual operation modes and is suitable for various applications including households, machinery production, and high-rise buildings.
2. Informazioni sulla sicurezza
ATTENZIONE: Pericolo di scossa elettrica. L'installazione e la manutenzione devono essere eseguite solo da personale qualificato.
- Scollegare sempre tutte le fonti di alimentazione prima di installare o effettuare la manutenzione dell'ATS.
- Garantire la corretta messa a terra del dispositivo.
- Verificare che tutti i collegamenti elettrici siano sicuri e corretti secondo lo schema elettrico.
- Non utilizzare l'ATS se appare danneggiato.
- Indossare adeguati dispositivi di protezione individuale (DPI) quando si lavora con impianti elettrici.
- The device housing is made of PC fire retardant material to prevent fire spread.
3. Prodotto finitoview
The Walfront NLQ1H-63/4P is a robust dual power automatic transfer switch designed for reliable power management.
Caratteristiche principali:
- Trasferimento automatico di potenza: Ensures seamless power switching between supplies for uninterrupted operation.
- Funzionamento a distanza: Equipped with a fire power interface for noiseless, energy-saving operation.
- Alloggiamento ignifugo: Constructed from PC fire retardant material to prevent fire spread and damage, ensuring safety.
- Funzionamento versatile: Features both automatic and manual modes for easy use and reliable performance.
- Applicazioni multiple: Suitable for various settings including households, machinery production, and high-rise buildings.
Componenti e dimensioni:
The following images illustrate the Walfront NLQ1H-63/4P ATS, highlighting its overall design and key dimensions.

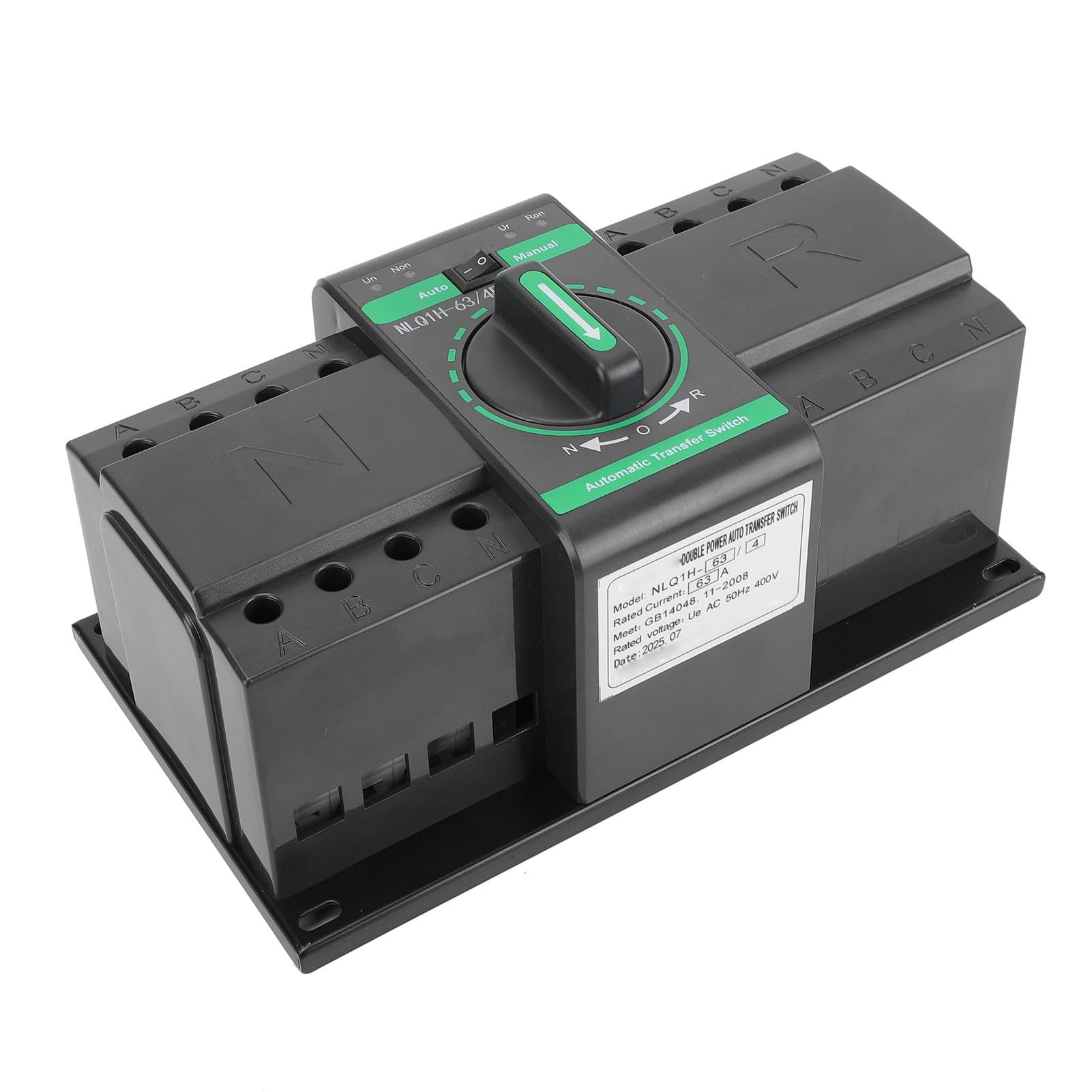

Figura 1: Fronte view of the Walfront NLQ1H-63/4P Automatic Transfer Switch.
Figure 2: Dimensions of the Walfront NLQ1H-63/4P Automatic Transfer Switch. The device measures approximately 235mm (9.25in) in length, 138mm (5.43in) in width, and 110mm (4.33in) in height.
For detailed component identification and wiring terminals, refer to the setup section.
4. Specifiche
| Specificazione | Valore |
|---|---|
| Modello | NLQ1H-63/4P |
| Volume nominaletage | CA 400V |
| Corrente nominale | 63A |
| Frequenza nominale | 50 Hz |
| Corrente di cortocircuito nominale | 3kA |
| Mechanical Life (Automatic) | 3000 volte |
| Mechanical Life (Manual) | 1500 volte |
| Materiale | PC Fire Retardant, Silver |
| Dimensioni articolo (L x P x A) | 9.44 x 5.9 x 4.72 pollici (235 x 138 x 110 mm) |
| Tipo di montaggio | Montaggio a parete |
| Valutazione internazionale di protezione | Grado di protezione IP20 |
| Specifica Met | Norma ISO 9001 |
5. Configurazione e installazione
Proper installation is crucial for the safe and reliable operation of the ATS. This device is designed for wall mounting.
Wiring Diagram and Terminal Identification:
The ATS requires connection to two separate power sources (e.g., utility grid and generator) and the load. Carefully follow the wiring diagram provided on the device and illustrated below.
Figura 3: dettagliata view of the Walfront NLQ1H-63/4P ATS showing common incoming wiring terminals (N, A, B, C), backup incoming wiring terminals (N, A, B, C), common closing power indicator (Un), backup outgoing power indicator (Ur), manually switching handle, and fixed installation holes.
- Montaggio: Securely mount the ATS to a wall using appropriate fasteners through the fixed installation holes. Ensure the mounting surface is stable and can support the weight of the device.
- Power Source 1 (Common Incoming): Connect the main power source (e.g., utility grid) to the terminals labeled 'N', 'A', 'B', 'C' on the left side of the switch (Common Incoming Wiring Terminal).
- Power Source 2 (Backup Incoming): Connect the backup power source (e.g., generator) to the terminals labeled 'N', 'A', 'B', 'C' on the right side of the switch (Backup Incoming Wiring Terminal).
- Connessione di carico: Connect the electrical load to the output terminals of the ATS.
- Cablaggio di controllo: Connect any necessary control wiring, such as for the fire power interface, to the designated terminals.
- Verifica: After all connections are made, double-check all wiring for correctness and tightness. Ensure no loose wires are present.
IMPORTANT: Always consult a qualified electrician for installation to ensure compliance with local electrical codes and safety standards.
6. Istruzioni per l'uso
The Walfront NLQ1H-63/4P ATS offers both automatic and manual operation modes.
Modalità operative:
- Modalità automatica (Auto): In this mode, the ATS will automatically detect the availability of power from both sources and switch to the preferred source. If the primary source fails, it will automatically transfer to the backup source. When the primary source is restored, it will switch back. To select automatic mode, turn the central rotary handle to the 'Auto' position. The 'Un' indicator (Common closing power indicator) and 'Ur' indicator (Backup outgoing power indicator) will illuminate to show the active power source.
- Manual Mode (Manual): This mode allows for manual switching between power sources. To select manual mode, turn the central rotary handle to the 'Manual' position. You can then manually switch between the 'N' (Normal/Common) and 'R' (Reserve/Backup) positions using the handle. This mode is useful for maintenance or specific operational requirements.
The central rotary handle on the front of the device (see Figure 3) is used to select between 'Auto' and 'Manual' modes, and for manual switching between 'N' and 'R' positions when in manual mode.
7. Manutenzione
Una manutenzione regolare contribuisce a garantire la longevità e l'affidabilità del tuo ATS.
- Ispezione visiva: Periodically inspect the ATS for any signs of physical damage, loose connections, or overheating.
- Pulizia: Mantenere il dispositivo pulito e privo di polvere e detriti. Utilizzare un panno asciutto e morbido per la pulizia. Non utilizzare detergenti liquidi.
- Tenuta del terminale: Annually, or as needed, check the tightness of all terminal connections to prevent arcing and overheating.
- Test funzionale: Periodically test the automatic transfer function by simulating a primary power failure (if safe to do so) to ensure it switches correctly to the backup source.
CAUTION: Always disconnect power before performing any maintenance or cleaning.
8. Risoluzione Dei Problemi
If you encounter issues with your Walfront NLQ1H-63/4P ATS, refer to the following common troubleshooting steps:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| L'ATS non trasferisce automaticamente la potenza. | ATS is in manual mode. No power detected from primary or backup source. Cablaggio di controllo difettoso. | Switch to 'Auto' mode. Check power supply to both sources. Controllare il cablaggio di controllo per verificare che non vi siano danni o collegamenti errati. |
| Nessuna potenza da caricare. | Both power sources are off. Collegamenti di carico allentati. Guasto interno. | Verificare che entrambe le fonti di alimentazione siano attive. Check and tighten load wiring connections. Rivolgersi al personale di assistenza qualificato. |
| Indicators not illuminating. | Nessuna alimentazione all'ATS. Faulty indicator light. | Check power supply to the ATS. If power is present, the indicator may need replacement (contact support). |
If the problem persists after attempting these solutions, contact Walfront customer support or a qualified electrician.
9. Garanzia e supporto
For warranty information, technical support, or service inquiries regarding your Walfront NLQ1H-63/4P Dual Power Automatic Transfer Switch, please contact Walfront customer service through their official channels. Refer to your purchase documentation or the Walfront websito per termini di garanzia specifici e dettagli di contatto.
Walfront Customer Support:
- Visitare il Walfront Store on Amazon per ulteriori informazioni.
- Per informazioni di contatto diretto, fare riferimento alla confezione del prodotto.
