RAOO MIN HF1114P-pro Inclinable Treadmill

Introduzione

Thank you for choosing the RAOO MIN HF1114P-pro Inclinable Treadmill. This manual provides essential information for the safe and effective use of your new fitness equipment. Please read this manual thoroughly before assembly or operation and retain it for future reference.

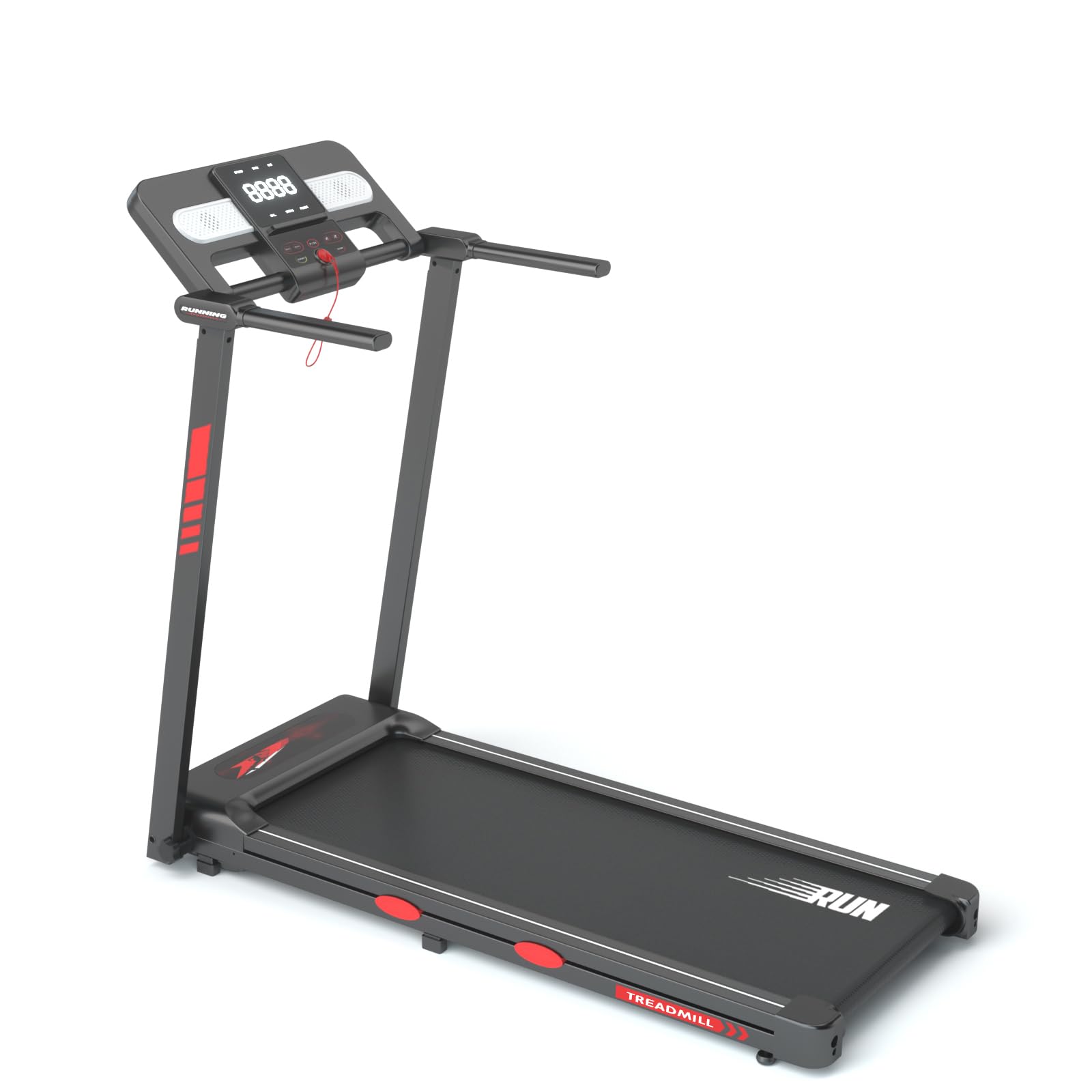

Image: The RAOO MIN HF1114P-pro Inclinable Treadmill, showcasing il suo design compatto.

Importanti istruzioni di sicurezza

To reduce the risk of serious injury, read all instructions before using this treadmill. The manufacturer assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

• Consultare sempre il proprio medico prima di iniziare qualsiasi programma di esercizi.
• Tenere i bambini e gli animali domestici lontani dal tapis roulant durante il funzionamento.
• Posizionare il tapis roulant su una superficie solida e piana, con almeno 2 metri (6.5 piedi) di spazio libero dietro e 0.6 metri (2 piedi) su ciascun lato.
• Ensure the safety key is properly attached to your clothing during use. In case of emergency, the safety key will stop the treadmill.
• Non utilizzare il tapis roulant se il cavo o la spina sono danneggiati o se non funziona correttamente.
• Indossare abbigliamento sportivo e scarpe da ginnastica adeguati. Evitare abiti larghi che potrebbero impigliarsi nelle parti in movimento.
• Non superare il peso massimo dell'utente di 150 kg (330 libbre).
• Scollegare il tapis roulant dalla presa di corrente quando non è in uso, prima di pulirlo e prima di eseguire la manutenzione.

Contenuto della confezione

Carefully unpack your treadmill and verify that all components are present. If any parts are missing or damaged, contact customer support immediately.

• Treadmill Main Unit (pre-assembled base and running deck)
• Console Frame with LED Display
• Handlebars (Left and Right)
• Chiave di sicurezza
• Assembly Hardware Kit (bolts, washers, nuts, Allen wrench)
• Cavo di alimentazione
• Lubricant Oil (for running belt)

Installazione e assemblaggio

Il montaggio richiede in genere due persone. Seguire attentamente questi passaggi:

1. Disimballare i componenti: Remove all parts from the packaging and lay them out on a clear, flat surface.
2. Raise Console Frame: Carefully lift the console frame into an upright position. Secure it to the main unit using the provided bolts and washers from the hardware kit.
3. Fissare il manubrio: Connect the left and right handlebars to the console frame, ensuring they are firmly secured with the appropriate hardware.
4. Collegare i cavi: Carefully connect any pre-labeled cables from the console frame to the main unit. Ensure connections are snug.
5. Controlli finali: Double-check all bolts and connections to ensure they are tight and secure before plugging in the treadmill.

Note: An image showing the console frame being lifted and secured would typically be included here.

Istruzioni per l'uso

Accensione/spegnimento

• Per accendere: Plug the power cord into a grounded electrical outlet. Flip the main power switch (usually located near the front of the treadmill base) to the 'ON' position. The LED display will illuminate.
• Per spegnere: Flip the main power switch to the 'OFF' position. Unplug the power cord from the outlet.

Using the LED Display and Controls

The LED display shows important workout data such as time, speed, distance, calories burned, and incline level. Control buttons are typically located on the console.

• AVVIO/ARRESTO: Premere per iniziare o terminare un allenamento.
• VELOCITÀ +/-: Regolare la velocità del nastro trasportatore da 1 km/h a 12 km/h.
• INCLINAZIONE +/-: Adjust the incline level up to 12%.
• DIREZIONI: Cycle through different workout programs or display modes.
• PROGRAMMI: Select from pre-set workout programs.

Note: An image of the LED display and control panel would typically be included here.

4-in-1 Running Modes

The HF1114P-pro offers versatile training options:

• Modalità manuale: Controllare manualmente velocità e inclinazione.
• Programmi preimpostati: Choose from various built-in programs designed for different fitness goals (e.g., fat burn, cardio, interval training).
• Incline Training: Focus on incline adjustments to simulate uphill walking or running.
• Intervallo di velocità: Alternate between high and low speeds for effective cardiovascular training.

Piegare e spiegare

Il tapis roulant è dotato di un design pieghevole per poterlo riporre comodamente.

• Piegare: Ensure the treadmill is off and unplugged. Carefully lift the running deck until it locks into the upright position.
• Per dispiegare: Gently push the release lever or pin (refer to specific mechanism on your unit) and slowly lower the running deck until it rests flat on the floor.

Note: Images illustrating the folding and unfolding mechanism would typically be included here.

Manutenzione

Una manutenzione regolare garantisce la longevità e le prestazioni ottimali del tuo tapis roulant.

• Pulizia: Pulisci la console e le superfici esterne con un pannoamp panno dopo ogni utilizzo. Non utilizzare detergenti abrasivi.
• Lubrificazione della cinghia di corsa: Lubricate the running belt every 3-6 months or after 100-200 hours of use, using the provided silicone oil. Lift the edge of the belt and apply a small amount of lubricant to the center of the deck.
• Tensione e allineamento della cinghia: Periodically check the running belt for proper tension and alignment. Adjust as needed using the rear roller bolts and the included Allen wrench. Refer to the specific instructions for belt adjustment in the detailed manual.
• Copertura del motore: Periodically remove the motor cover and vacuum any dust or debris that may have accumulated. Ensure the treadmill is unplugged before doing so.

Note: Images demonstrating belt lubrication and adjustment would typically be included here.

Risoluzione dei problemi

Se riscontri problemi con il tuo tapis roulant, fai riferimento ai seguenti problemi comuni e alle relative soluzioni:

Specifiche

Garanzia e supporto

RAOO MIN products are manufactured to high-quality standards. For warranty information, technical support, or to order replacement parts, please refer to the contact information provided with your purchase documentation or visit the official RAOO MIN website. Please have your model number (HF1114P-pro) and purchase date ready when contacting support.
