Introduzione
This manual provides detailed instructions for the installation, operation, and maintenance of your Fruhdi 6-Button 7-Pin Lift Chair Remote Controller, Version B. This remote is designed as a replacement for various power recliner lift chairs, specifically those requiring a 7-pin round male plug and independent control functionality for the backrest and footrest.
Please read this manual thoroughly before use to ensure proper functionality and to avoid potential issues.
Prodotto finitoview
The Fruhdi DL-SK-109 remote control features a durable black housing with six large, backlit buttons and an integrated USB charging port. It connects to your lift chair via a 7-pin round male plug.
Caratteristiche principali:
- 6-button control for various chair functions.
- 7-pin round male plug for secure connection.
- Integrated USB port for charging devices.
- Backlit buttons for visibility in low light conditions (illuminates when pressed).
- Specifically designed for chairs with Independent Recline (Version B) functionality, where backrest and footrest are controlled separately.

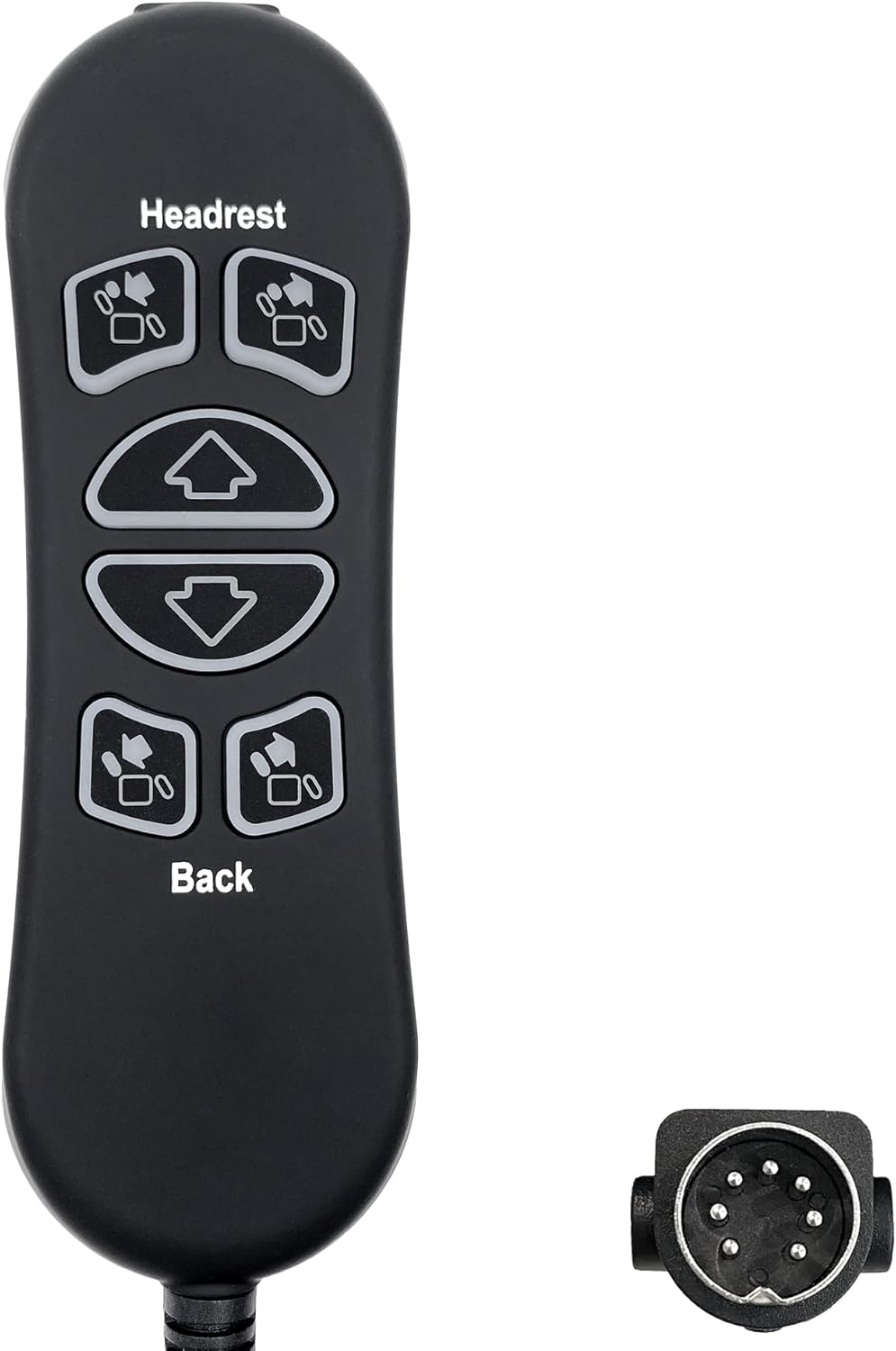

Image: The Fruhdi 6-Button 7-Pin Lift Chair Remote Controller, showing the remote unit and its distinct 7-pin round male plug.
Understanding Remote Versions: Standard vs. Version B
It is crucial to select the correct remote version to ensure proper operation with your lift chair. This remote is Versione B.
- Versione Standard: If pressing the backrest recline buttons also controls the footrest position (both recline together), you need the Standard Version remote.
- Version B (This Product): If your chair has separate controls for the backrest and footrest (incline and decline buttons for each), then this Version B remote is appropriate.
Using the wrong version may cause unintended behavior (e.g., selecting the standard version for a Version B remote might cause the calf rest to rise with the backrest).
Image: A visual comparison highlighting the functional differences between the Standard Version and Version B remotes. This remote is Version B.

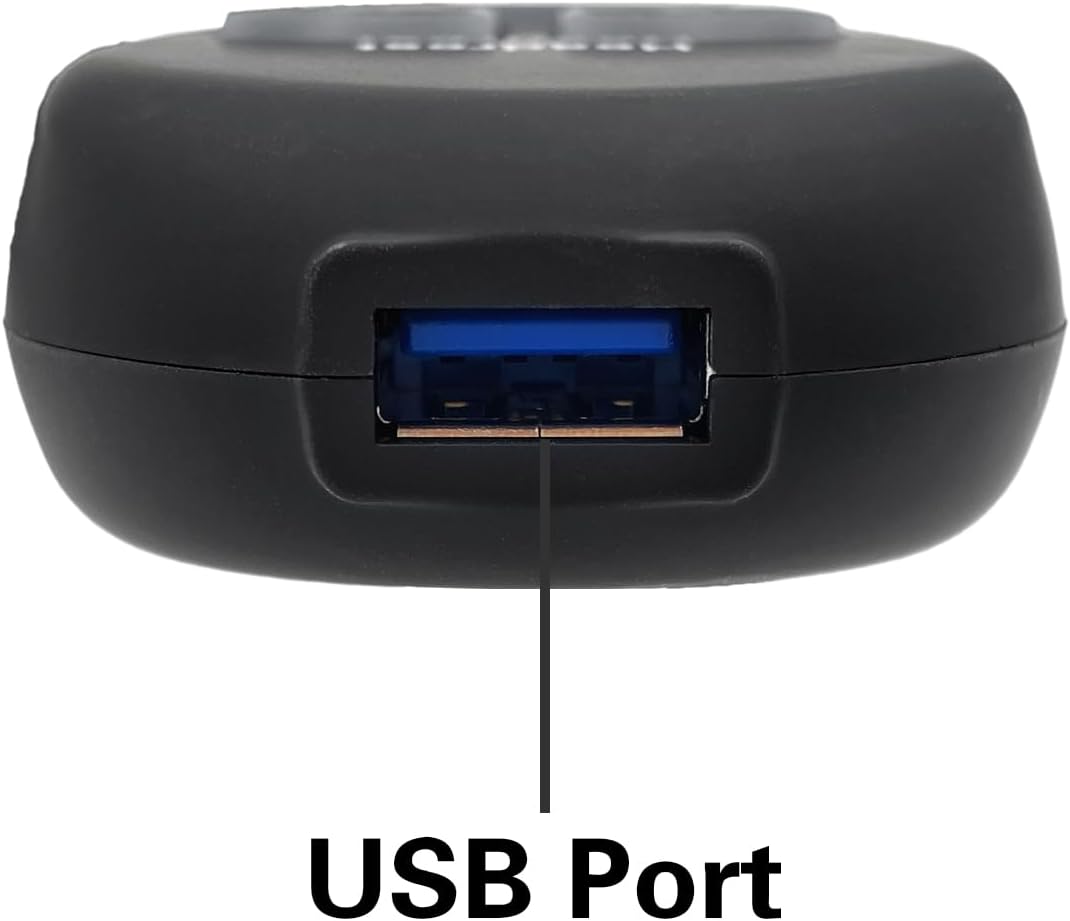

Immagine: un primo piano view of the USB charging port located on the remote controller.
Istruzioni di installazione
- Verifica compatibilità: Confirm your existing remote uses a 7-pin round male plug and your chair requires independent control for the backrest and footrest (Version B functionality).
- Power Off Chair: For safety, ensure your lift chair is unplugged from the power outlet before proceeding.
- Individua la porta di connessione: Identify the remote control connection port on your lift chair. This is typically located near the motor or under the chair.
- Disconnect Old Remote (if applicable): If replacing an old remote, carefully disconnect its plug from the chair's port.
- Connect New Remote: Align the 7-pin round male plug of the Fruhdi DL-SK-109 remote with the chair's connection port. Push the plug firmly and straight into the port until it is fully seated. Do not force the connection.
- Ripristina alimentazione: Once the remote is securely connected, plug your lift chair back into the power outlet.
- Funzionalità di prova: Test all buttons on the new remote to ensure they operate the chair's functions as expected.
Istruzioni per l'uso
The Fruhdi DL-SK-109 remote provides intuitive control over your lift chair's functions. The buttons are backlit and will illuminate when pressed for easy visibility.

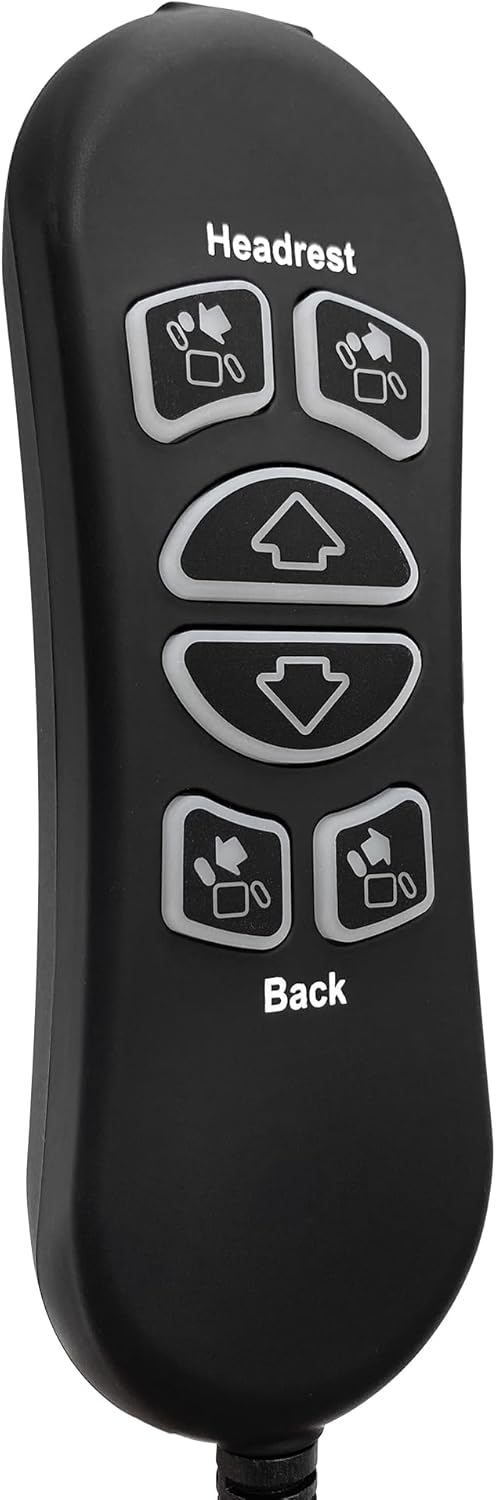

Immagine: Un dettaglio view of the remote's buttons, showing the "Headrest" and "Back" labels, and the directional arrows.
| Button Label/Icon | Function (Version B) |
|---|---|
| Headrest (Up Arrow Icon) | Moves the headrest forward. |
| Headrest (Down Arrow Icon) | Moves the headrest backward. |
| Large Up Arrow | Raises the footrest and moves the chair down. |
| Large Down Arrow | Lowers the footrest and moves the chair up. |
| Back (Up Arrow Icon) | Inclines the backrest. |
| Back (Down Arrow Icon) | Reclines the backrest. |
Porta di ricarica USB
The integrated USB port allows you to charge compatible electronic devices. Simply plug your device's USB cable into the port on the remote. Ensure the lift chair is powered on for the USB port to function.
Manutenzione
- Pulizia: Wipe the remote with a soft, dry cloth. For stubborn dirt, a slightly damp È possibile utilizzare un panno, ma assicurarsi che non penetri umidità nel telecomando. Non utilizzare prodotti chimici aggressivi o detergenti abrasivi.
- Magazzinaggio: When not in use, keep the remote in a safe place where it will not be dropped or damaged.
- Evitare i liquidi: Keep the remote away from liquids to prevent electrical damage.
- Non smontare: Do not attempt to open or repair the remote control yourself. This can void any potential warranty and may cause further damage.
Risoluzione dei problemi
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Il telecomando non risponde. |
|
|
| Buttons operate different functions than expected. |
|
|
| La porta USB non si carica. |
|
|
| Backlight not constantly on. | Questo è il normale funzionamento. | The backlight is designed to illuminate only when buttons are pressed, not to stay constantly lit. |
Specifiche
| Numero di modello | DL-SK-109 |
| Marca | Fruhdi |
| Tipo di connettore | 7-Pin Round Male Plug |
| Numero di pulsanti | 6 |
| Caratteristiche speciali | Backlit buttons, USB charging port |
| Colore | Nero |
| Dispositivi compatibili | Power Recliner Lift Chair (with Version B functionality) |
| Peso dell'articolo | 8 once |
| Dimensioni del pacco | 8.9 x 6.73 x 1.42 pollici |
Informazioni sulla garanzia
No specific warranty information is provided in the product details. For details regarding warranty coverage, please refer to the product packaging or contact the retailer or manufacturer directly.
Supporto
For technical support, troubleshooting assistance beyond this manual, or inquiries about replacement parts, please contact Fruhdi customer service. You may also refer to the retailer's support channels where the product was purchased.
Produttore: Fruhdi
Per ulteriori informazioni, è possibile visitare il sito Fruhdi Store on Amazon.
