Preciva Terminal Crimper Tool Kit CP25360 Instruction Manual

1. Introduzione

This manual provides detailed instructions for the safe and effective use of your Preciva CP25360 Terminal Crimper Tool Kit. This tool is designed for creating secure and reliable electrical connections with various terminals.

Caratteristiche principali

• Precision-calibrated for AWG 22-14 wires (0.5-2.5mm²) and 2.8mm-6.3mm spade connectors.
• Fully ratcheting mechanism ensures a complete crimp cycle before release.
• Ergonomic and portable design for comfortable use and reduced hand fatigue.

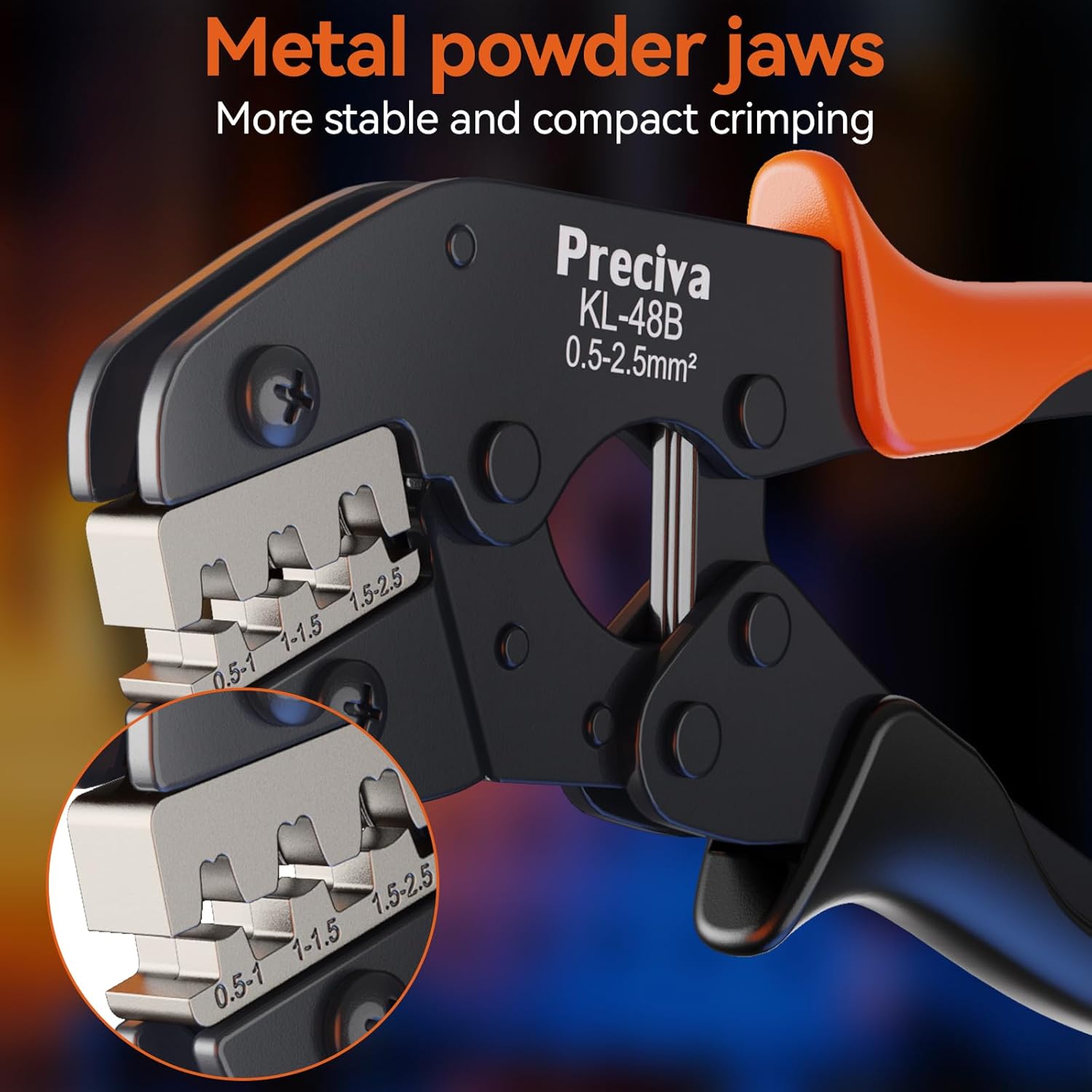

• Precision powder-coated jaws prevent wire damage and ensure maximum conductivity.
• Complies with relevant national standards for a wide range of applications.
• Includes 300 pieces of assorted premium terminals for immediate use.

2. Impostazione

Upon receiving your Preciva Terminal Crimper Tool Kit, carefully unpack all components. Verify that the crimping tool and the assorted terminals are present.

Familiarize yourself with the different crimping slots on the tool's jaws and the various types and sizes of terminals provided in the kit.

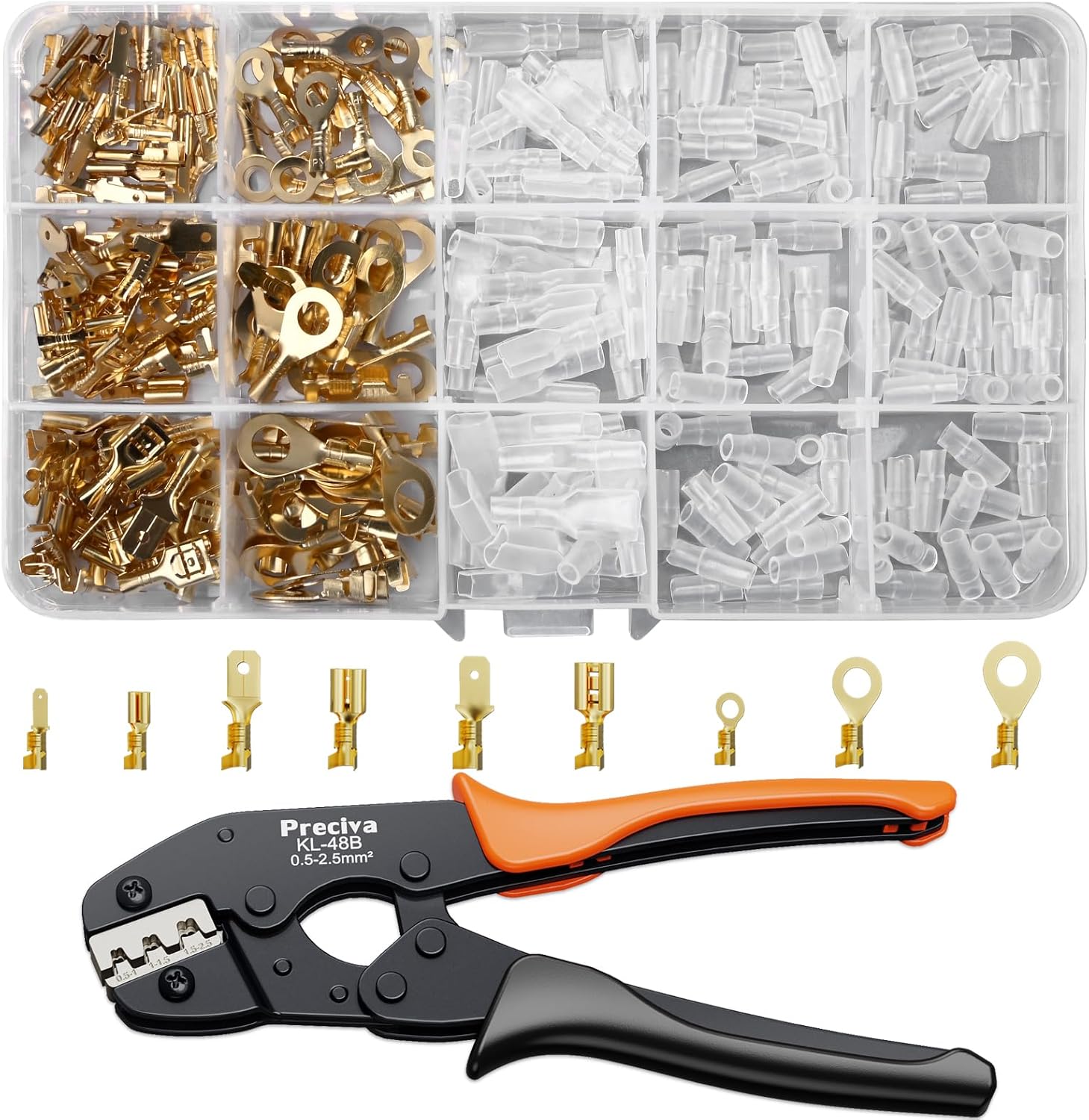

The complete kit includes the Preciva CP25360 crimping tool and a clear organizer box filled with various electrical terminals and insulation sleeves.

3. Istruzioni per l'uso

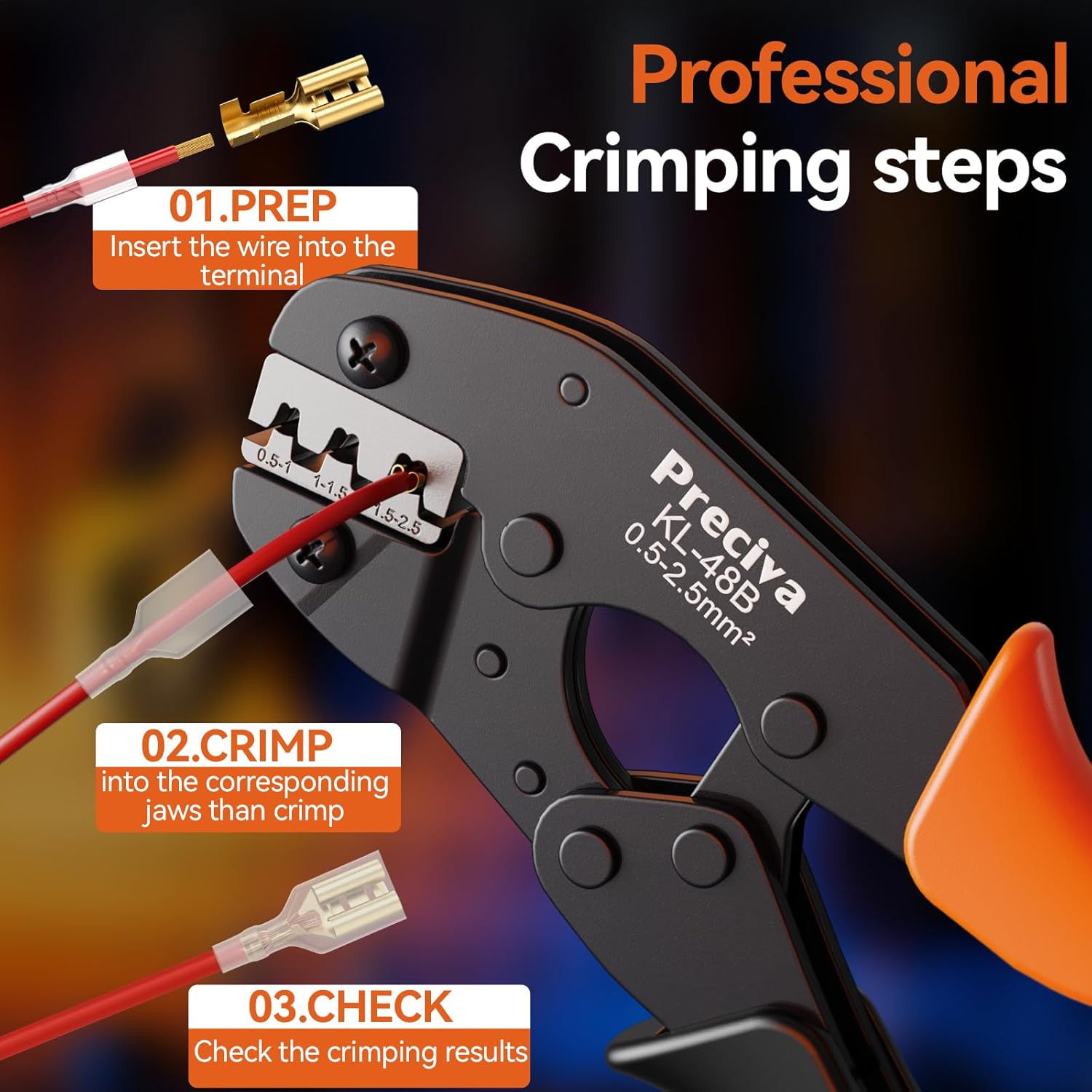

Procedura di crimpatura

1. Step 1: Prepare the Wire

   Strip the insulation from the end of the wire to the appropriate length for the chosen terminal. Ensure all wire strands are within the terminal's barrel before proceeding.



   Before crimping, ensure the wire is properly stripped and fully inserted into the terminal's barrel.

2. Passaggio 2: crimpare il terminale

   Select the correct crimping slot on the tool's jaws that matches the size of your terminal and wire (e.g., 0.5-1.5mm² or 1.5-2.5mm²). Place the terminal with the inserted wire into the chosen crimping slot. Squeeze the handles of the crimping tool firmly until the ratcheting mechanism releases. This ensures a complete crimp.



   Position the terminal and wire within the appropriate crimping slot on the tool's jaws, matching the wire gauge and terminal size.
3. Step 3: Check the Crimp

   After the crimp is complete, gently pull on the wire to ensure it is securely fastened within the terminal. The connection should be firm and not easily pulled apart.



   After the crimp, gently pull on the wire to confirm a secure and stable connection.

Ratchet Mechanism and Anti-Stuck Lever

The integrated ratchet mechanism ensures that the crimp cycle is completed before the tool releases, providing consistent crimps and reducing the hand strength required.

In case of a stuck crimp or if you need to release the tool mid-cycle, use the anti-stuck lever located near the handles. Move the lever upward to disengage the ratchet.

This diagram illustrates the internal ratchet mechanism for consistent crimps and the anti-stuck lever for releasing the tool if necessary.

4. Manutenzione

• Keep the tool clean and free from dirt and debris. Wipe down with a dry cloth after each use.
• Periodically apply a light oil to the moving parts and pivot points to ensure smooth operation.
• Conservare l'utensile in un ambiente asciutto per evitare la ruggine.
• Inspect the jaws regularly for wear or damage. Replace the tool if jaws are damaged to ensure proper crimping.

5. Risoluzione Dei Problemi

Problemi comuni e soluzioni

• Issue: Wire pulls out of terminal after crimping.
  Soluzione: Ensure the wire is stripped to the correct length and fully inserted into the terminal. Verify that the correct crimping slot was used for the wire gauge and terminal size. Ensure the ratcheting mechanism completed its cycle.
• Issue: Crimp is loose or deformed.
  Soluzione: Double-check that the correct jaw size was selected for the terminal. Apply firm, even pressure until the ratchet releases. Ensure the terminal is properly seated in the jaws before crimping.
• Issue: Tool is stuck or won't release.
  Soluzione: Use the anti-stuck lever to release the ratchet mechanism. Ensure no foreign objects are obstructing the jaws or mechanism.

6. Specifiche

7. Garanzia e supporto

For product support, inquiries, or warranty information, please contact Preciva customer service. Refer to the product packaging or the official Preciva websito per i dettagli di contatto più aggiornati.

The Preciva CP25360 Terminal Crimper Tool Kit is designed and manufactured to comply with relevant national standards, ensuring quality and reliability.
