2NLF GAD3016WT1 Wireless Security Camera System with 10.1-inch Touch LCD Monitor User Manual

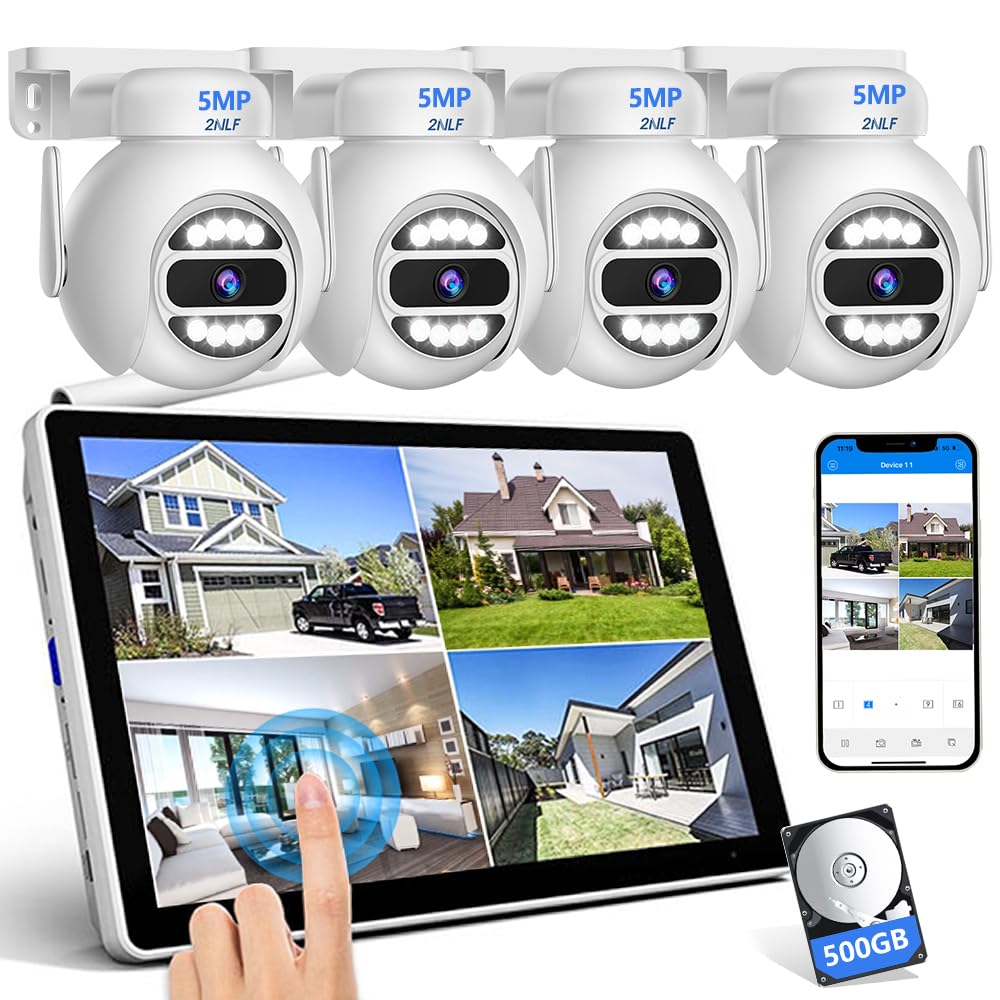

2.1 Integrated NVR and 10.1-inch Touch LCD Monitor

The system features an integrated NVR and a 10.1-inch multi-touch LCD screen, simplifying real-time monitoring, playback, and device parameter adjustments without requiring an external computer. The intuitive touch interface allows for easy navigation. Remote viewing is also available via the Srihome mobile application.

Figure 2: Integrated NVR and Monitor. This image highlights the 10.1-inch touch LCD monitor, demonstrating its ability to display multiple camera feeds simultaneously and its intuitive touch interface. It visually represents the convenience of a combined NVR and monitor unit.

2.2 5MP HD Resolution and Advanced Night Vision

The four included cameras provide 5-megapixel resolution, capturing clear details of visitors during the day. The system supports three night vision modes: infrared, full-color, and smart mode, ensuring clear visibility of movements in low-light conditions. It allows simultaneous viewing of up to 8 channels for comprehensive coverage without blind spots.

Figure 3: 5MP HD Resolution. This image demonstrates the superior clarity of 5-megapixel resolution compared to 2-megapixel, showing finer details in surveillance footage.

Figure 4: Intelligent Night Vision. This image illustrates the difference between color night vision and infrared (IR) night vision, showcasing the system's capability to provide clear images in various low-light environments.

2.3 AI Humanoid Detection and Two-Way Audio

The system incorporates AI human recognition to accurately distinguish human activity, significantly reducing false alarms. Upon detection of an unfamiliar person near your property, an immediate alert is sent to your mobile device. The cameras also feature two-way audio, allowing real-time communication to deter intruders or interact with visitors.

Figure 5: Humanoid and Motion Detection. This image demonstrates the AI-powered detection feature, showing how the system identifies human figures and sends instant alerts to a mobile device, minimizing false alarms.

Figure 6: Two-Way Audio. This image illustrates the two-way audio functionality, allowing users to communicate with individuals at their door through the camera system and a mobile app.

2.4 IP66 Weatherproof Design and Flexible Wireless Installation

The cameras are IP66 rated, providing resistance against wind, rain, dust, and extreme weather conditions, making them suitable for both indoor and outdoor use. The system supports wireless bridge mode with a WiFi coverage range of up to 60 meters, ensuring stable connection even in distant areas of your property. This eliminates location restrictions for installation.

Figura 7: Design resistente alle intemperie IP66. This image highlights the camera's IP66 waterproof rating and its ability to withstand various weather conditions, along with its wide range of motion for comprehensive surveillance.

2.5 Ampla capacità di archiviazione

The NVR includes a pre-installed 500GB hard drive, capable of storing approximately 15 days of continuous recordings. Storage is expandable up to 16TB. H.265 video compression technology optimizes storage space without compromising video quality, ensuring key recordings are not lost.

4.1 Using the 10.1-inch Touch Monitor

• Vivere View: The monitor displays live feeds from all connected cameras. Tap on a specific camera view per ingrandirlo.
• Riproduzione: Access historical recordings by navigating through the on-screen menu. You can select specific dates and times for review.
• Impostazioni di sistema: Adjust camera parameters, network settings, recording schedules, and other system configurations directly from the touch interface.

4.2 Mobile App Remote Viewing (Srihome App)

• Scarica l'app: Download the "Srihome" app from your smartphone's app store.
• Aggiungi dispositivo: Segui le istruzioni nell'app per aggiungere il tuo sistema NVR. In genere, ciò comporta la scansione di un codice QR sull'NVR o l'inserimento dell'ID dispositivo.
• Monitoraggio remoto: View live feeds, play back recordings, receive motion alerts, and use two-way audio from anywhere with an internet connection.

4.3 Modalità di visione notturna

• Modalità a infrarossi (IR): Fornisce immagini in bianco e nero in completa oscurità.
• Modalità colore: Utilizes built-in white lights to provide full-color images in low-light conditions.
• Modalità Smart: Automatically switches between IR and color mode based on detected motion or light conditions. Configure this setting via the NVR or mobile app.

4.4 Audio bidirezionale

To use two-way audio, access the live view of a camera through the NVR monitor or the Srihome app. Activate the microphone icon to speak and the speaker icon to listen.

6.1 Nessuna immagine sul monitor

• Assicurarsi che l'NVR sia acceso e che l'adattatore di alimentazione sia collegato saldamente.
• Check if the monitor's brightness and contrast settings are correctly adjusted.

6.2 Cameras Not Connecting/Offline

• Verify that each camera is powered on and its power adapter is connected.
• Ensure cameras are within the NVR's wireless range (up to 60 meters). Obstacles like thick walls can reduce range.
• Restart the NVR and the cameras.
• If a camera loses connection, you may need to re-pair it with the NVR. Refer to the Quick Guide for pairing instructions.

6.3 Avvisi di falsi movimenti

• Adjust the sensitivity of the motion detection in the NVR settings or Srihome app.
• Utilize the AI human recognition feature to filter out non-human movements.
• Ensure cameras are not pointed at areas with constant movement (e.g., swaying trees, busy roads) if not intended for monitoring.

6.4 Nessun audio o scarsa qualità audio

• Check the volume settings on the NVR monitor or the Srihome app.
• Assicurarsi che il microfono e l'altoparlante della telecamera non siano ostruiti.
• Environmental noise can affect audio clarity.

8.1 Garanzia del prodotto

This 2NLF security camera system comes with a Garanzia di 365 giorni dalla data di acquisto. La presente garanzia copre difetti di fabbricazione e malfunzionamenti in condizioni di normale utilizzo. Si prega di conservare la prova d'acquisto per eventuali reclami in garanzia.

8.2 Assistenza clienti

For any technical assistance, troubleshooting, or warranty inquiries, please contact 2NLF customer support. Our enhanced support team is available 24/7 and aims to respond to email inquiries within 24 hours. Product replacement services are provided when necessary during the warranty period.

For contact information, please refer to the official 2NLF websito o la documentazione inclusa nel prodotto.
