MARCY SM-6500 Functional Trainer User Manual

1. Informazioni importanti sulla sicurezza

Before beginning any exercise program, consult with your physician. It is essential to read and understand all instructions and warnings in this manual before using the MARCY SM-6500 Functional Trainer.

• Ispezionare sempre l'attrezzatura prima di ogni utilizzo per verificare la presenza di parti allentate, cavi usurati o danni. Non utilizzarla se danneggiata.
• Assicurarsi che tutti i bulloni e i dadi siano ben serrati prima e durante l'uso.
• Use the equipment only on a solid, level surface. Place a mat underneath to protect your floor.
• Tenere i bambini e gli animali domestici lontani dall'apparecchiatura durante il funzionamento.
• Do not exceed the maximum weight capacities specified in this manual.
• Perform exercises with controlled movements. Avoid jerky or sudden motions.
• Indossare abbigliamento e calzature sportive adeguati.
• Se avverti dolore, vertigini o difficoltà a respirare, interrompi immediatamente l'attività fisica e consulta il tuo medico.
• Always use safety spotter arms when performing barbell exercises in the squat rack.

2. Contenuto della confezione

Verify that all components are present before assembly. If any parts are missing or damaged, contact customer support.

• 1 x MARCY SM-6500 Functional Trainer Main Unit
• 1 x Curved Lat Bar
• 1 x Short Curved Bar
• 1 x V-Bar
• 1 x V-Handle
• 1 x Triceps Rope
• 2 x Individual Handles (adjustable length)
• 15 x catene
• 1 x T-Bar Attachment
• 1 x Foot Platform
• Ferramenta e utensili per il montaggio (possono variare)

3. Assemblaggio e configurazione

Assembly requires careful attention to detail. It is recommended that two adults assemble this equipment. Clear a large area for assembly and keep all parts organized.

Nota: Detailed step-by-step assembly instructions are provided in a separate assembly guide included with your product. Please refer to that document for specific diagrams and procedures.

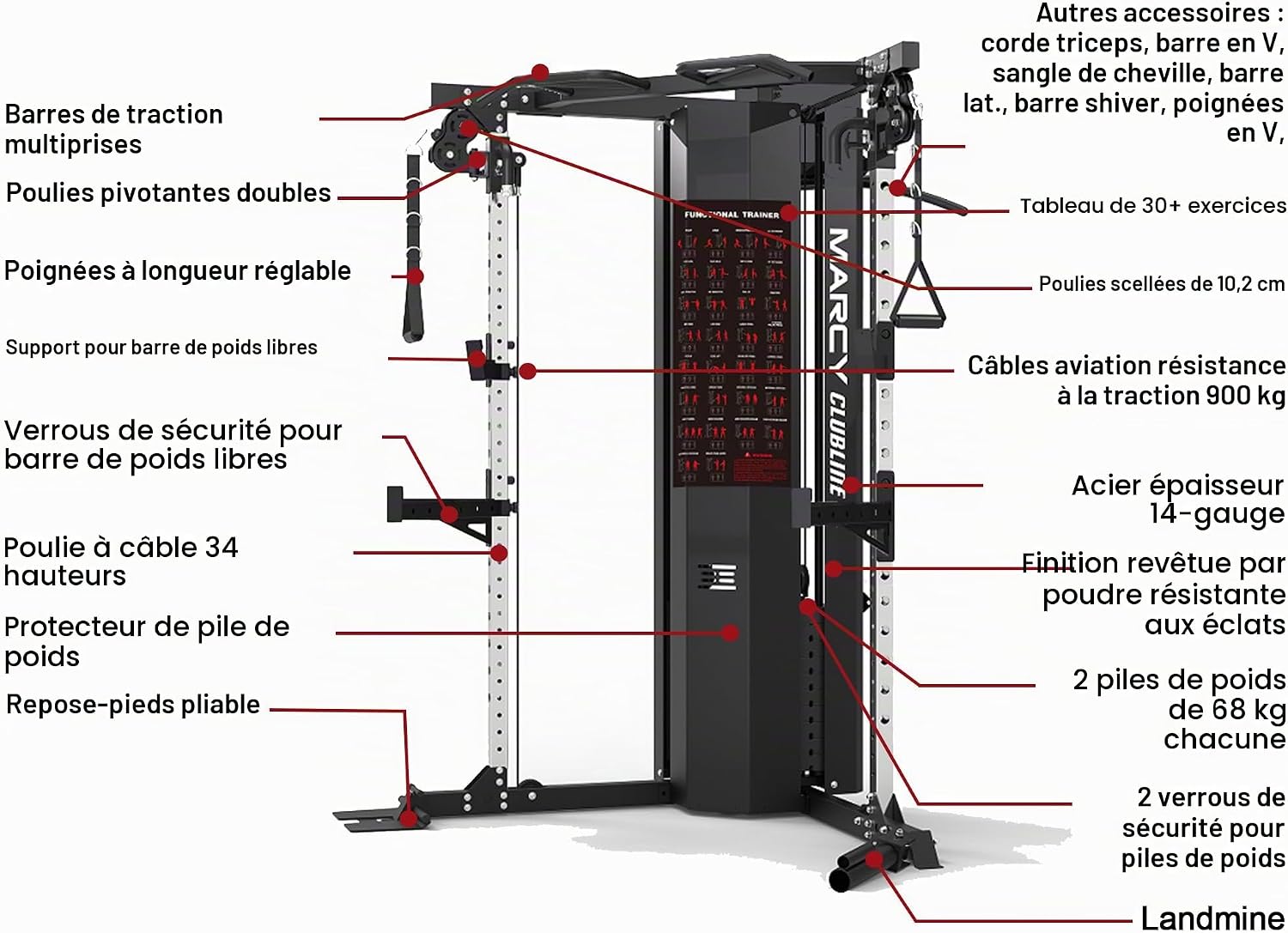

Figure 3.1: Labeled diagram highlighting key components of the functional trainer, including multi-grip pull-up bars, dual swivel pulleys, adjustable handles, free weight bar supports, safety catches, 34-height cable pulley, weight stack protector, foldable footrest, sealed pulleys, aviation cables, 14-gauge steel, powder-coated finish, two 68 kg weight stacks, safety locks for weight stacks, and landmine attachment.

4. Istruzioni per l'uso

4.1 Adjusting the Pulley System

The SM-6500 features an adjustable pulley system with 34 distinct height positions. To adjust the pulley height, pull out the spring-loaded pin on the carriage, slide the carriage up or down to the desired position, and release the pin, ensuring it fully engages in the corresponding hole.

4.2 Utilizzo dello Squat Rack

The integrated squat rack includes adjustable bar supports (J-hooks) and safety stoppers. Both can be adjusted to 20 different heights. To adjust, pull out the pin, slide the support/stopper to the desired height, and ensure the pin locks securely into place. Always use the safety stoppers when performing heavy lifts.

4.3 Using the Power Tower

The top section of the unit features multi-grip pull-up bars, allowing for wide, narrow, and neutral grip pull-ups and chin-ups. Ensure a secure grip before performing exercises.

4.4 Weight Stack Adjustment

The SM-6500 is equipped with two independent 68 kg weight stacks. To select the desired weight, insert the selector pin fully into the weight plate of your choice. The system operates with a 2:1 resistance ratio, meaning if you select 10 kg on the stack, the effective resistance at the handle will be 5 kg.

4.5 Esercizio Examples

The MARCY SM-6500 Functional Trainer allows for over 30 different exercises targeting all major muscle groups. Examples include cable crossovers, chest presses, rows, triceps pushdowns, bicep curls, squats, overhead presses, pull-ups, and leg raises.

Figure 4.1: An individual demonstrating a cable chest fly exercise using the adjustable pulleys of the SM-6500, highlighting its versatility for upper body workouts.

Figure 4.2: An individual performing hanging leg raises on the multi-grip pull-up bar of the SM-6500, showcasing its utility for core and upper body strength training.

5. Manutenzione

Regular maintenance will ensure the longevity and safe operation of your functional trainer.

• Pulizia: Pulisci il telaio e il rivestimento con un pannoamp Dopo ogni utilizzo, rimuovere il sudore e la polvere con un panno. Non utilizzare detergenti abrasivi.
• Ispezione dei cavi: Periodically inspect all cables for fraying, kinks, or wear. Replace damaged cables immediately.
• Ispezione della puleggia: Controllare che le pulegge funzionino senza intoppi e che siano prive di detriti.
• Controllo hardware: Controllare regolarmente il serraggio di tutti i dadi, bulloni e viti. Serrare se necessario.
• Lubrificazione: Apply a silicone-based lubricant to guide rods of the weight stacks if movement becomes stiff.

6. Risoluzione Dei Problemi

If you encounter issues with your MARCY SM-6500, try the following common troubleshooting steps:

• Sticking Weight Plates: Ensure guide rods are clean and lubricated. Check for any obstructions between plates.
• Movimento approssimativo del cavo: Inspect cables for damage or fraying. Check pulleys for debris or misalignment.
• Componenti sciolti: Re-tighten all nuts and bolts as per the assembly instructions.
• Unità instabile: Ensure the unit is placed on a level surface. Check that all feet are making firm contact with the floor.

Se i problemi persistono, contattare l'assistenza clienti per ricevere assistenza.

7. Specifiche

Figure 7.1: An illustration detailing the maximum weight capacities for various parts of the SM-6500: 150 kg for the pull-up bar, 68 kg per cable pulley (1:2 ratio), 136 kg on bar supports, 136 kg on free weight bar, and 136 kg on both sliding carriages (68 kg per side).

Figura 7.2: Un fronte view of the functional trainer with measurements indicating its height (220 cm), width (216 cm), and depth (130 cm), providing essential information for space planning.

8. Garanzia e supporto

8.1 Informazioni sulla garanzia

The MARCY SM-6500 Functional Trainer comes with a Garanzia di 3 anno from the date of purchase. This warranty covers manufacturing defects in materials and workmanship under normal use and service. It does not cover damage caused by misuse, abuse, accident, unauthorized modifications, or normal wear and tear.

8.2 Assistenza clienti

For warranty claims, technical assistance, or to order replacement parts, please contact your retailer or the manufacturer's customer service department. Please have your model number and proof of purchase ready when contacting support.
