Generic Mod-R36R-35822 Generator Carburetor Replacement Manual

1. Introduzione

This manual provides detailed instructions for the installation, operation, and maintenance of the Generic Mod-R36R-35822 replacement carburetor. This carburetor is designed to restore optimal fuel delivery and engine performance in compatible generator models. Please read this manual thoroughly before proceeding with installation or operation to ensure proper function and safety.

2. Prodotto finitoview

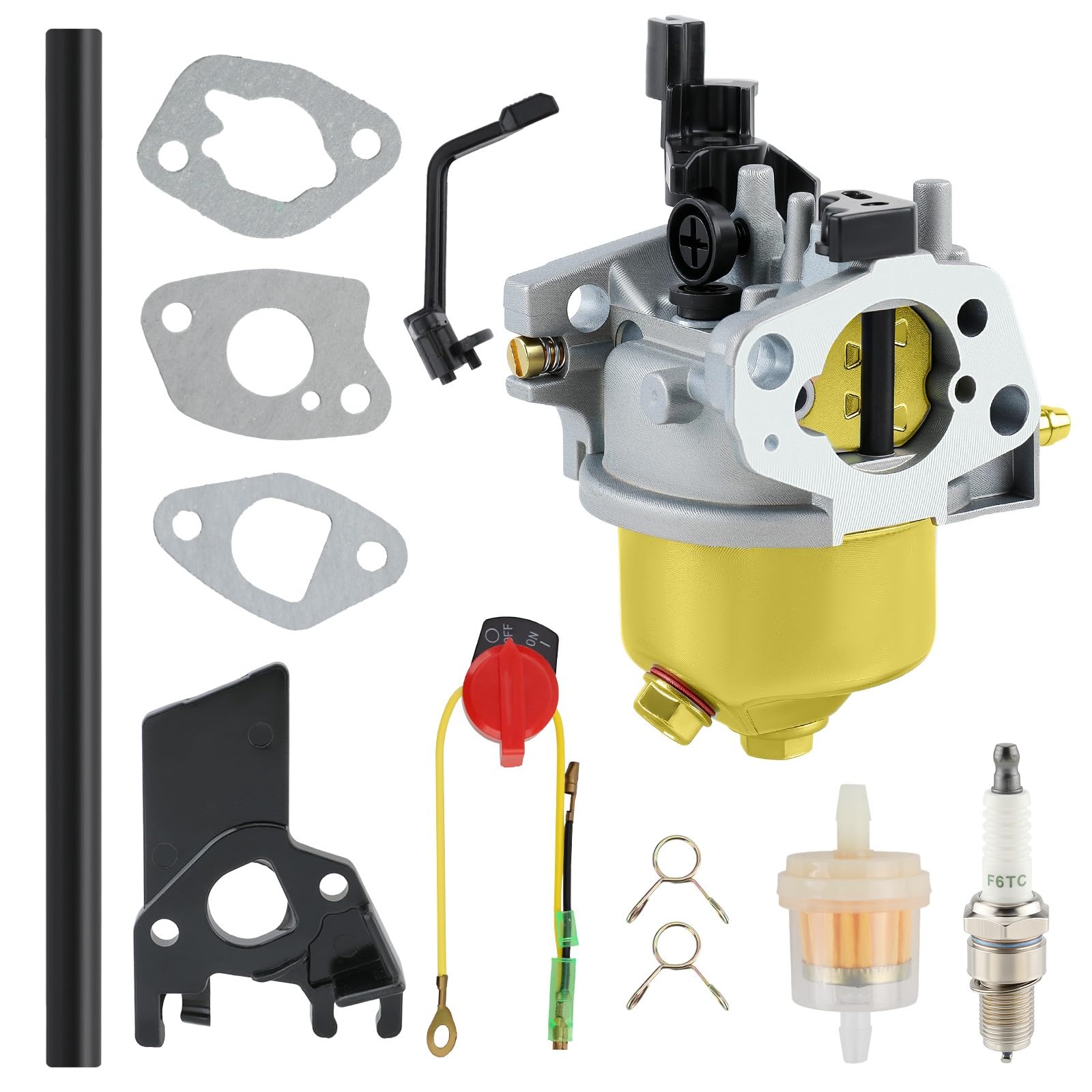

Figure 1: Generic Mod-R36R-35822 Replacement Generator Carburetor. This image shows the complete carburetor assembly, including the main body, fuel inlet, and various adjustment screws.

2.1 Caratteristiche principali

• Precision OEM Fit: Engineered to match original specifications for various generator models, ensuring direct compatibility.
• Durable & Reliable Performance: Constructed from high-quality materials, including steel, reinforced polymers, and OE-grade alloys, designed to withstand demanding operating conditions.
• Facile installazione fai da te: Designed as a direct bolt-on replacement, requiring no modifications for most applications. Includes necessary hardware/connectors for seamless replacement.
• Rigorosi test di qualità: Each unit undergoes strict stress, corrosion, and performance tests to meet or exceed industry standards, ensuring reliability and safety.

3. Compatibilità

This replacement carburetor is compatible with a wide range of generator models. Please verify your generator's model number against the list below to ensure proper fitment.

3.1 Compatible Generator Models:

• Champion Power Equipment (CPE) Branded 3500W & 4000W Gasoline Generators: Models # 40008, 40012, 40026, 45633, 46493, 46514, 46515, 46516, 46517, 46533, 46534, 46535, 46539, 46540, 46551, 46553, 46554, 46555, 46558, 46561, 46594, 46596, 46597, 46598, 46599.
• Cadetto Lupetto: RT-35, RT-45, RT-65ES (21A-62M7756, 21A-62M7710, 21A-62M8710, 21A-62M8756, 21A-62M7756, 21AA40M1009, 21AA40M1010, 21AB45M6010, 21AB45M9710).
• Harbor Freight Chicago: 65414, 67560, 67561, 68527, 68528, 69675, 69676, 69728, 69729.
• Artigiano: 21A-34M5099, 21A-34M8799, 21AB40M1099, 21AB40M7799, 21AB45M5099, 951-12124, 951-12785, 951-10797.
• A-iPower: SUA4500, SUA3500, SUA4000 (3.5KW, 4KW, 4.5KW 163cc Generator), SUA5000 (5000 Watt Gas Powered Generator 223cc Engine).
• Tutto il potere: 46850 Northern Tool Powerhorse Air Compressor, APP6020 Pump, APG 3001, 3002S, 3008E, 3012, 3302C, APGG4000 Generator, APW5117, APW5118 (2400, 3200PSI 2.7GPM Pressure Washer), America Steele Products Gentron Generator JF210-I-01B, APG3001, APG3002S (3500 Watt 6.5HP Generator), APG3012 (6.5HP 3250 Watt Generator), Model APG3002D.
• Black Max: 3500, 3650 Generator, BM903655DA, BM903655D, BM903500, BM903511, DJ168FD-14100, DJ168FD-1410, 16100Z140610, BM903600, 090930292, 16100-Z530710, 3000 Watt Generator Assembly, Sam's club black max 3550 watt generator, 903511, 903500 (3,500 Watt Generator).
• Blue Max: JD4000 (6.5hp 196cc Generator).
• Briggs & Stratton: B&S 030252 XL4000 (205cc Generator), PowerBoss 2500/3500/5250 Watt Generator.

4. Istruzioni per l'installazione

La sicurezza prima di tutto: Before beginning any installation, ensure the generator is turned off, cooled down, and disconnected from any fuel source. Wear appropriate personal protective equipment (PPE) such as gloves and eye protection.

1. Preparare il generatore:
   • Turn off the generator engine and allow it to cool completely.
   • Close the fuel valve to prevent fuel leakage.
   • Scollegare il cavo della candela per evitare avviamenti accidentali.
2. Rimuovere il gruppo filtro aria: Locate and remove the air filter housing and air filter element to gain access to the carburetor.
3. Scollegare la linea del carburante: Carefully disconnect the fuel line from the old carburetor. Be prepared for a small amount of fuel spillage and have a rag ready.
4. Scollegare i collegamenti: Disconnect any throttle and choke linkages attached to the old carburetor. Note their positions for reassembly.
5. Rimuovere il vecchio carburatore: Unscrew the mounting bolts or nuts that secure the carburetor to the engine intake manifold. Carefully remove the old carburetor and any gaskets.
6. Superficie di montaggio pulita: Clean the engine intake manifold mounting surface thoroughly to ensure a good seal with the new gasket.
7. Installare il nuovo carburatore:
   • Place new gaskets (if supplied) onto the mounting studs or surface.
   • Position the new Generic Mod-R36R-35822 carburetor onto the mounting studs, ensuring it aligns correctly.
   • Fissare il carburatore con i bulloni/dadi di montaggio, serrandoli uniformemente per evitare deformazioni. Non serrare eccessivamente.
8. Ricollegare i collegamenti e la linea del carburante: Reattach the throttle and choke linkages to their correct positions. Reconnect the fuel line securely.
9. Reinstallare il gruppo filtro aria: Reinstallare l'elemento del filtro dell'aria e l'alloggiamento.
10. Controlli finali: Double-check all connections for tightness and ensure there are no loose parts or fuel leaks.

5. Operating Considerations After Carburetor Replacement

After installing the new carburetor, proper operation of your generator depends on a correctly functioning fuel system. While this carburetor is pre-set, minor adjustments might be needed for optimal performance depending on your specific generator model and environmental conditions.

• Rifornimento di carburante: Ensure the fuel tank contains fresh, clean fuel appropriate for your generator. Open the fuel valve.
• Funzionamento dello starter: For cold starts, engage the choke. Once the engine starts and runs smoothly, gradually disengage the choke.
• Riscaldamento del motore: Allow the generator to warm up for a few minutes before applying a load.
• Idle Adjustment (if applicable): If the engine idles too high or too low, consult your generator's specific service manual for instructions on adjusting the idle speed screw on the carburetor.
• Mixture Adjustment (if applicable): Most modern replacement carburetors are fixed-jet. If your carburetor has a mixture screw, only adjust it if necessary and with knowledge of proper tuning procedures, as incorrect adjustment can damage the engine.

6. Manutenzione

Regular maintenance of your generator's fuel system, including the carburetor, is essential for longevity and reliable performance.

• Qualità del carburante: Always use fresh, clean, and stabilized fuel. Stale or contaminated fuel is the leading cause of carburetor issues.
• Filtro del carburante: Regularly inspect and replace the fuel filter according to your generator's maintenance schedule.
• Filtro dell'aria: Keep the air filter clean and replace it as recommended. A dirty air filter can cause the engine to run rich and affect carburetor performance.
• Magazzinaggio: Before long-term storage, run the generator until the fuel tank is empty, or drain the fuel system and add a fuel stabilizer to prevent gum and varnish buildup in the carburetor.
• Pulizia del carburatore: If performance issues arise due to fuel contamination, the carburetor may need cleaning. This typically involves disassembling the carburetor, cleaning jets and passages with carburetor cleaner, and replacing gaskets. This procedure should only be performed by individuals with appropriate mechanical knowledge.

7. Risoluzione Dei Problemi

If your generator experiences issues after carburetor replacement, consider the following common troubleshooting steps:

If these steps do not resolve the issue, it is recommended to consult a qualified service technician or refer to your generator's specific service manual.

8. Specifiche

9. Garanzia e supporto

For information regarding the warranty period, terms, and conditions for this replacement carburetor, please refer to the documentation provided at the time of purchase or contact the seller directly. Technical support may also be available through the seller or manufacturer.
