IROK FE87 V2 Mechanical Keyboard User Manual

1. Introduzione

Grazie per l'acquistoasing the IROK FE87 V2 Mechanical Keyboard. This manual provides detailed instructions for setting up, operating, maintaining, and troubleshooting your new keyboard. Please read this manual thoroughly before use to ensure optimal performance and longevity of your device.

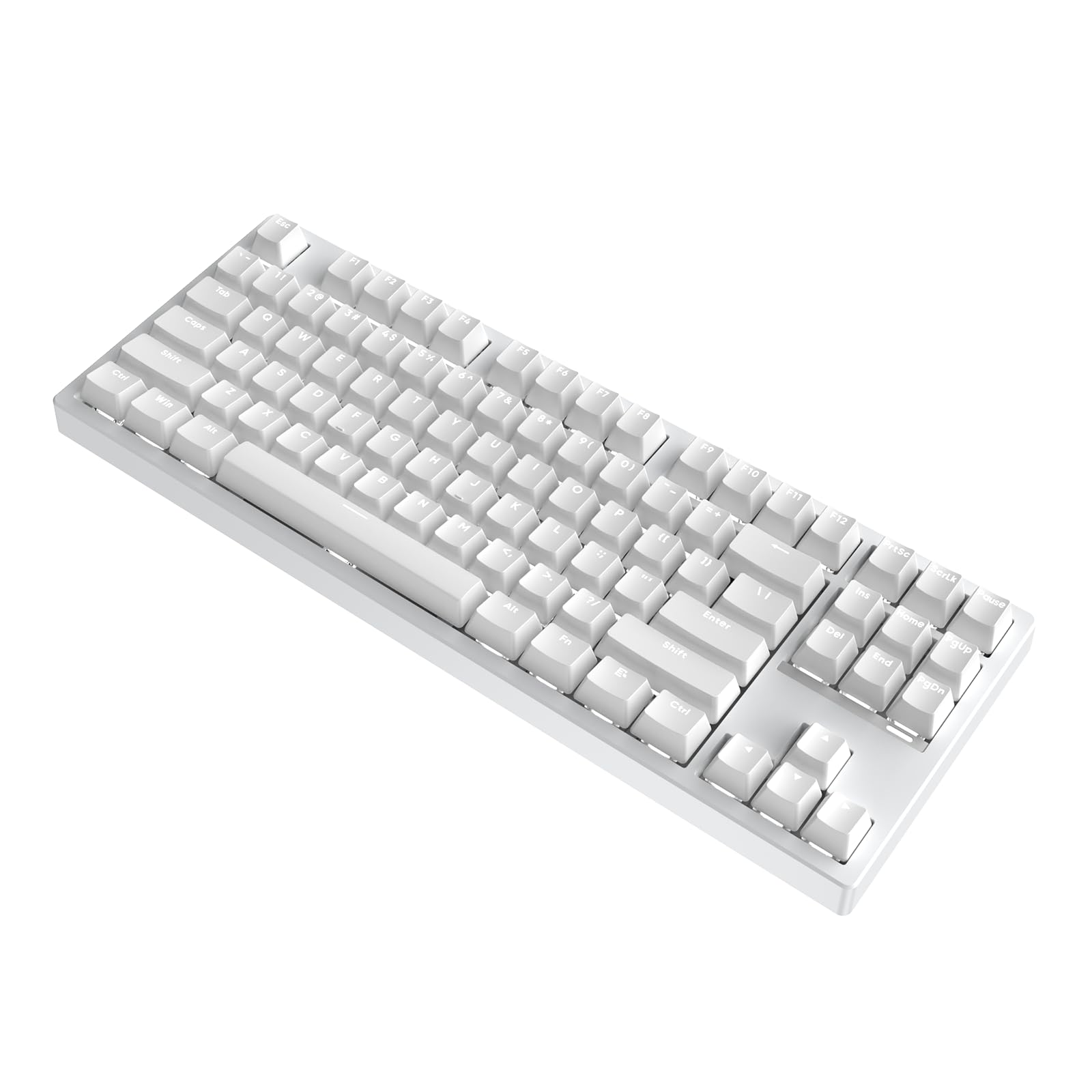

Image: The IROK FE87 V2 Mechanical Keyboard in white, showcasing il suo layout TKL.

2. Contenuto della confezione

Assicurarsi che tutti gli articoli siano presenti nel pacco:

• IROK FE87 V2 Mechanical Keyboard
• Cavo USB (tipo C)
• Estrattore per tasti
• Manuale dell'utente (questo documento)

3. Caratteristiche principali

3.1 Adaptive Power Management Technology

The keyboard intelligently adjusts its power consumption based on usage patterns. This technology optimizes battery life during idle periods without affecting responsiveness during active use, balancing endurance and performance.

Image: Diagram illustrating the Adaptive Power Management Technology for balanced performance and endurance.

3.2 Fully Hot-Swappable Switches

The IROK FE87 V2 allows for easy customization of mechanical switches. Users can swap, upgrade, or repair any mechanical switch without soldering, providing flexibility and simplified maintenance.

Immagine: Primo piano view of the hot-swappable switch sockets on the keyboard PCB.

3.3 SOCD Support

The keyboard supports Simultaneous Opposite Cardinal Direction (SOCD) cleaning. This feature ensures precise and predictable inputs by resolving conflicts when opposite direction keys (e.g., Left + Right) are pressed simultaneously, preventing unintended behavior in competitive gaming.

Image: Visual representation of SOCD support, highlighting precise input processing.

3.4 Struttura della guarnizione

The Gasket mount design isolates the PCB and plate within the keyboard case using soft silicone or foam gaskets. This construction absorbs typing vibrations and reduces harsh noise, resulting in a softer, more flexible typing feel and a consistent sound profile.

Image: Cross-section diagram illustrating the Gasket Structure components, including PCB, plate, and sound-absorbing materials.

3.5 Proprietary Driver (Web Driver & One-stop HUB Drive)

The IROK FE87 V2 features a proprietary driver system, including a Web Driver and a One-stop HUB Drive. This software simplifies operation and management, allowing for customization of lighting, key functions, and other settings without complex installation steps.

Image: Screenshot of the IROK keyboard driver interface, showing lighting and action settings.

3.6 87-Key TKL Layout

The Tenkeyless (TKL) layout provides a compact and portable design by omitting the numeric keypad, saving desk space while retaining essential keys for typing and gaming.

Immagine: dall'alto verso il basso view of the IROK FE87 V2 keyboard, highlighting its compact 87-key layout.

3.7 White Backlighting

The keyboard features white backlighting, enhancing visibility in various lighting conditions and adding to the aesthetic appeal. The lighting can be adjusted through the proprietary driver.

Image: The IROK FE87 V2 keyboard with its white backlighting illuminated.

3.8 High Polling Rate

The keyboard supports an 8KHz polling rate, ensuring seamless and lag-free input transmission for responsive performance, especially critical in gaming scenarios.

Image: Graphic illustrating the high polling rate for fast and responsive key inputs.

4. Istruzioni per l'installazione

1. Disimballare la tastiera: Carefully remove the IROK FE87 V2 keyboard and its accessories from the packaging.
2. Collegare il cavo USB: Inserire l'estremità USB Type-C del cavo in dotazione nella porta sulla tastiera.
3. Connessione al computer: Plug the standard USB-A end of the cable into an available USB port on your computer (Laptop or PC).
4. Installazione del driver (facoltativa ma consigliata): For full customization and advanced features, download and install the proprietary driver from the official IROK website. Refer to the "Customization" section for more details.
5. Test iniziale: Once connected, the keyboard should be recognized by your operating system. Test basic key functions to ensure proper operation.

5. Istruzioni per l'uso

5.1 Utilizzo di base

The IROK FE87 V2 functions as a standard mechanical keyboard. Simply plug it into your computer, and it will be ready for use. No special drivers are required for basic typing functionality.

5.2 Tasti funzione (combinazioni Fn)

The keyboard features a Function (Fn) key, typically located near the right Alt key. Pressing and holding the Fn key in combination with other keys activates secondary functions. Specific Fn key combinations may vary; refer to the keycap legends or the driver software for a complete list.

• Fn + F1-F12: Multimedia controls (e.g., volume, play/pause, stop).
• Fn + tasti freccia: Adjust backlighting brightness or effects.
• Fn + Specific Keys: Access other special functions as indicated on the keycaps.

6 Personalizzazione

6.1 Using the Proprietary Driver

The IROK proprietary driver (Web Driver & One-stop HUB Drive) allows for extensive customization:

• Rimappatura dei tasti: Assegna nuove funzioni ai singoli tasti.
• Creazione di macro: Registra e assegna sequenze di tasti complesse a un singolo tasto.
• Effetti di luce: Customize backlighting patterns, colors, brightness, and speed.
• Professionistafile Gestione: Crea e salva più profileper diverse applicazioni o giochi.

Download the latest driver from the official IROK websito per le funzionalità e la compatibilità più aggiornate.

6.2 Switch hot-swap

Per cambiare un interruttore:

1. Rimuovere il tasto: Use the provided keycap puller to gently remove the keycap from the desired switch.
2. Rimuovi interruttore: Use a switch puller (often integrated with the keycap puller) to carefully grip the top and bottom clips of the switch. Gently pull the switch straight up to remove it from the PCB.
3. Inserisci nuovo switch: Allineare i pin del nuovo interruttore con i fori sul PCB. Assicurarsi che i pin siano dritti per evitare piegature. Premere con decisione l'interruttore finché non scatta in posizione.
4. Sostituisci il tasto: Riposizionare il tasto sul nuovo interruttore.

Attenzione: Apply gentle, even pressure when inserting switches to prevent bending pins or damaging the hot-swap sockets.

Video: A short demonstration of the IROK FE87 V2 keyboard, showcasing its features and design. This video is provided by the seller, twenty-one.

7. Manutenzione

• Pulizia dei tasti: Utilizzare un estrattore per rimuovere i tasti. Pulirli con una soluzione di sapone neutro e un panno morbido. Assicurarsi che siano completamente asciutti prima di rimontarli.
• Pulizia del corpo della tastiera: Utilizzare un panno morbido e asciutto per pulire il corpo della tastiera. Per lo sporco ostinato, un panno leggermenteamp è possibile utilizzare un panno, ma evitare un'eccessiva umidità.
• Rimozione della polvere: Utilizzare aria compressa per rimuovere polvere e detriti tra i tasti e gli interruttori.
• Evitare i liquidi: Do not spill liquids on the keyboard. If a spill occurs, immediately disconnect the keyboard, turn it upside down to drain, and allow it to dry completely before reconnecting.

8. Risoluzione Dei Problemi

8.1 La tastiera non risponde

• Assicurarsi che il cavo USB sia collegato saldamente sia alla tastiera che al computer.
• Prova a collegare la tastiera a una porta USB diversa del computer.
• Prova la tastiera su un altro computer per escludere un problema specifico del computer.
• Riavvia il computer.

8.2 Tasti non registrati o digitati due volte

• Remove the keycap and switch for the affected key. Inspect the switch pins for any bends or damage. Straighten bent pins carefully if possible.
• Assicurarsi che l'interruttore sia completamente inserito nella presa hot-swap.
• Try replacing the switch with a known working switch to determine if the issue is with the switch or the socket.
• Clean any debris from around the switch socket using compressed air.

8.3 Backlighting Issues

• Check the Fn key combinations for adjusting brightness or cycling through lighting modes.
• Ensure the proprietary driver is installed and updated. Use the driver software to configure lighting settings.
• If only specific LEDs are not working, it might indicate a faulty LED or switch.

9. Specifiche

10. Garanzia e supporto

10.1 Informazioni sulla garanzia

The IROK FE87 V2 Mechanical Keyboard comes with a garanzia di un anno dalla data di acquisto. La presente garanzia copre difetti di fabbricazione e malfunzionamenti in condizioni di normale utilizzo. Non copre danni causati da uso improprio, incidenti, modifiche non autorizzate o calamità naturali.

Conservare la prova d'acquisto per eventuali richieste di garanzia.

10.2 Assistenza clienti

For technical assistance, warranty claims, or general inquiries, please contact IROK customer support through their official website or the retailer where the product was purchased. You may find additional resources and FAQs on the IROK support page.
