Manuale utente della stazione di alimentazione portatile AFERIY P280 da 2800 W

1. Introduzione

The AFERIY P280 Portable Power Station is a versatile and robust energy solution designed for various applications, from home backup during power outagper avventure all'aria aperta come camping and RV trips. This manual provides essential information on the product's features, setup, operation, and maintenance to ensure safe and efficient use.

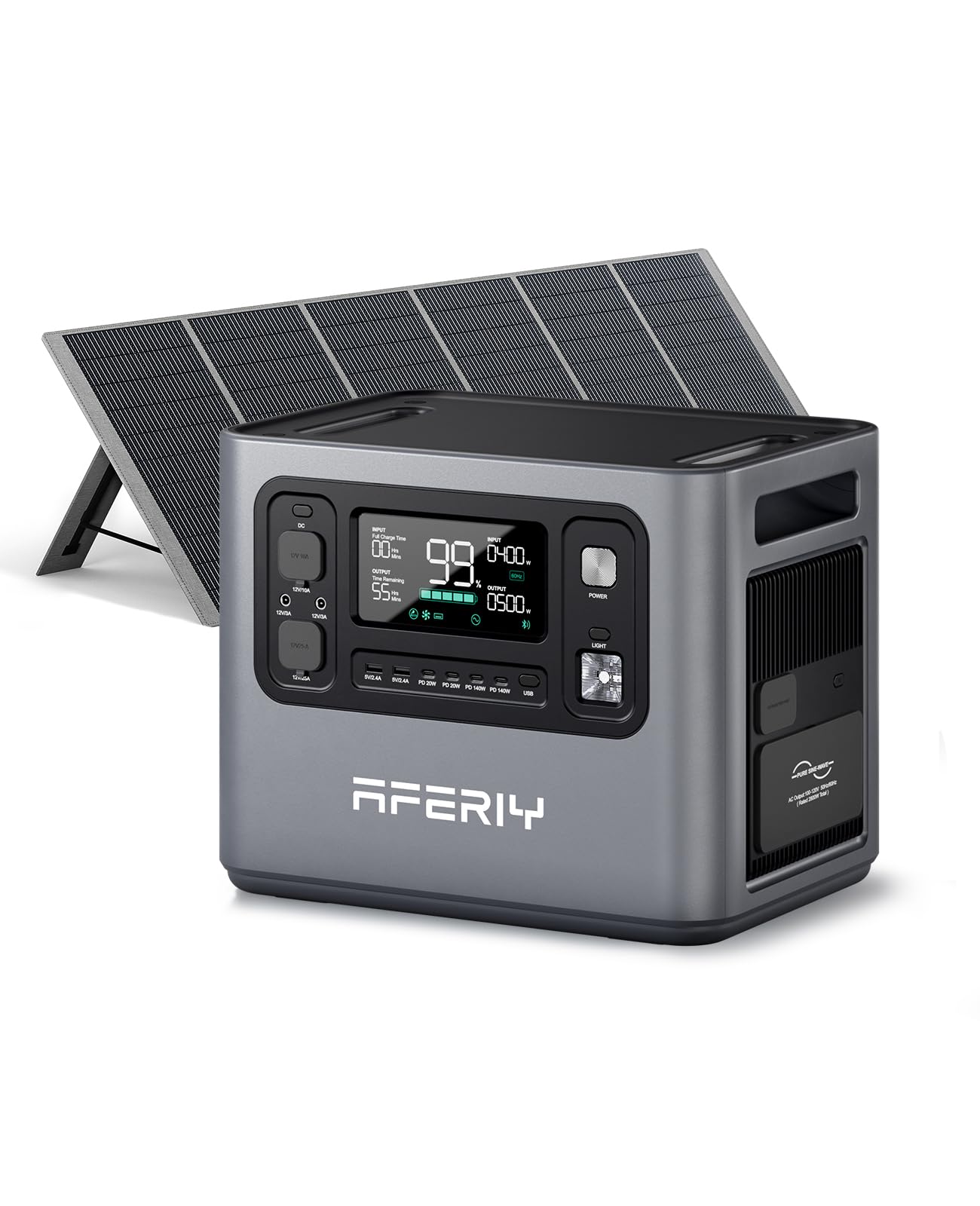

Image 1: AFERIY P280 Portable Power Station with 400W Solar Panel.

The P280 offers a 2048Wh LiFePO4 battery capacity, expandable up to 10.24kWh with additional batteries. It delivers 2800W of continuous pure sine wave AC output and supports multiple charging methods, including 1800W AC input and 1200W PV input for rapid recharging. Its UPS functionality ensures seamless power transition during outages, proteggendo i dispositivi elettronici sensibili.

2. Cosa c'è nella scatola

Upon unboxing your AFERIY P280, please verify that all components are present:

• 1 x AFERIY P280 2800W Portable Power Station
• 1 x 400W Solar Panel (if purchased as a bundle)
• 1 x Manuale utente
• 1 x cavo di ricarica CA
• 1 x MC4-XT90 Cable
• 1 x Scheda di garanzia
• 1 x parapolvere

Image 2: Contents of the AFERIY P280 package, including the power station, solar panel, and various cables.

3. Prodotto finitoview

3.1 Design e portabilità

The AFERIY P280 features a clean, square, and modern design with rugged elegance. Its cube-like structure includes built-in handles on the top sides for easy movement and portability.

Image 3: The AFERIY P280 showcasing its ergonomic dual handles for easy transport.

3.2 Front Panel and Output Ports

The front panel of the P280 is equipped with an intuitive LCD screen and various output ports:

• Schermo LCD: Displays power levels, input power, output power, and remaining charge time.
• Porte USB-A: Two 5V/2.4A (12W) ports.
• Porte USB-C: Four ports, including two 20W PD and two 140W PD ports for fast charging.
• Uscita CC: 12V car port and XT60 DC port for professional tools.
• Uscita CA: Four 110V AC outlets and one 30A AC output (NEMA TT-30) on the right side, providing up to 2800W total.

Immagine 4: Dettagliata view of the AFERIY P280's front panel, highlighting the LCD display and diverse output options.

3.3 Porte di ingresso

The left side of the P280 features three input ports:

• Ingresso CA: 1800W max for rapid wall charging.
• Ingresso solare: Two DC (XT90) input ports, supporting a total of 1200W (600W*2) from solar panels.

Image 5: The rear panel of the AFERIY P280, illustrating the AC and dual solar input ports.

4. Impostazione

4.1 Carica iniziale

Before first use, it is recommended to fully charge your AFERIY P280. Connect the AC charging cable to a standard wall outlet. The LCD screen will indicate charging status and estimated time to full charge.

4.2 Collegamento dei pannelli solari

For solar charging, unfold your 400W solar panel and position it to maximize sunlight exposure. Connect the MC4-XT90 cable from the solar panel to one of the DC (XT90) input ports on the P280. The power station supports dual PV inputs for faster charging.

Image 6: The AFERIY P280 being charged by solar panels in an outdoor setting.

5. Istruzioni per l'uso

5.1 Accensione/Spegnimento

Press and hold the 'POWER' button on the front panel to turn the unit on or off. The LCD screen will illuminate upon activation.

5.2 Utilizzo delle porte di uscita

To use any output port (AC, DC, USB), ensure the corresponding output button (e.g., 'AC', 'DC', 'USB') is pressed to activate the power supply to those ports. The LCD screen will show the output wattage.

5.3 Informazioni sul display LCD

The LCD screen provides real-time data:

• Percentuale batteriatage: Livello di carica attuale.
• Potenza in ingresso (W): Power being drawn during charging.
• Potenza in uscita (W): Power being consumed by connected devices.
• Tempo rimanente: Estimated time until full charge or depletion based on current usage.
• Indicatori di stato: Icons for AC, DC, USB, and fan status.

6. Opzioni di ricarica

AFERIY P280 offre molteplici opzioni di ricarica flessibili:

• Ricarica CA: Utilizes 1800W AC input, charging from 0% to 80% in approximately 38 minutes, and fully charged in 1 hour.
• Ricarica solare: Supports up to 1200W PV input, allowing full charge in 2 hours under optimal solar conditions.
• Ricarica auto: Can be charged via a car adapter, with faster charging possible using an optional AFERIY DC600 Charger.
• Doppia ricarica CA + solare: Combine AC and solar inputs for the fastest possible recharge.

Image 7: The AFERIY P280 demonstrating its super AC fast charge feature, reaching 80% in 55 minutes.

7. Capacità espandibile

The AFERIY P280's base capacity of 2048Wh can be expanded significantly by connecting up to four additional expansion batteries. This modular design allows you to scale your power storage up to an impressive 10.24kWh, providing extended backup power for various needs.

7.1 Collegamento delle batterie di espansione

1. Stack the Haven2800 Pro (P280) unit on top of the expansion batteries.
2. Plug the parallel cable into the parallel port on the power station.
3. Cross-connect the power station and each expansion battery using the provided parallel cables.

Image 8: The AFERIY P280 demonstrating its expandable capacity by stacking with four additional batteries, reaching 10.24kWh.

8. Controllo intelligente delle app

The AFERIY P280 can be monitored and controlled remotely via a dedicated smartphone application. This app allows you to:

• Check battery energy levels and output status.
• Monitor input and output power in real-time.
• Schedule charging during off-peak hours to optimize energy costs.
• Manage various settings and receive status updates.

Image 9: The AFERIY smart app interface, showing remote monitoring and control capabilities for the power station.

9. Sicurezza e tecnologia delle batterie

The P280 is built with safety and longevity in mind:

• Batteria LiFePO4: Features automotive-grade LiFePO4 battery cells, offering 4000+ charge cycles and a 10-year lifespan.
• Inverter a onda sinusoidale pura: Delivers stable and clean power, protecting sensitive appliances from damage.
• Funzionalità UPS: Provides an Uninterruptible Power Supply (UPS) with a switchover time of less than 10ms, crucial for medical devices and computers.
• Funzionamento silenzioso: Operates at a low noise level (around 25dB), making it suitable for indoor use without disturbance.
• Six-Layer Protection System: Incorporates multiple safety mechanisms to ensure reliable and secure operation.

Image 10: An illustration of the AFERIY P280's internal LiFePO4 battery cells and its six-layer protection system, emphasizing extended lifespan and safety.

10. Casi d'uso

10.1 Home Backup

The P280 serves as a reliable backup power source for your home, keeping essential appliances running during power outages. Its UPS feature ensures that critical devices like medical equipment and computers remain operational without interruption.

Image 11: The AFERIY P280 acting as an Uninterruptible Power Supply (UPS) for a home office setup, ensuring continuous power.

10.2 Outdoor and Off-Grid Applications

With its portable design and multiple output ports, the P280 is ideal for outdoor activities and off-grid living. Power your camping equipment, RV appliances, and portable tools with ease.

• Campin: Run electric skillets, ice makers, projectors, and charge drones or cameras.
• Utilizzo camper: Dual PV inputs make it a perfect power partner for RVs, allowing you to save money on upgrades.
• Portable Life: Power corded mowers, power saws, drills, chainsaws, electric hammers, and water pumps.

Image 12: The AFERIY P280 providing power for various devices at a beach campsite, demonstrating its utility for outdoor adventures.

11. Manutenzione

To ensure the longevity and optimal performance of your AFERIY P280 Portable Power Station, follow these general maintenance guidelines:

• Pulizia regolare: Keep the unit clean and free from dust and debris. Use a dry, soft cloth for cleaning. Ensure ventilation openings are clear.
• Magazzinaggio: When not in use for extended periods, store the power station in a cool, dry place away from direct sunlight and extreme temperatures. It is recommended to charge the unit to about 50-80% before storage and recharge every 3-6 months to prevent battery degradation.
• Evitare temperature estreme: Do not operate or store the unit in excessively hot or cold environments. Refer to the specifications for recommended operating and storage temperature ranges.
• Maneggiare con cura: Evitare di far cadere l'unità o di sottoporla a forti urti.

12. Risoluzione Dei Problemi

If you encounter any issues with your AFERIY P280, please refer to the following basic troubleshooting steps:

• L'unità non si accende: Assicurarsi che la batteria sia carica. In caso contrario, collegarla a una presa di corrente alternata per ricaricarla.
• Nessun output dalle porte: Verify that the specific output (AC, DC, USB) is activated by pressing its respective button. Check if the connected device is working correctly.
• Protezione da sovraccarico: If an overload occurs, the unit may shut down. Disconnect some devices and restart the power station. The P280 has an overload protection button on the side.
• Problemi di ricarica: For solar charging, ensure panels are in direct sunlight and cables are securely connected. For AC charging, check the power cable and wall outlet.
• Connettività dell'app: Ensure Bluetooth is enabled on your phone and the power station is within range. Restart the app or the power station if connection issues persist.

For more detailed troubleshooting or persistent issues, please contact AFERIY customer support.

13. Specifiche

14. Garanzia e supporto

The AFERIY P280 Portable Power Station comes with a standard 2-year warranty. By contacting AFERIY customer service, you can extend this warranty up to 7 years, ensuring long-term peace of mind.

For further support, product information, or to connect with other AFERIY users, you are invited to join the official AFERIY User Group on Facebook. This community provides a platform for sharing experiences, asking questions, and staying updated on product news.

Image 13: Visual representation of the AFERIY P280's extended 7-year warranty and support.
