HOTEEL 10x20 Party Tent Outdoor Canopy Instruction Manual

1. Introduzione

This manual provides detailed instructions for the assembly, operation, and maintenance of your HOTEEL 10x20 Party Tent Outdoor Canopy. Please read all instructions carefully before setup and retain this manual for future reference.

Image: HOTEEL 10x20 Party Tent showcasing its key features: easy setup, UV protection, and waterproof design.

2. Informazioni sulla sicurezza

• Temporary Use Only: This tent is designed for temporary use. Avoid using it in heavy rain, strong winds, or other severe weather conditions.
• Installazione sicura: Always ensure the tent is properly anchored to the ground using all provided stakes and ropes to prevent collapse or damage due to wind.
• Sicurezza antincendio: Keep all heat sources and open flames away from the tent fabric. The material is not fireproof.
• Montaggio: Assembly should be performed by at least two adults. Ensure children are supervised and kept away from small parts during assembly.
• Ispezione: Ispezionare regolarmente tutti i componenti per verificare la presenza di usura o danni. Non utilizzare se una parte è danneggiata.

3. Contenuto della confezione

Before beginning assembly, verify that all components listed below are present and undamaged. Refer to the numbered labels on the poles for easy identification.

• Alloy Frame Poles (various lengths, numbered)
• Connectors (various types for corners, peaks, and joints)
• Waterproof Canopy Top
• Removable Sidewalls (6 total: 4 with clear window panels, 2 solid zippered door panels)
• Picchetti di terra
• Corde eoliche
• Chiusure a strappo
• Poggiapiedi

Immagine: Oltreview of the HOTEEL 10x20 Party Tent, showing its dimensions (10ft x 20ft, 8.6ft peak height, 6.5ft side height), capacity (20-30 people), estimated setup time (20 mins), and weight (28 lbs).

4. Istruzioni per l'installazione

Follow these steps for proper assembly of your party tent. It is recommended to have at least two people for assembly.

4.1. Guida visiva all'assemblaggio

4.2. Assemblaggio passo dopo passo

1. Preparare l'area: Choose a flat, clear area for assembly. Unpack all components and lay them out, sorting the numbered poles and connectors.
2. Montare il telaio di base: Begin by connecting the base poles according to the numbering in the instruction manual. Ensure all connections are firm.
3. Costruire la struttura del tetto: Attach the roof poles and connectors to form the top structure. The cruciform structure connectors are used for the peak.
4. Sollevare il telaio: With assistance, carefully lift the assembled frame into its upright position.
5. Fissare il telaio: Insert the foot pads onto the bottom of the vertical poles. Use the provided ground stakes to anchor each foot pad firmly into the ground. Attach wind ropes to designated points on the frame and secure them to the ground with additional stakes.

   Immagine: dettagliata view of the tent's securing components, including ground stakes (nails), wind ropes, cruciform structure connectors, hook-and-loop fasteners, and foot pads, which ensure stability.
6. Install the Canopy Top: Carefully unfold the waterproof canopy top and drape it over the entire roof frame. Ensure it is evenly distributed and secured to the frame.
7. Fissare le pareti laterali: The tent includes 6 removable sidewalls. Four sidewalls feature clear window panels, and two are solid panels with zippers that function as doors. Attach the sidewalls to the frame using the integrated hook-and-loop fasteners. Position the zippered door panels at the desired entry/exit points.

   Immagine: Un esploso view illustrating the tent frame and the six removable sidewalls, emphasizing their design for ventilation, natural light, and zippered access.

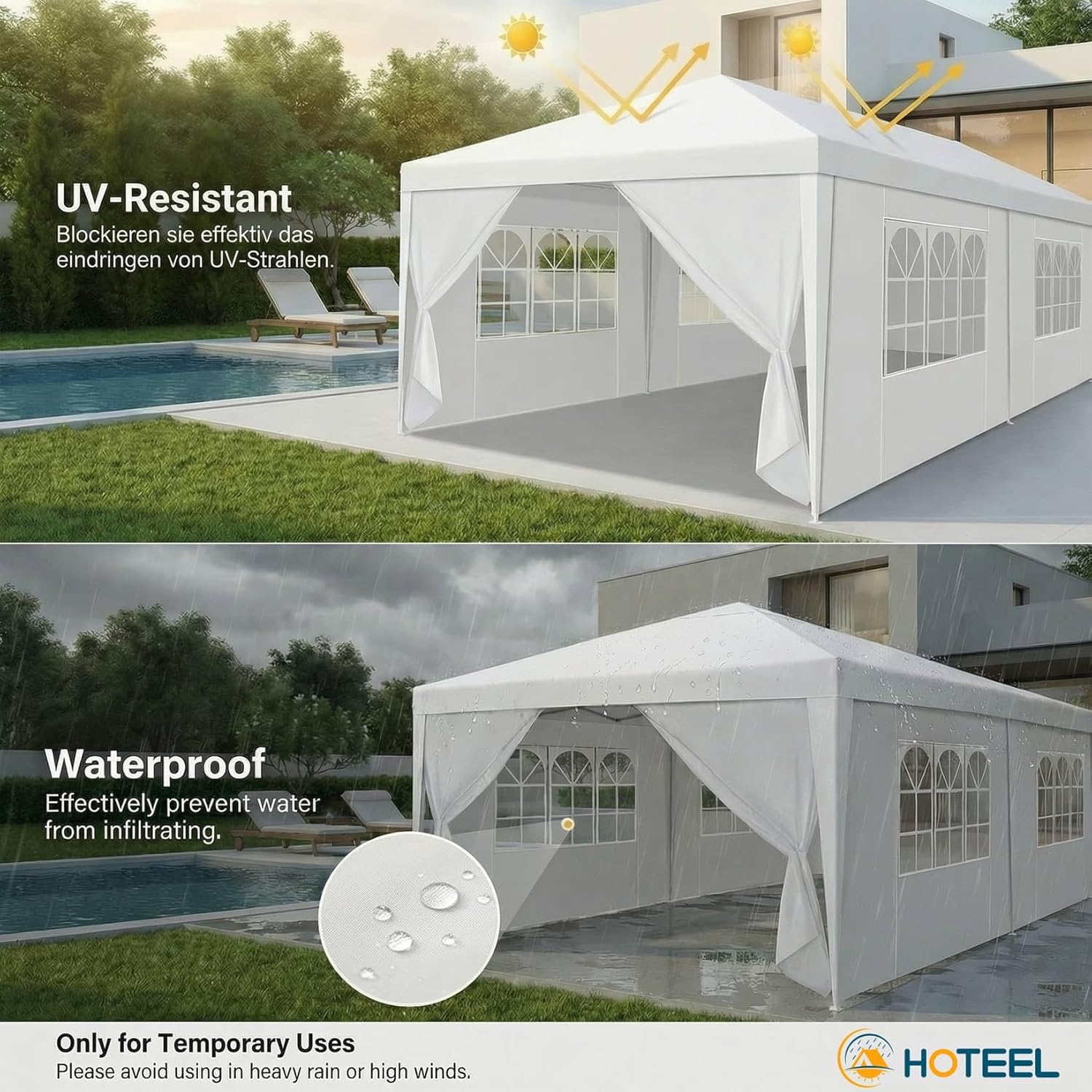

   Image: The HOTEEL 10x20 Party Tent demonstrating its UV-resistant properties against sun exposure and its waterproof capability against rain, suitable for temporary outdoor use.

5. Istruzioni per l'uso

Your HOTEEL Party Tent is designed for versatility and ease of use in various outdoor settings.

• Ventilation and Light: The removable sidewalls allow you to adjust the tent's openness. Remove sidewalls for maximum ventilation and an open-air feel. The clear window panels provide natural light while offering protection.
• Entrata e uscita: Utilize the zippered door panels for convenient entry and exit. These can be rolled up and secured when not needed.
• Adattabilità alle condizioni meteorologiche: The waterproof and UV-resistant canopy provides protection from sun and light rain. For optimal comfort, adjust sidewalls based on weather conditions (e.g., close for wind protection, open for airflow).

Image: The HOTEEL 10x20 Party Tent configured for optimal ventilation with some sidewalls removed, and showcasing the clear window panels that allow for natural light and wider views.

6. Manutenzione

• Pulizia: Clean the canopy and sidewalls with mild soap and water. Do not use harsh chemicals or abrasive cleaners, as this may damage the material. Rinse thoroughly and allow to air dry completely before storage.
• Magazzinaggio: Ensure all tent components are completely dry before disassembling and storing. Store in a cool, dry place away from direct sunlight to prolong the life of the materials.
• Cura del telaio: Wipe down the alloy frame poles with a damp cloth to remove dirt and debris. Check for any signs of rust or corrosion and address them promptly.

7. Risoluzione Dei Problemi

• Instabilità della tenda: If the tent feels unstable, re-check all pole connections and ensure all ground stakes are fully inserted and wind ropes are taut. This tent is not designed for high wind conditions.
• Perdita d'acqua: Verify that the canopy top is correctly positioned and taut, allowing water to run off. Ensure all sidewalls are properly attached and overlapping where necessary to prevent water ingress.
• Difficoltà di assemblaggio del telaio: Double-check the numbered poles against the assembly diagram. Ensure connectors are oriented correctly and fully inserted.

8. Specifiche

9. Garanzia e supporto

HOTEEL is committed to providing high-quality products and excellent customer service.

• Politica di ritorno: This product is eligible for a 30-day refund/replacement policy through Amazon. Please refer to Amazon's return policy for details.
• Assistenza clienti: If you encounter any problems or have questions regarding your HOTEEL Party Tent, please contact our service team. We aim to resolve any issues within 24 hours during working days.

Image: HOTEEL's commitment to customer satisfaction, emphasizing "Super Service" and support.
