Manuale utente della stampante termica per etichette Bluetooth Omezizy D450BT

1. Prodotto finitoview

The Omezizy D450BT is a compact Bluetooth thermal label printer designed for efficient label printing in various settings, including small businesses and home offices. It supports both Bluetooth and USB connectivity, offering versatility for different operating systems.

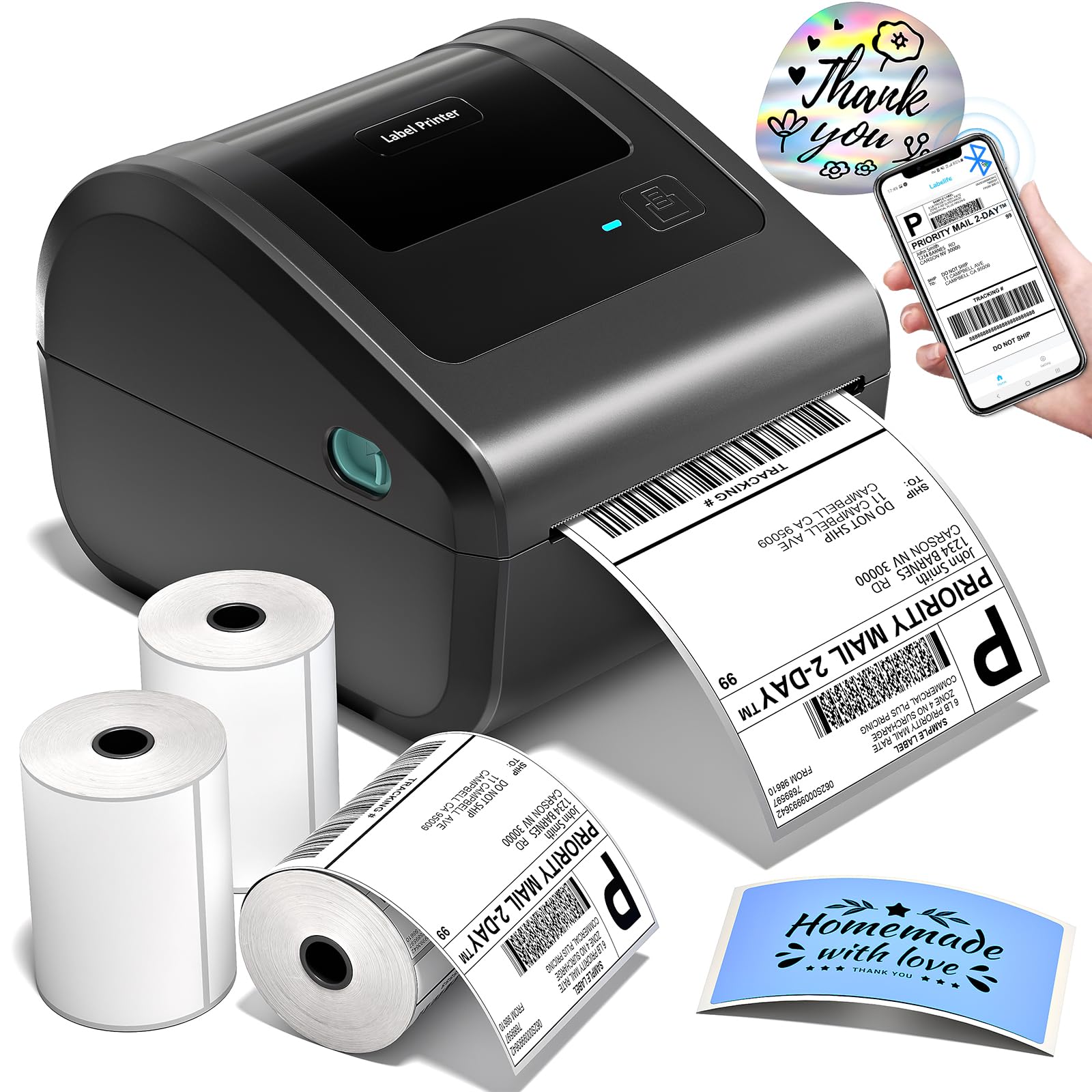

Figure 1: Omezizy D450BT Thermal Label Printer (Grey)

Cosa c'è nella scatola

Figure 2: Contents of the Omezizy D450BT printer box. Includes the printer, power adapter, USB cable, and label rolls.

Il pacchetto tipicamente include:

• Stampante termica per etichette Omezizy D450BT
• Adattatore di alimentazione e cavo
• Cavo USB
• Label Rolls (quantity may vary)
• Guida rapida

Caratteristiche della stampante

Figure 3: D450BT Bluetooth Label Printer highlighting multi-platform compatibility.

• Design compatto: Space-saving dimensions of 7.3"D x 6.3"W x 5.35"H.
• Built-in Paper Bin: For internal roll paper and rear folded paper, eliminating the need for external holders.
• Doppia connettività: Supports Bluetooth for wireless printing and USB for stable wired connections across Android, iOS, Windows, macOS, Linux, and ChromeOS.
• Stampa ad alta velocità: Up to 72 labels per minute (127mm/s).
• Alta risoluzione: 203 DPI per stampe nitide e chiare.
• Supporto versatile per etichette: Accommodates label widths from 1 to 4.6 inches, suitable for shipping, mailing, barcode, and various other labels.
• Stampa termica senza inchiostro: Uses thermal labels, requiring no ink or toner.

2. Configurazione e installazione

2.1 Collegamento della stampante

The D450BT printer offers both Bluetooth and USB connection options.

USB Connection (PC)

1. Attach the power cord to the adapter, then connect the adapter cable to the printer.
2. Connect the USB Type-C cable from the printer to your computer.
3. Turn on the power switch (I: On; O: Off) located at the rear of the printer. The indicator light on the printer will turn blue.
4. Install the printer driver on your computer. Refer to the included software CD or download the latest driver from the Omezizy websito.

Bluetooth Connection (PC/Mobile)

For Bluetooth connection, you will need to download the "Labelife" app from Google Play or the App Store for mobile devices, or use the Labelife software for PC.

1. Assicurarsi che la stampante sia accesa e che la spia luminosa sia blu.
2. On your device (PC or mobile), open the Labelife application.
3. Navigate to the printer connection settings within the app.
4. Select "Wireless connection" (Bluetooth).
5. Choose your printer from the list of available devices and click "Connect".
6. Once connected, the app will confirm the connection status. You can view device information to confirm the Bluetooth connection.

2.2 Caricamento delle etichette

The D450BT supports both roll labels (internal compartment) and fan-fold labels (rear feed).

Roll Labels Loading

1. Press the release latches on both sides of the printer to open the top cover.
2. Disassemble the paper roll holder and install the label roll onto it. Ensure the print side of the labels faces upward.
3. Insert the assembled label roll into the internal paper compartment.
4. Pull the leading edge of the labels through the paper guide until it extends slightly out of the printer's front slot. Ensure the label is straight and smooth.
5. Regolare le guide della carta in modo che si adattino perfettamente alla larghezza dell'etichetta.
6. Chiudere il coperchio della stampante finché non scatta in posizione.

Fan-Fold Labels Loading

1. Aprire il coperchio superiore della stampante.
2. Place the fan-fold labels into the rear feed slot. Ensure the print side of the labels faces upward.
3. Pull the leading edge of the labels through the paper guide until it extends slightly out of the printer's front slot. Ensure the label is straight and smooth.
4. Regolare le guide della carta in modo che si adattino perfettamente alla larghezza dell'etichetta.
5. Chiudere il coperchio della stampante finché non scatta in posizione.

3. Utilizzo della stampante

3.1 Automatic Label Recognition

The printer features an automatic label recognition function to detect label size. This is crucial when changing label types or sizes.

1. Ensure the label is inserted straight and smooth.
2. When the printer's indicator light is blue (standby mode), press and hold the Feed Button for approximately 3 seconds.
3. Release the Feed Button. The printer will automatically feed a few labels to learn the size.

Nota: Every time the continuous paper is changed to another type of paper roll, the automatic label recognition function needs to be manually operated to learn the labels.

3.2 Stampa di una pagina di prova

To verify printer functionality and label alignment:

1. Ensure the label is inserted correctly and the printer is in standby mode (blue light).
2. Double-click the Feed Button. The printer will print a test page.

3.3 Pausing and Resuming Printing

During a print job, you can pause and resume printing:

• A pausa printing: When the printer is actively printing, press the Feed Button once. The printing will stop.
• A riprendere printing: When the printer is paused, press the Feed Button once again. Printing will continue from where it left off.

4. Manutenzione

Una manutenzione regolare garantisce prestazioni ottimali e prolunga la durata della stampante.

4.1 Pulizia della testina di stampa

Clean the print head if print quality degrades (e.g., faint lines, missing dots).

1. Spegnere la stampante e scollegare il cavo di alimentazione.
2. Aprire il coperchio superiore.
3. Use an alcohol swab (70% isopropyl alcohol) to gently wipe the print head surface.
4. Lasciare asciugare completamente la testina di stampa prima di chiudere il coperchio e accendere la stampante.

4.2 Pulizia del rullo di stampa

Clean the platen roller if labels are not feeding smoothly or if there are adhesive residues.

1. Spegnere la stampante e scollegare il cavo di alimentazione.
2. Aprire il coperchio superiore.
3. Use an alcohol swab to clean the platen roller, rotating it manually to clean the entire surface.
4. Allow it to dry completely before closing the cover and turning on the printer.

5. Risoluzione Dei Problemi

Questa sezione affronta i problemi più comuni che potresti incontrare.

5.1 Problemi comuni

• Nessun potere: Ensure the power adapter is securely connected to both the printer and a working power outlet. Check the power switch is in the 'On' position.
• La stampante non si connette: For USB, ensure the cable is properly connected and drivers are installed. For Bluetooth, verify Bluetooth is enabled on your device, the printer is discoverable, and you've connected through the Labelife app/software.
• Blank Labels or Faint Prints: Check if the thermal labels are loaded with the print side facing up. Clean the print head as described in the maintenance section. Ensure you are using thermal labels.
• Le etichette non vengono alimentate correttamente: Ensure labels are inserted straight and the paper guides are adjusted to the label width. Perform automatic label recognition. Clean the platen roller if necessary.
• Printer Stops Mid-Print: Check for paper jams or low label supply. If paused, press the Feed Button to resume.

5.2 Ripristino delle impostazioni di fabbrica

If you experience persistent issues, restoring factory settings may help.

1. Spegnere la stampante.
2. Press and hold the Feed Button.
3. While holding the Feed Button, turn on the printer.
4. Continue holding the Feed Button until the red indicator light flashes 5 times.
5. Release the Feed Button. The printer will reset to factory defaults.

6. Specifiche

7. Garanzia e supporto

For warranty information, technical support, or further assistance, please refer to the official Omezizy websito o contattare direttamente il servizio clienti. Conservare la ricevuta d'acquisto per eventuali reclami in garanzia.
