Introduzione
Thank you for choosing the Leteuke Coffee Bar Cabinet. This manual provides essential information for the safe assembly, operation, and maintenance of your new cabinet. Please read these instructions thoroughly before beginning assembly and retain them for future reference.

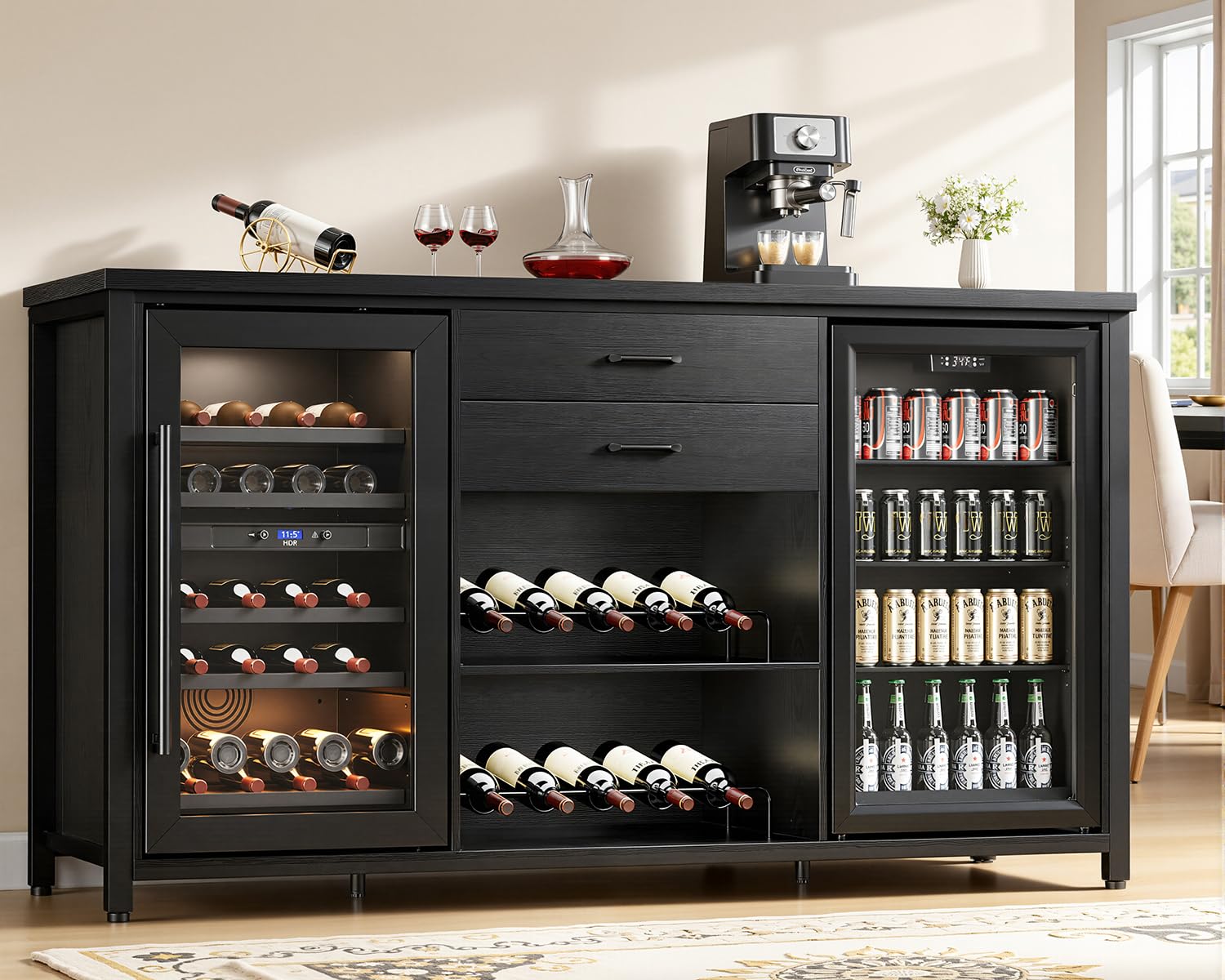

This image displays the assembled Leteuke Coffee Bar Cabinet in black, showcasing its overall design and storage compartments.
Informazioni sulla sicurezza
- Leggi tutte le istruzioni: Prima di procedere, assicurarsi di aver compreso tutti i passaggi di montaggio e le avvertenze di sicurezza.
- Limiti di peso: Do not exceed the maximum weight capacities. The countertop supports up to 160 libbre. Internal shelves support up to 130 libbre ogni.
- Dispositivo antiribaltamento: It is highly recommended to install the included anti-tip device to prevent serious injury from tipping furniture.
- Posizionamento corretto: Posizionare il mobile su una superficie piana, stabile e livellata.
- Sicurezza elettrica: When using the built-in charging station, ensure all connected devices are compatible with the power specifications. Do not overload the outlets.
- Sicurezza dei bambini: Keep small parts and packaging materials away from children. Do not allow children to climb on or play with the cabinet.
This diagram illustrates the precise measurements of the cabinet, including its width, depth, and height, along with the maximum weight capacities for the countertop (160 lbs) and internal shelves (130 lbs). It also specifies the dimensions for the fridge spaces and drawers.
Contenuto della confezione
Your Leteuke Coffee Bar Cabinet is delivered in two separate packages, which may arrive on different days. Please ensure all parts are present before beginning assembly. The package should include:
- Tutti i pannelli in legno ingegnerizzato necessari per la struttura del mobile.
- 2 Doors with hardware.
- 2 Drawers with slides and handles.
- 2 Removable wooden shelves.
- 2 Wine racks (5-bottle capacity each).
- 3 Rows of glass holders.
- Built-in power station with 2 AC outlets, 1 USB port, and 1 Type-C port.
- Ferramenta di montaggio (viti, tasselli, serrature a camma, ecc.).
- Manuale d'uso (questo documento).
- Anti-tip restraint kit.
This graphic indicates that the cabinet components are shipped in two distinct packages, which may arrive on different days for safe and convenient delivery.
Istruzioni di montaggio
Assembly typically requires one person and approximately 1-2 hours. A Phillips head screwdriver and a hammer (not included) may be needed. Follow the step-by-step diagrams provided in the separate assembly guide for detailed instructions.
- Disimballare e identificare le parti: Carefully unpack all components and hardware. Lay them out on a clean, soft surface to prevent scratches. Verify all parts against the parts list in the assembly guide.
- Assemblare la base: Fissare i pannelli laterali al pannello inferiore utilizzando la ferramenta fornita. Assicurarsi che tutti i collegamenti siano ben saldi.
- Installare divisori interni e ripiani: Secure the central dividers. Insert the wine racks into their designated slots. The two wooden shelves are adjustable; choose your desired height or remove them if installing a mini-fridge.
- Montare i cassetti: Construct the two drawers and install the drawer slides onto both the drawers and the cabinet frame.
- Fissare il pannello posteriore: Fissare il pannello posteriore al telaio del mobile.
- Installa le porte: Attach the doors to the cabinet using the hinges. Adjust hinges as needed for proper alignment.
- Installare i portabicchieri: Secure the glass holders under the top panel in the designated area.
- Installare la centrale elettrica: Carefully insert the built-in power station into the pre-cut opening on the countertop. Ensure it is flush and secure.
- Fissare il dispositivo antiribaltamento: Securely attach the anti-tip device to the cabinet and to a wall stud as per the instructions provided with the kit. This step is crucial for safety.
Nota importante: The cabinet features two dedicated fridge spaces (20"W x 21.2"D x 34"H). Please measure your mini-refrigerator to ensure it fits these dimensions before installation. Fridges are not included with the cabinet.
Istruzioni per l'uso
Utilizzo della stazione di ricarica integrata
The cabinet includes a built-in power station for convenient charging of electronic devices or powering small appliances like coffee makers.
- Connettiti all'alimentazione: Plug the cabinet's power cord (4.9ft) into a standard wall outlet.
- Porte disponibili: The station provides 2 AC outlets, 1 USB port, and 1 Type-C port.
- Utilizzo: Connect your devices or appliances to the appropriate ports. Ensure devices are within the power station's rated capacity.
This image shows the integrated power station located on the cabinet's countertop, featuring two AC outlets, one USB port, and one Type-C port, along with its 4.9ft power cord.
Regolazione degli scaffali
The two wooden shelves are removable and offer adjustable height options (up to 10 inches) to customize your storage space. To adjust:
- Empty the shelf of all items.
- Sollevare con cautela il ripiano e rimuoverlo dai suoi attuali supporti.
- Spostare i supporti dei ripiani all'altezza desiderata.
- Place the shelf back onto the new supports, ensuring it is stable and level.

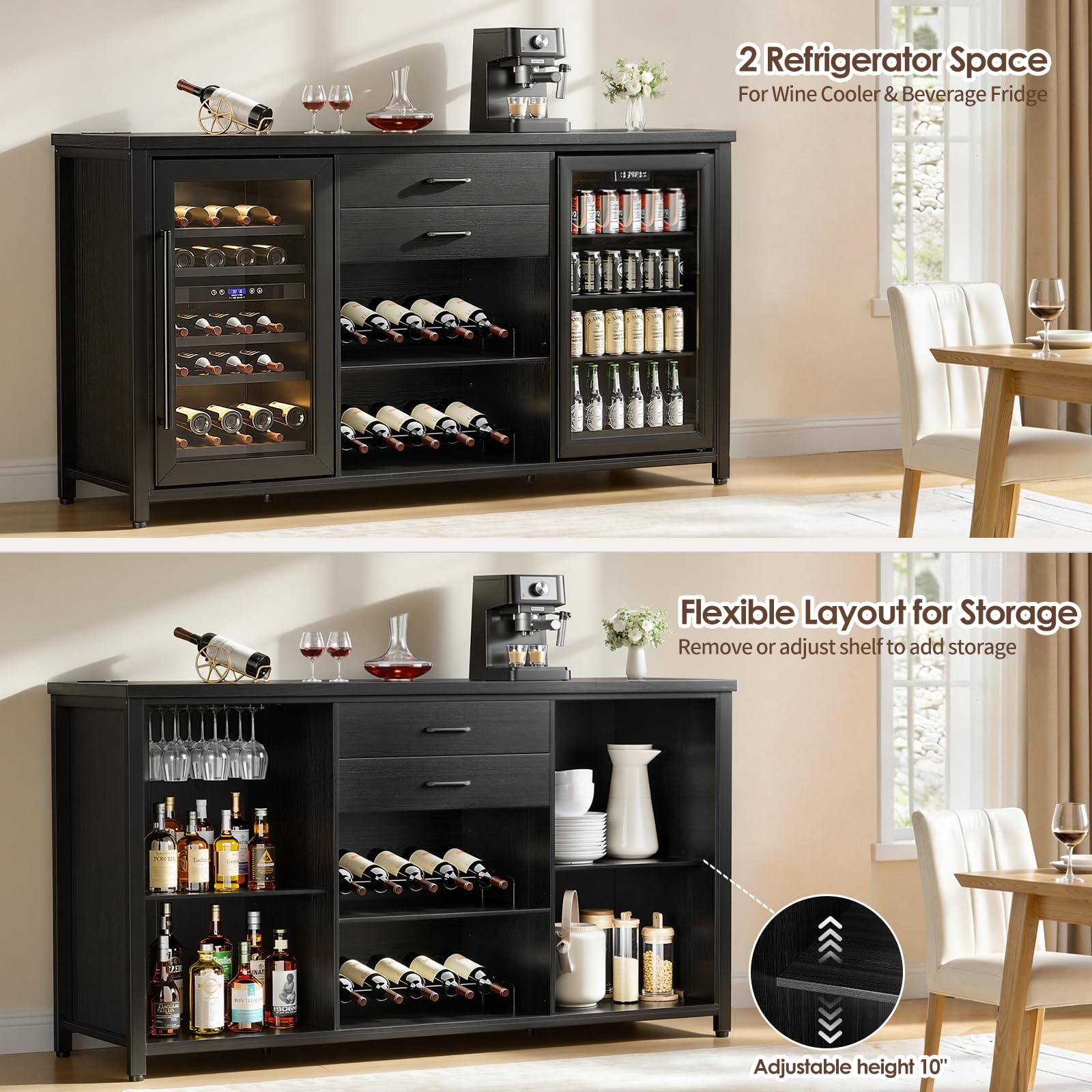

This image illustrates the versatility of the cabinet's storage, showing how the removable wooden shelves can be adjusted by 10 inches in height to accommodate various items, or removed entirely to fit a mini-fridge.
Utilizzo delle funzionalità di archiviazione
- Fridge Spaces: The two large compartments are designed to accommodate most standard mini-fridges (max dimensions: 20"W x 21.2"D x 34"H).
- Portabottiglie: The central section features two 5-bottle wine racks for organized storage of wine bottles.
- Portabicchieri: Three rows of glass holders are integrated for hanging wine glasses or other stemware.
- Cassetti: Two storage drawers provide space for smaller items, accessories, or utensils.
This image highlights the various functional elements of the cabinet: two dedicated fridge spaces, a 10-bottle wine rack, a built-in power station, two storage drawers, and integrated wine glass holders.
Manutenzione e cura
Una cura adeguata prolungherà la durata e l'aspetto del tuo mobile.
- Pulizia: Pulire le superfici con un panno morbido, damp panno. Evitare l'uso di prodotti chimici aggressivi, detergenti abrasivi o lucidanti che potrebbero danneggiare la finitura.
- Fuoriuscite: Pulire immediatamente eventuali fuoriuscite per evitare macchie o danni al legno ingegnerizzato.
- Spolverare: Spolverare regolarmente con un panno asciutto e morbido.
- Evitare la luce solare diretta: L'esposizione prolungata alla luce solare diretta può causare sbiadimento o scolorimento.
- Controllare le connessioni: Controllare periodicamente tutte le viti e gli elementi di fissaggio per assicurarsi che siano ben serrati. Serrarli nuovamente se necessario.
Risoluzione dei problemi
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Il mobile sembra traballante o instabile. | Elementi di fissaggio allentati; pavimento irregolare. | Ensure all screws and cam locks are tightened. Adjust leveling feet if present, or place shims under the base on uneven floors. Install the anti-tip device. |
| I cassetti non scorrono agevolmente. | Improperly installed drawer slides; obstruction. | Check that drawer slides are correctly aligned and securely fastened. Ensure no objects are obstructing the drawer's path. |
| Le porte sono disallineate o non si chiudono correttamente. | Le cerniere sono allentate o regolate in modo errato. | Adjust the screws on the hinges to align the doors. Refer to the assembly guide for hinge adjustment details. |
| Le prese di corrente non funzionano. | Cabinet not plugged in; circuit breaker tripped; faulty device. | Ensure the cabinet's power cord is securely plugged into a functional wall outlet. Check your home's circuit breaker. Test with a different device to rule out a faulty appliance. |
Specifiche
- Marca: Leteuke
- Numero modello: IF260004
- Materiale: Legno ingegnerizzato
- Colore: Nero
- Dimensioni complessive (L x P x A): 70.87" x 21.65" x 39.37"
- Fridge Space Dimensions (W x D x H): 20" x 21.2" x 34" (ciascuno)
- Countertop Weight Capacity: 160 libbre
- Capacità di peso dello scaffale: 130 libbre (ciascuno)
- Numero di cassetti: 2
- Numero di ripiani: 2 (regolabile)
- Wine Rack Capacity: 10 bottles (two 5-bottle racks)
- Stazione di ricarica: 2 prese CA, 1 porta USB, 1 porta di tipo C
- Lunghezza del cavo di alimentazione: 4.9 piedi
- Peso dell'articolo: 98.3 libbre
This image demonstrates the compatibility of the cabinet's fridge spaces with different types of mini-fridges, including freestanding wine cellars, beverage refrigerators, compact refrigerators, and upright freezers. Users should measure their appliance to ensure fit.
Garanzia e supporto
Specific warranty details are not provided within this user manual. For warranty information, replacement parts, or technical support, please contact Leteuke customer service through the retailer where the product was purchased or visit the official Leteuke brand store online.
Informazioni sui contatti: Fare riferimento alla documentazione di acquisto o a quella del rivenditore websito per i dettagli di contatto più aggiornati dell'assistenza clienti.
