LONTEK SF20

LONTEK SF20 3-in-1 Foldable Treadmill Instruction Manual

Modello: SF20

Introduzione

Thank you for choosing the LONTEK SF20 3-in-1 Foldable Treadmill. This manual provides essential information for the safe and effective use of your new fitness equipment. The SF20 is designed for versatile workouts, offering walking, jogging, and running modes with a manual incline system up to 15%. Its compact, foldable design makes it suitable for both home and office environments.

Informazioni sulla sicurezza

Prima di utilizzare il tapis roulant, leggere attentamente tutte le istruzioni di sicurezza. Il mancato rispetto di queste istruzioni può causare lesioni o danni al prodotto.

  • Consultare sempre un medico prima di iniziare un nuovo programma di esercizi.
  • Posizionare il tapis roulant su una superficie piana e stabile, con spazio sufficiente attorno.
  • Tenere i bambini e gli animali domestici lontani dal tapis roulant durante il funzionamento.
  • Utilizzare sempre la chiave di sicurezza. Fissare la clip ai vestiti prima di iniziare l'allenamento.
  • Indossare calzature sportive adatte.
  • Non utilizzare il tapis roulant se è danneggiato o non funziona correttamente.
  • La capacità massima di peso dell'utente è di 300 libbre.

Impostare

The LONTEK SF20 treadmill features a foldable design for easy setup and storage. Follow these steps for initial assembly and incline adjustment:

  1. Apertura del tapis roulant: Estrarre con cautela il tapis roulant dalla sua posizione di stoccaggio compatta. Assicurarsi che tutti i meccanismi di bloccaggio siano saldamente inseriti prima dell'uso.
  2. Regolazione delle maniglie: The handles can be adjusted by turning the easy-to-use knobs. Loosen the knobs, adjust the handles to your desired position, and then tighten the knobs to secure them.
  3. Setting the Incline: The treadmill offers a multi-stage manual incline from 0% to 14%. To adjust the incline, locate the adjustment points at the rear of the treadmill. You can use the included accessory to boost the incline to a steeper 14% gradient. Ensure the treadmill is stable after adjusting the incline.
  4. Livellamento del tapis roulant: If your floor is uneven, use the adjustable feet at the bottom of the treadmill to ensure it is stable and flat on the surface.
Foldable design of the LONTEK SF20 treadmill, showing it in an upright folded position and a flat folded position.
Figure 1: The foldable design allows for easy storage and movement.
Close-up of the treadmill's handle adjustment knob and the screws for securing the console in place.
Figure 2: Detail of the portable design and installation points for the console.
Diagram showing the manual incline adjustment from 0% to 14% with corresponding calorie burn estimates.
Figure 3: Manual incline adjustment options for varied workout intensity.

Istruzioni per l'uso

The SF20 treadmill offers multiple modes and a user-friendly control console to track your progress.

  1. Accensione/spegnimento: Connect the power cord and press the power button on the console to turn the treadmill on or off.
  2. Chiave di sicurezza: Always attach the safety key to your clothing and place it on the designated spot on the console before starting. Removing the safety key will immediately stop the treadmill.
  3. Iniziare un allenamento: Press the 'Start' button to begin. The belt will start moving at a low speed.
  4. Regolazione della velocità: Use the '+' and '-' buttons to increase or decrease the speed. Quick speed buttons (e.g., '3/6') allow for instant changes to preset speeds. The treadmill supports speeds from 0.6 to 7.5 MPH.
  5. Modalità di allenamento: The treadmill supports walking (0.6-2.5 MPH), jogging (2.5-5 MPH), and running (5-7.5 MPH) modes. You can select different programs and settings using the 'P/M' button.
  6. Monitoraggio dei progressi: The three-screen display shows time, speed, distance, and calories burned.
  7. Interruzione di un allenamento: Press the 'Stop' button or pull the safety key to stop the treadmill.
Close-up of the treadmill's control console with digital displays for speed, time, and calories, along with various control buttons.
Figure 4: The control console displays key workout metrics and features quick-access buttons.
Three images showing a person using the treadmill in walking, jogging, and running modes, with speed ranges indicated for each.
Figure 5: The treadmill supports walking, jogging, and running modes for varied exercise routines.
Video 1: This video demonstrates the features of the LONTEK SF20 treadmill, including its display, controls, and folding mechanism, highlighting its suitability for home use.

Manutenzione

Una manutenzione regolare garantisce la longevità e le prestazioni ottimali del tuo tapis roulant.

  • Pulizia: Pulisci il tapis roulant con un pannoamp Dopo ogni utilizzo, rimuovere il sudore e la polvere con un panno. Non utilizzare detergenti abrasivi.
  • Lubrificazione della cinghia: Periodically lubricate the running belt according to the instructions provided in the separate lubrication guide (if applicable) or as recommended by the manufacturer.
  • Allineamento della cinghia: If the running belt shifts to one side, adjust it using the provided tools and following the instructions on the warning stickers or in the detailed manual.
  • Cura del motore: The 3.0HP brushless motor is designed for quiet operation and a long lifespan (3500+ hours). Keep the motor area free from dust and debris.
Diagram illustrating the internal components of the 3.0HP powerful quiet brushless motor, highlighting its low noise and long lifespan.
Figure 6: The 3.0HP powerful quiet brushless motor ensures smooth and silent operation.

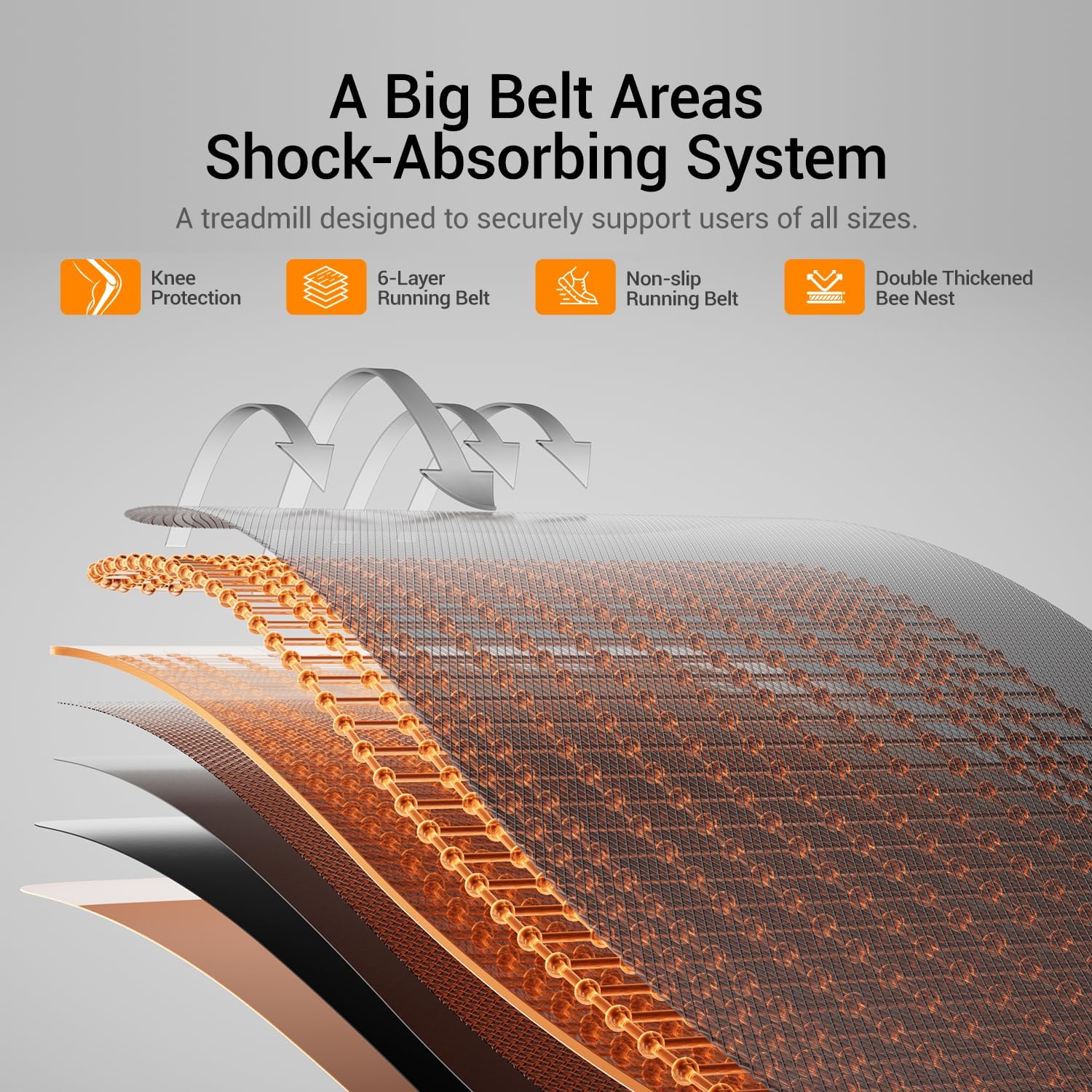

Cross-section diagram of the treadmill's running belt, showing multiple layers for knee protection, 6-layer running belt, non-slip surface, and double thickened bee nest structure for shock absorption.
Figure 7: The advanced shock-absorbing system provides knee protection and a comfortable running surface.

Risoluzione dei problemi

If you encounter issues with your LONTEK SF20 treadmill, refer to the following common problems and solutions:

ProblemaPossibile causaSoluzione
Il tapis roulant non si avviaCavo di alimentazione non collegato, chiave di sicurezza non inserita, interruttore di alimentazione spento.Assicurarsi che il cavo di alimentazione sia collegato saldamente, che la chiave di sicurezza sia posizionata correttamente e che l'interruttore di alimentazione sia acceso.
Belt stops unexpectedlySafety key dislodged, motor overload.Re-attach safety key. If motor overload, reduce speed or incline and try again.
Rumore insolito durante il funzionamentoLoose parts, belt misalignment, lack of lubrication.Check for and tighten any loose parts. Adjust belt alignment as per instructions. Lubricate the running belt.
Error Codes (e.g., E04, E07)Malfunzionamento del sistema, problema al sensore.Turn off the treadmill, unplug it for 5 minutes, then plug it back in and restart. If the error persists, contact customer support.

Specifiche

Key technical specifications for the LONTEK SF20 3-in-1 Foldable Treadmill:

  • Nome modello: SF20
  • Marca: LONTEK
  • Colore: Nero scuro
  • Dimensioni del prodotto: 47.2"P x 5.5"L x 24.6"A
  • Materiale: Metallo
  • Velocità massima: 7 miglia all'ora
  • Caratteristica speciale: Pieghevole
  • Pubblico di destinazione: Adulto
  • Potenza massima: 3 cavalli
  • Percentuale di inclinazione massimatage: 15% (manuale)
  • Fonte di energia: Elettrico con cavo
  • Componenti inclusi: Kit di strumenti
  • Metriche misurate: Velocità, tempo, distanza, calorie
  • Consiglio di peso massimo: 300 libbre
A person running on the treadmill with 'MAX Weight Capacity 400LBS' text overlay, indicating the treadmill's robust build.
Figure 8: The treadmill is designed to support users up to 300 lbs.
Image showing the dimensions of the treadmill's wide belt: 37.48 inches by 14.96 inches.
Figure 9: The treadmill features a wide running belt for comfortable use.

Garanzia

The LONTEK SF20 3-in-1 Foldable Treadmill comes with a Garanzia di 1 anno. This warranty covers manufacturing defects and ensures the product is free from defects in material and workmanship under normal use and service. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the warranty card included with your product or contact customer support.

Supporto

For any questions, technical assistance, or warranty claims, please contact LONTEK customer support. You can find contact information on the official LONTEK websito o tramite il rivenditore presso cui hai acquistato il prodotto.

Please have your model number (SF20) and proof of purchase ready when contacting support to ensure efficient service.
