SEESII Cordless Portable Washer Model S005 User Manual

1. Introduzione

Thank you for choosing the SEESII Cordless Portable Washer Model S005. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your new portable power cleaner. Please read this manual thoroughly before first use and retain it for future reference.

The SEESII S005 is designed for versatile cleaning tasks, offering cordless convenience for washing vehicles, patios, garden tools, and more. Its lightweight design and dual battery system ensure extended use and ease of handling.

2. Importanti istruzioni di sicurezza

AVVERTENZA: leggere tutte le avvertenze di sicurezza, le istruzioni, le illustrazioni e le specifiche fornite con questo utensile elettrico. La mancata osservanza di tutte le istruzioni elencate di seguito può causare scosse elettriche, incendi e/o lesioni gravi.

• Always wear appropriate eye protection (safety glasses) and protective clothing when operating the washer.
• Do not direct the water spray at people, pets, electrical devices, or the unit itself.
• Tenere i bambini e gli astanti lontani dall'area operativa.
• Ensure the battery is fully charged before use and stored in a dry, cool place.
• Do not operate the washer if any part is damaged. Contact customer support for assistance.
• Use only manufacturer-approved accessories and replacement parts.
• Disconnect the battery pack before making any adjustments, changing accessories, or storing the power tool.
• Avoid spraying flammable liquids or using the washer in explosive atmospheres.

3. Contenuto della confezione

Verifica che tutti gli articoli siano presenti nel tuo pacco:

• SEESII Cordless Portable Washer Gun
• 2 batterie agli ioni di litio da 4000 mAh
• Caricabatterie
• 6-in-1 Multi-function Nozzle
• 27FT Water Inlet Hose with Filter
• Foam Cannon Attachment
• Various Water Source Adapters (Faucet, Garden Hose, Quick Release, Soda Bottle)
• Manuale d'uso

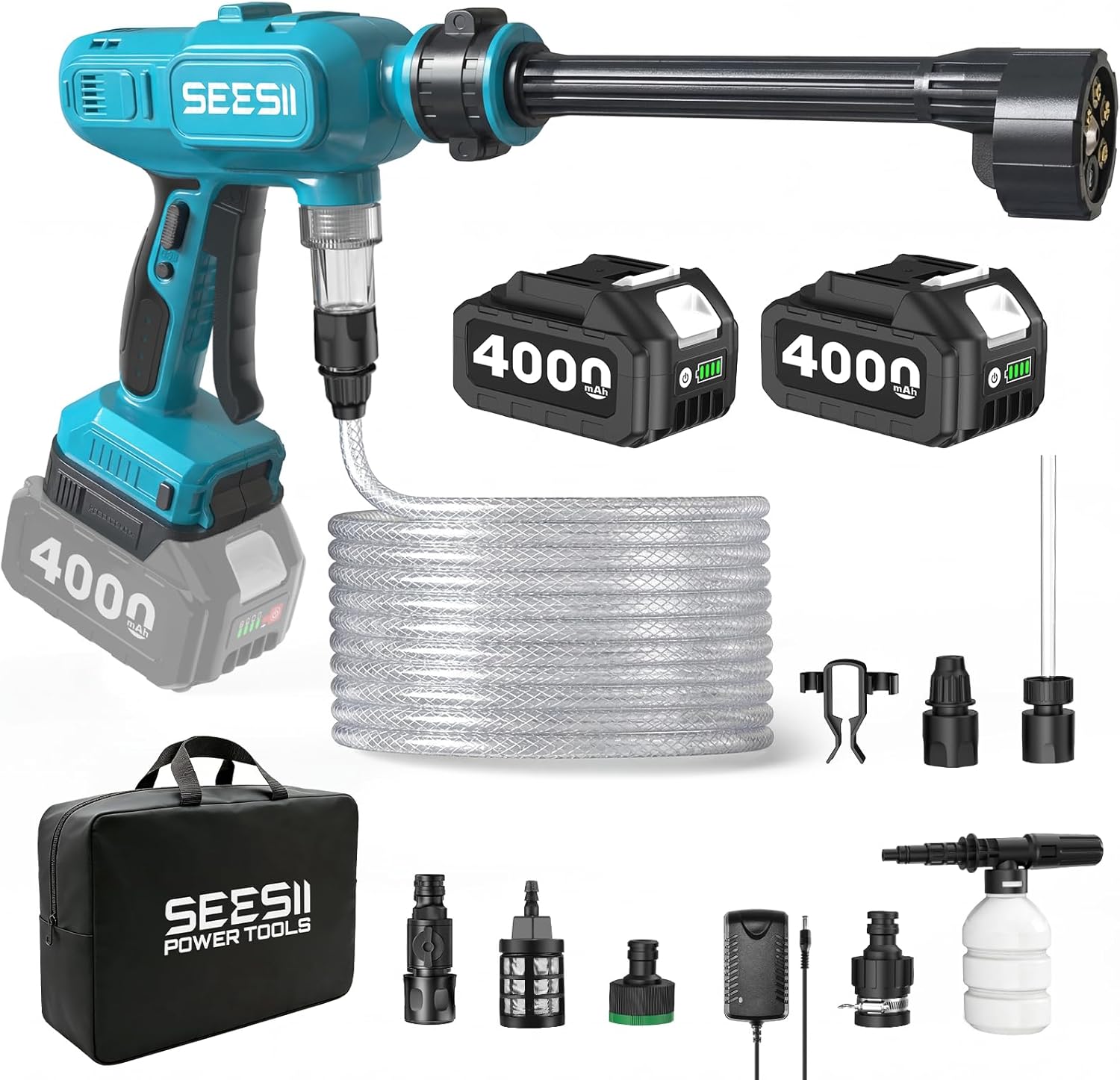

Image: The SEESII Cordless Portable Washer with its main components, including the gun, battery, hose, and nozzle.

4. Caratteristiche del prodotto

• Design senza fili e portatile: Offers freedom from power cords, allowing use in various locations.
• Doppia batteria da 4000 mAh: Provides up to 60 minutes of continuous operation for extended cleaning tasks.
• Extended 27FT Hose: Allows for flexible water sourcing from buckets, pools, or other containers without moving the main unit.
• Lightweight Operation: Weighs approximately 3 lbs, ensuring comfortable handling for prolonged use.
• Versatile 6-in-1 Nozzle: Easily switch between different spray patterns (0°, 15°, 25°, 40°, Shower, Foam) for various cleaning needs.
• Multiple Water Source Options: Compatible with buckets, pools, rivers, garden hoses, faucets, and even standard soda bottles for quick cleanups.

5. Guida all'installazione

5.1 Ricarica delle batterie

Before first use, fully charge both 4000mAh batteries. Insert the battery into the charger, then plug the charger into a power outlet. The indicator light on the charger will show the charging status.

Image: Two 4000mAh batteries connected to the charger on a workbench, indicating the charging process.

5.2 Collegamento del tubo di alimentazione dell'acqua

The 27FT water inlet hose allows you to draw water from various sources. Ensure the filter head is securely attached to one end of the hose.

1. Attach the quick-connect fitting of the hose to the water inlet port on the bottom of the washer gun.
2. Place the filter end of the hose into your chosen water source (e.g., bucket, pool, river). Ensure the filter is fully submerged to prevent air intake.

Image: The water inlet hose with its weighted filter head submerged in a swimming pool, demonstrating water sourcing.

5.3 Using Adapters for Faucet or Garden Hose

For direct connection to a faucet or garden hose, use the appropriate adapters included in your kit.

Image: A diagram showing the faucet-compatible design and various adapters for connecting to a water tap.

Image: A diagram illustrating how to connect the washer to a standard garden hose using the provided adapters.

5.4 Attaching the Nozzle and Accessories

1. Align the 6-in-1 nozzle with the front of the washer gun and push it firmly until it clicks into place.
2. To change spray patterns, rotate the nozzle head to select the desired setting (0°, 15°, 25°, 40°, Shower, Foam).
3. For foam application, attach the foam cannon accessory to the washer gun. Fill the foam cannon with appropriate detergent before attaching.

Immagine: Un dettaglio view of the 6-in-1 nozzle, showcasing its various spray patterns for different cleaning tasks.

Image: The foam cannon attachment connected to the washer, ready for applying cleaning solutions.

6. Istruzioni per l'uso

6.1 Accensione e preparazione

1. Ensure a charged battery is securely inserted into the washer gun.
2. Submerge the filter end of the hose into your water source.
3. Press and hold the trigger. It may take a few seconds for water to be drawn through the hose and for the unit to prime. Once a steady stream of water is achieved, the washer is ready for use.

6.2 Utilizzo dell'ugello 6 in 1

Rotate the nozzle head to select the desired spray pattern:

• 0° (getto diretto): For concentrated cleaning on tough spots. Use with caution on delicate surfaces.
• 15° (Narrow Fan): Ideal for targeted cleaning of stubborn dirt.
• 25° (Medium Fan): Suitable for general cleaning of surfaces like patios and driveways.
• 40° (Wide Fan): Best for rinsing and cleaning larger, less soiled areas.
• Doccia: Gentle spray for watering plants or light rinsing.
• Schiuma: For use with the foam cannon attachment to apply detergent.

Image: A close-up showing the different spray patterns available on the 6-in-1 nozzle.

6.3 General Cleaning Applications

The SEESII S005 is suitable for a variety of outdoor cleaning tasks:

• Lavaggio auto: Use a wide fan spray for rinsing and the foam setting with detergent for cleaning.
• Pulizia di patii e terrazze: Use a medium fan spray to remove dirt and grime.
• Garden Tools and Furniture: A medium or wide fan spray is effective for cleaning.
• House Exterior: For light cleaning of siding, use a wide fan spray.

Image: A woman using the portable washer to clean a car, demonstrating its ease of use for vehicle maintenance.

Image: A man using the portable washer to clean a wooden deck, highlighting its effectiveness for outdoor surfaces.

Image: A man cleaning the exterior wall of a house, showcasing the washer's utility for home maintenance.

7. Manutenzione

7.1 Dopo ogni utilizzo

• Rinse the System: Far scorrere acqua pulita nella lavatrice per alcuni minuti per eliminare eventuali residui di detersivo o detriti.
• Pulisci il filtro: Remove the filter from the water inlet hose and rinse it thoroughly to remove any trapped particles.
• Scaricare l'acqua: Disconnect the hose and nozzle, and allow any remaining water to drain from the unit.
• Pulisci: Clean the exterior of the washer gun and accessories with a damp stoffa.

7.2 Cura e conservazione della batteria

• Conservare le batterie in un luogo fresco e asciutto, lontano dalla luce solare diretta e da temperature estreme.
• Non conservare le batterie scariche per periodi prolungati. Ricaricarle periodicamente se non vengono utilizzate.
• Evitare di esporre le batterie all'acqua o all'umidità.

8. Risoluzione Dei Problemi

9. Specifiche

10. Garanzia e supporto

For warranty information, technical support, or to purchase replacement parts, please contact SEESII customer service through the retailer where you purchased the product or visit the official SEESII store online. Keep your purchase receipt as proof of purchase.

Visitare il Negozio Seesii per ulteriori informazioni.
